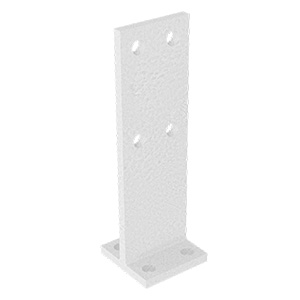

T-Blade Post Support

Sizes

Disclaimer: We recommend to read the T-Blade Technical Data Sheet (TDS) to ensure effective and compliant installation of the T-Blade System. All sizes available in Stainless Steel for increased corrosion resistance in coastal environments.

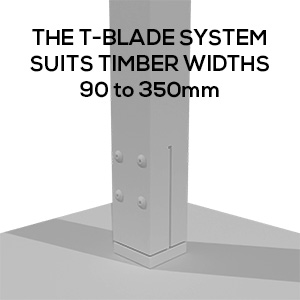

Select Timber Post Size

Timber Width (mm)

90 – 110mm

110 – 150mm

150 – 180mm

180 – 230mm

230 – 250mm

250 – 350mm

T-Blade

Hot-Dipped Galvanised,
BLACKOUT or Stainless Steel

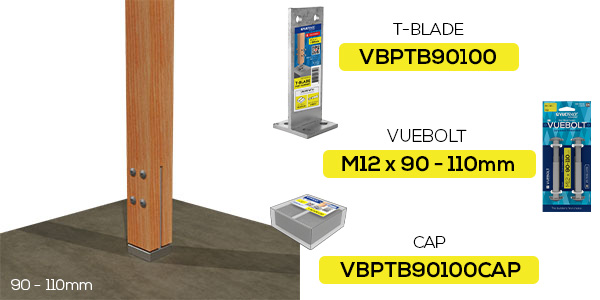

VBPTB90100

VBPTB115140

VBPTB150180

VBPTB180200

VBPTB250350

T-Blade Cap

BLACKOUT or
316 Stainless Steel

VBPTB90100CAP

VBPTB115140CAP

VBPTB150180CAP

VBPTB180200CAP

VBPTB250350CAP

VUEBOLT

Zinc-Nickel Coated, BLACKOUT or
316 Stainless Steel

M12 x 90–110mm

M16 x 110–150mm

M16 x 150–230mm

No VUEBOLT available

M20 x 230–360mm

T50 Star Drive Wrench

Suits all VUEBOLT sizes

VTX50

* The largest size timber that can be secured on a VBPTB 180200 post with a VUEBOLT is 230mm square. This support can secure up to 250mm size timber using other appropriate M16 bolts fastened with hex nuts
