DOUBLE T-BLADE POST SUPPORTS

Find A Stockist

VUETRADE Double T-Blade Post Supports are strong support solutions ideal for fixing timber posts, by bolting onto concrete or cast into concrete.

Provides 75mm min clearance required by AS3660 for termite inspection.

• Concealed welds between vertical and horizontal plates
• Use M16 bolts on both blade and base
• 10.0mm thick steel blade and base
• Easy install
• Galvanised finish for durability and long-life

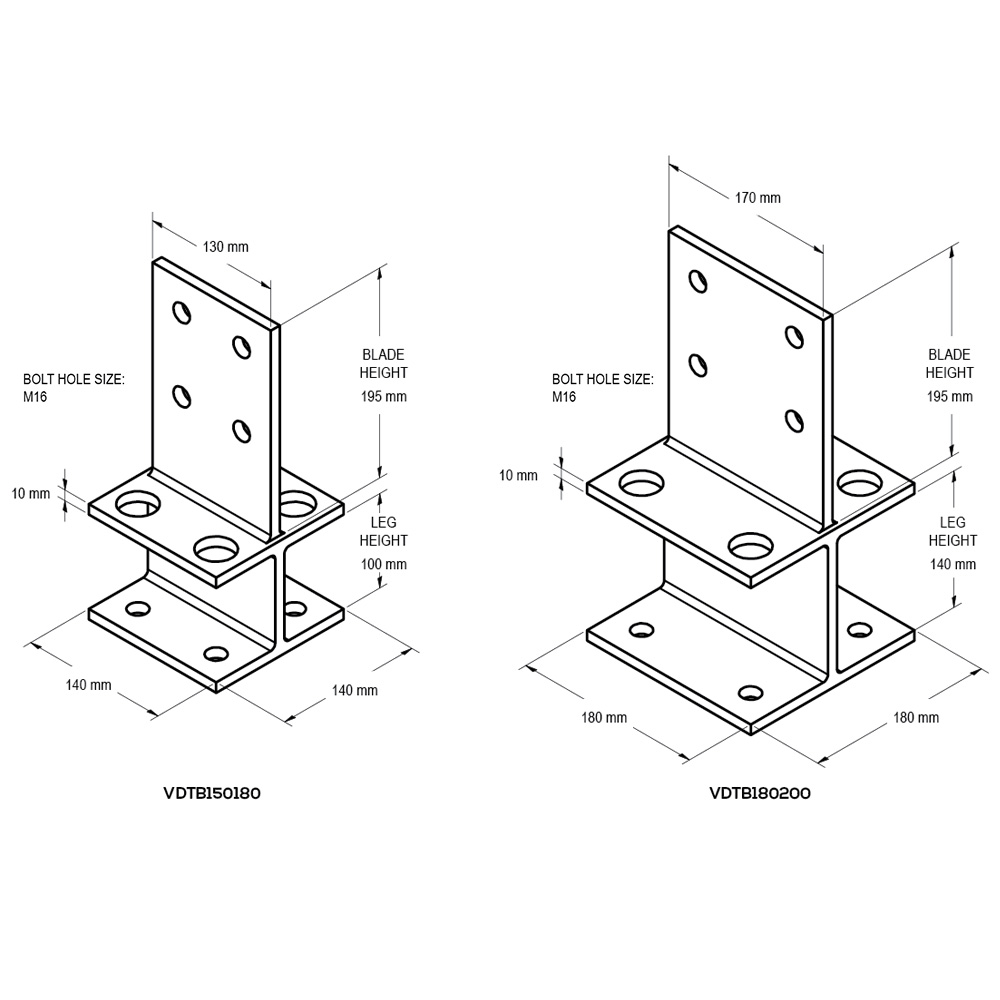

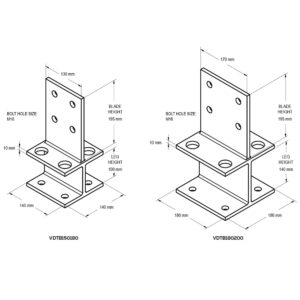

Product Code(s)SizeMetal ThicknessBolt/Fixing SizeQty
VDTB150180140mm x 140mm - 150mm Blade - 100mm LegBlade: 10.0mm
Base: 10.0mm
Base: M16
Blade: M16
1
VDTB180200180mm x 180mm - 200mm Blade - 150mm LegBlade: 10.0mm
Base: 10.0mm
Base: M16
Blade: M16
1
