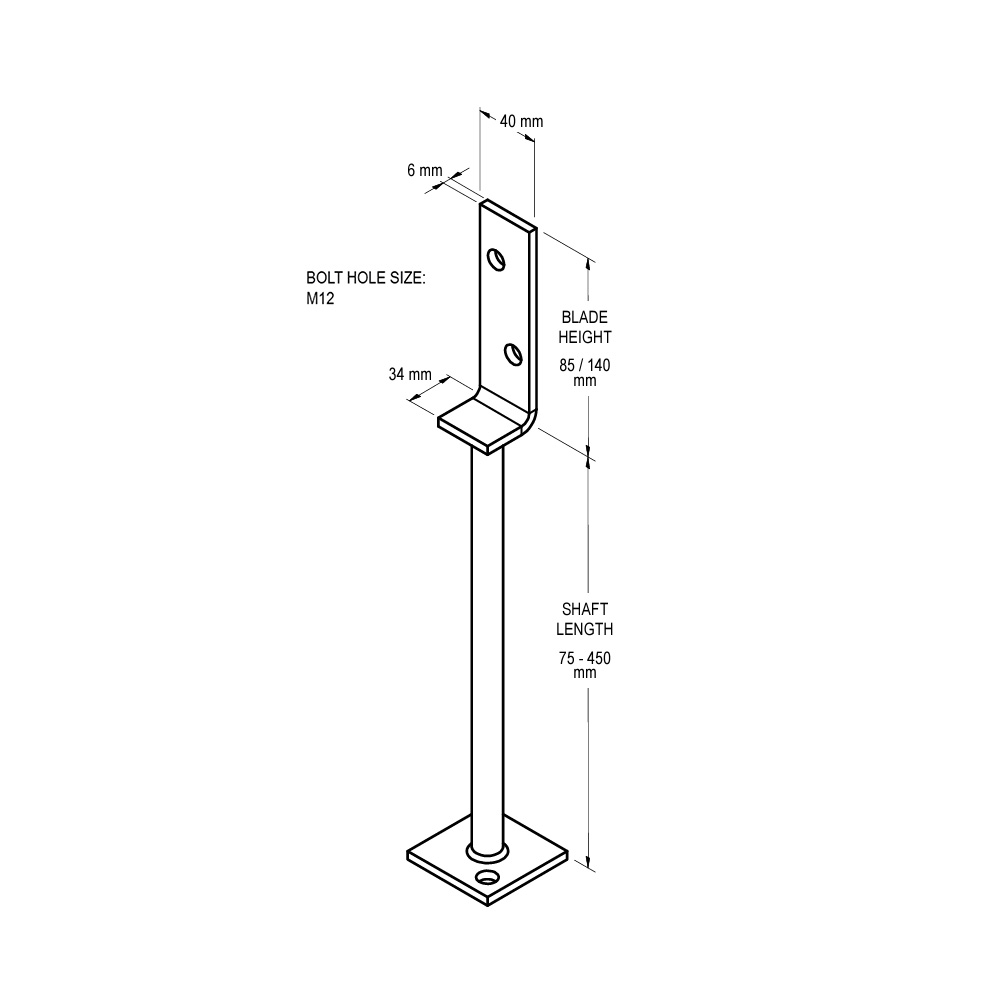

VUETRADE L Stirrup Post Supports are strong connectors ideal for fixing timber joists and stair stringers, setting into concrete.
• Suitable for application where horizontal timbers, commonly used for sleepers or horizontal beams
• Suitable for use with M12 bolts
• Concealed welds between vertical and horizontal plates
• Stirrups available in 450mm
• Blades available in either 85mm or 140mm
• Easy install
• Galvanised finish for durability and long-life
Product Code(s) | Size | Bolt/Fixing Size | Qty |
---|---|---|---|

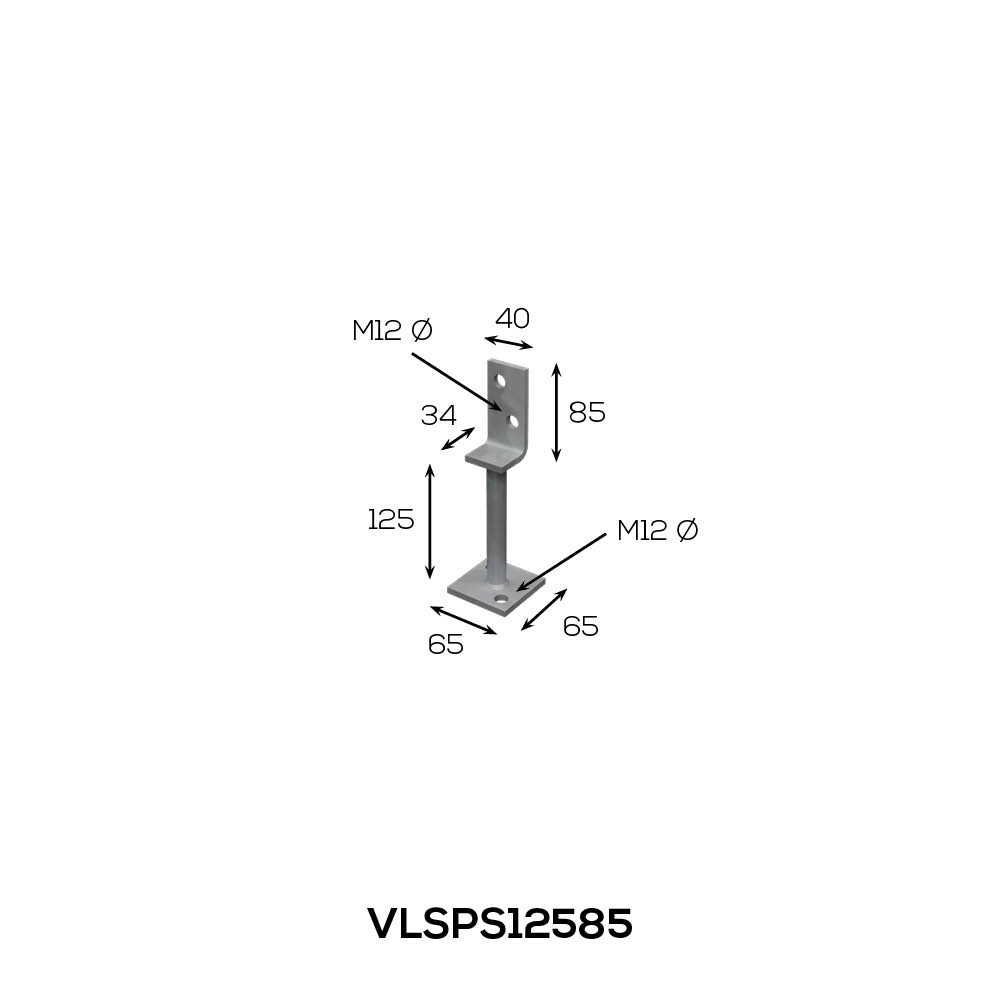

VLSPS12585 | 125mm - L Stirrup - 85mm BLADE | M12 | 10 |

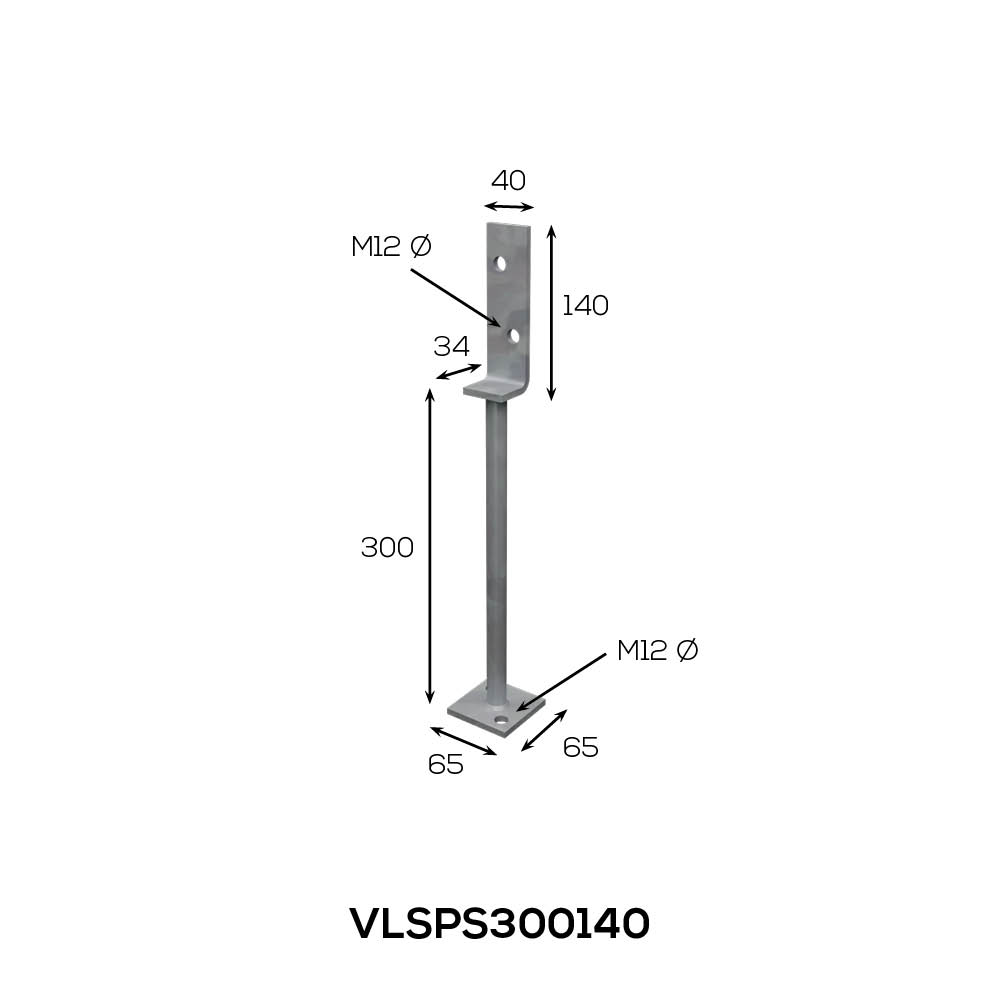

VLSPS300140 | 300mm - L Stirrup - 140mm Blade | M12 | 10 |

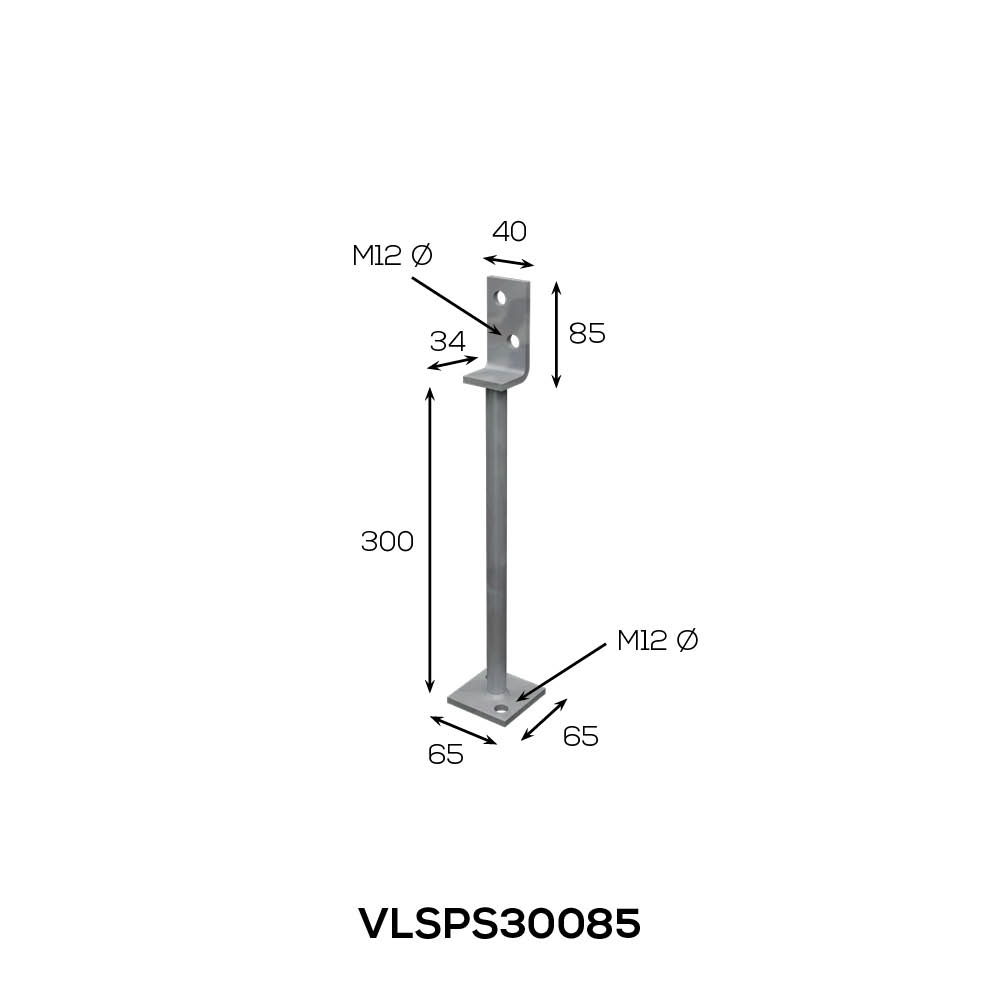

VLSPS30085 | 300mm - L Stirrup - 85mm Blade | M12 | 10 |

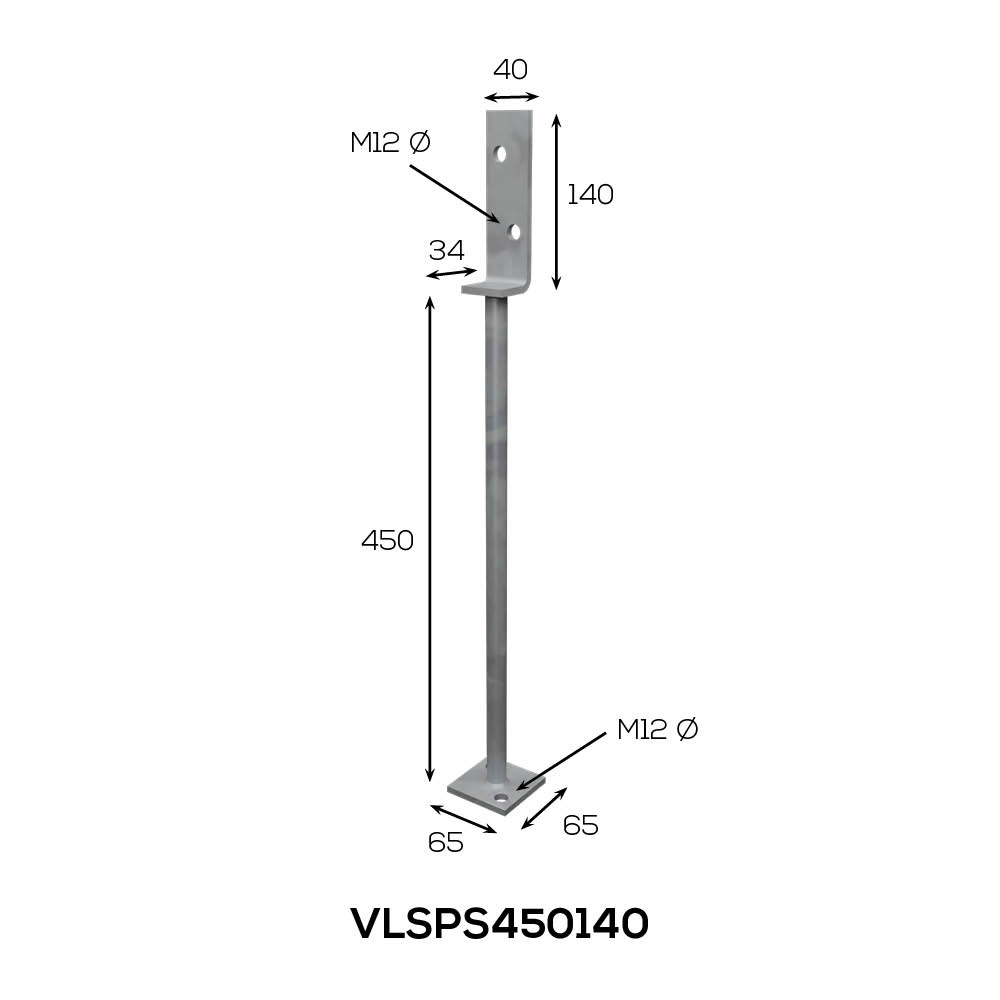

VLSPS450140 | 450mm - L Stirrup - 140mm Blade | M12 | 10 |

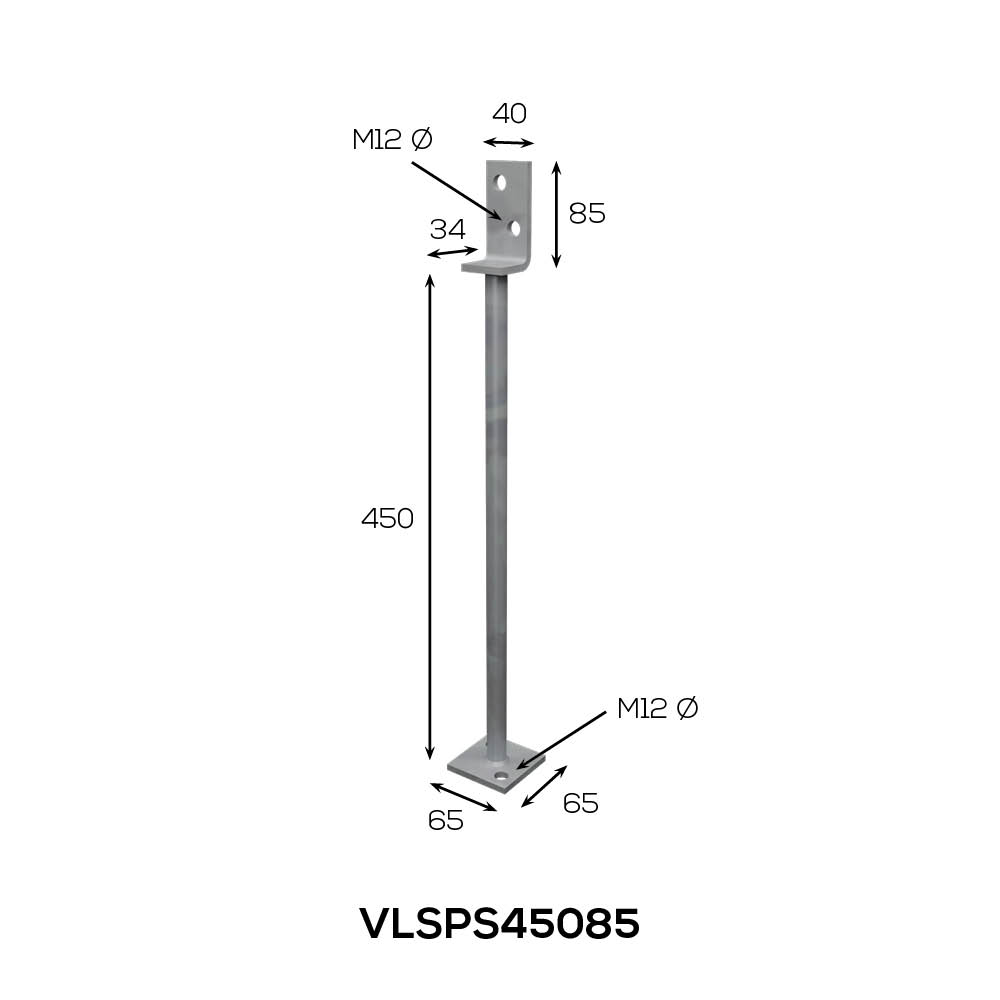

VLSPS45085 | 450mm - L Stirrup - 85mm Blade | M12 | 10 |

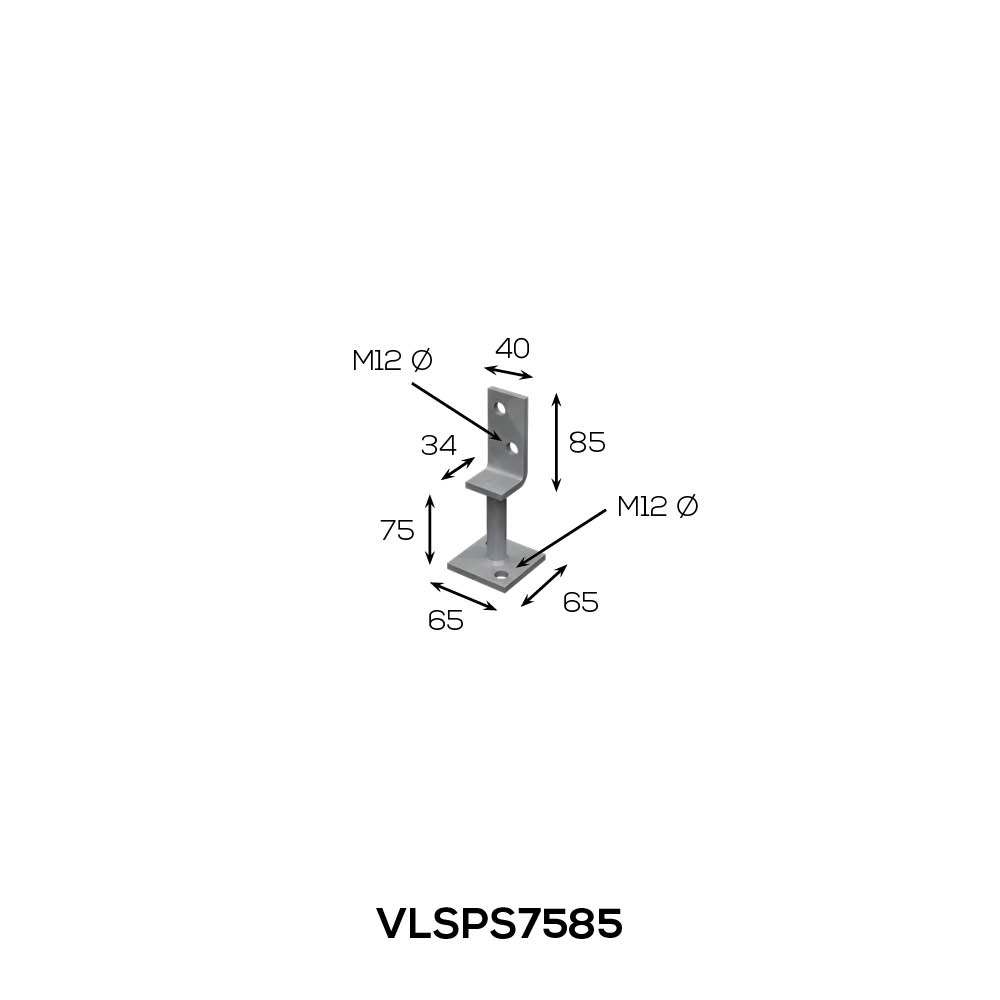

VLSPS7585 | 75mm - L Stirrup - 85mm Blade | M12 | 10 |
