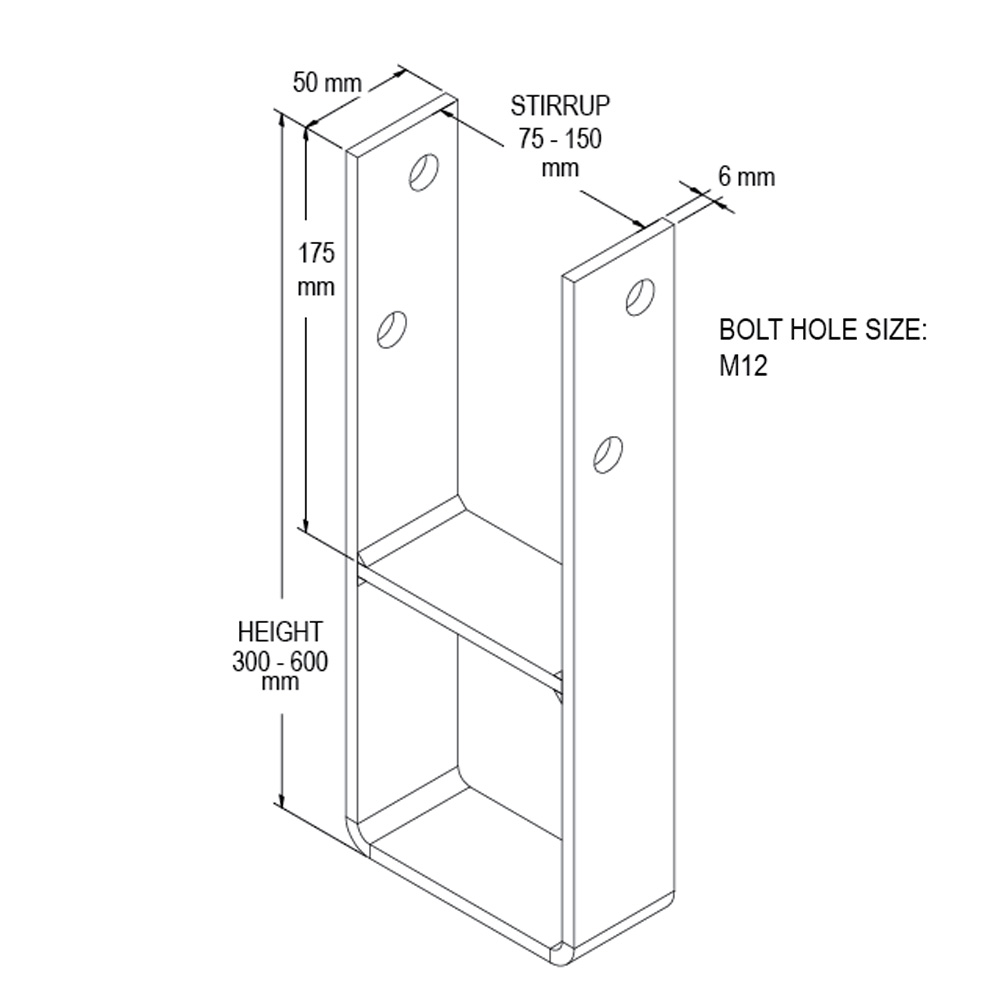

VUETRADE Cyclonic Post Supports are U shaped anchors ideal for fixing timber posts in cyclonic or high wind areas.
Also available in Stainless Steel.
• Ideal for cyclonic and high wind areas
• Designed for use with 12mm bolts as required in Queensland
• Bolt Holes – 14mm Diameter, M12 size
• Hot dipped galvanised for long life
• 6.00mm thick steel for extra strength
• Conforms with Australian Standards AS1684.2 and AS1684.3
• Galvanised finish for durability and long-life

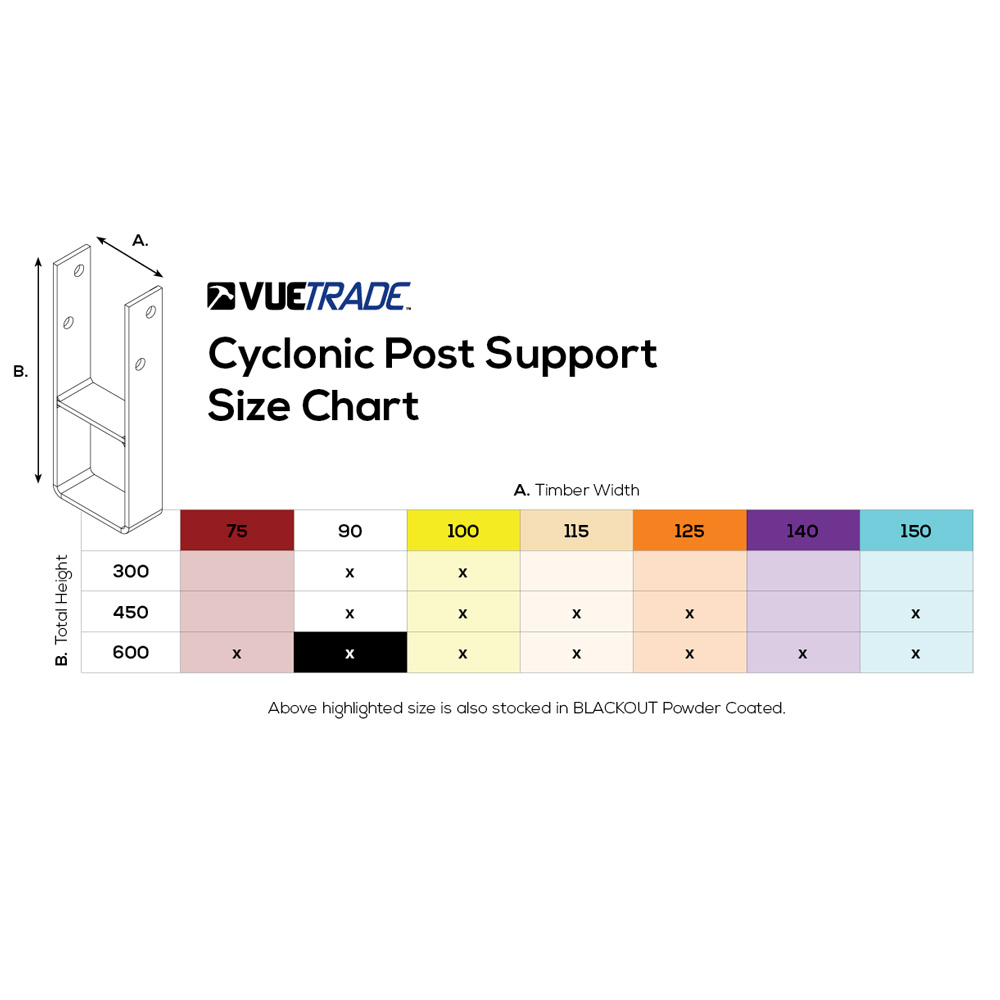

| Product Code(s) | Total Height | Box Qty |
|---|---|---|
Stirrup width 75mm: | ||

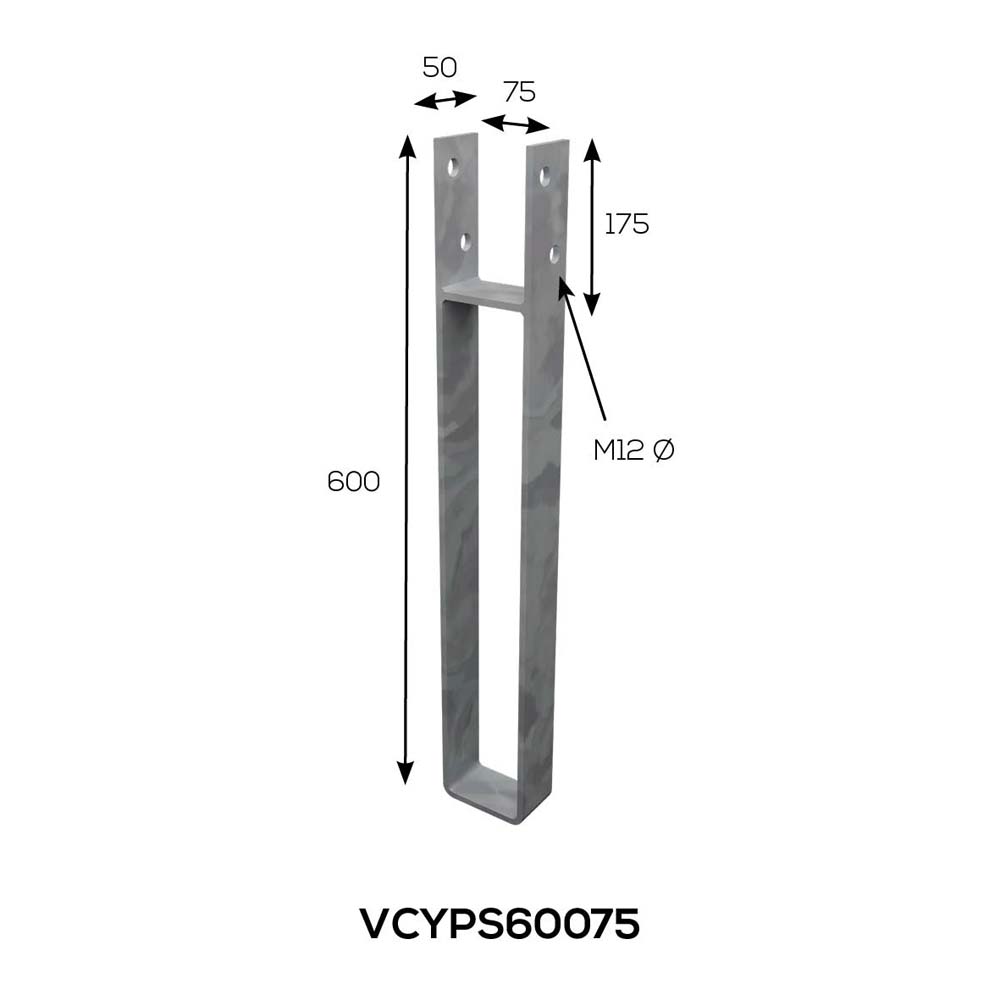

| VCYPS60075 | 600mm | 6 |
Stirrup width 90mm: | ||

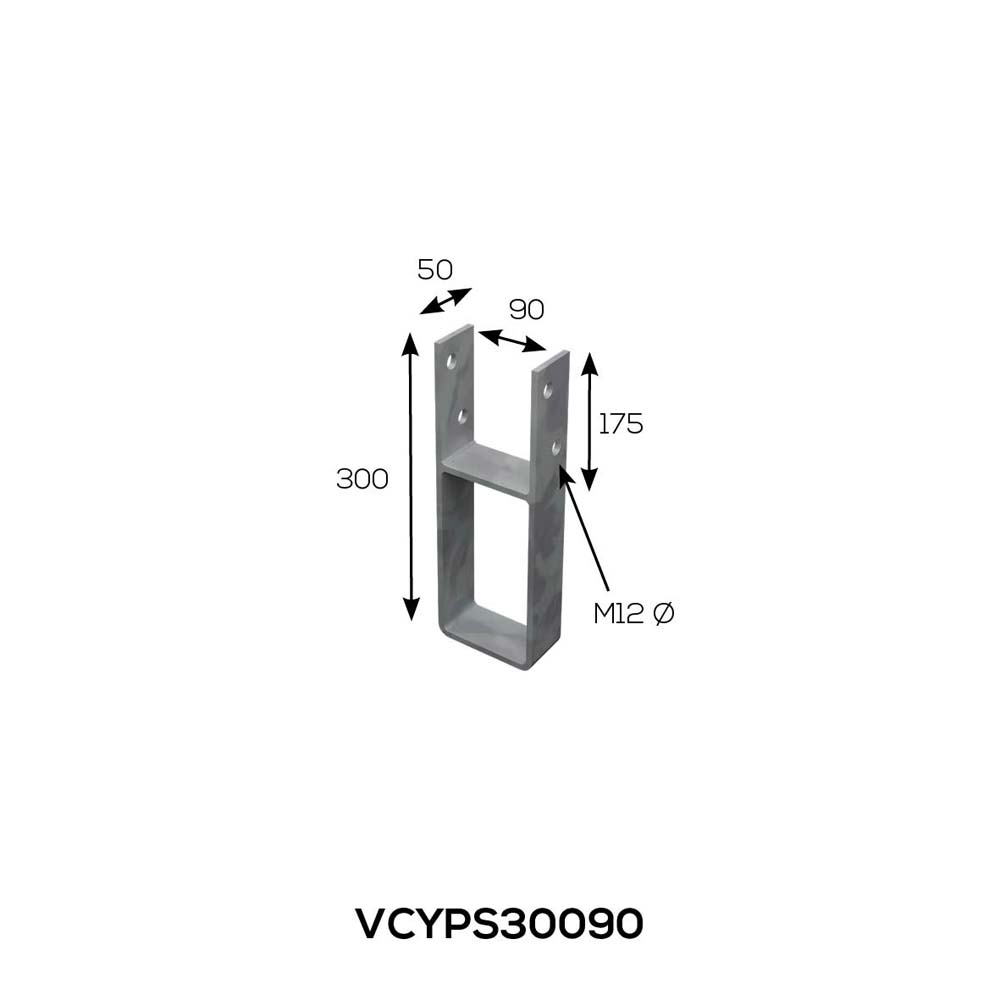

| VCYPS30090 | 300mm | 6 |

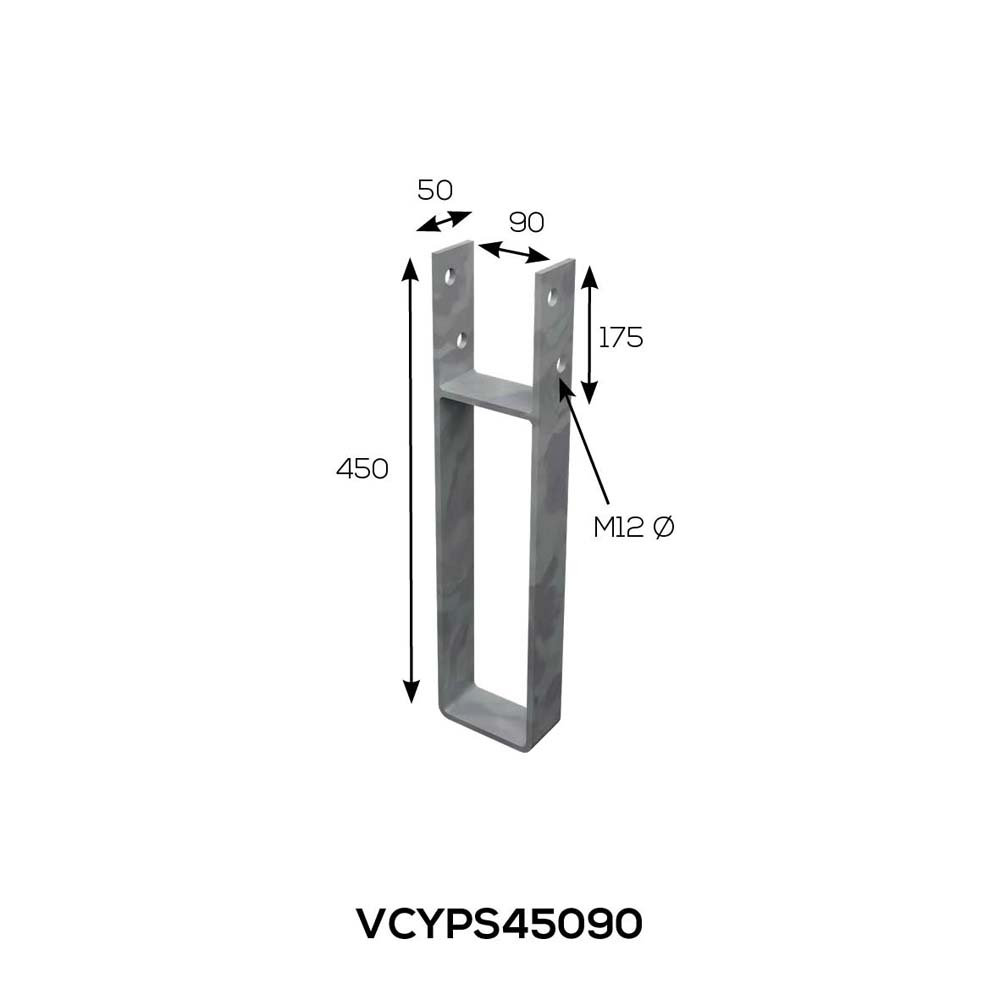

| VCYPS45090 | 450mm | 6 |

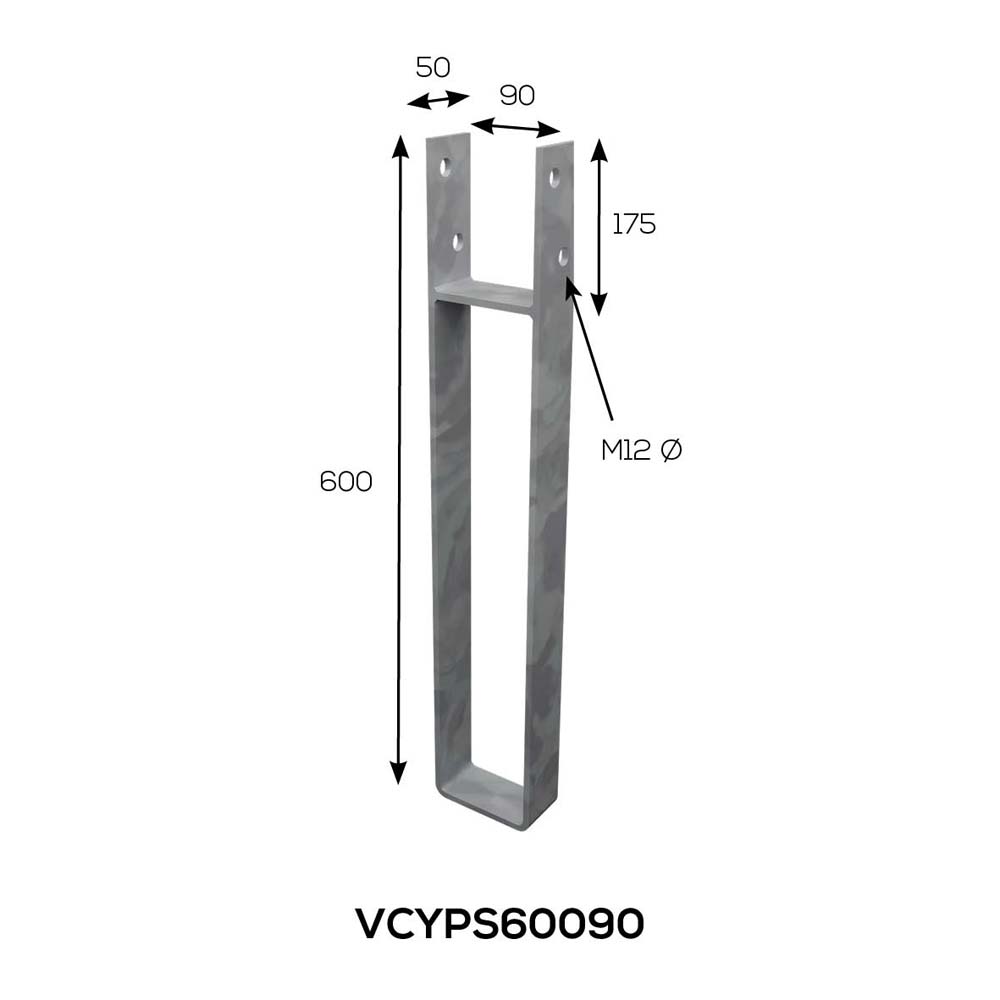

| VCYPS60090 | 600mm | 6 |
Stirrup width 100mm: | ||

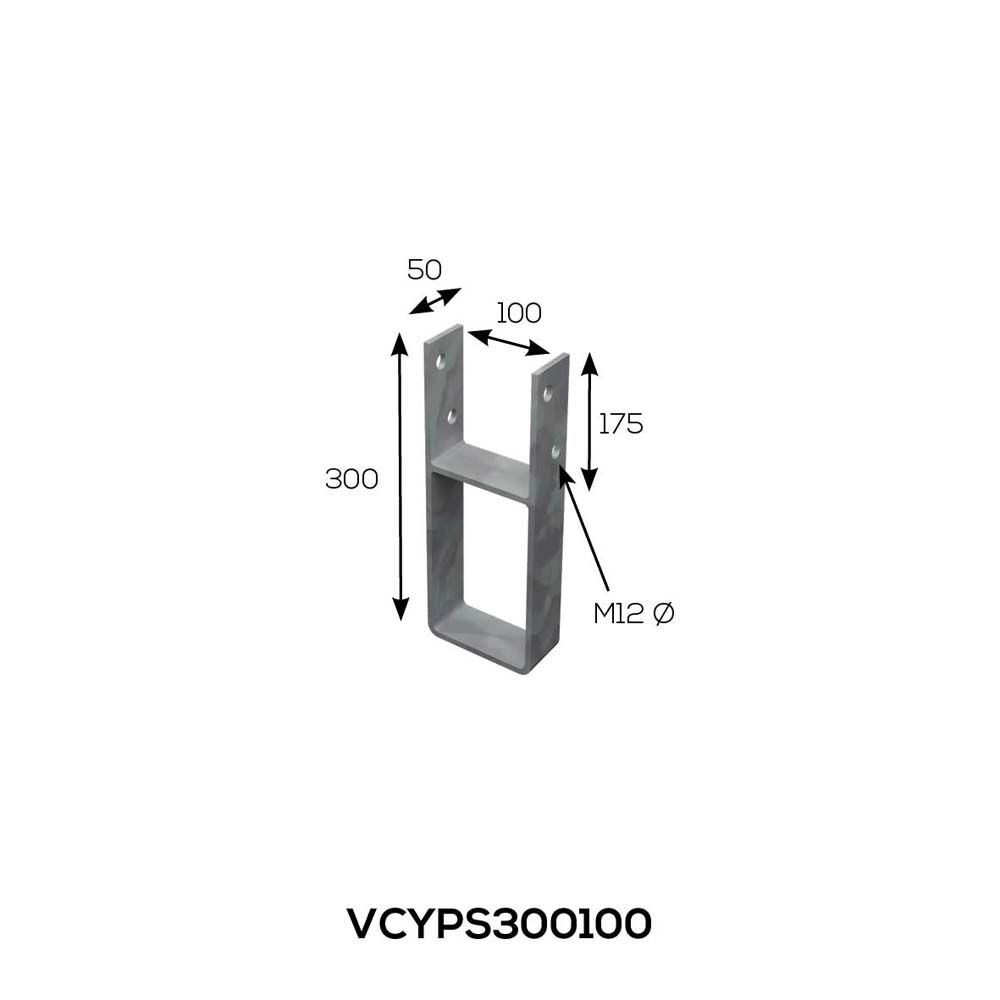

| VCYPS300100 | 300mm | 6 |

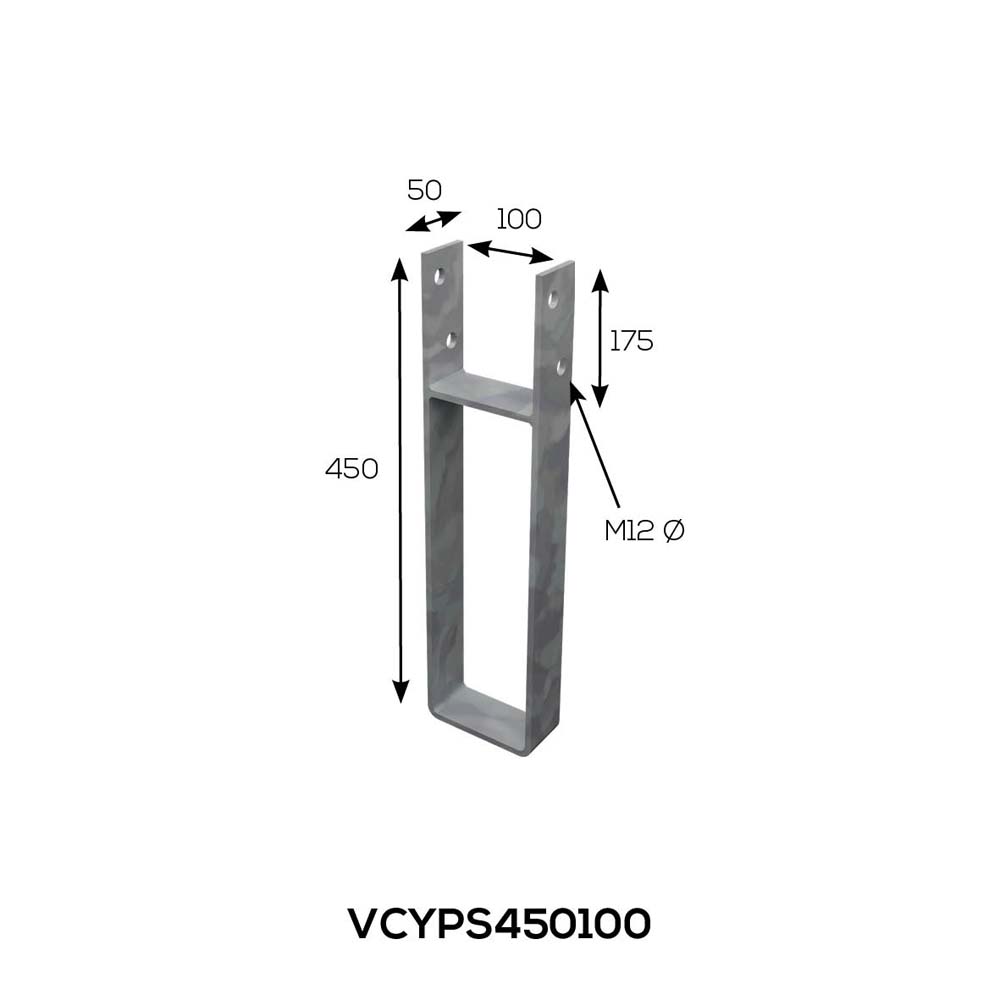

| VCYPS450100 | 450mm | 6 |

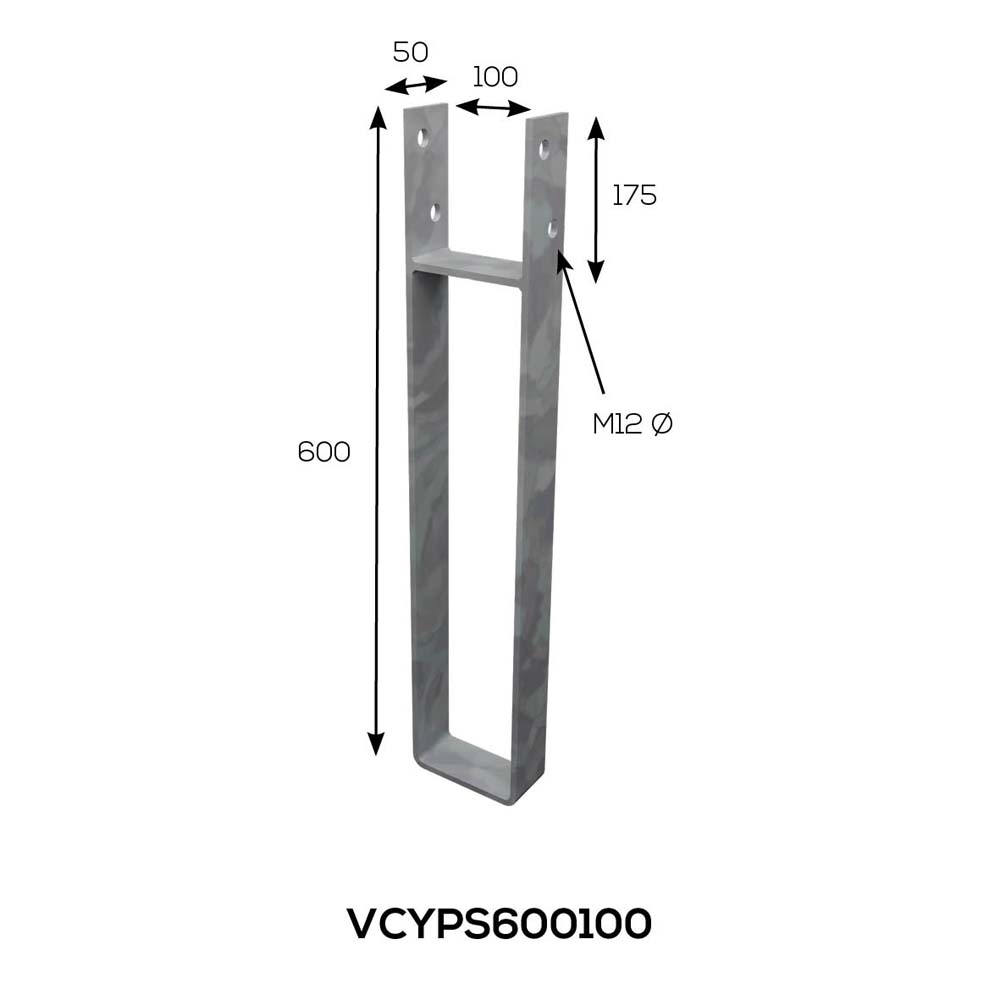

| VCYPS600100 | 600mm | 6 |
Stirrup width 115mm: | ||

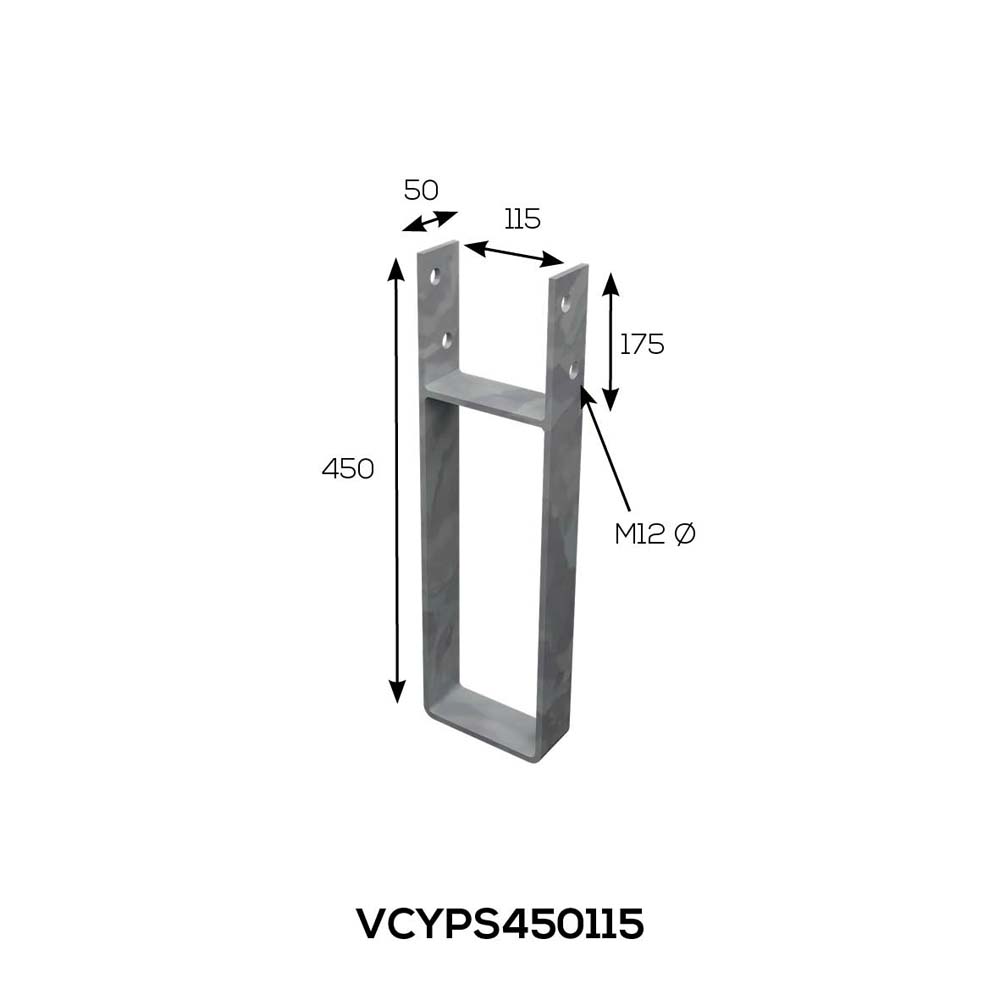

| VCYPS450115 | 450mm | 6 |

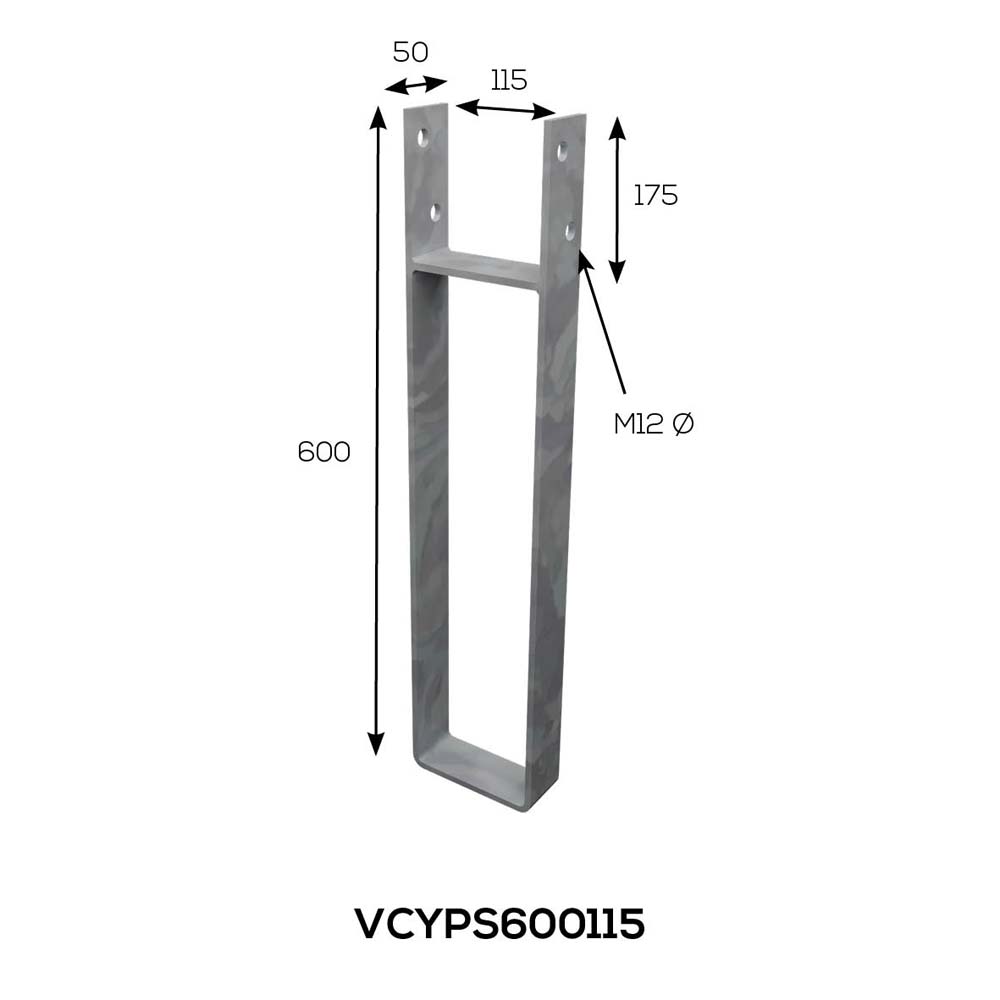

| VCYPS600115 | 600mm | 6 |
Stirrup width 125mm: | ||

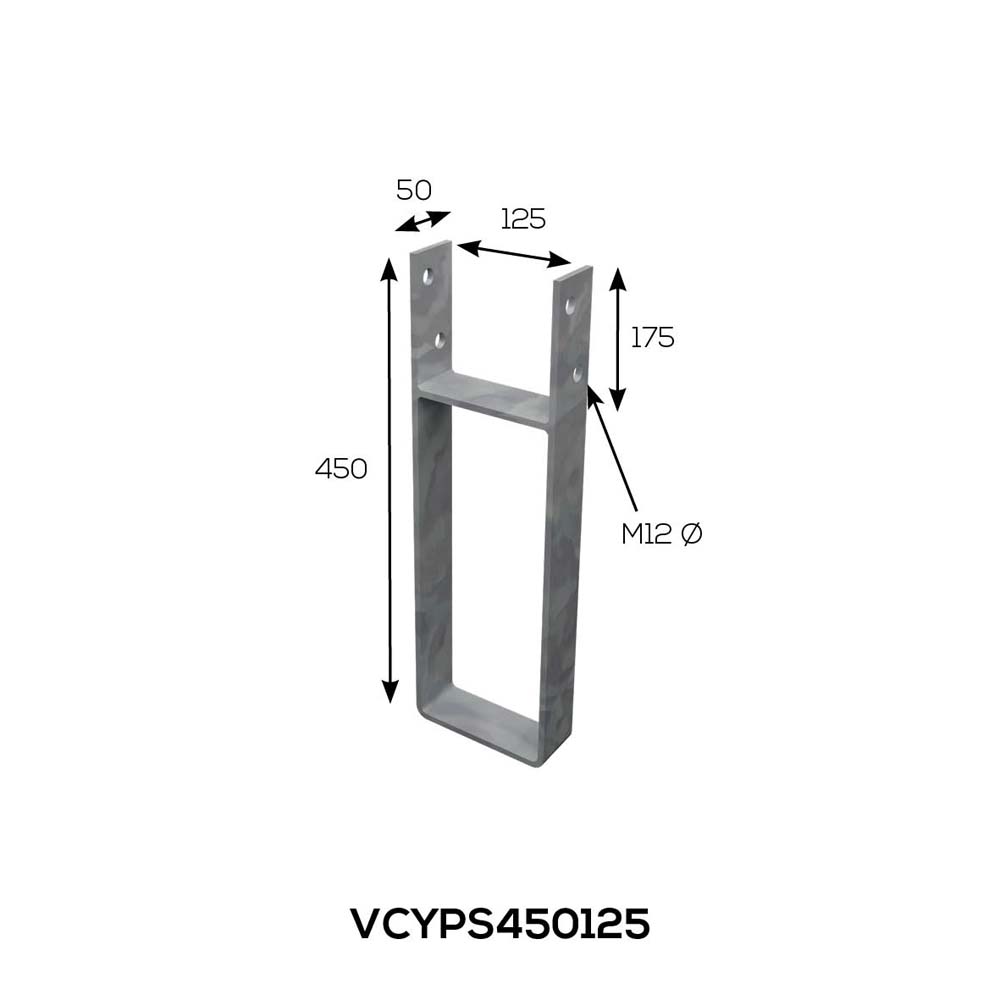

| VCYPS450125 | 450mm | 6 |

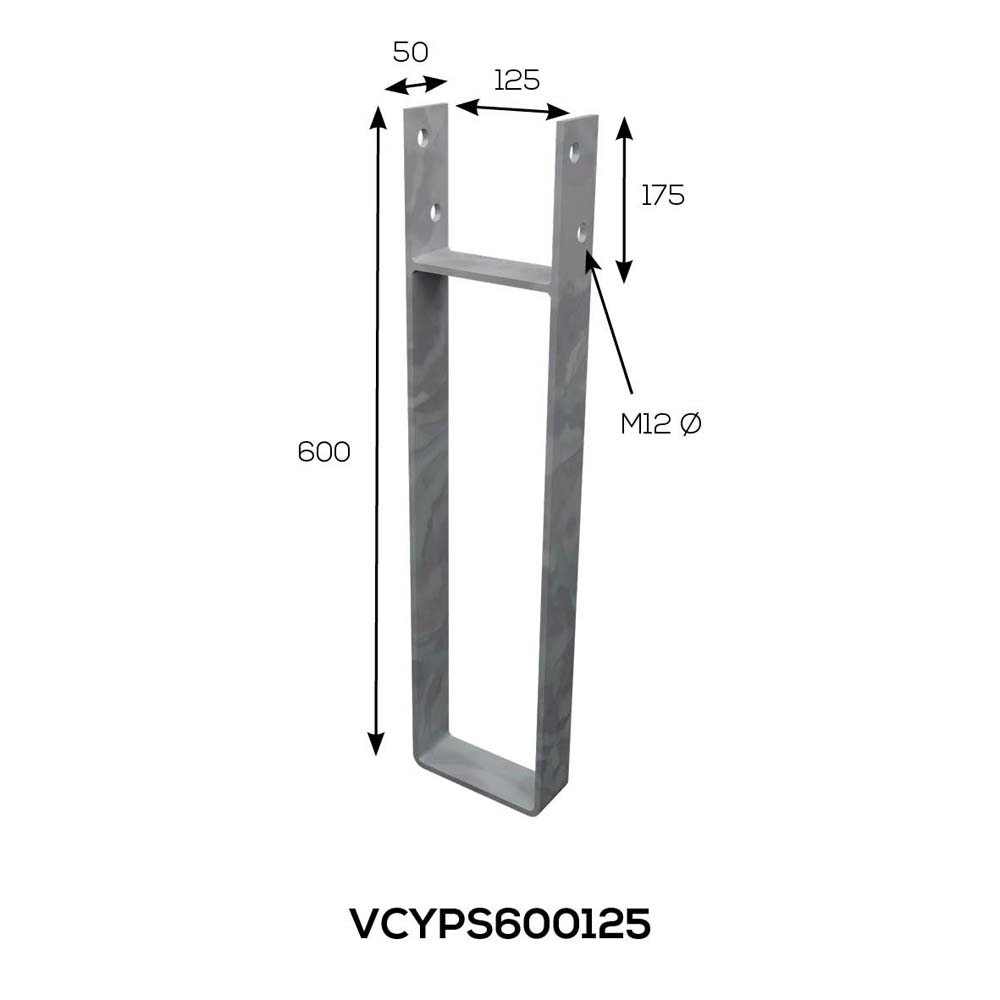

| VCYPS600125 | 600mm | 6 |
Stirrup width 140mm: | ||

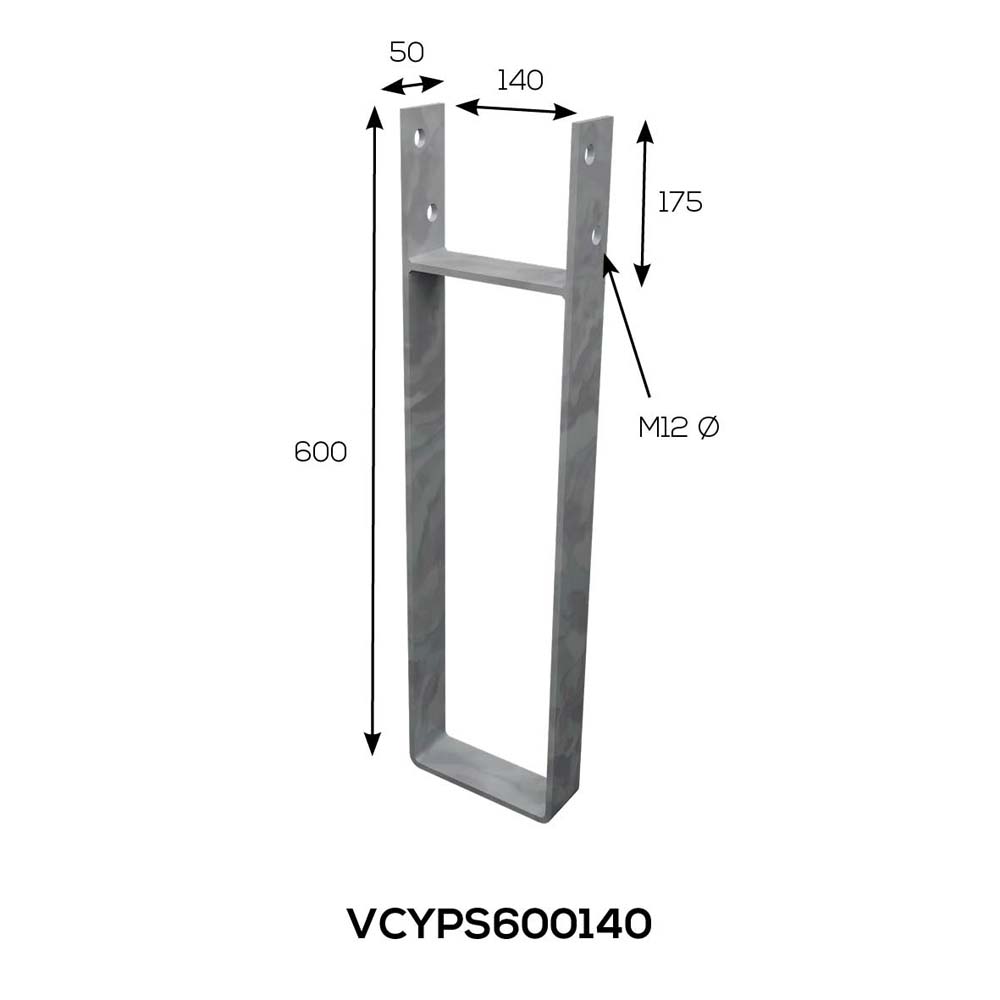

| VCYPS600140 | 600mm | 6 |
Stirrup width 150mm: | ||

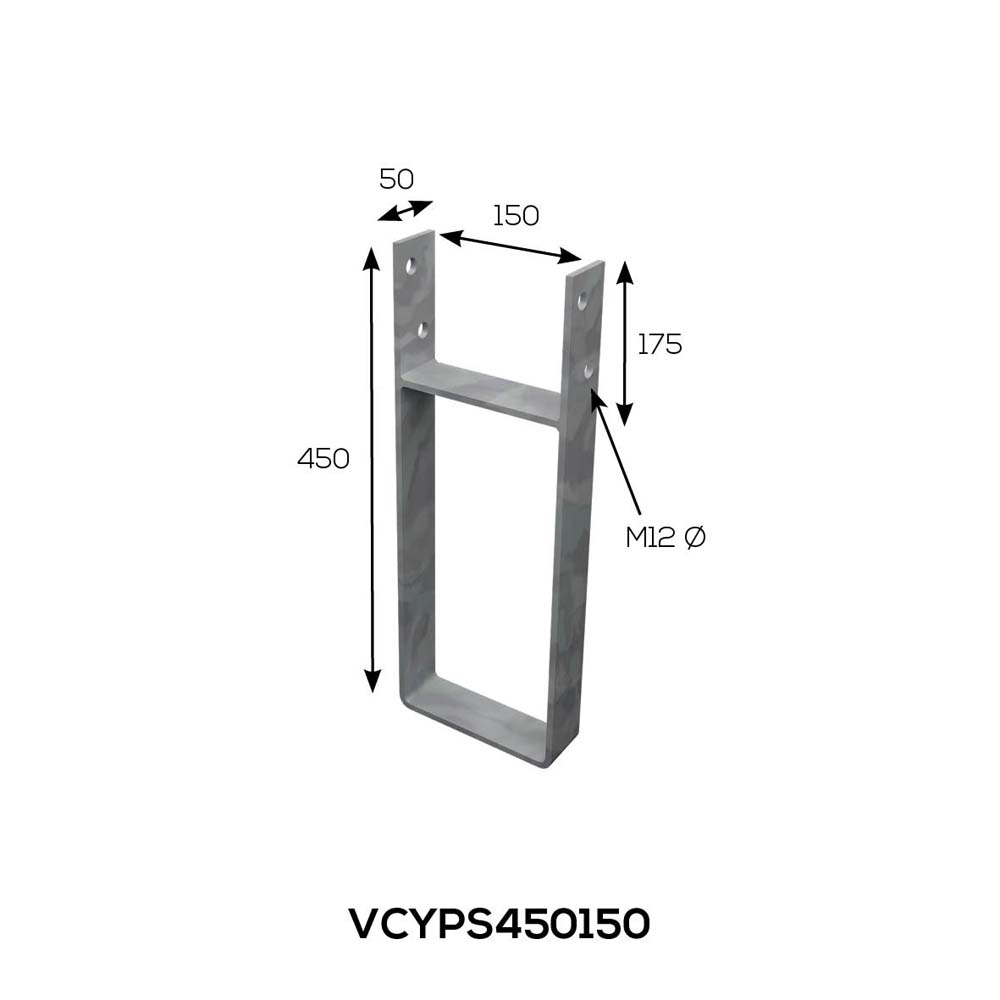

| VCYPS450150 | 450mm | 6 |

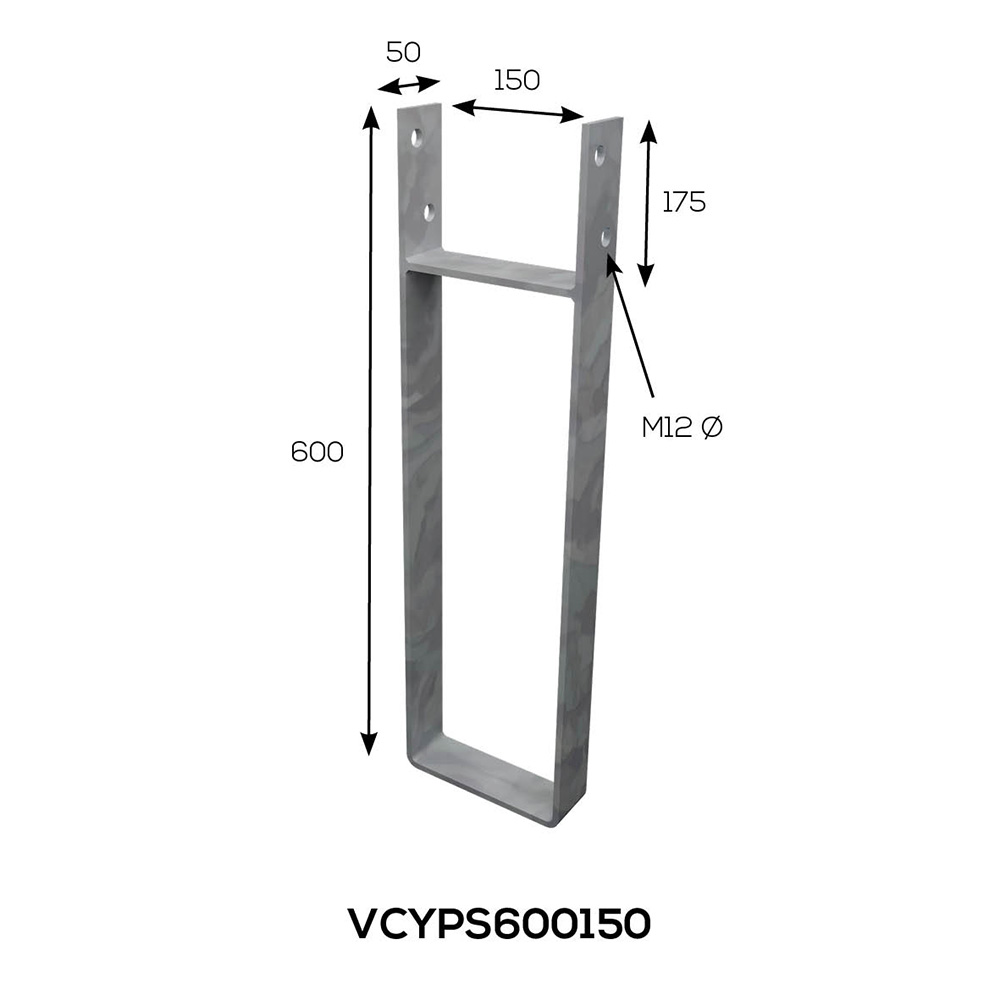

| VCYPS600150 | 600mm | 6 |
