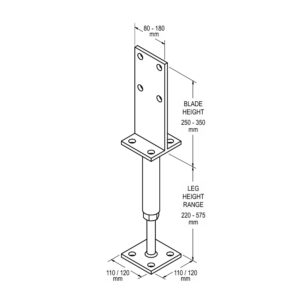

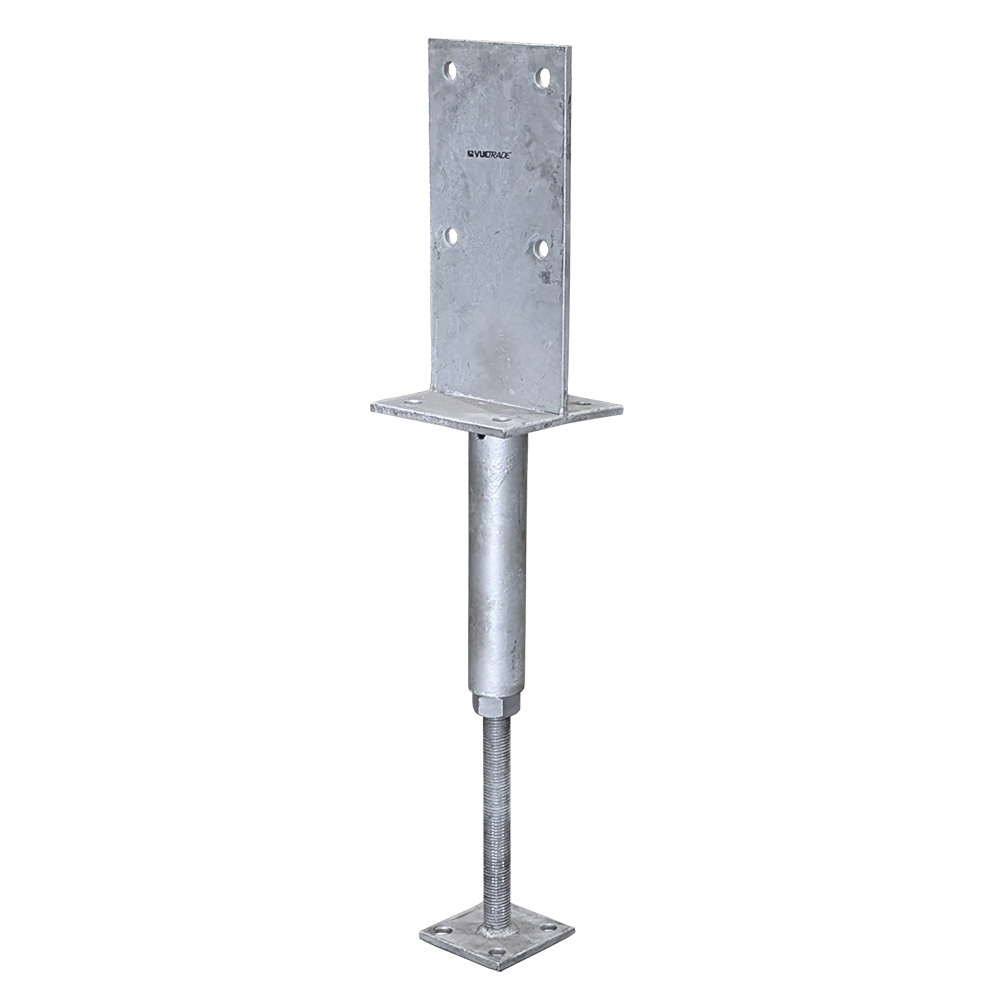

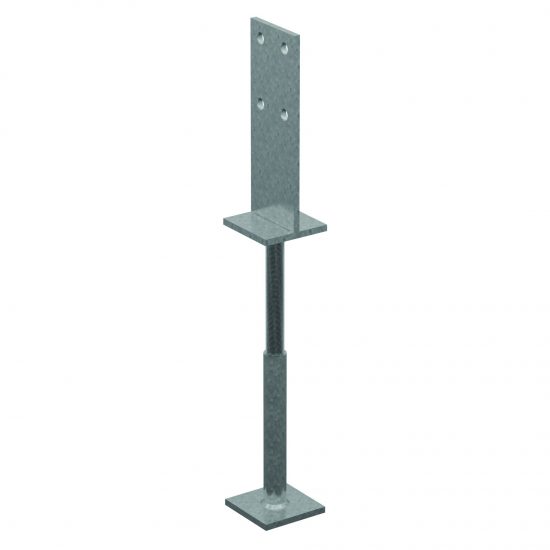

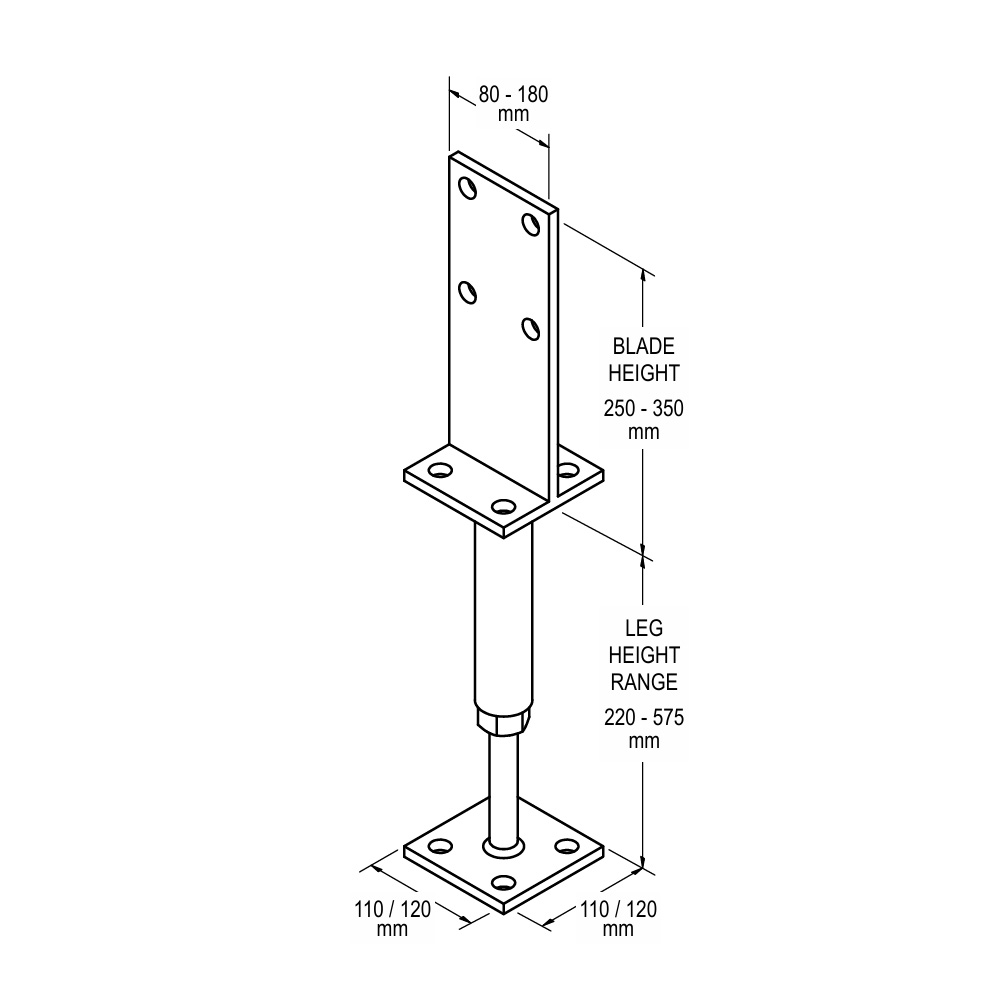

VUETRADE T-Blade Post Supports with Adjustable Legs are strong, conveniently adjustable connectors ideal for fixing timber posts, by bolting onto or setting into concrete.

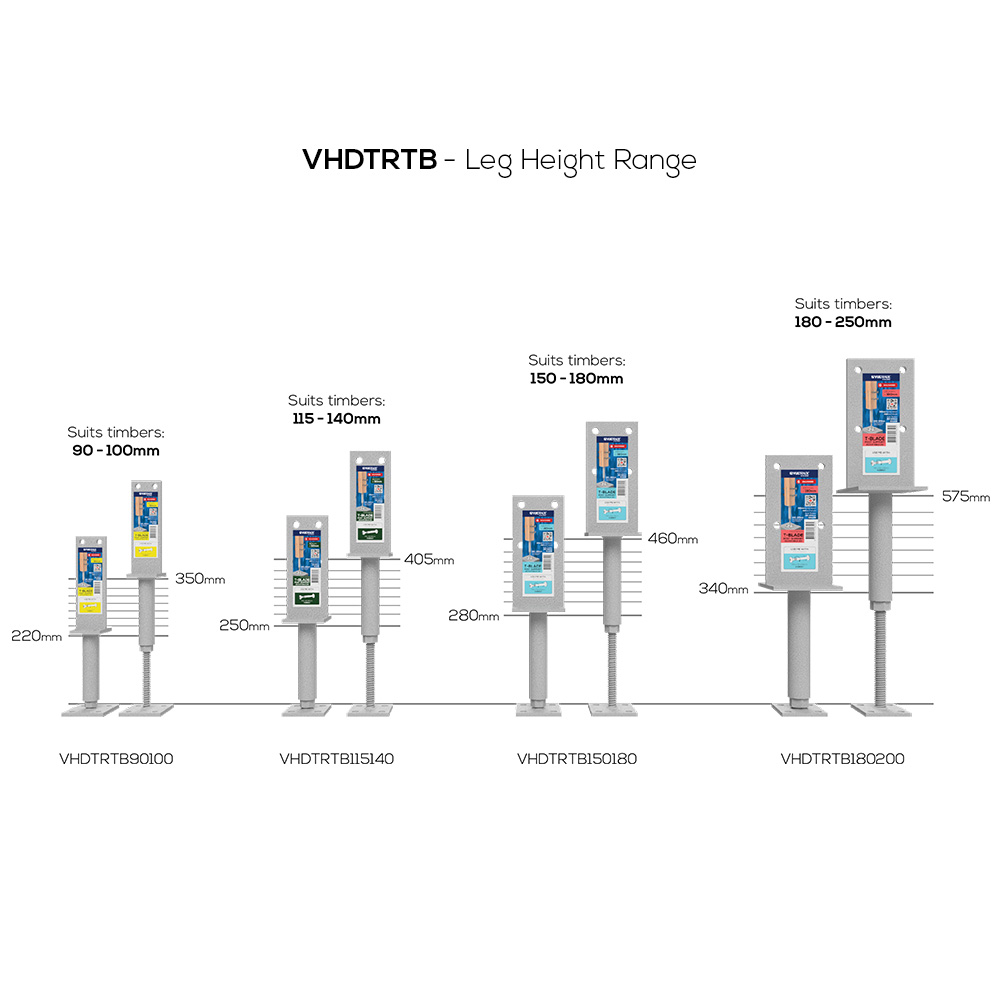

• Inner threaded leg for adjusting height
• Screw sizes
90100 & 115140 – M20
150180 & 180200 M24
• Concealed welds between vertical and horizontal plates
• 10.0mm thick steel blade and base
• Easy install
• Galvanised finish for durability and long-life
| Product Code(s) | Size | Metal Thickness | Bolt/Fixing Size | Thread Size | Shaft Diameter | Qty |
|---|---|---|---|---|---|---|

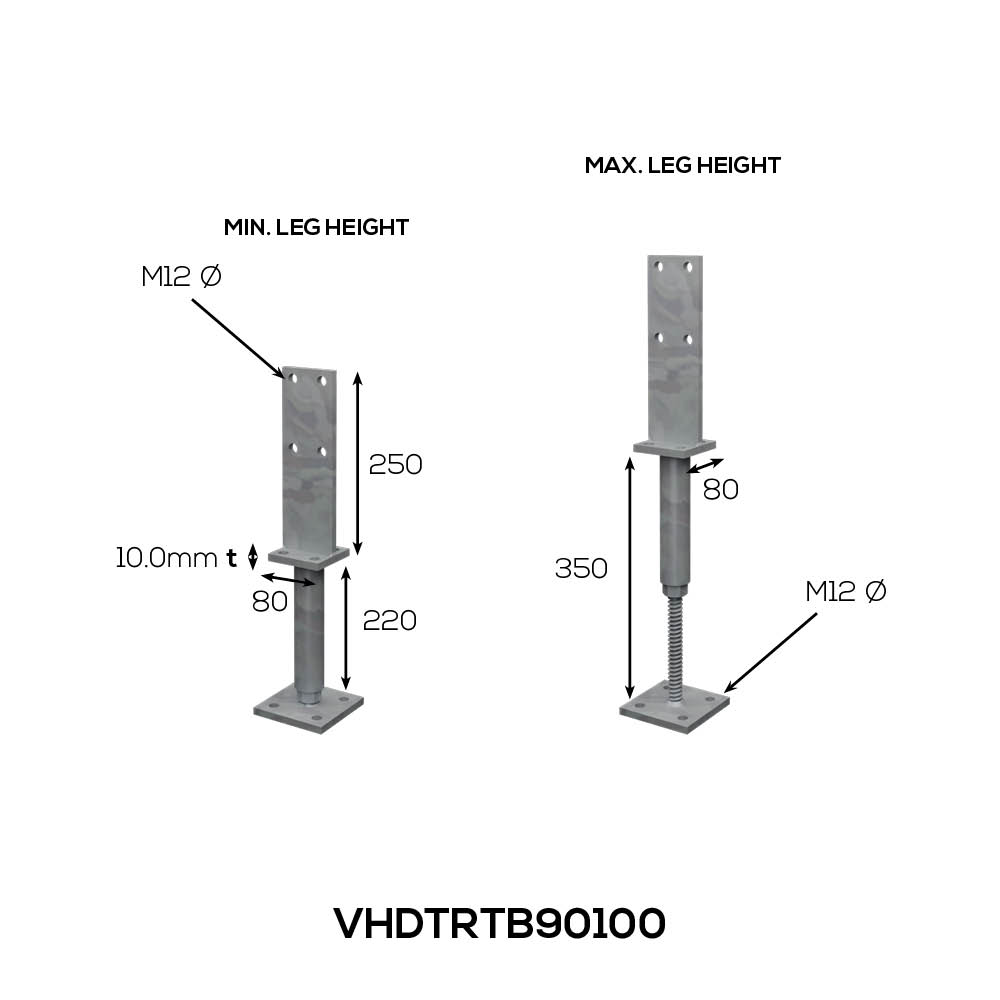

| VHDTRTB90100 | 80mm x 80mm - 250mm Blade | Blade: 10.0mm Base: 10.0mm | M20 | M20 | 40.0mm | 1 |

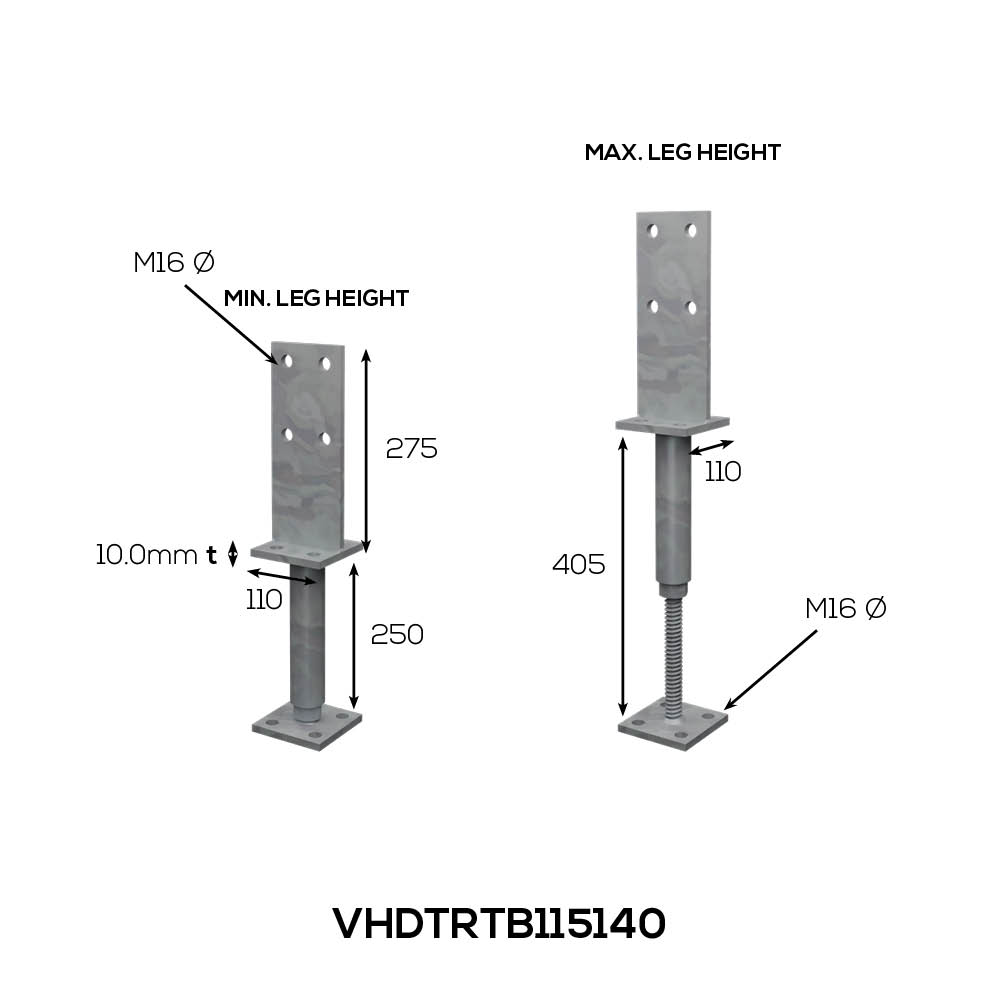

| VHDTRTB115140 | 110mm x 110mm - 275mm Blade | Blade: 10.0mm Base: 10.0mm | M20 | M24 | 48.0mm | 1 |

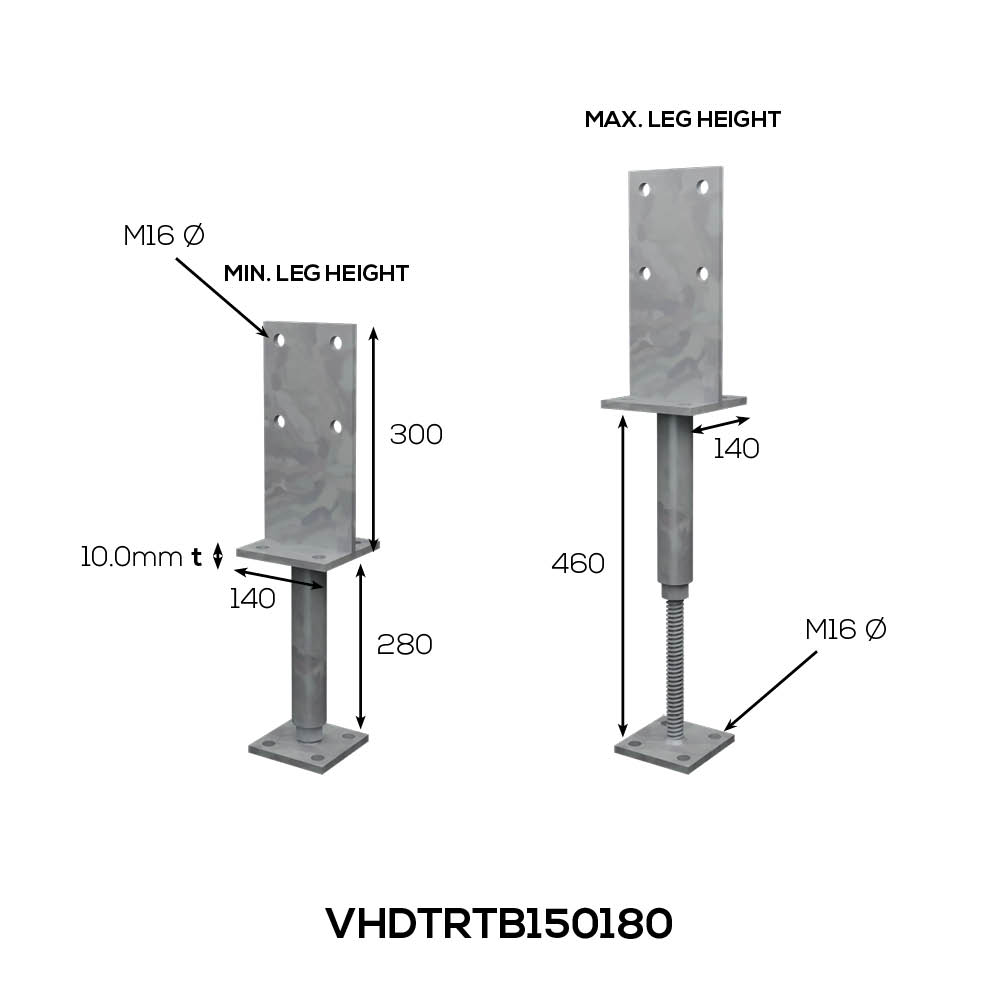

| VHDTRTB150180 | 140mm x 140mm - 300mm Blade | Blade: 10.0mm Base: 10.0mm | M24 | M24 | 48.0mm | 1 |

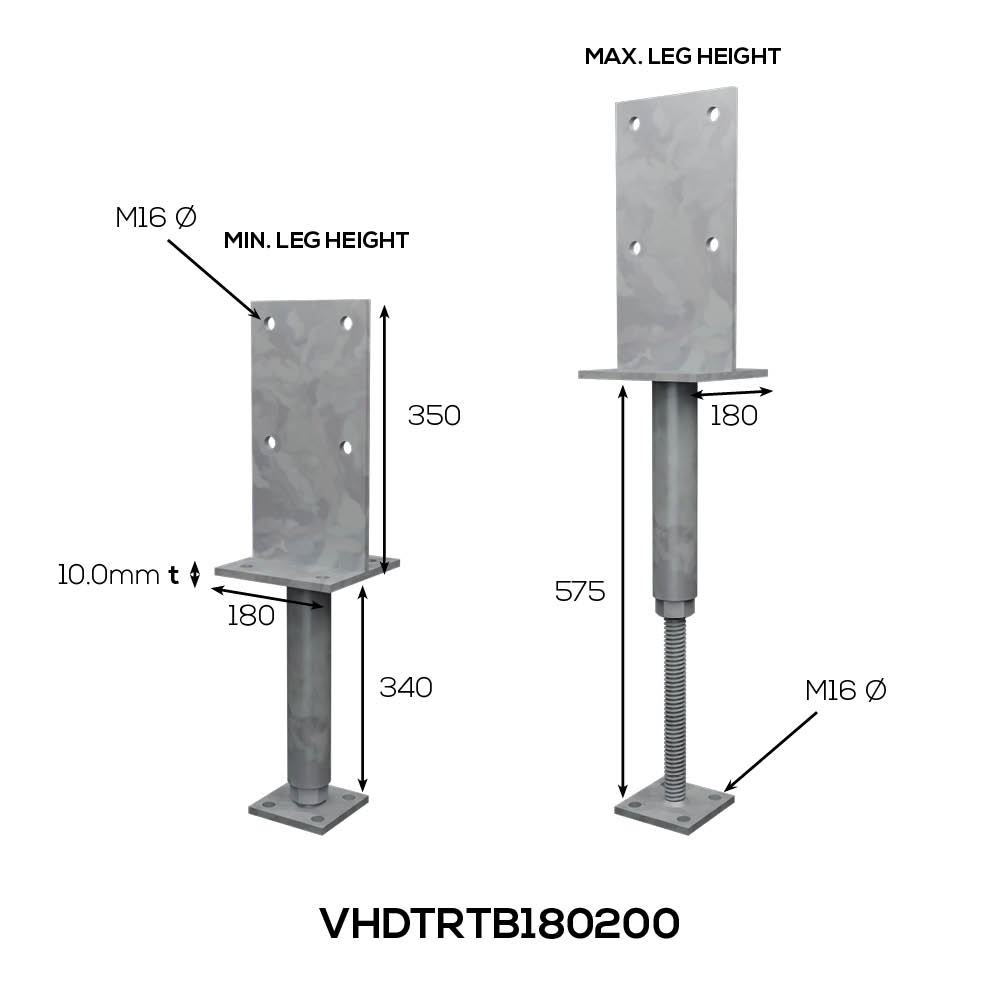

| VHDTRTB180200 | 180mm x 180mm - 350mm Blade | Blade: 10.0mm Base: 10.0mm | M24 | M40 | 60.0mm | 1 |
