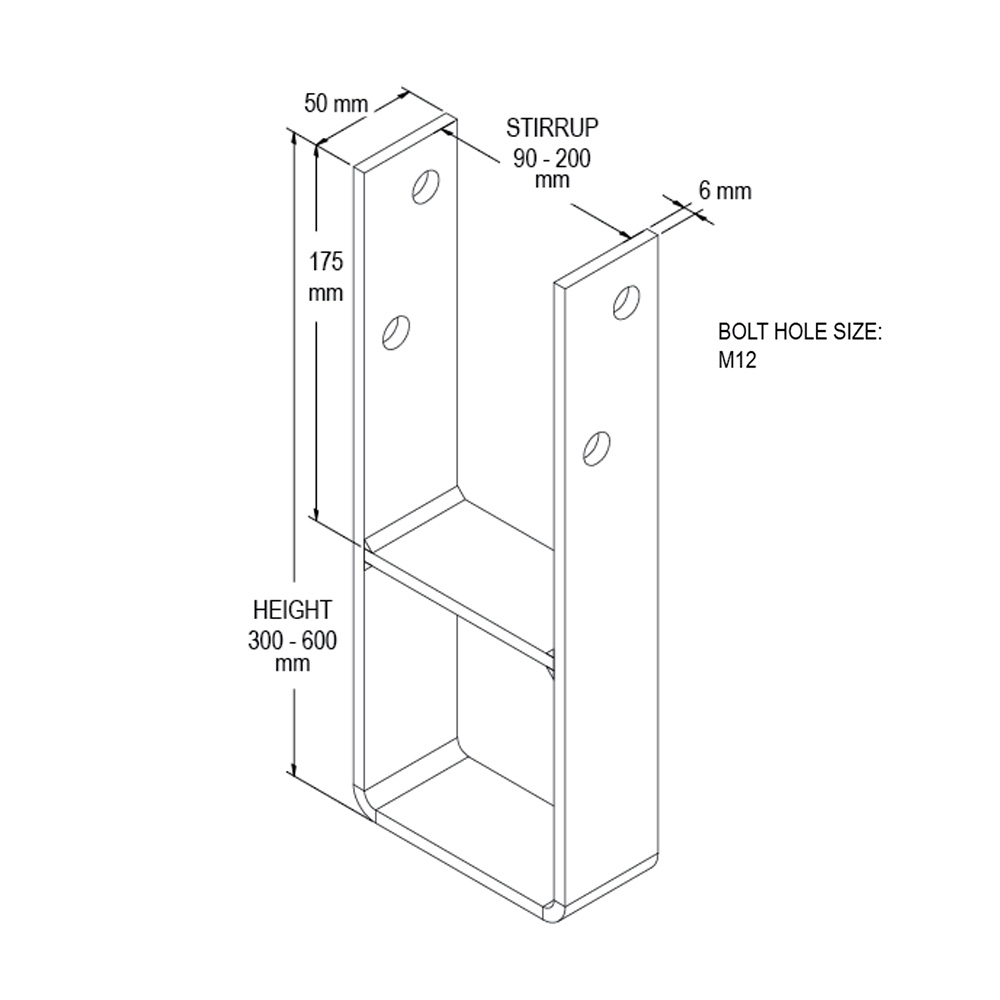

VUETRADE Stainless Steel Cyclonic Post Supports are U shaped anchors ideal for fixing timber posts in cyclonic or high wind areas on the coast.
Suitable for Cyclonic installations.
• Ideal for coastal cyclonic areas
• 6.00mm thick steel for extra strength
• Bolt Holes – 14mm Diameter, M12 size
• Designed for use with 12mm bolts as required in Queensland
• Complies with Australian Standards AS1684.2 and AS1684.3
• 304 Stainless Steel – durable, corrosion resistant, and suitable for use in some coastal and corrosive environments (Available in SS316 by special order)
Warning: Mandatory and recommended usage of stainless steel timber connectors varies in different states and areas – always check with your local building authorities. VUETRADE Stainless Steel fixings should always be used with CoastalSS stainless steel brackets.

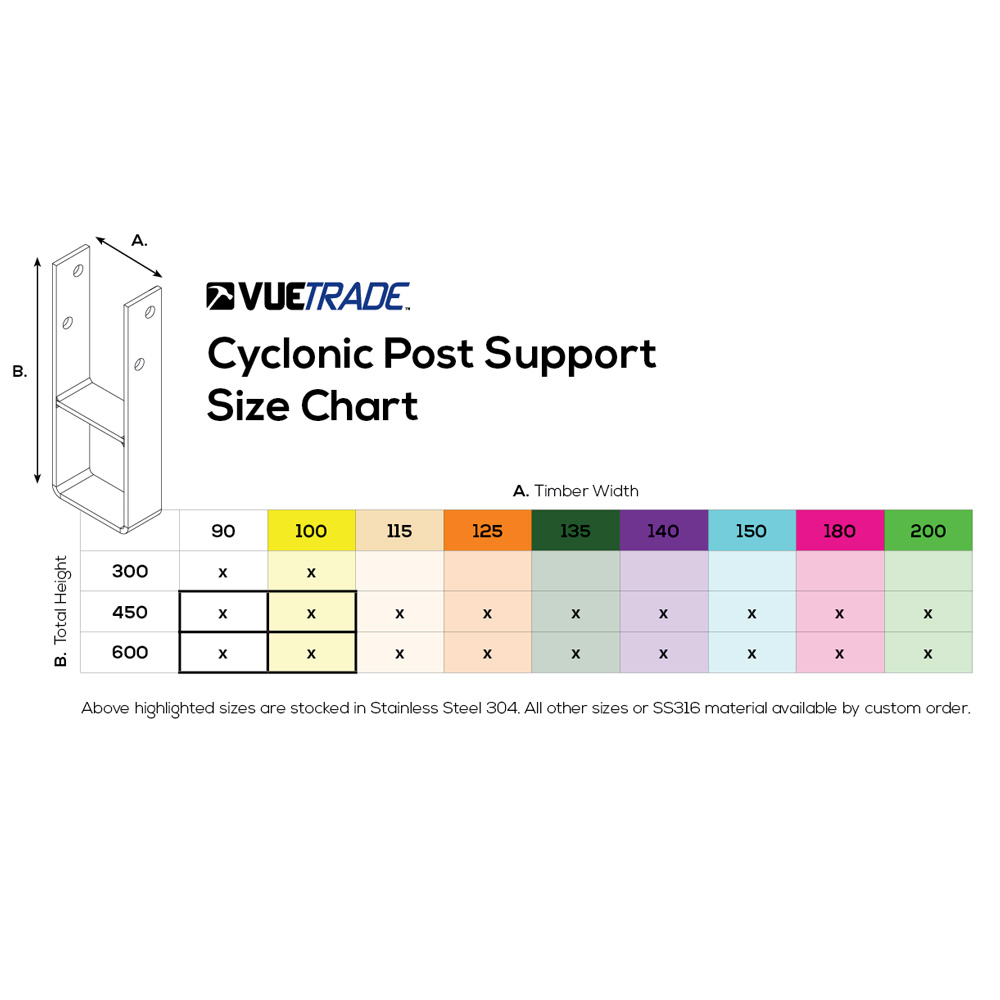

| Product Code(s) | Total Height | Box Qty |
|---|---|---|
Stirrup width 90mm: | ||

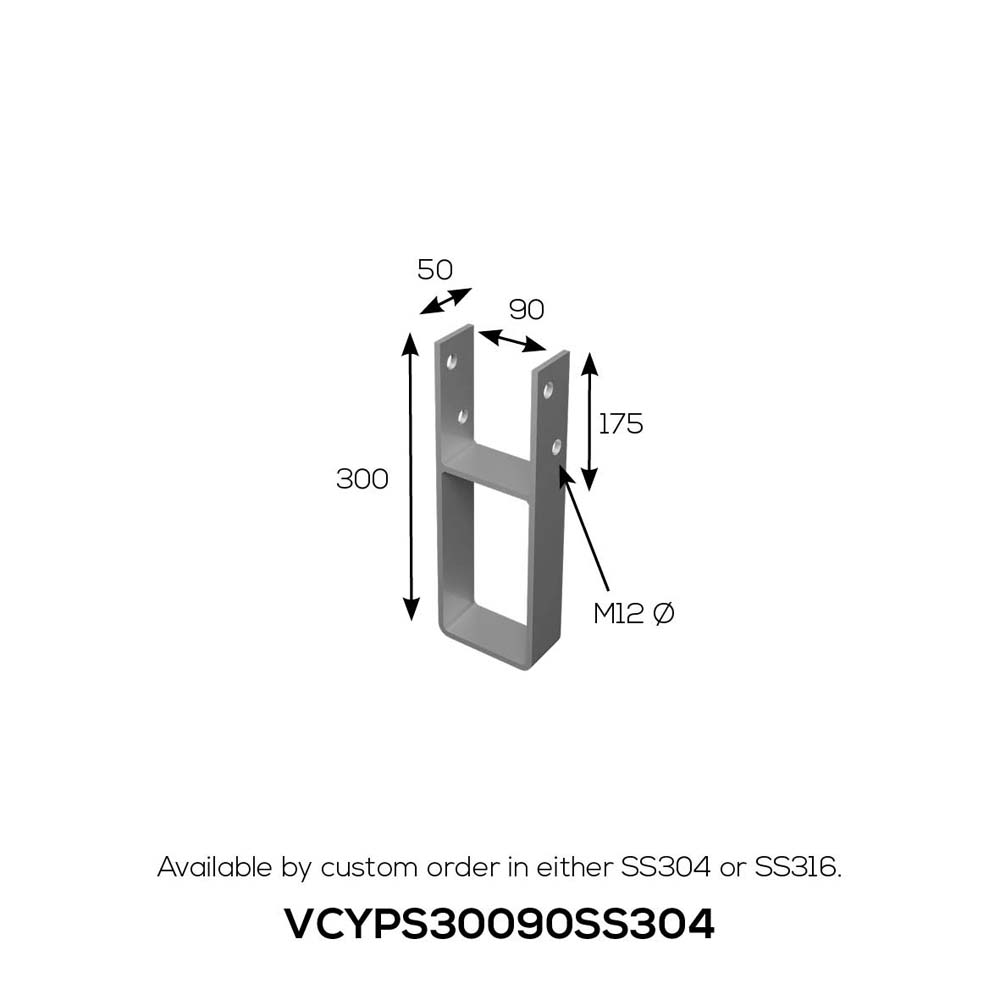

| VCYPS30090SS304* | 300mm | 1 |

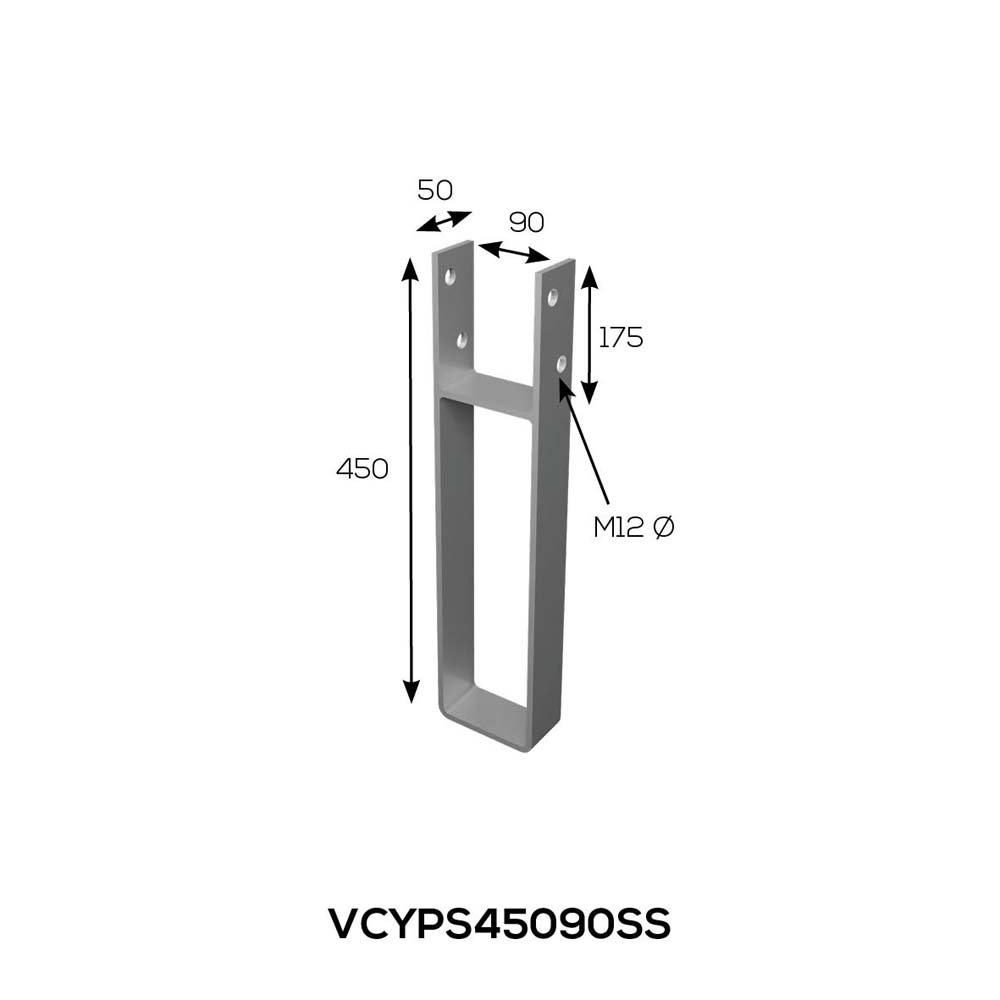

| VCYPS45090SS | 450mm | 6 |

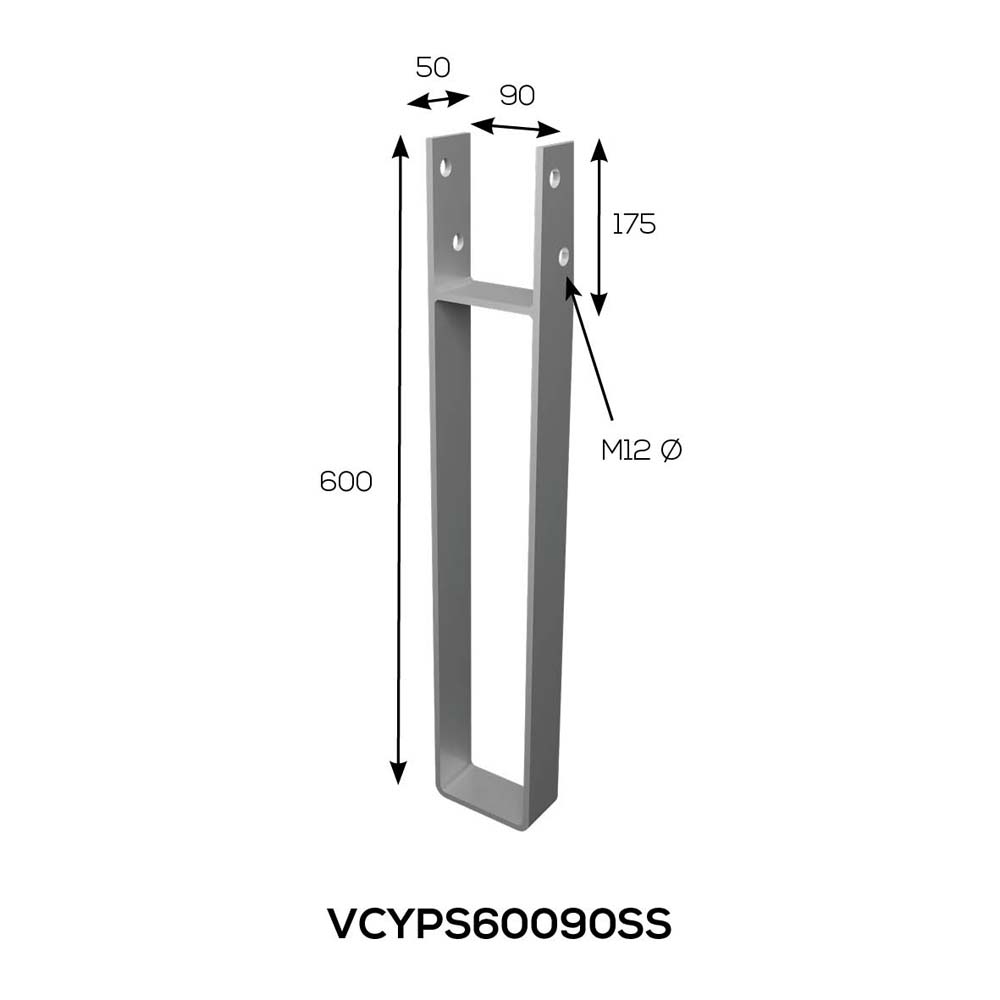

| VCYPS60090SS | 600mm | 6 |
Stirrup width 100mm: | ||

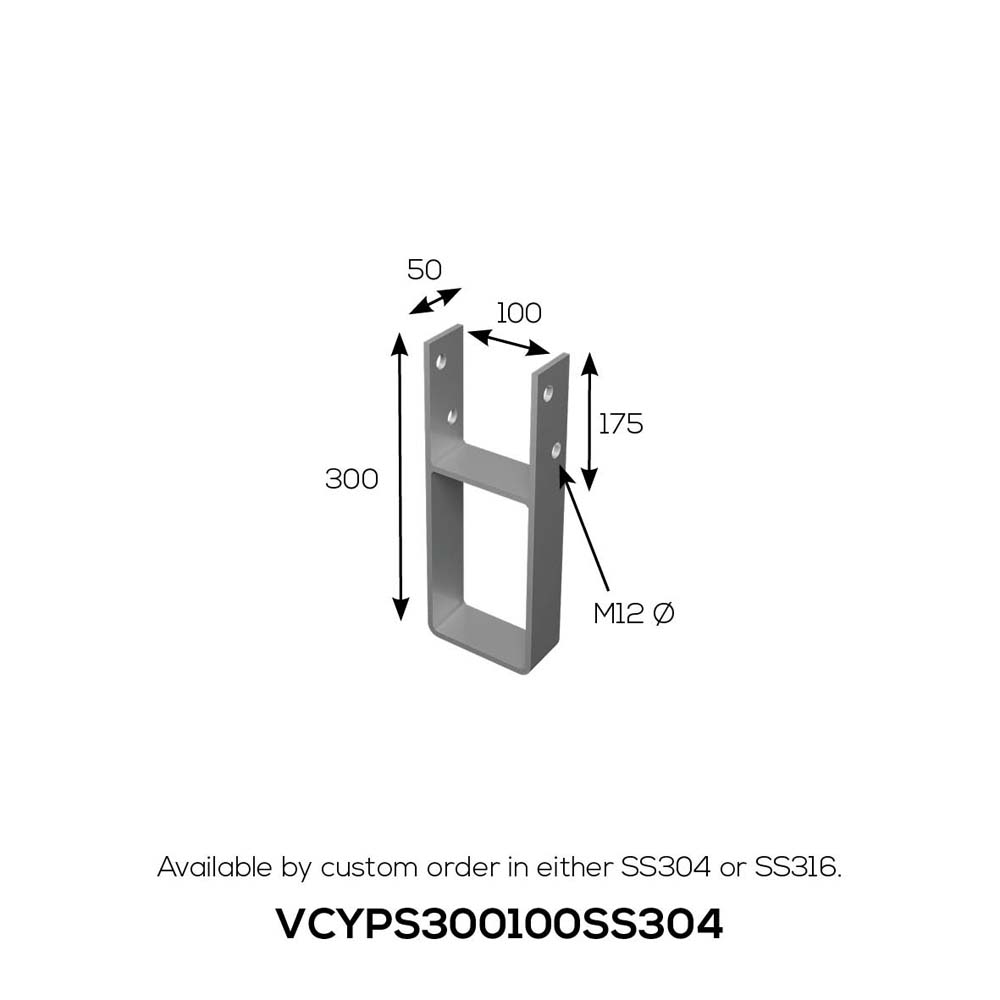

| VCYPS300100SS304* | 300mm | 1 |

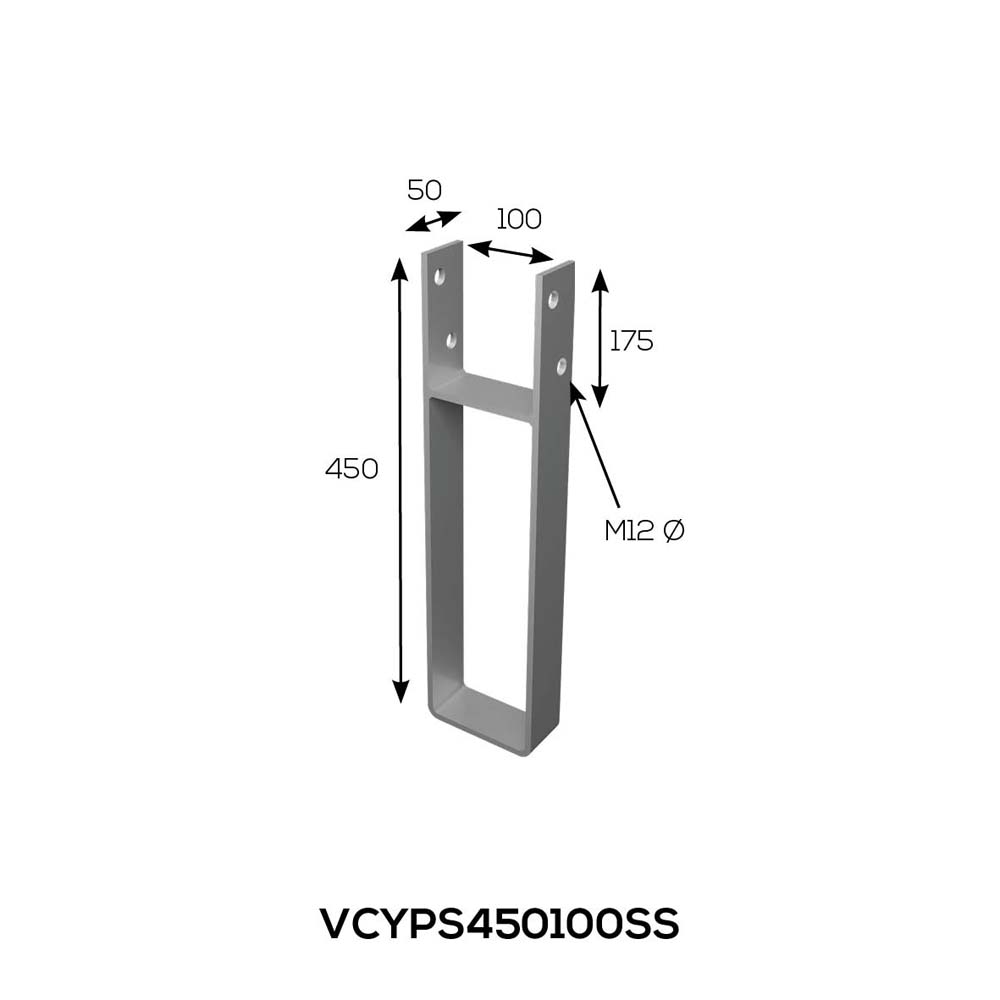

| VCYPS450100SS | 450mm | 6 |

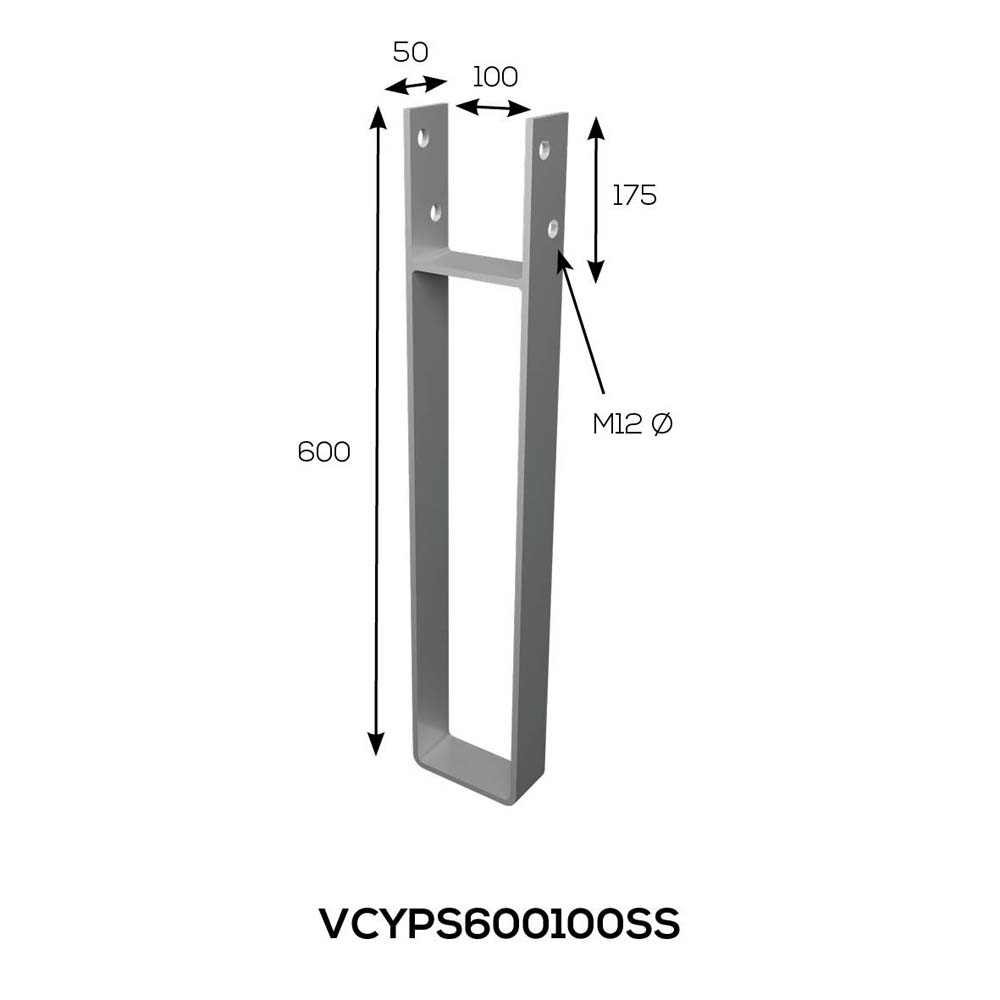

| VCYPS600100SS | 600mm | 6 |
Stirrup width 115mm: | ||

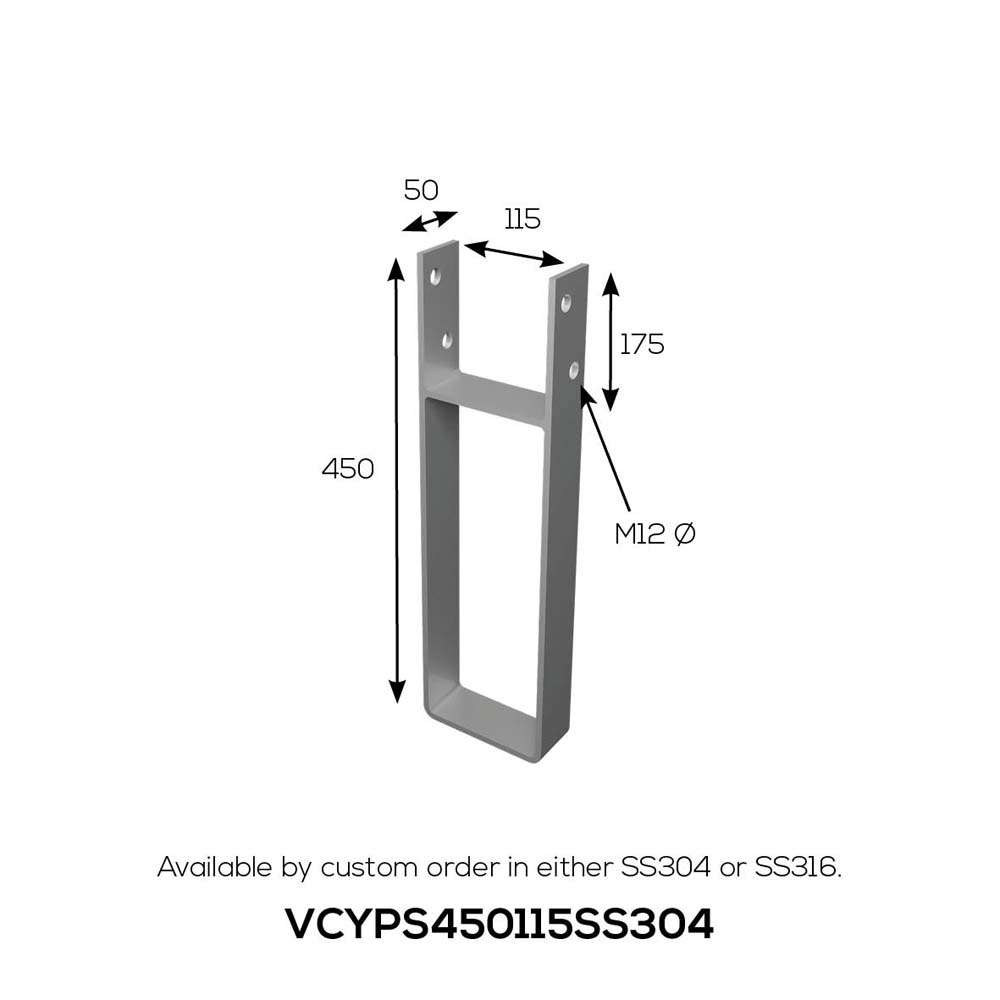

| VCYPS450115SS304* | 450mm | 1 |

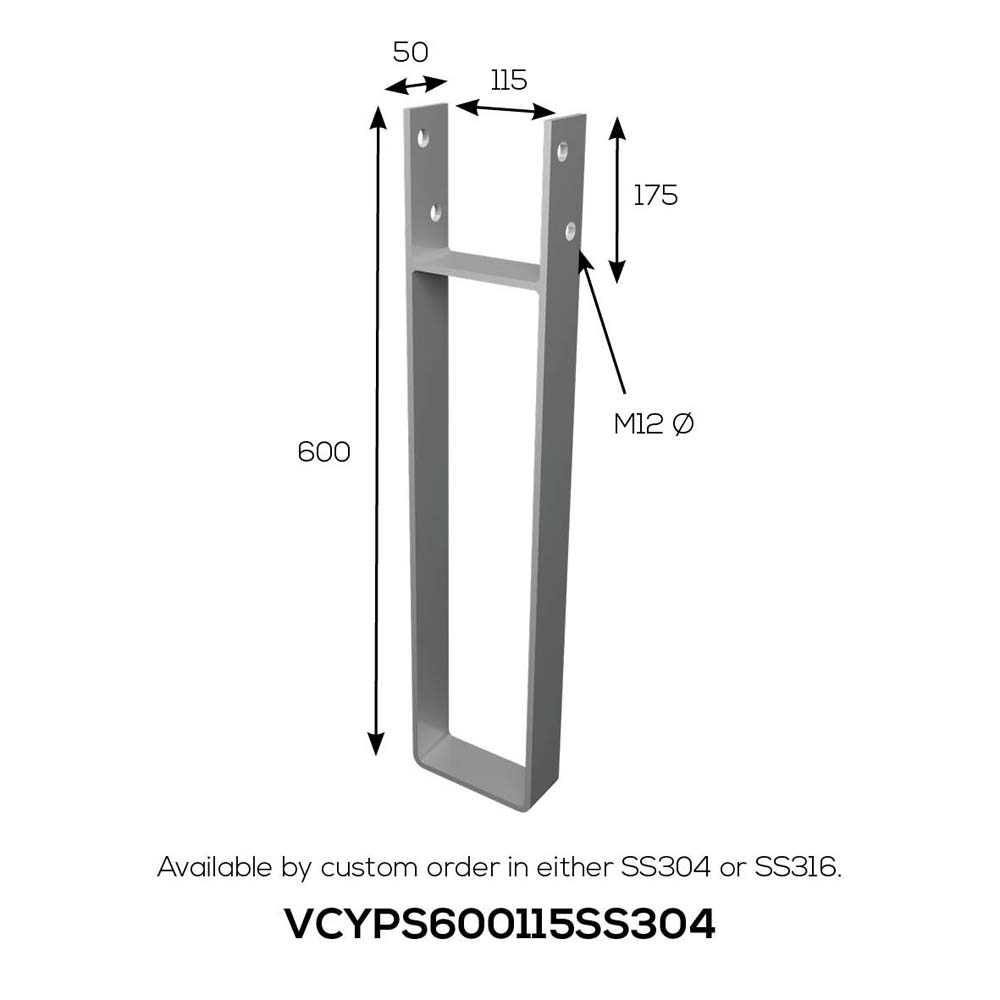

| VCYPS600115SS304* | 600mm | 1 |
Stirrup width 125mm: | ||

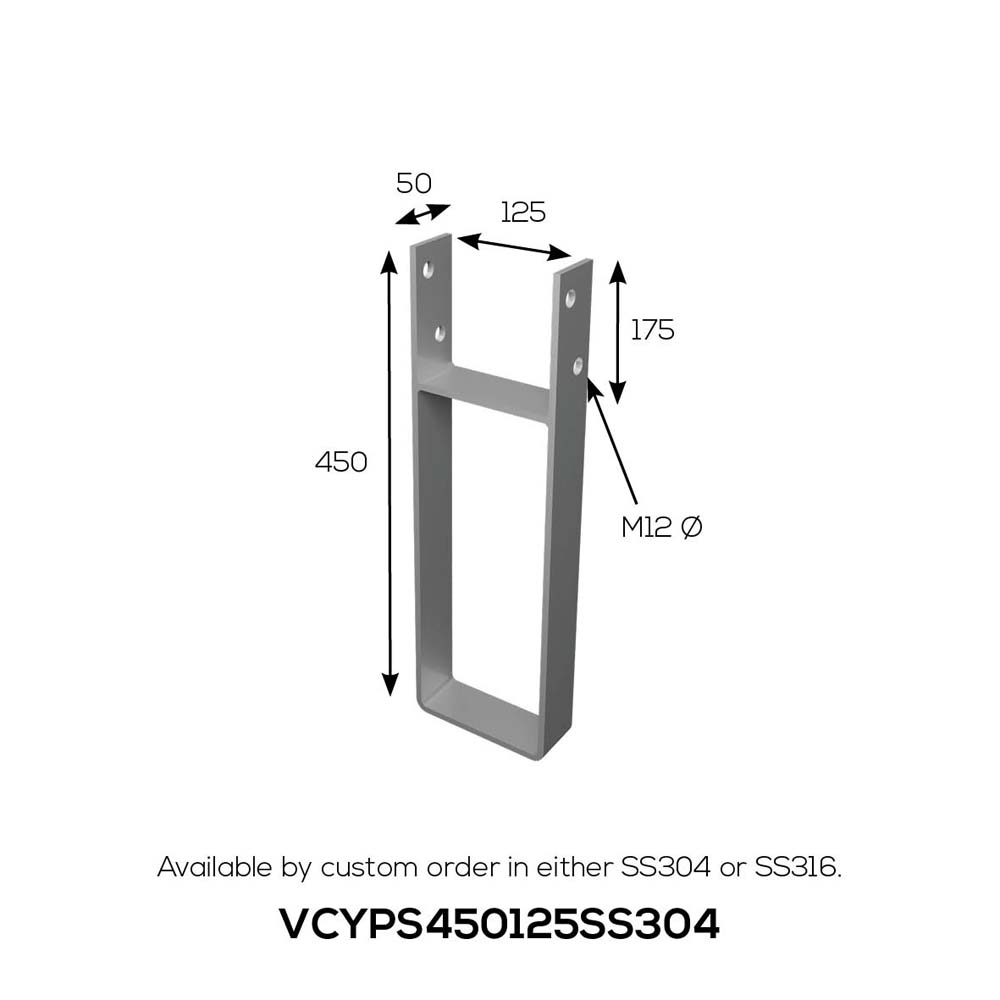

| VCYPS450125SS304* | 450mm | 1 |

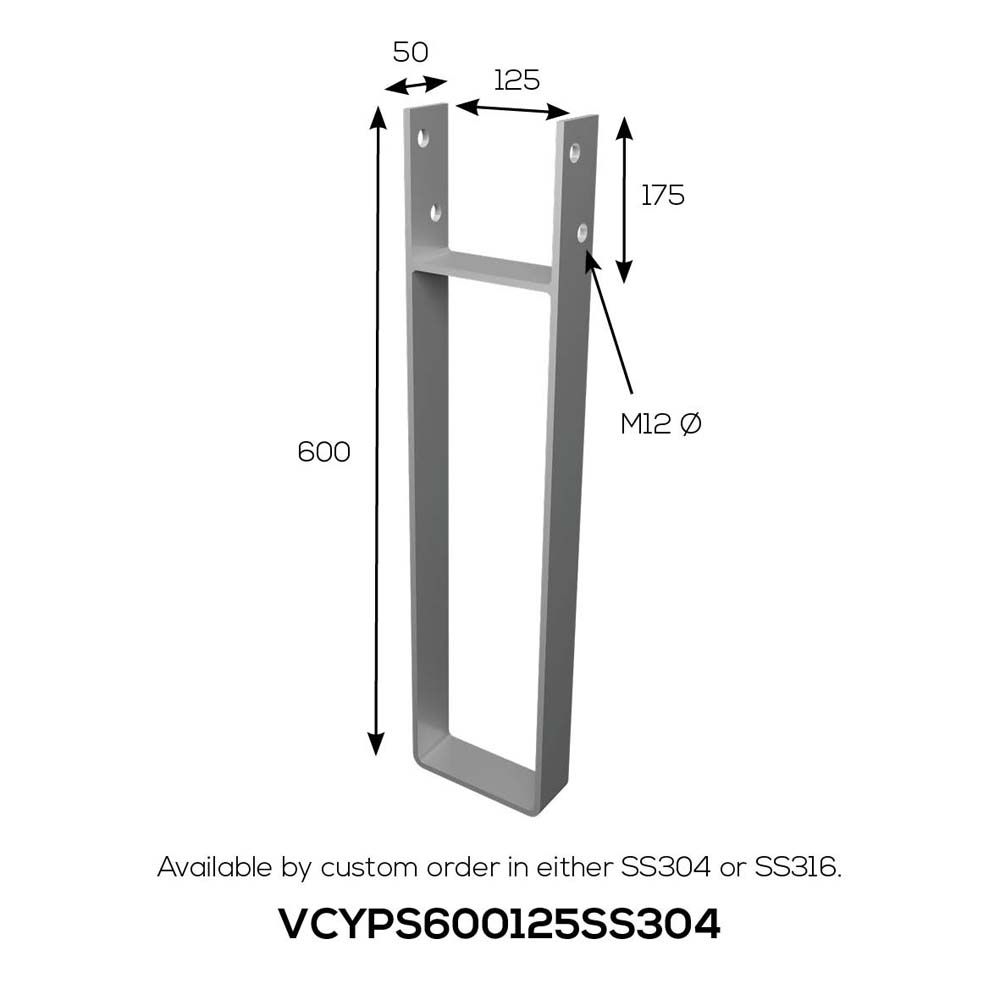

| VCYPS600125SS304* | 600mm | 1 |
Stirrup width 135mm: | ||

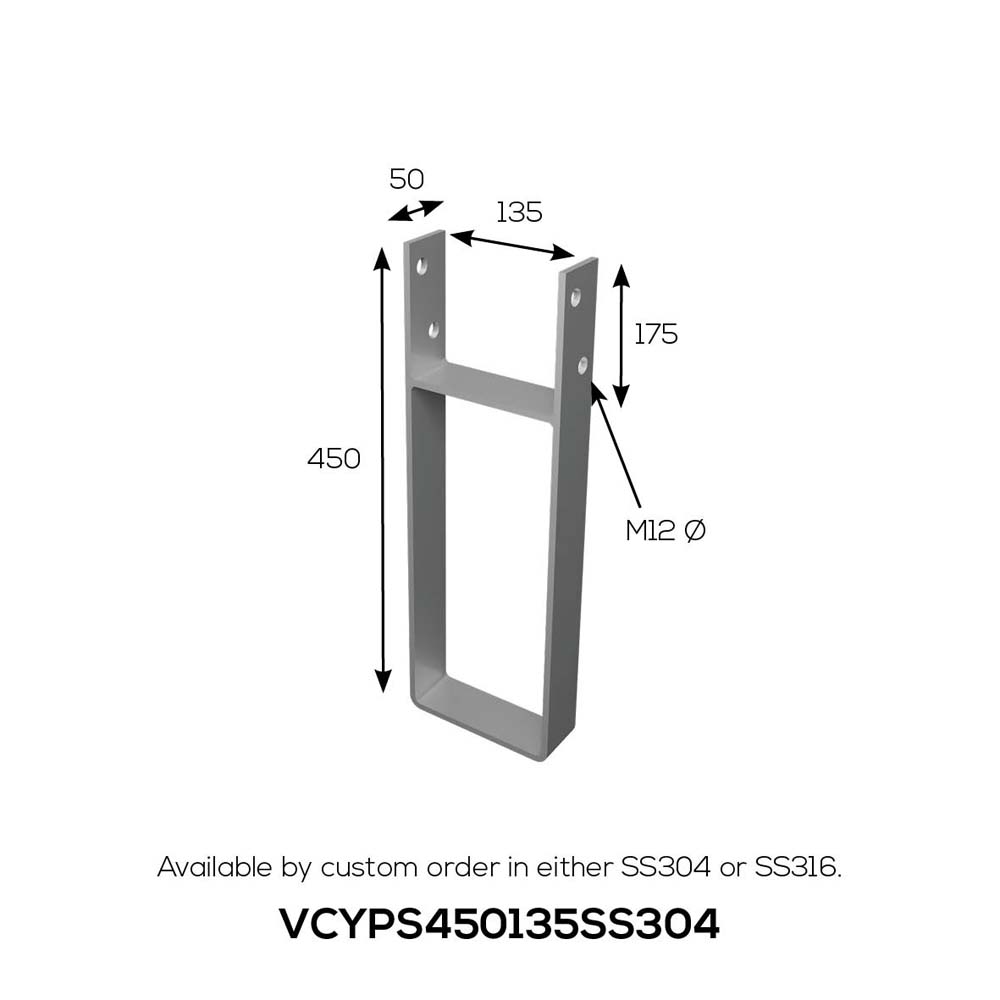

| VCYPS450135SS304* | 450mm | 1 |
| VCYPS600135SS304* | 600mm | 1 |
Stirrup width 140mm: | ||

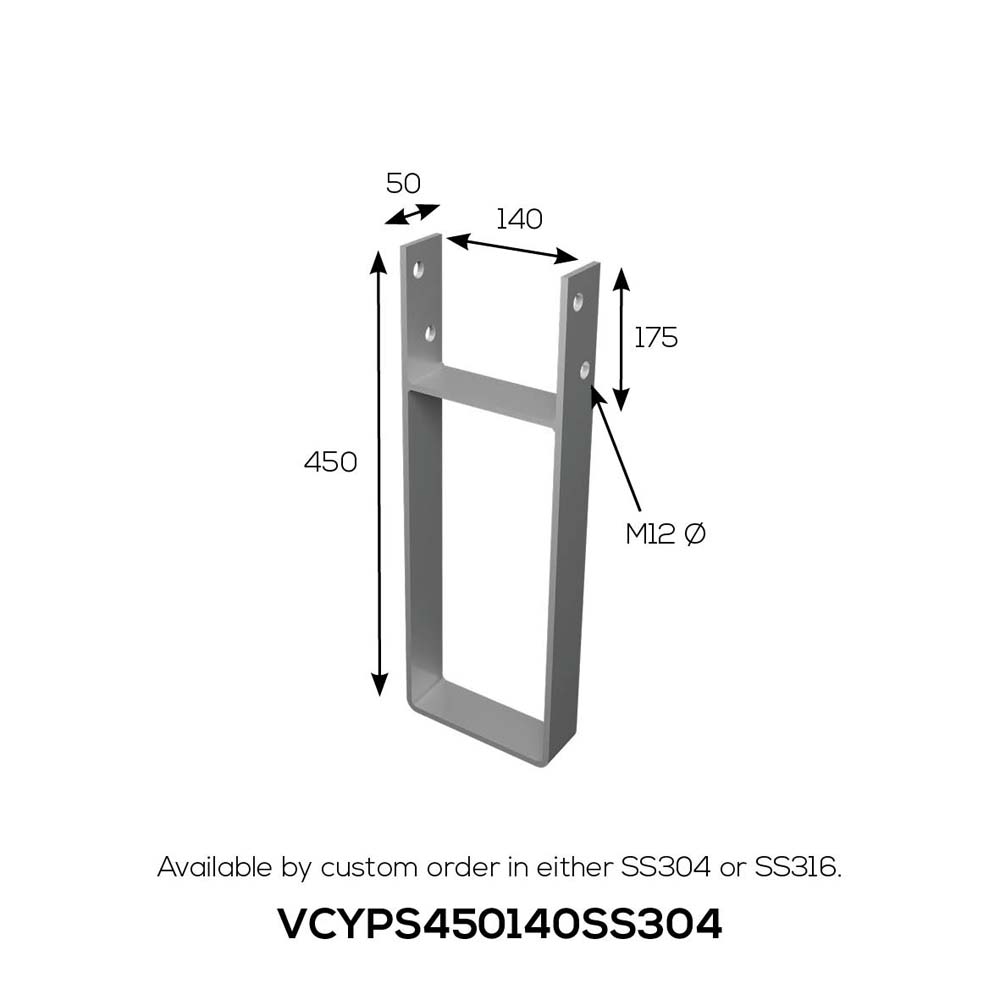

| VCYPS450140SS304* | 450mm | 1 |

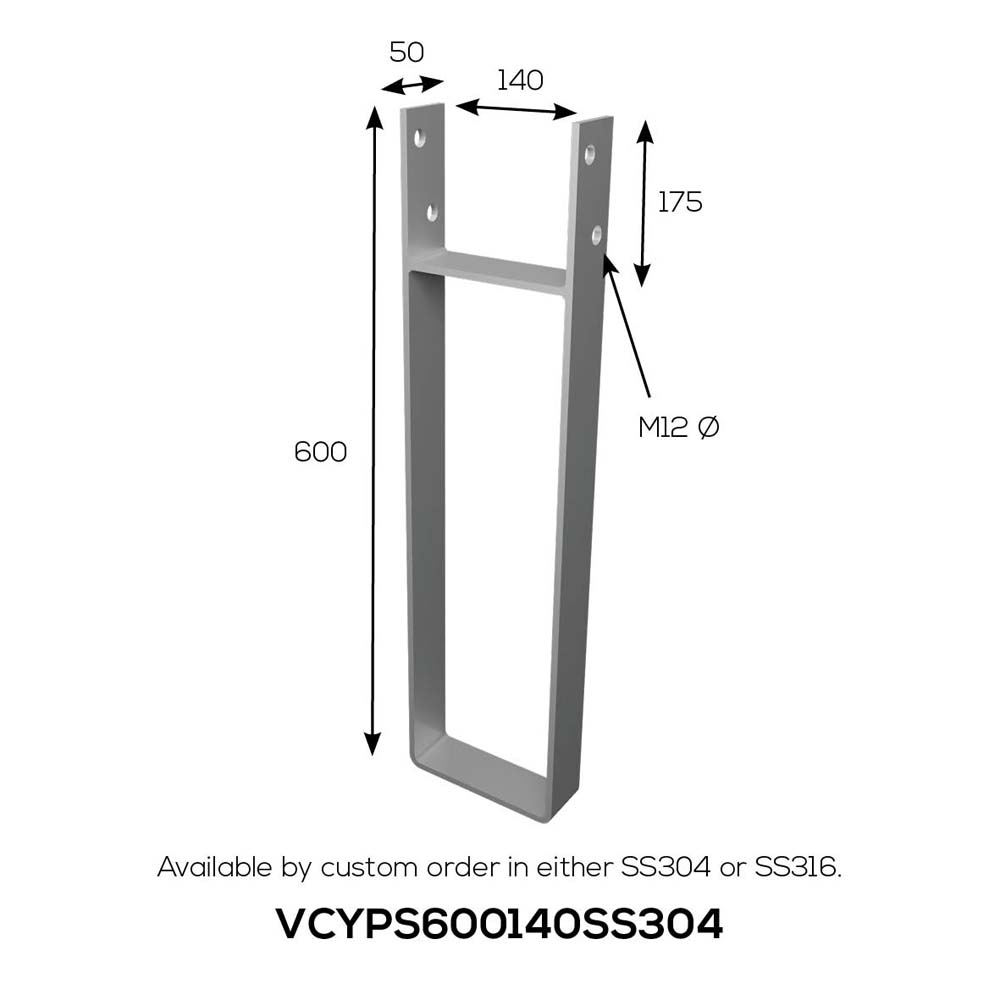

| VCYPS600140SS304* | 600mm | 1 |
Stirrup width 150mm: | ||

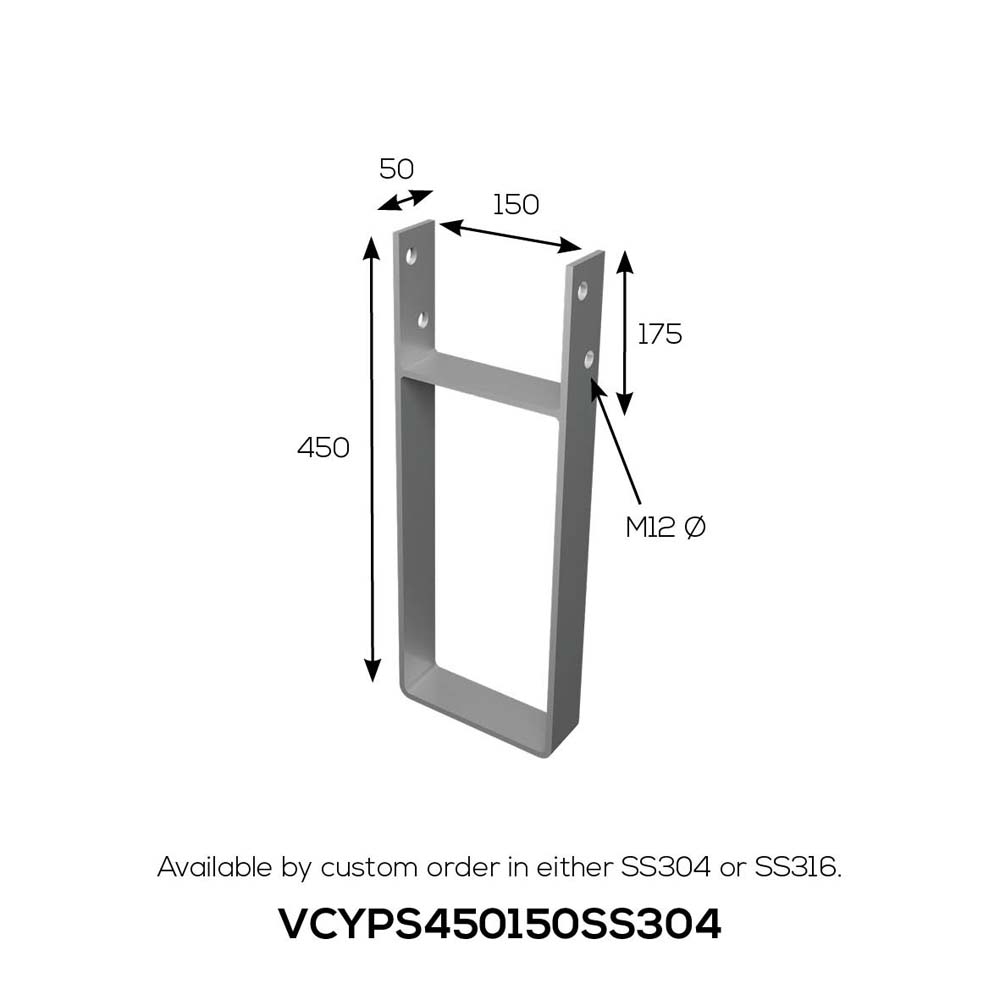

| VCYPS450150SS304* | 450mm | 1 |

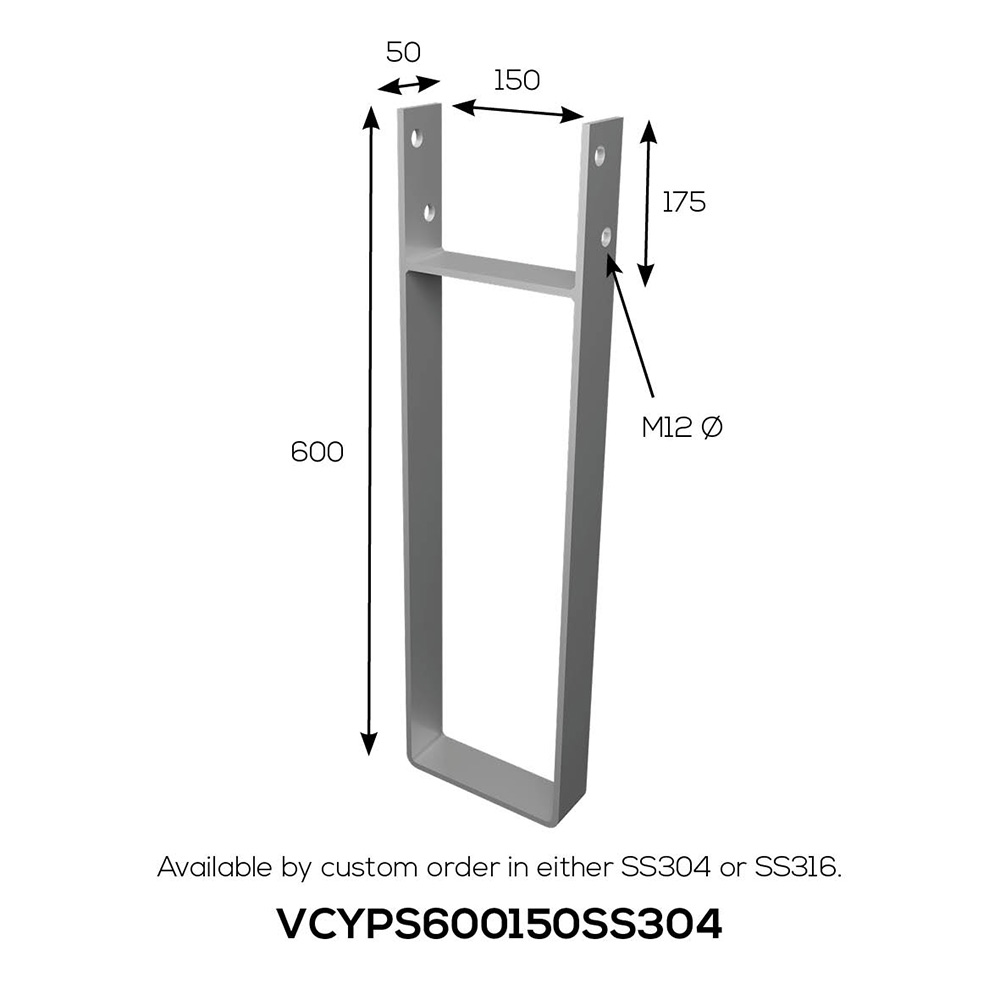

| VCYPS600150SS304* | 600mm | 1 |
Stirrup width 180mm: | ||

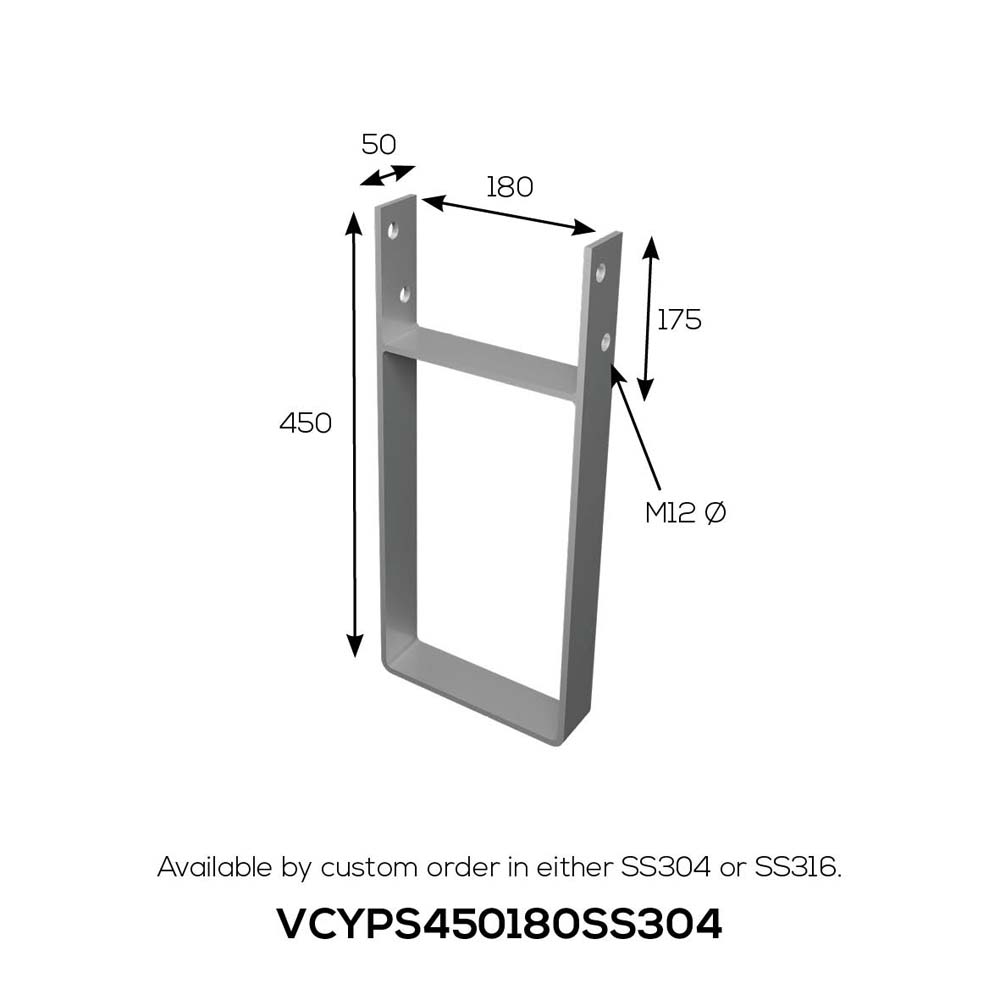

| VCYPS450180SS304* | 450mm | 1 |

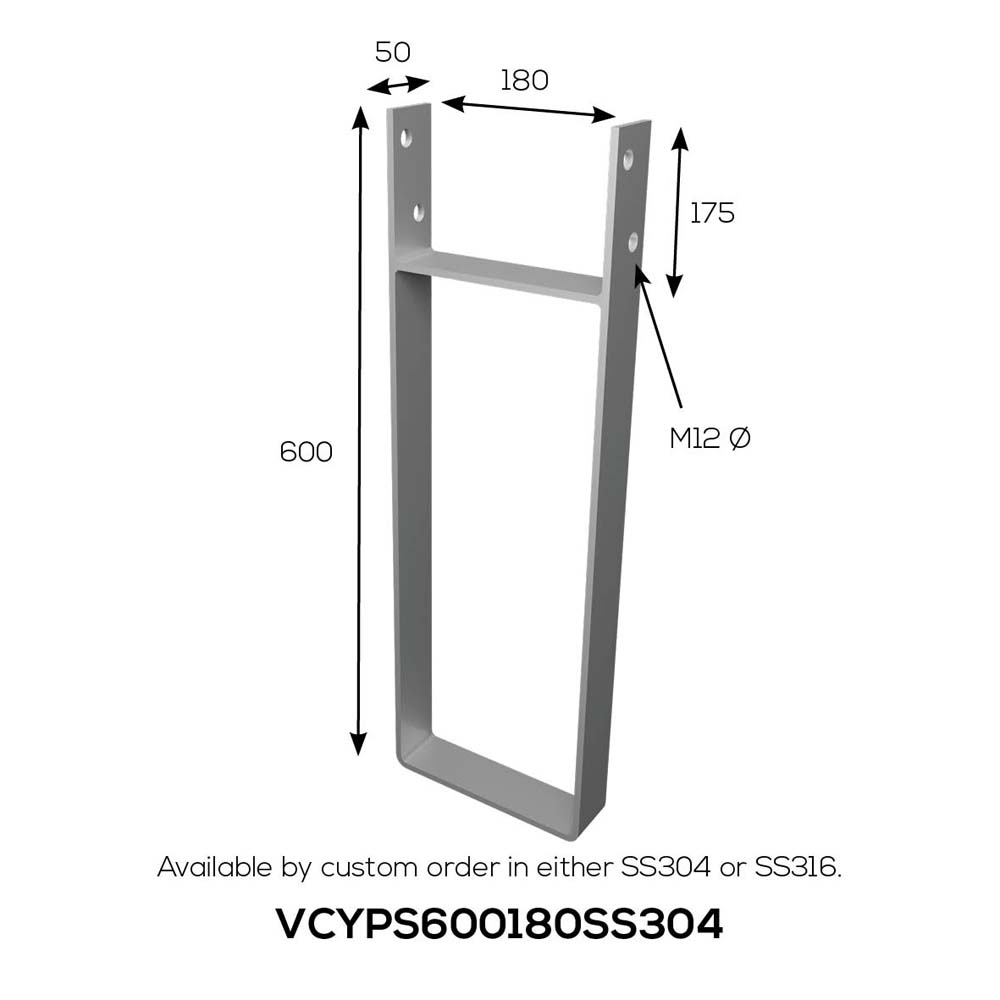

| VCYPS600180SS304* | 600mm | 1 |
Stirrup width 200mm: | ||

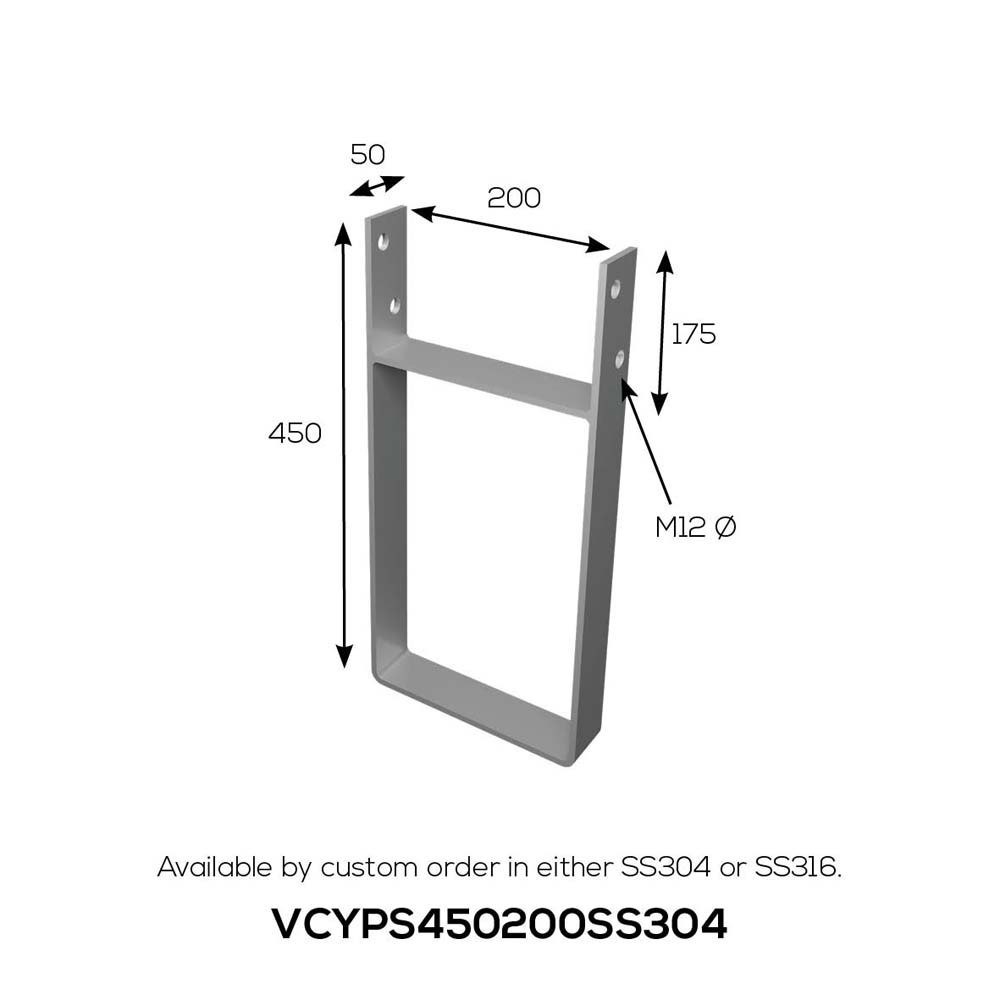

| VCYPS450200SS304* | 450mm | 1 |

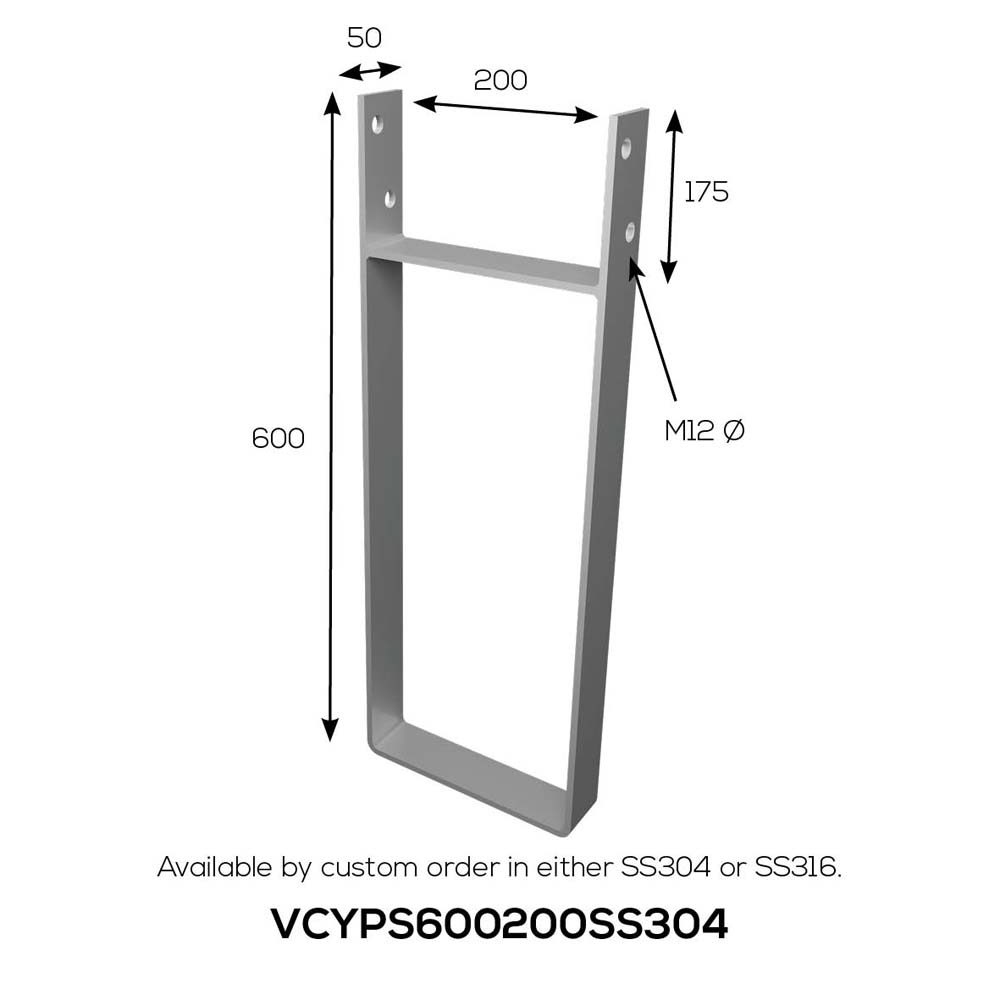

| VCYPS600200SS304* | 600mm | 1 |
*Available by special order.
