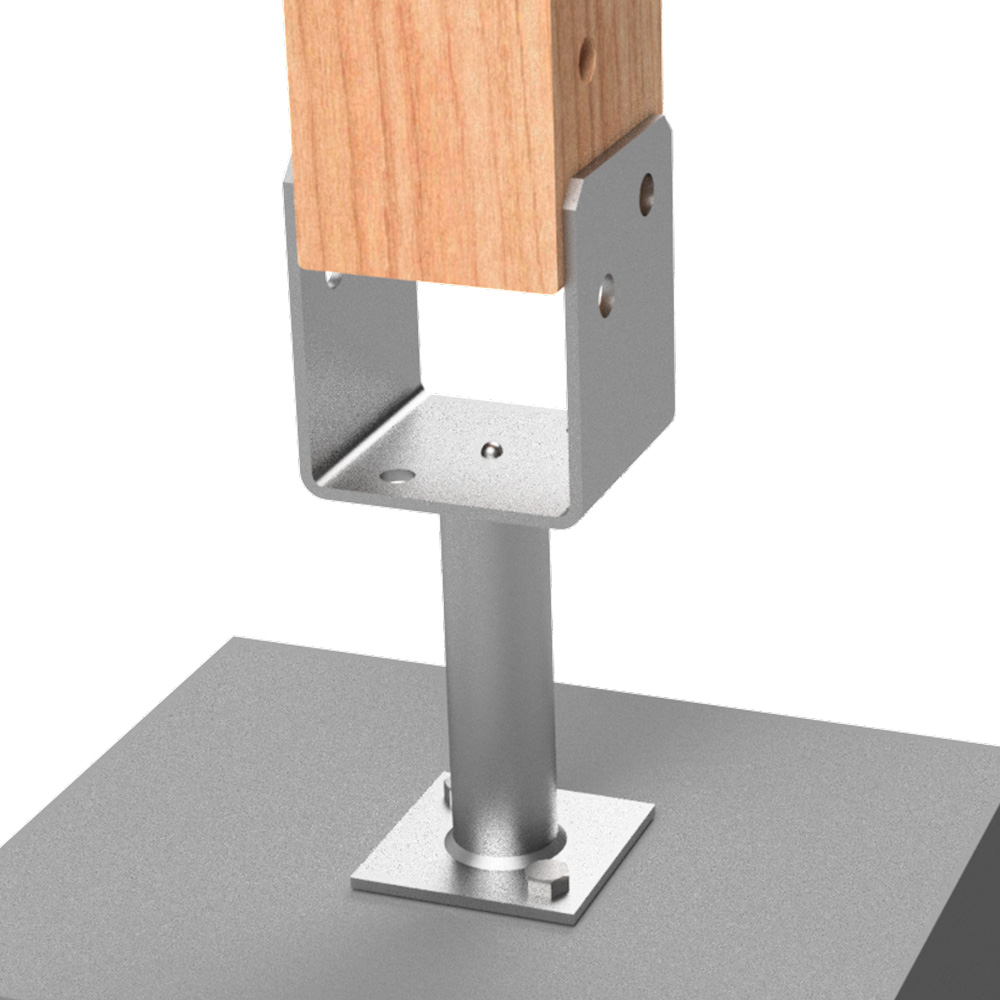

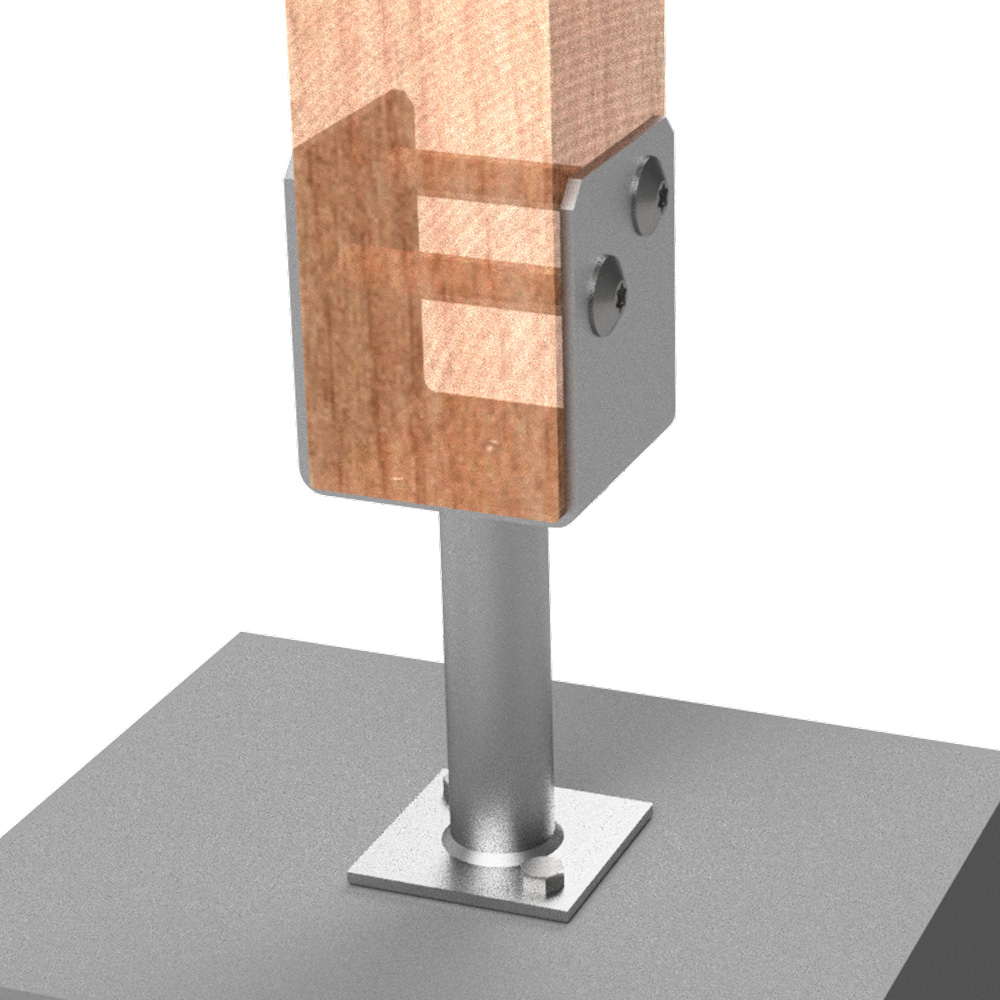

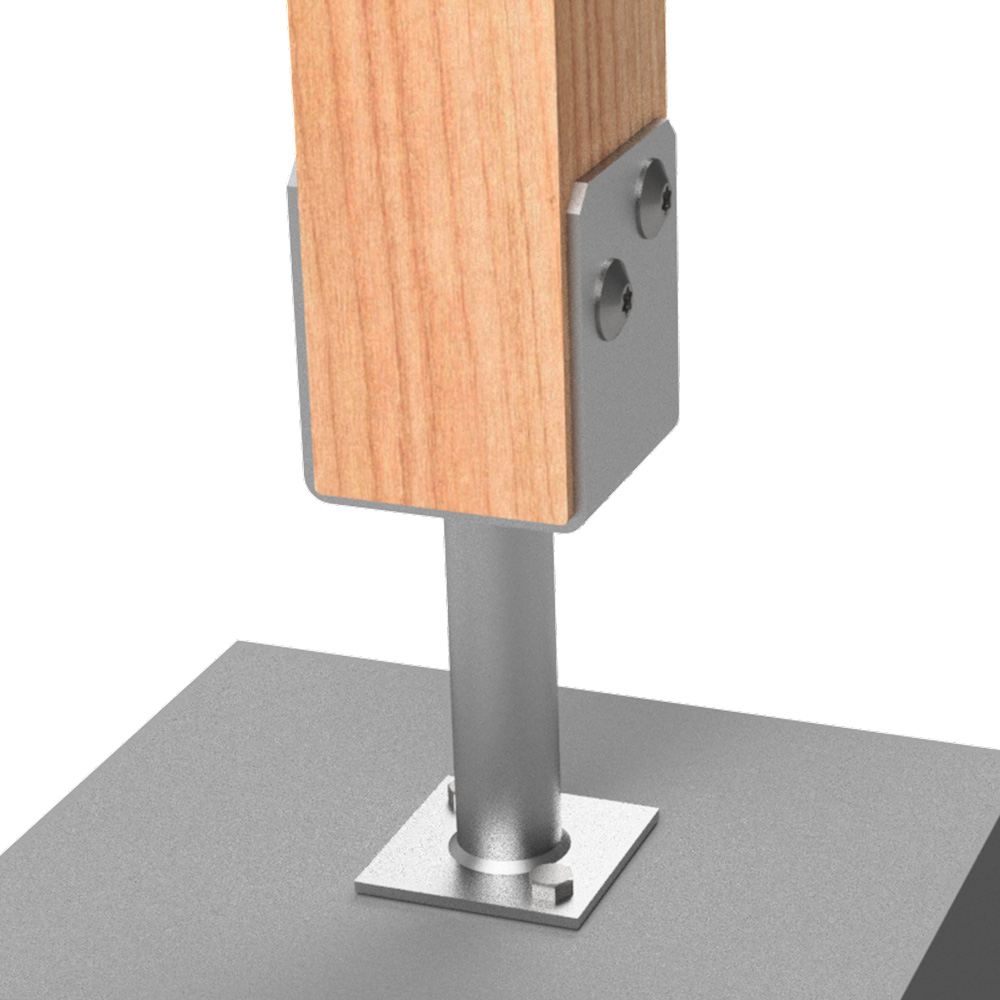

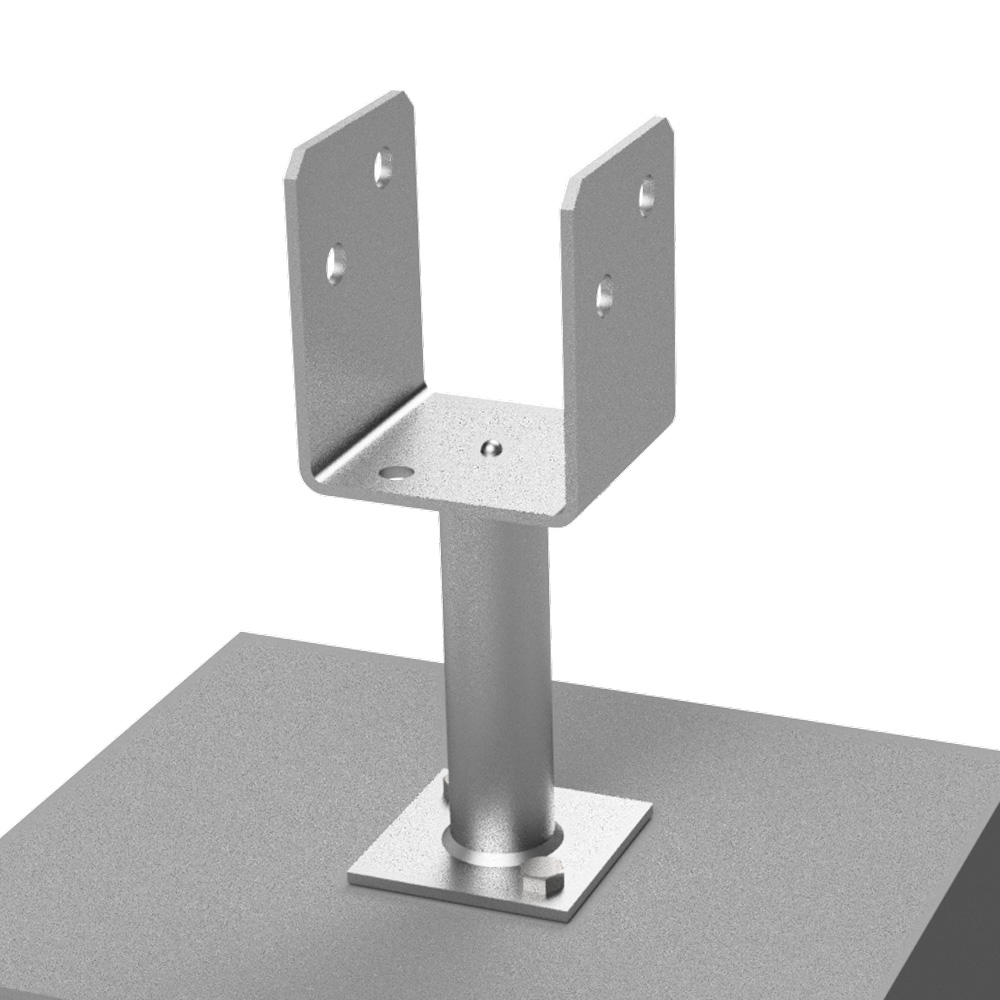

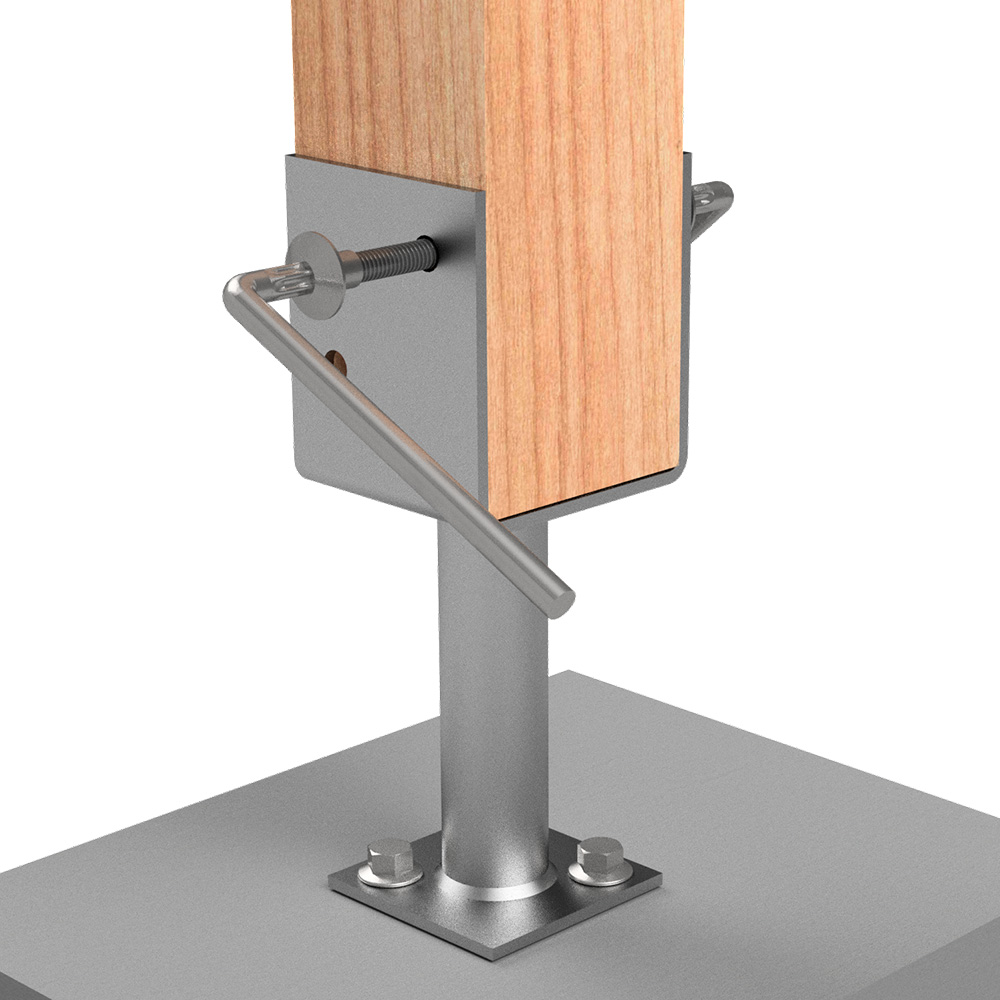

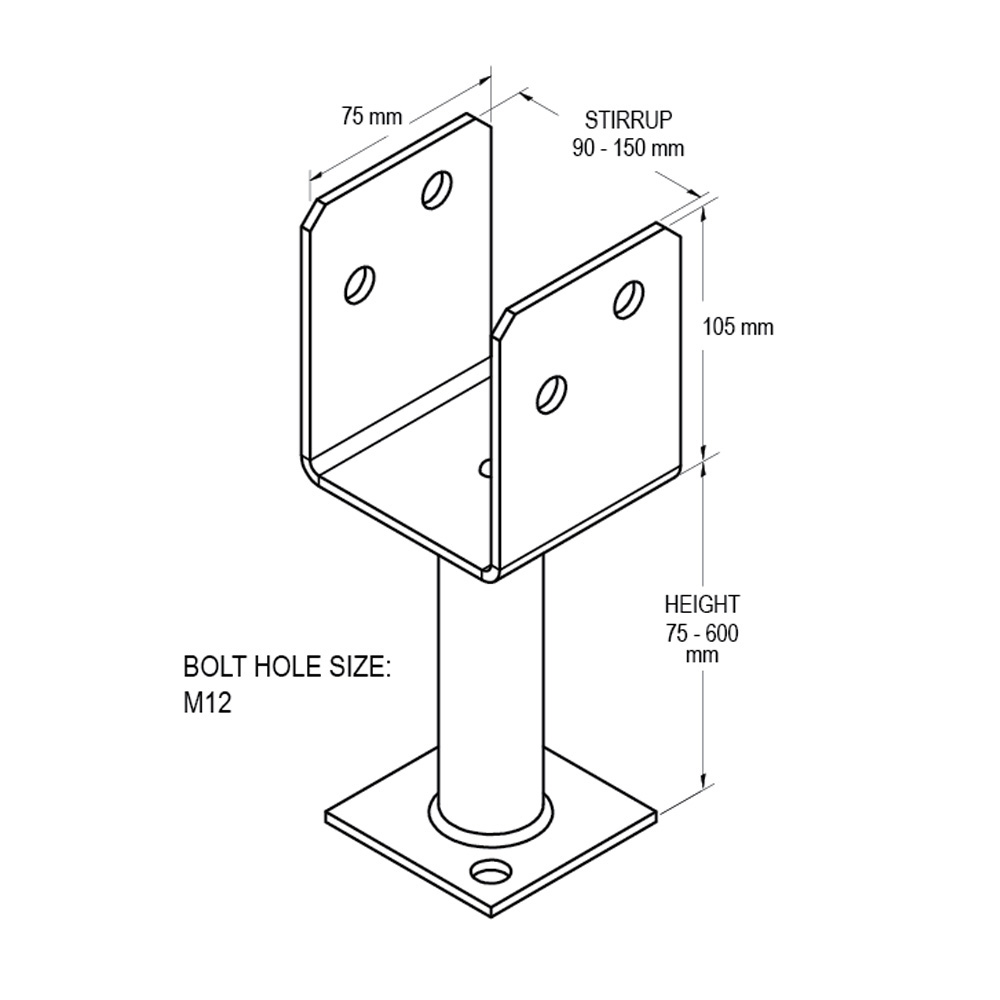

VUETRADE Stainless Steel Full Stirrup Post Supports are U-saddle post anchors ideal for coastal areas, fixing timber posts by bolting onto or setting into concrete.
• Extra Heavy Duty 32mm Shaft, 2.0mm Thick
• Suits 90mm up to 200mm square posts
• Leg Sizes from 75mm to 600mm

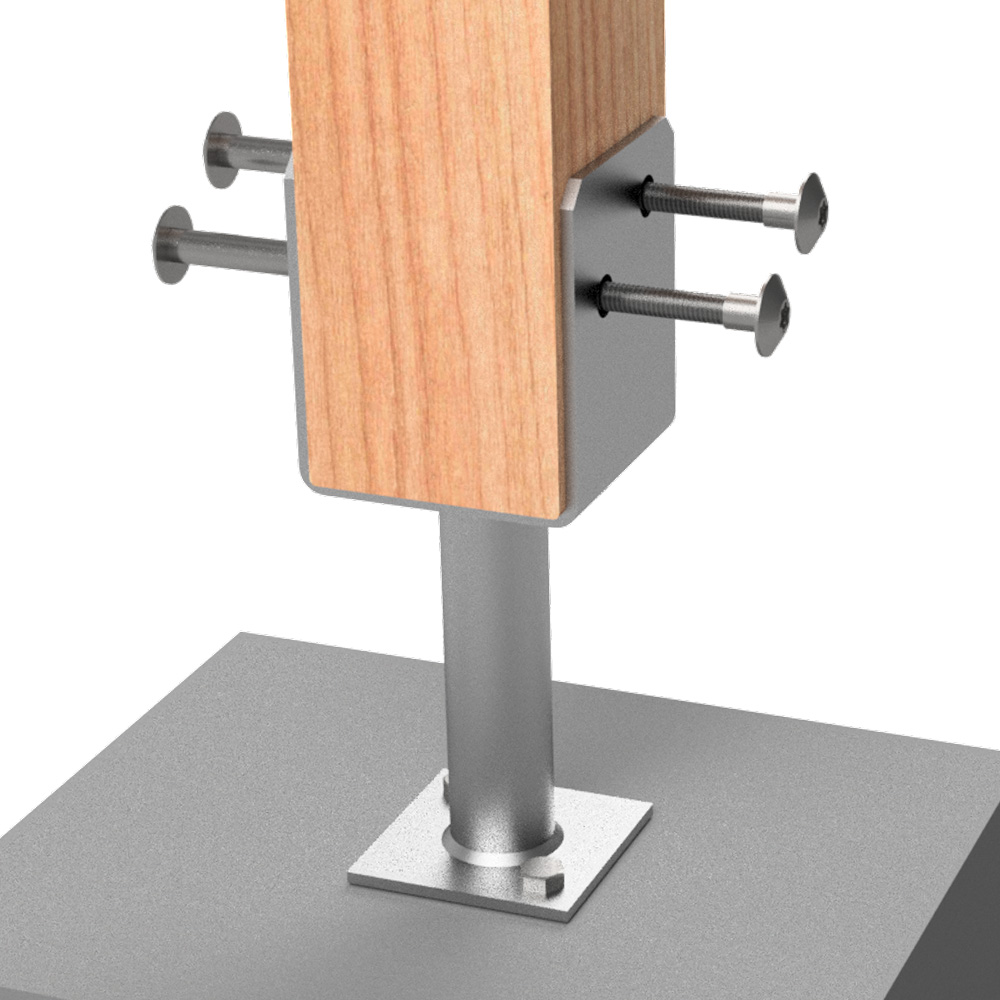

• Bolt Holes
2 x M12 Bolt Holes (Saddle & Base)
2 x M10 Bolt Holes (Base of Saddle)
• Stirrup Side Size 75mm Wide x 105mm High
• 304 Stainless Steel – durable, corrosion resistant, and suitable for use in some coastal and corrosive environments (Available in SS316 by special order)
Warning: Mandatory and recommended usage of stainless steel timber connectors varies in different states and areas – always check with your local building authorities. VUETRADE Stainless Steel fixings should always be used with CoastalSS stainless steel brackets.

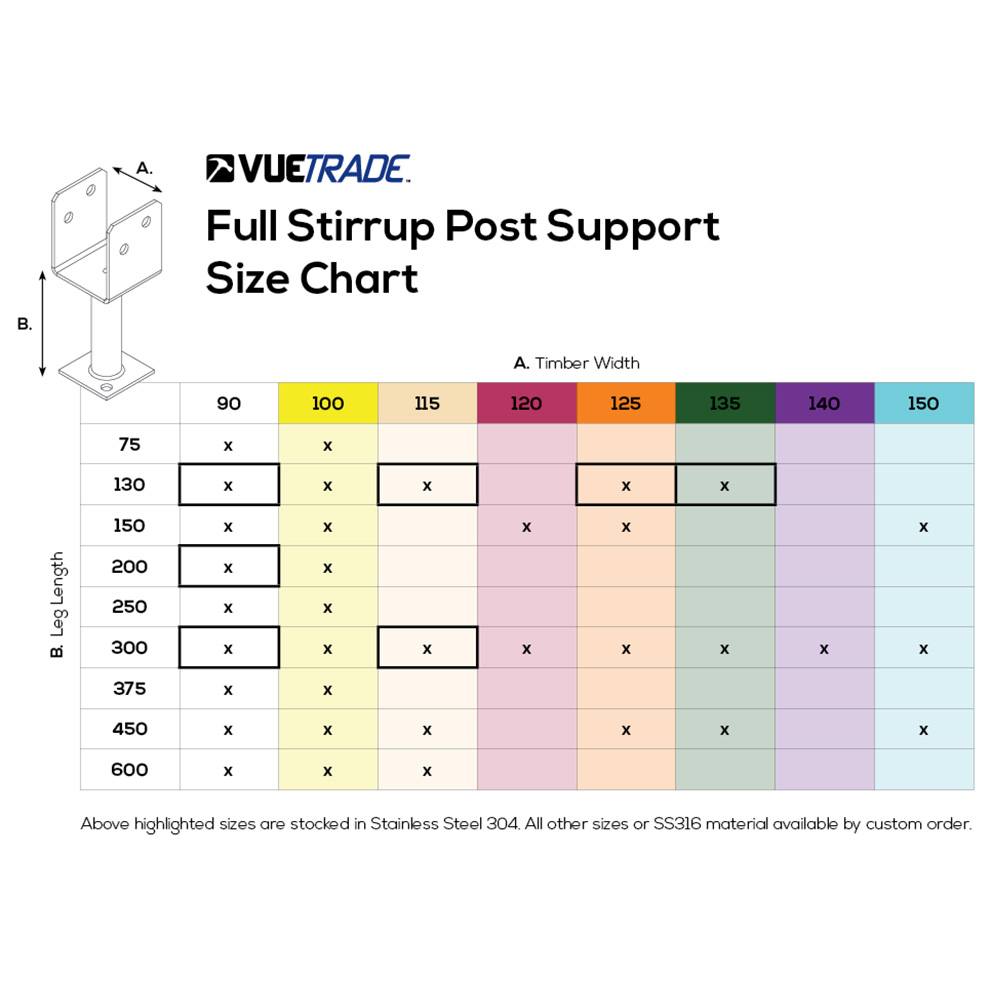

| Product Code(s) | Leg Height | Metal Thickness | Box Qty |
|---|---|---|---|
Stirrup width 90mm: | |||
| VPS7590SS304* | 75mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

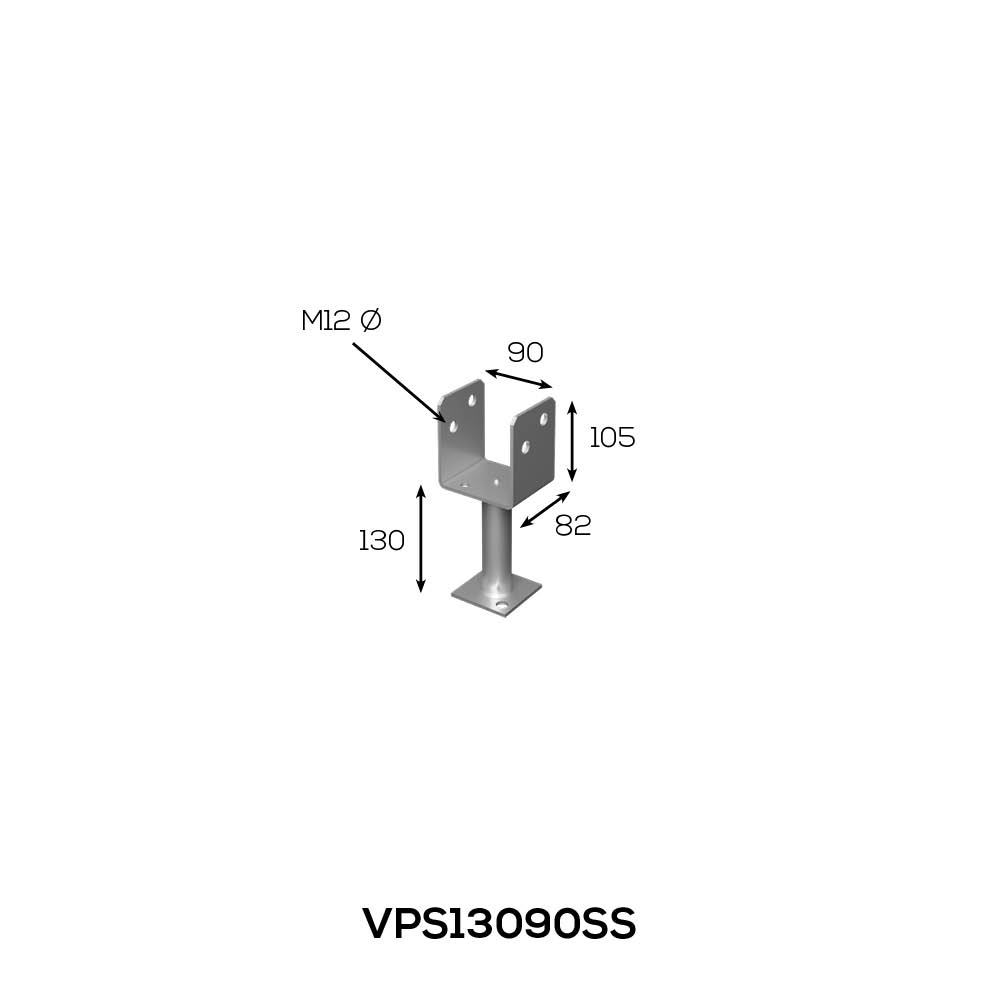

| VPS13090SS | 130mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

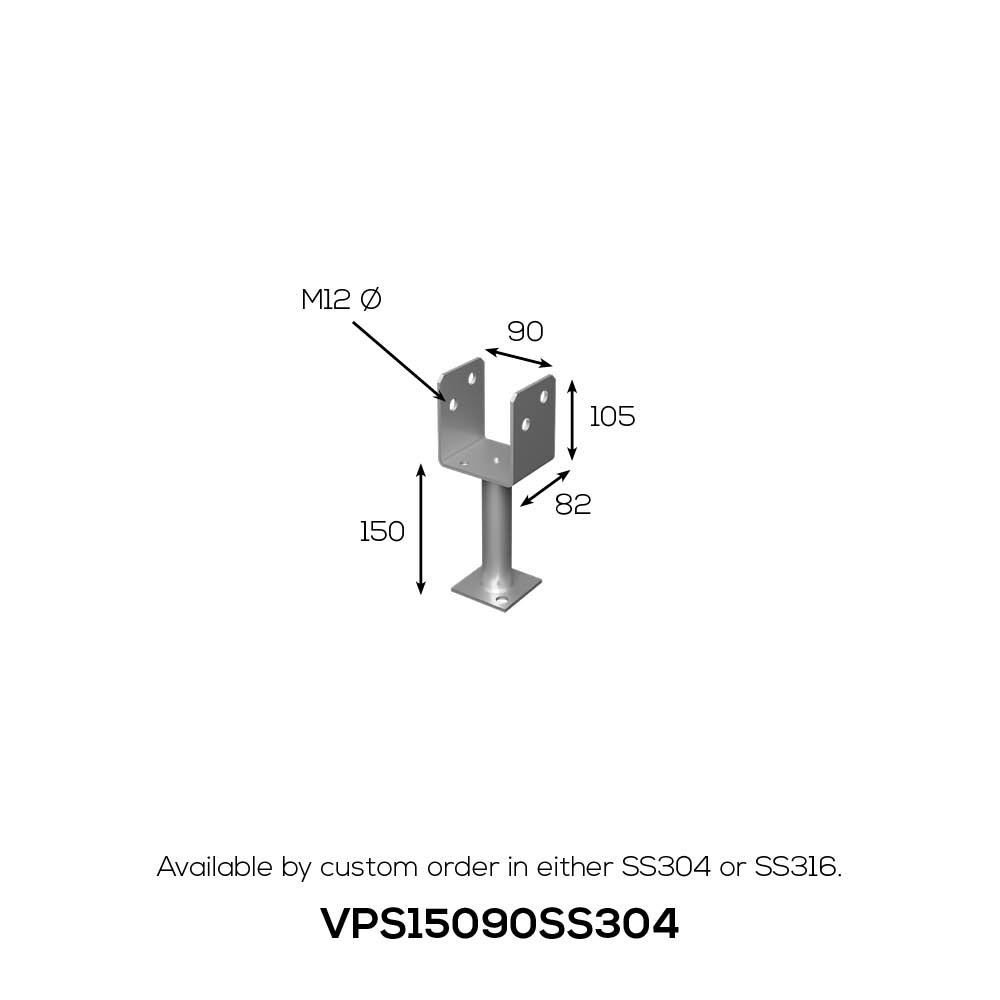

| VPS15090SS304* | 150mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

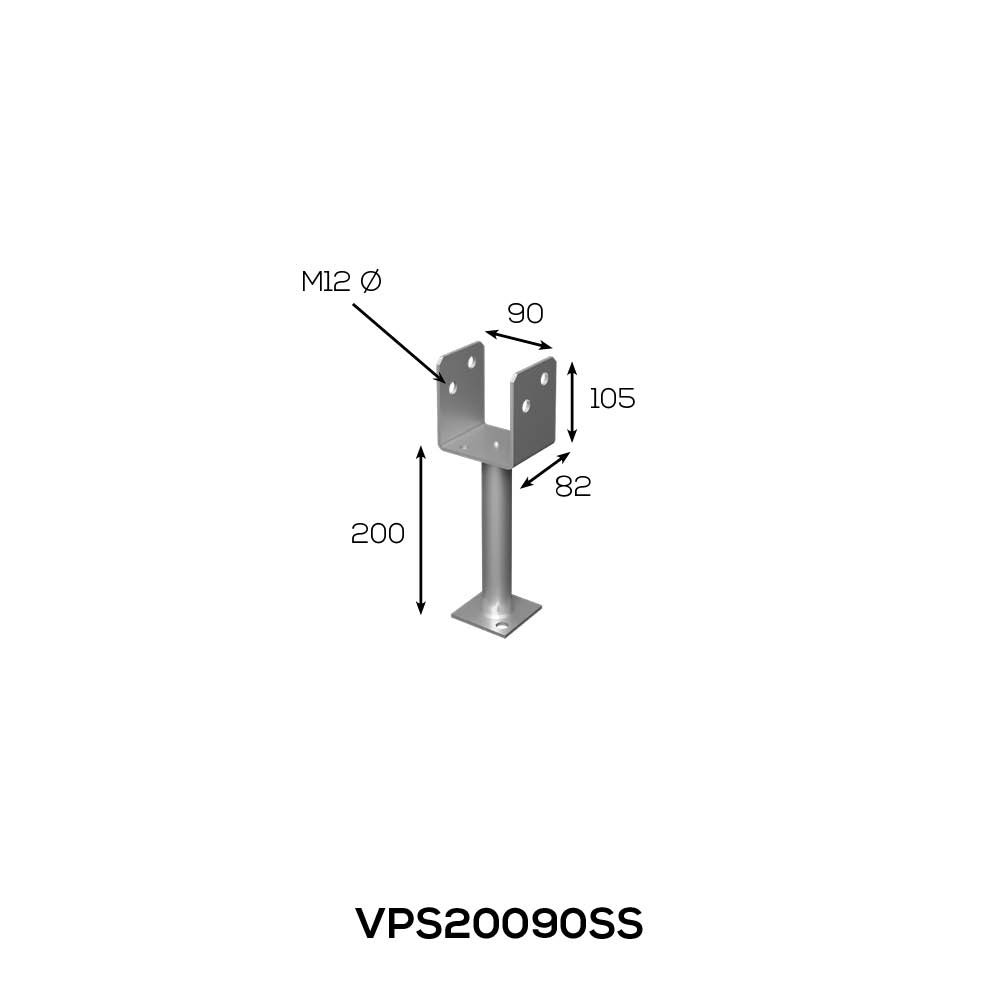

| VPS20090SS | 200mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

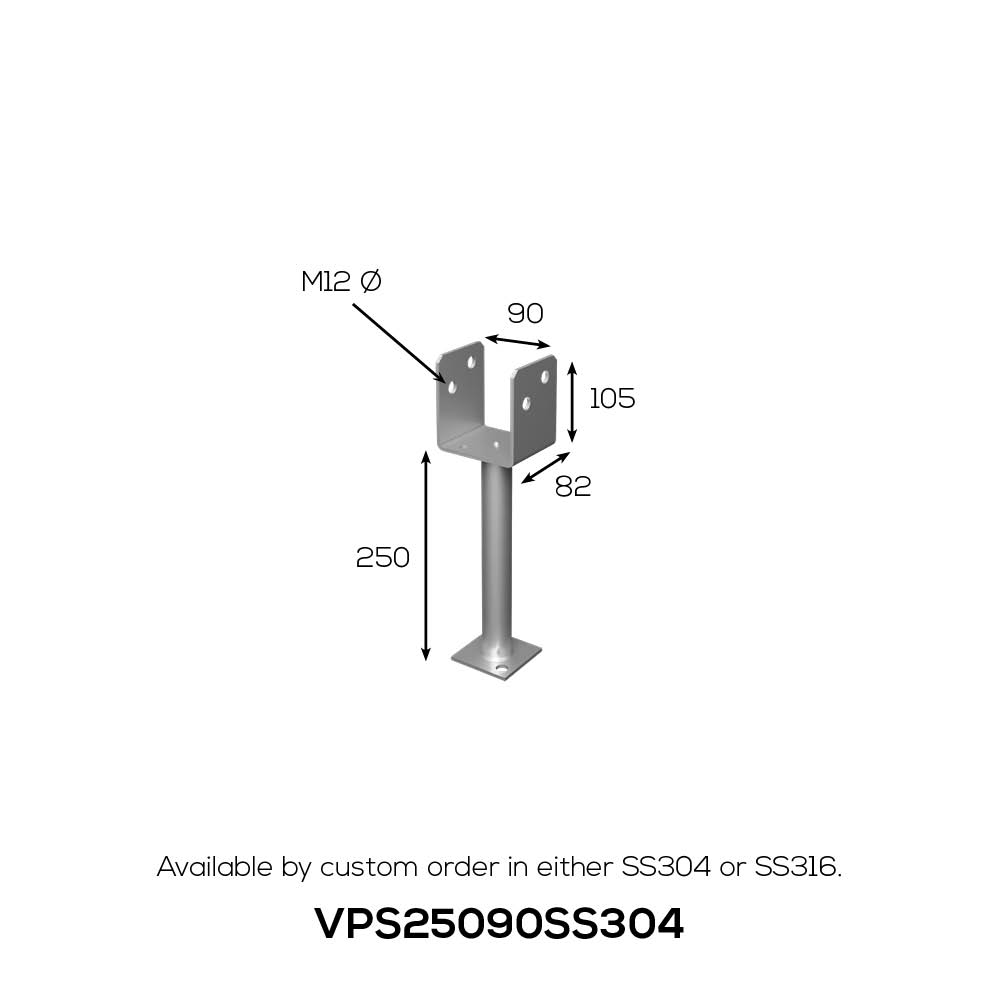

| VPS25090SS304* | 250mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

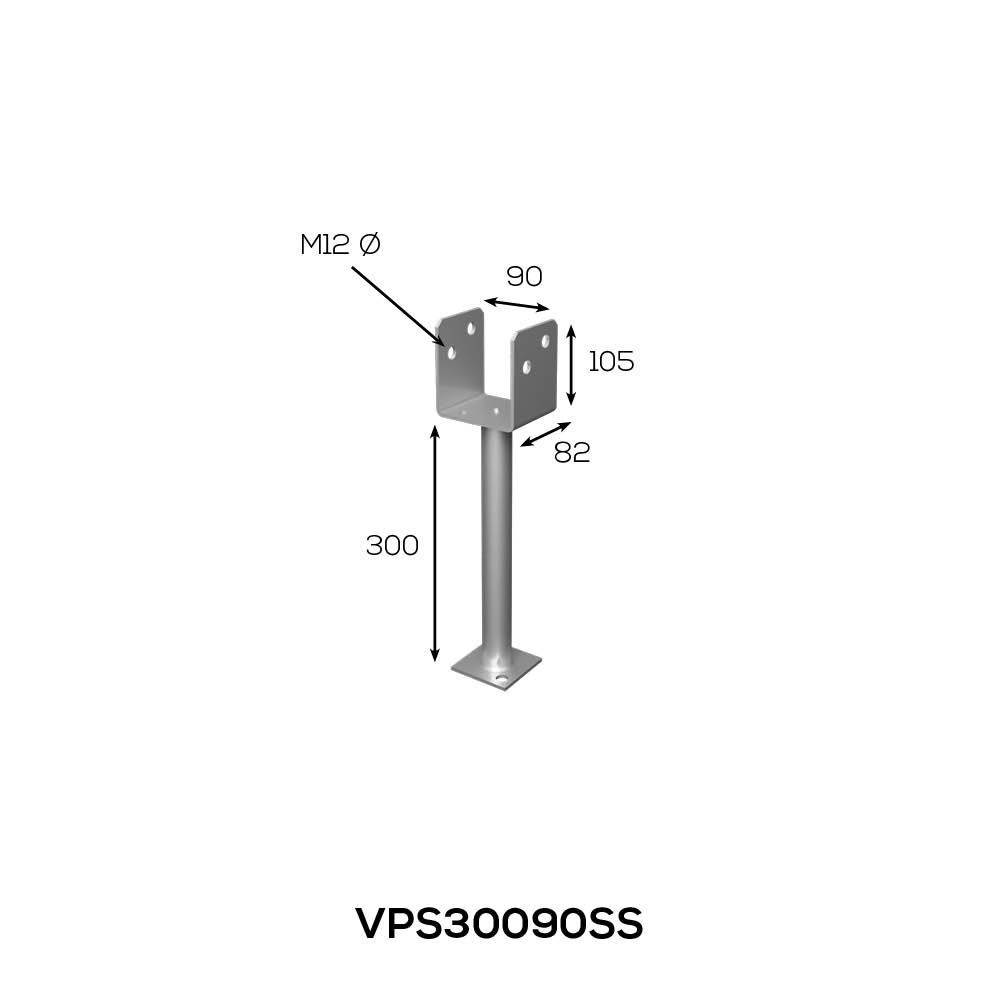

| VPS30090SS | 300mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |
| VPS37590SS304* | 375mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |
| VPS45090SS304* | 450mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

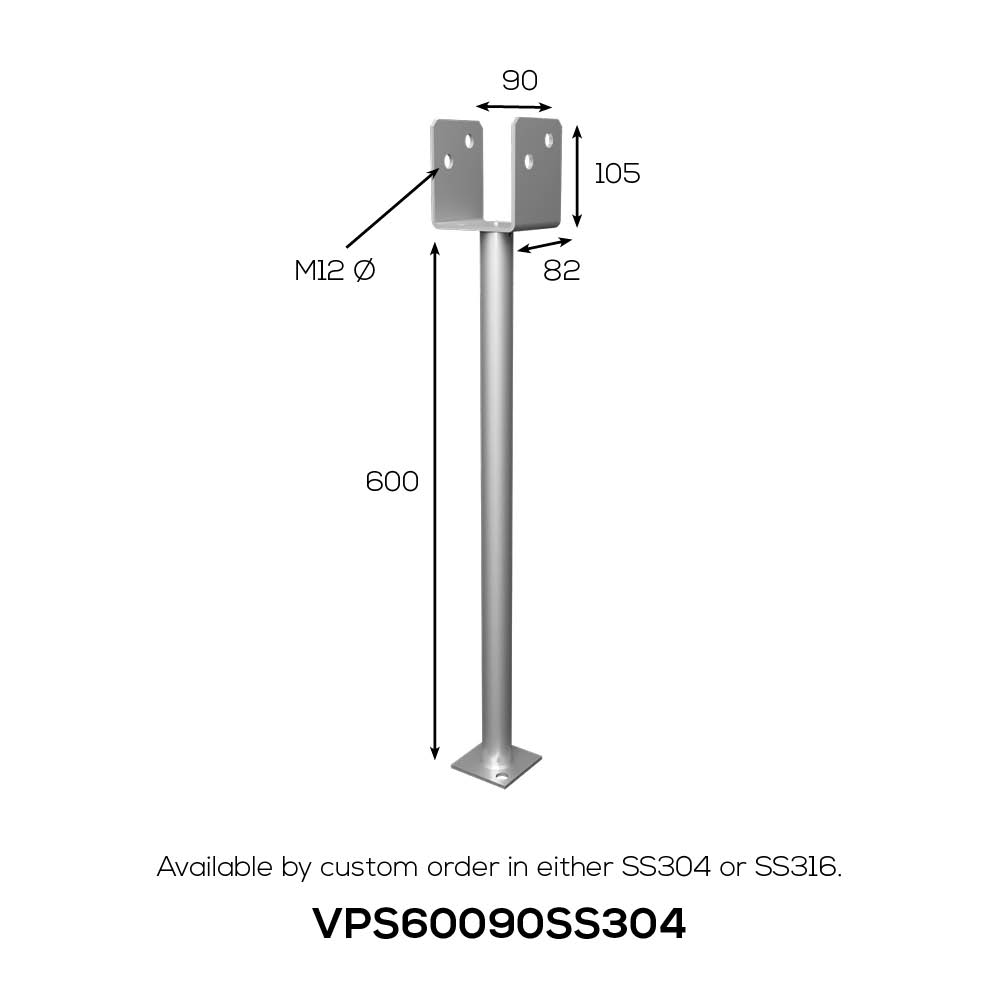

| VPS60090SS304* | 600mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |
Stirrup width 100mm: | |||

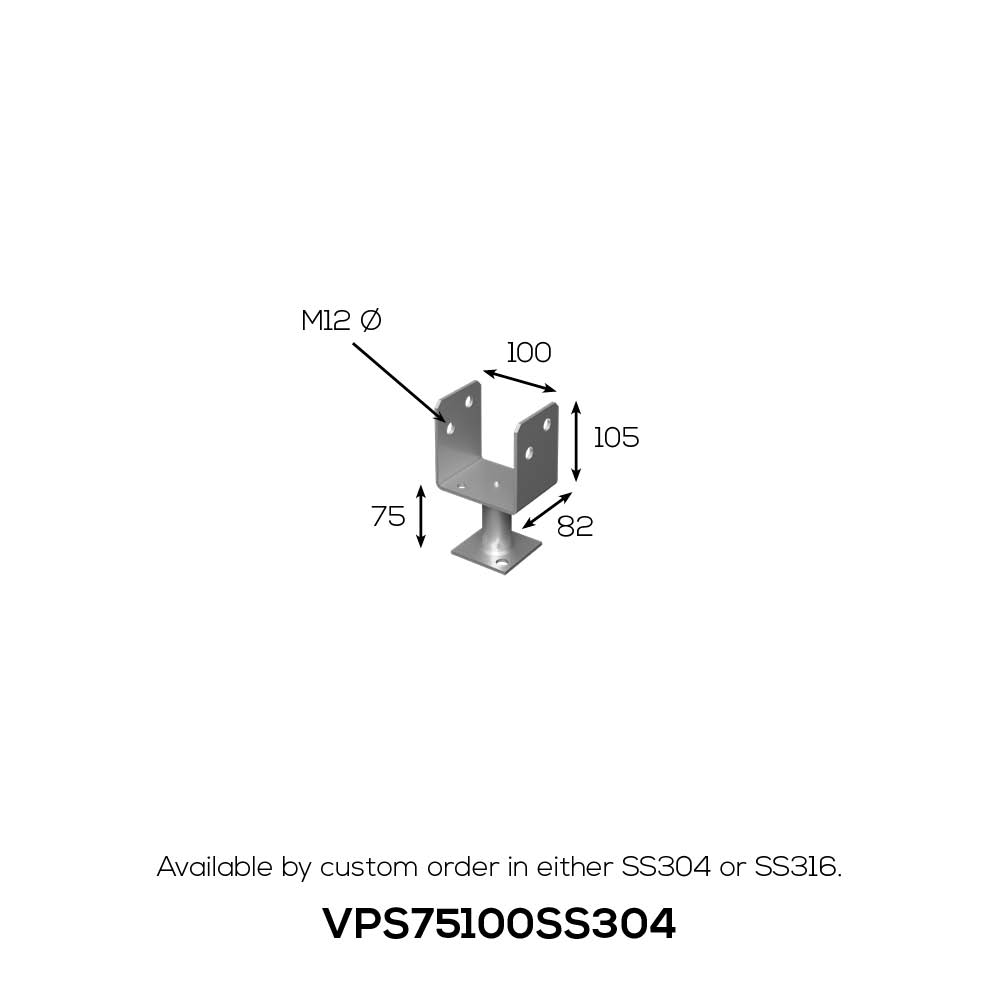

| VPS75100SS304* | 75mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

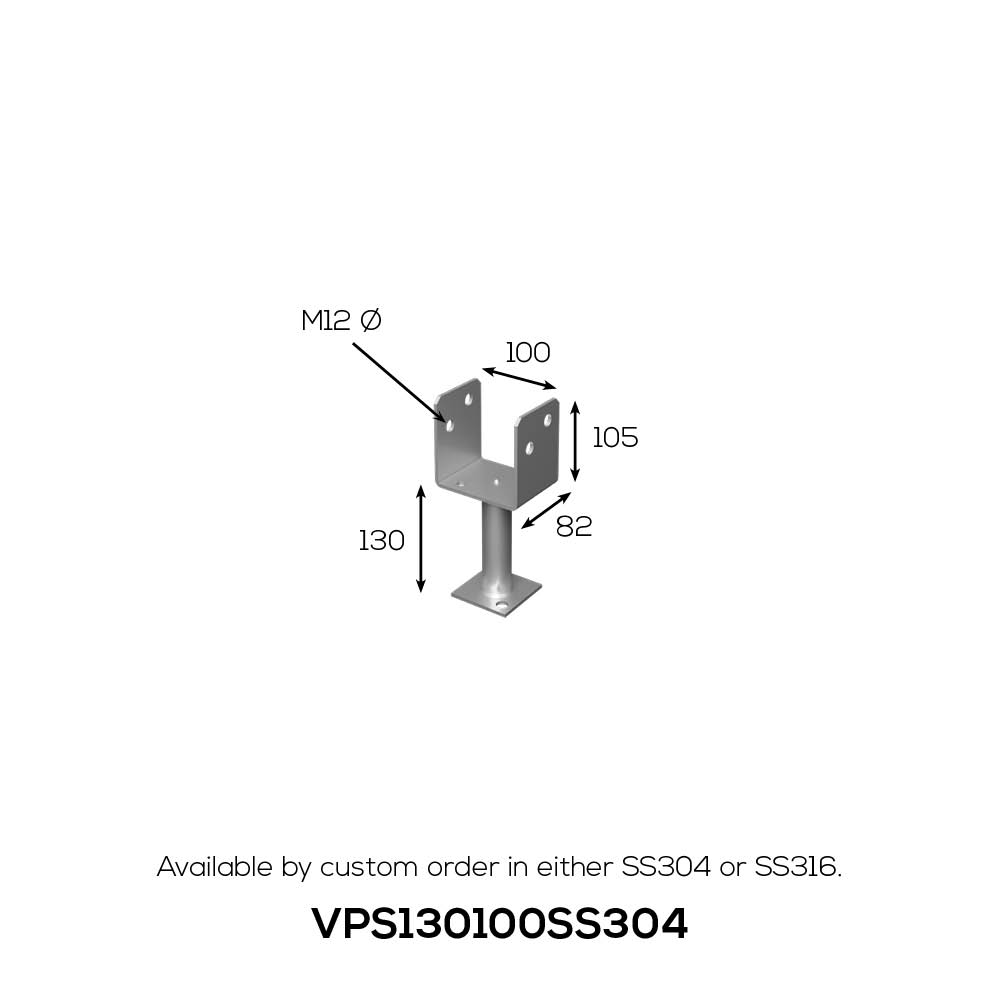

| VPS130100SS304* | 130mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

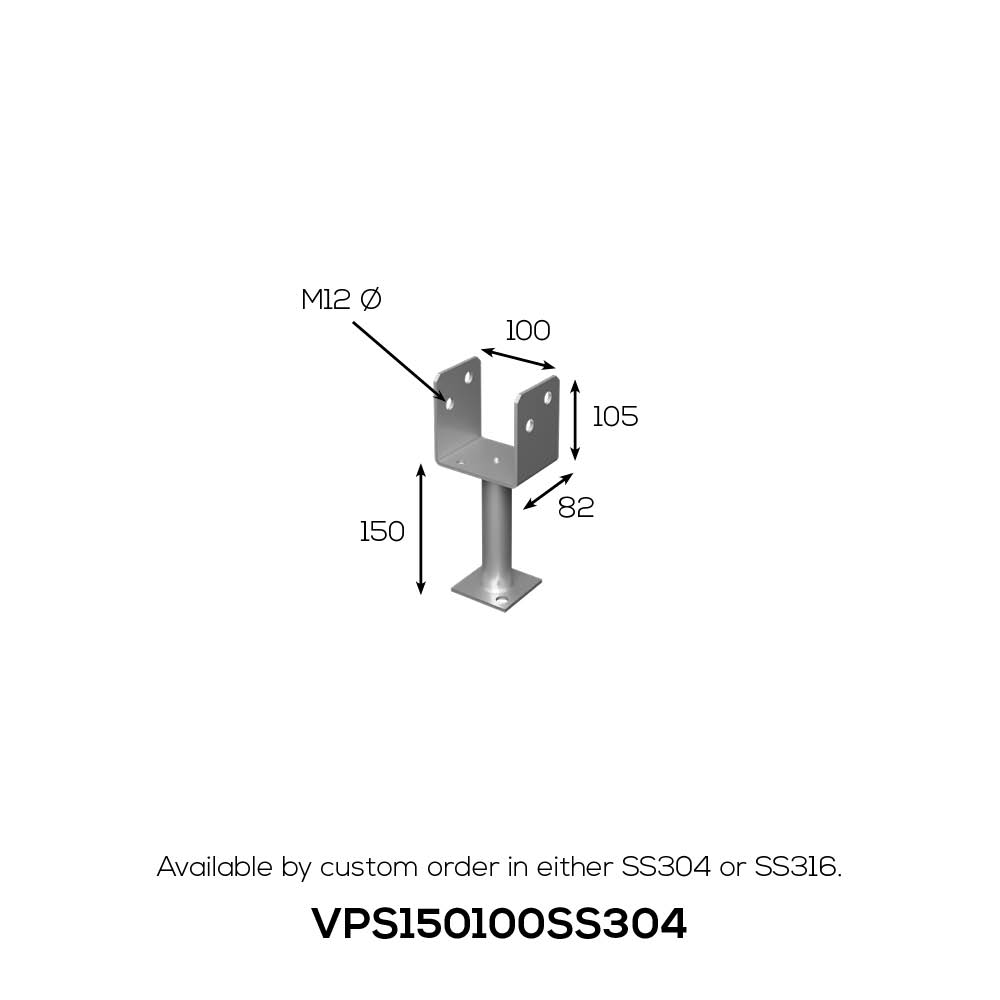

| VPS150100SS304* | 150mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

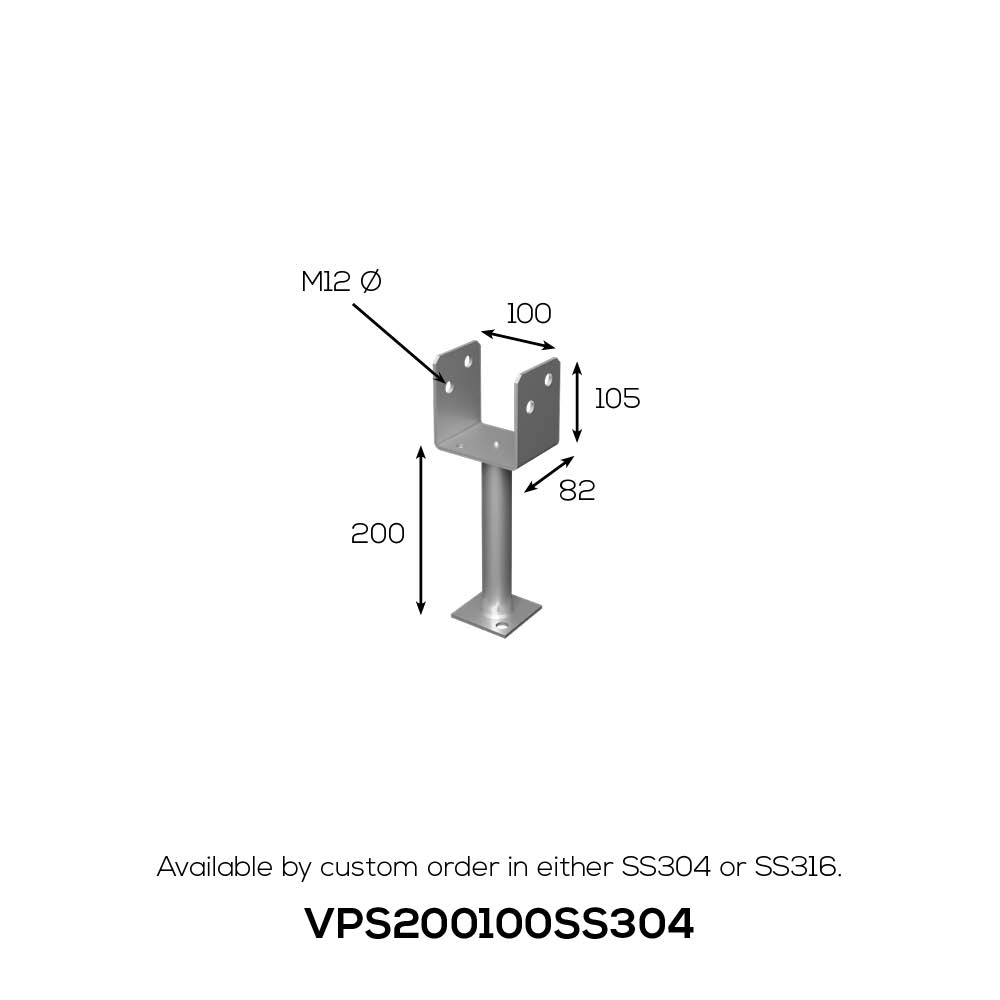

| VPS200100SS304* | 200mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

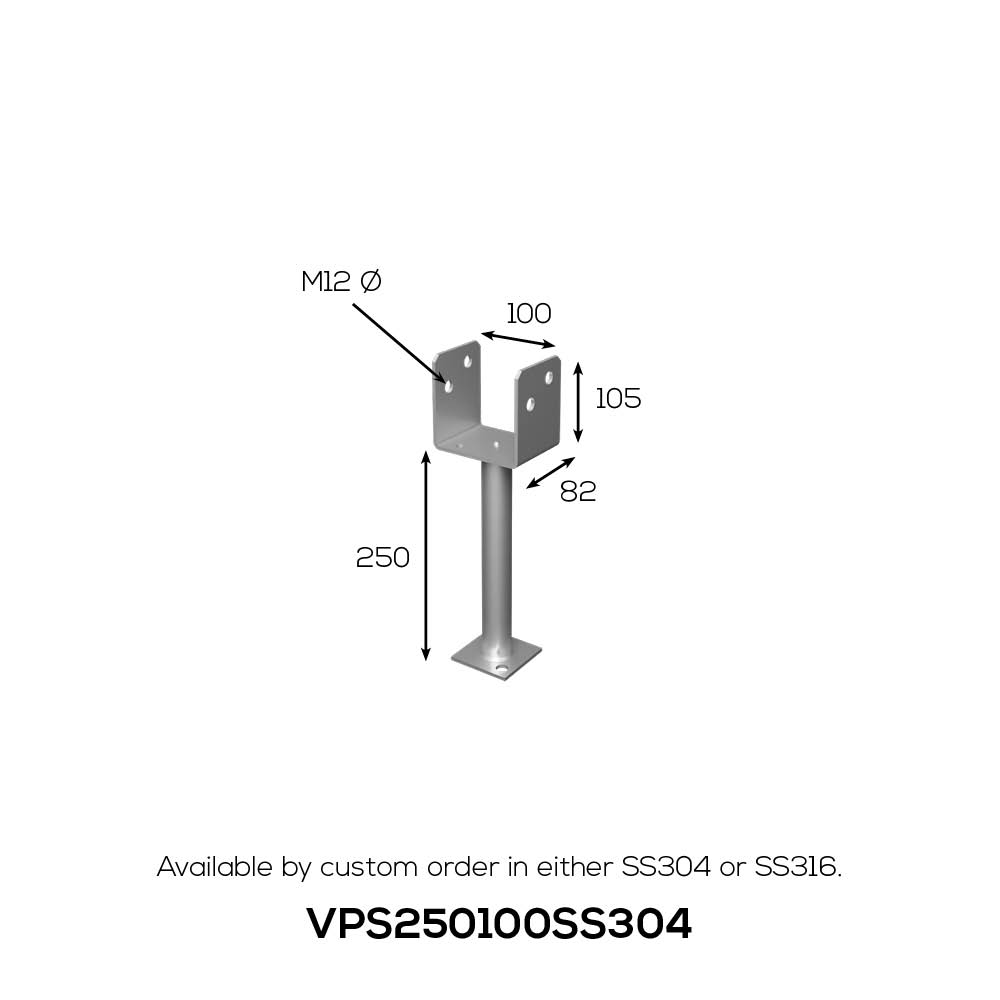

| VPS250100SS304* | 250mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

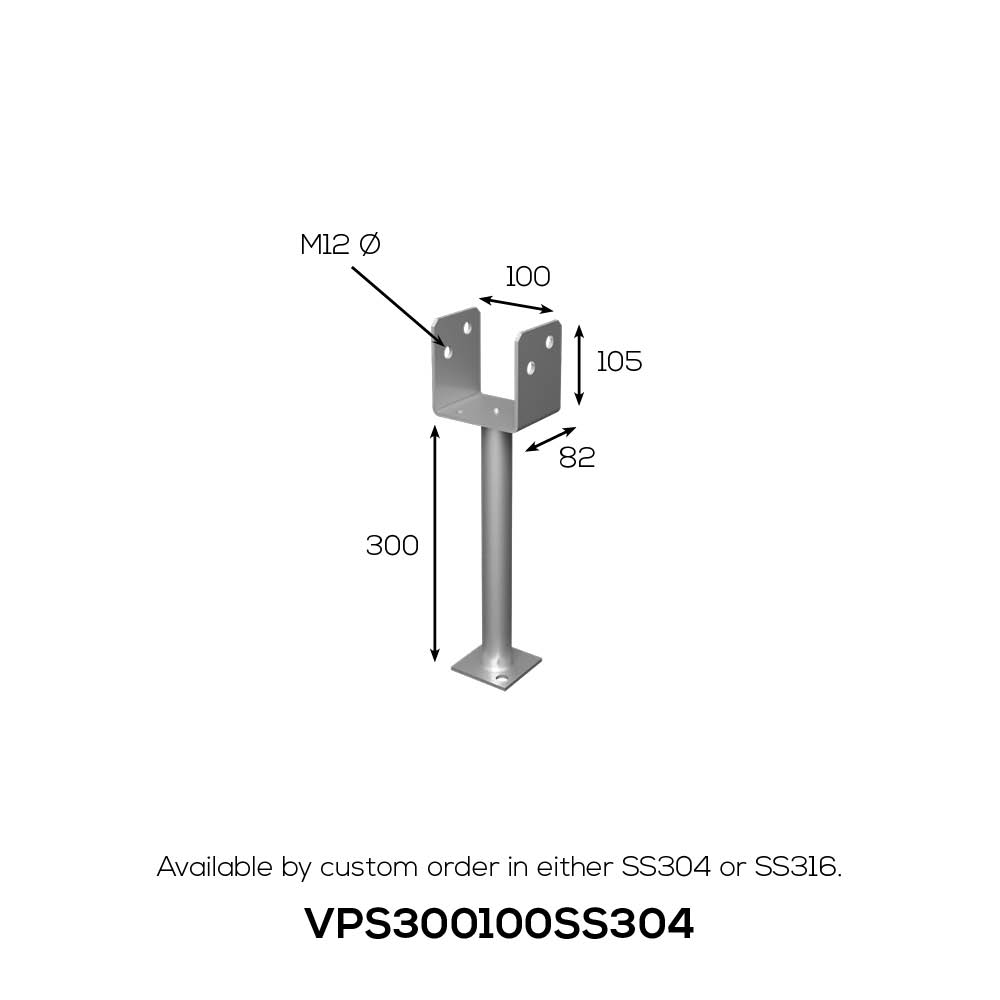

| VPS300100SS304* | 300mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

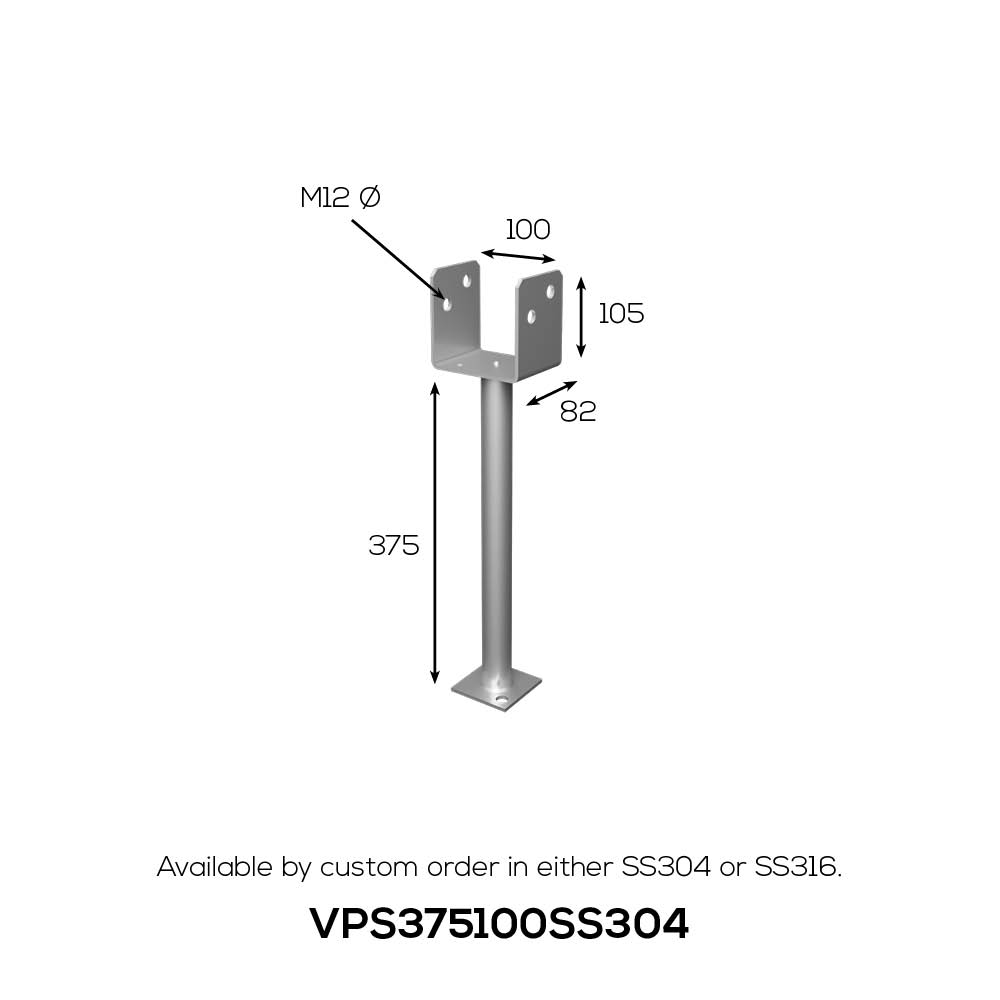

| VPS375100SS304* | 375mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

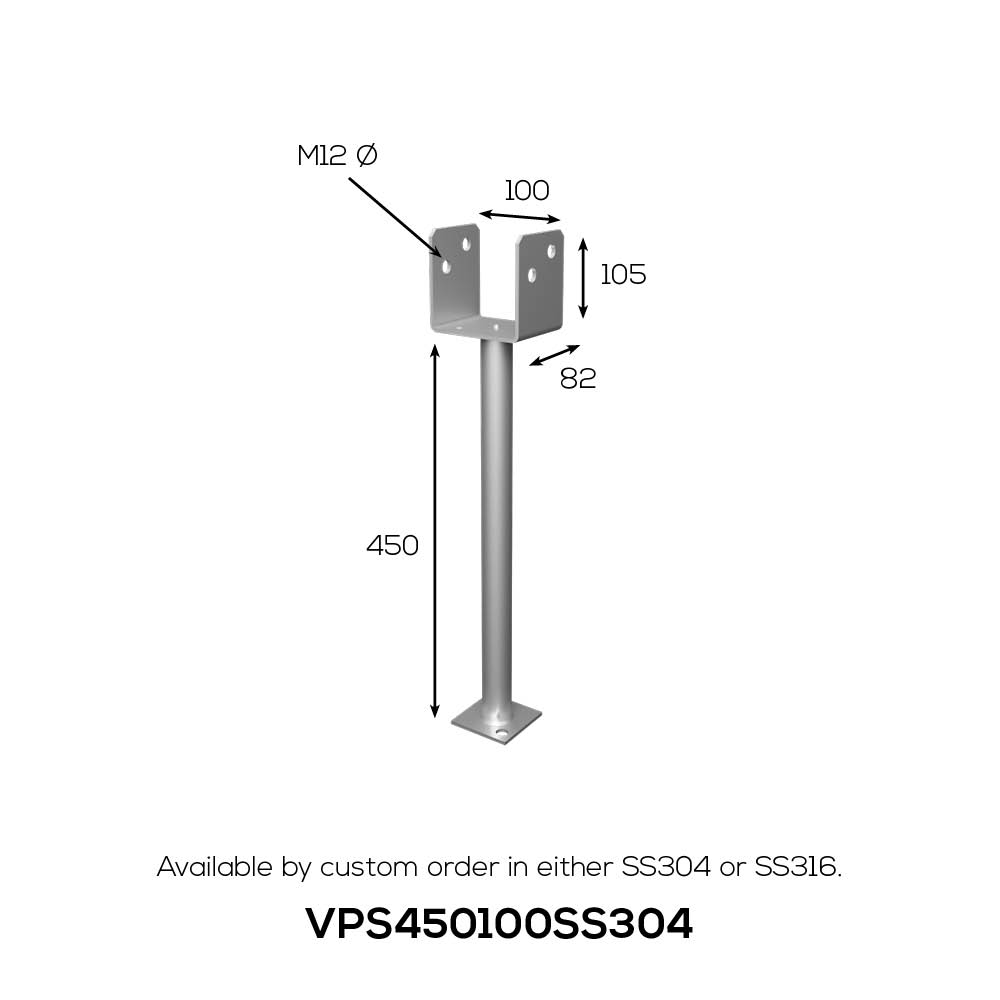

| VPS450100SS304* | 450mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

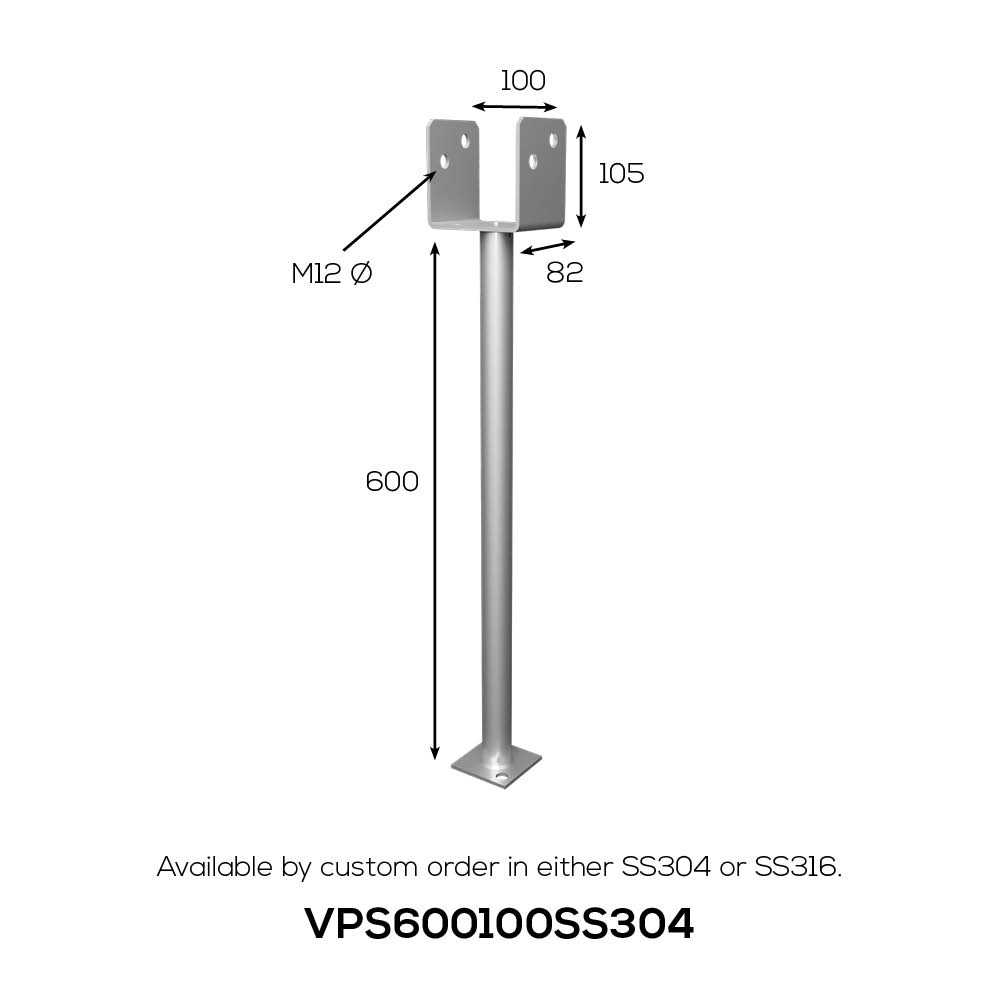

| VPS600100SS304* | 600mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |
Stirrup width 115mm: | |||

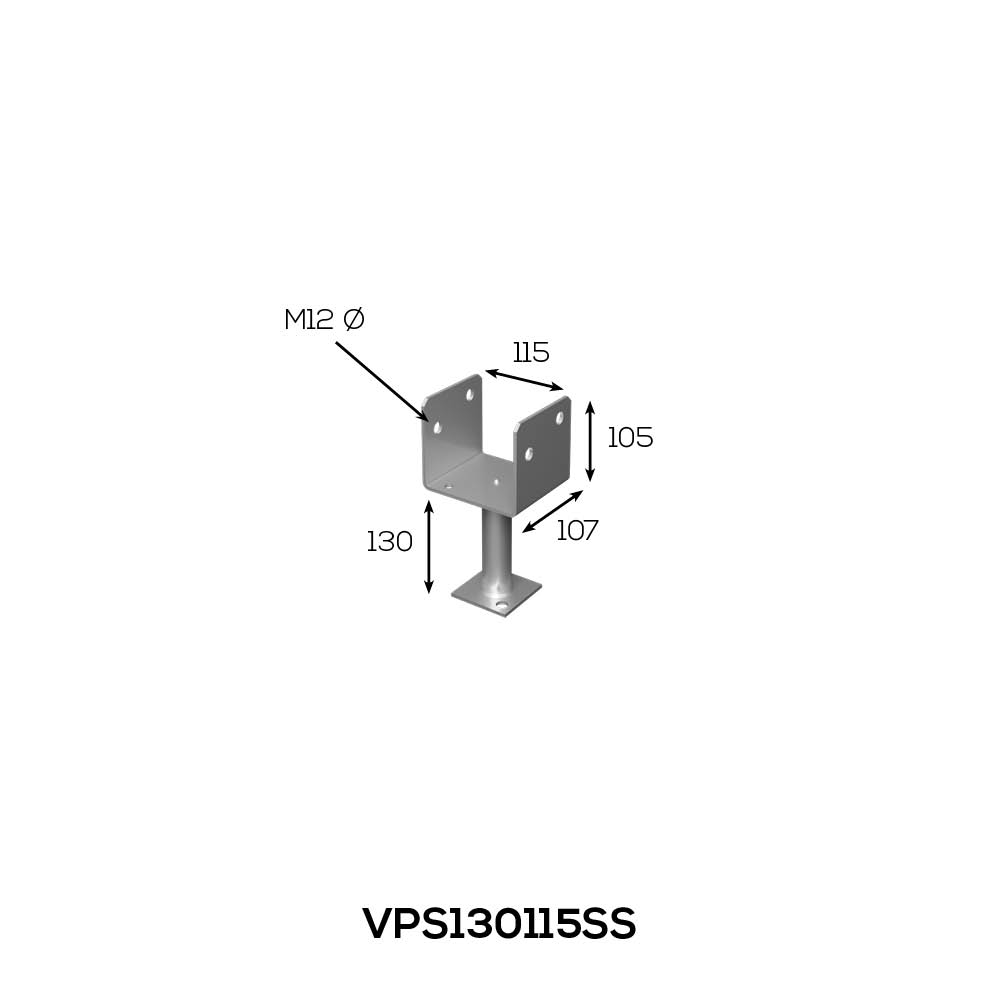

| VPS130115SS | 130mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

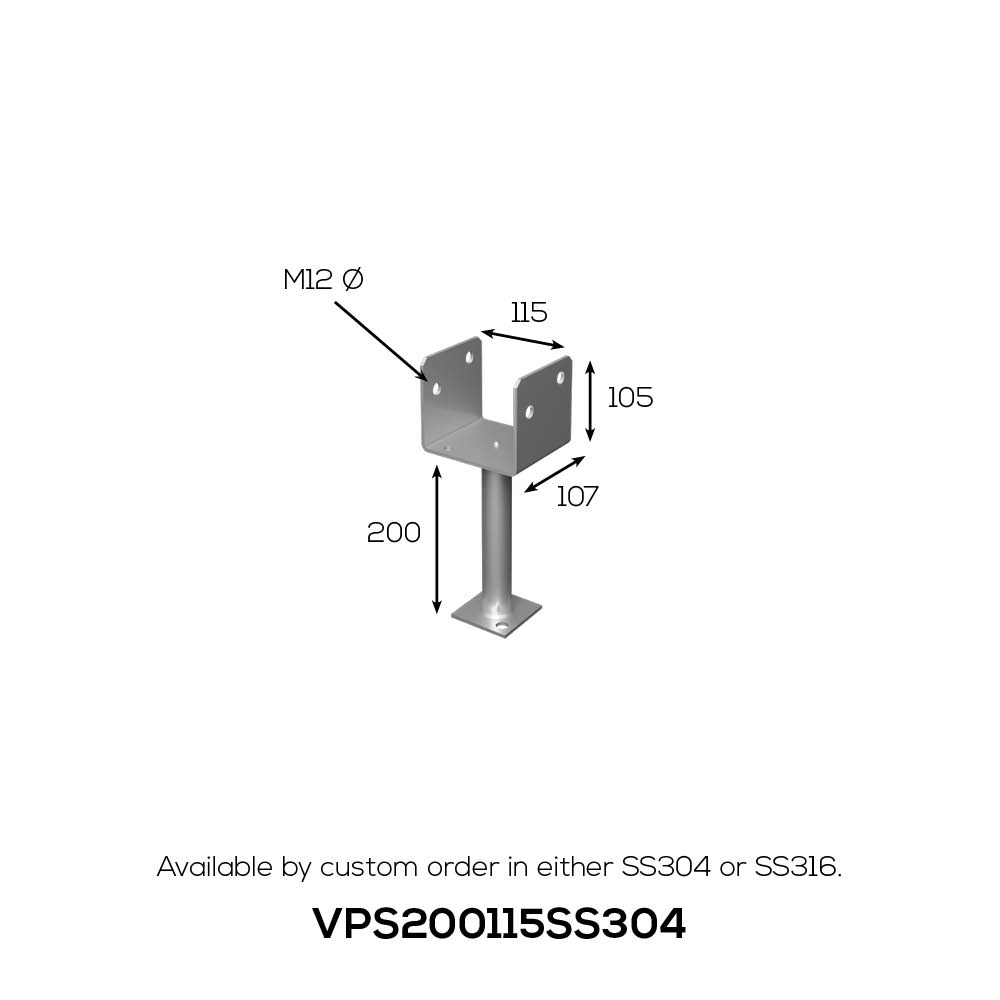

| VPS200115SS304* | 200mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

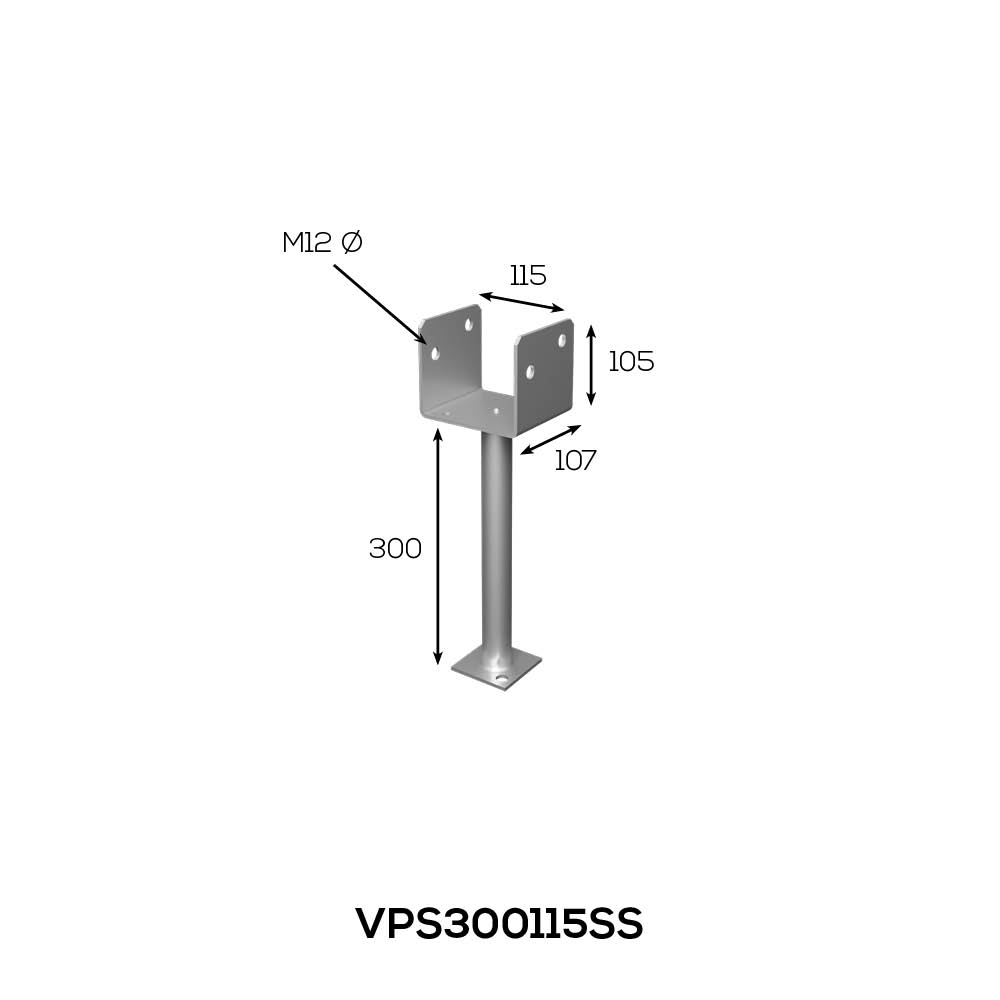

| VPS300115SS | 300mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

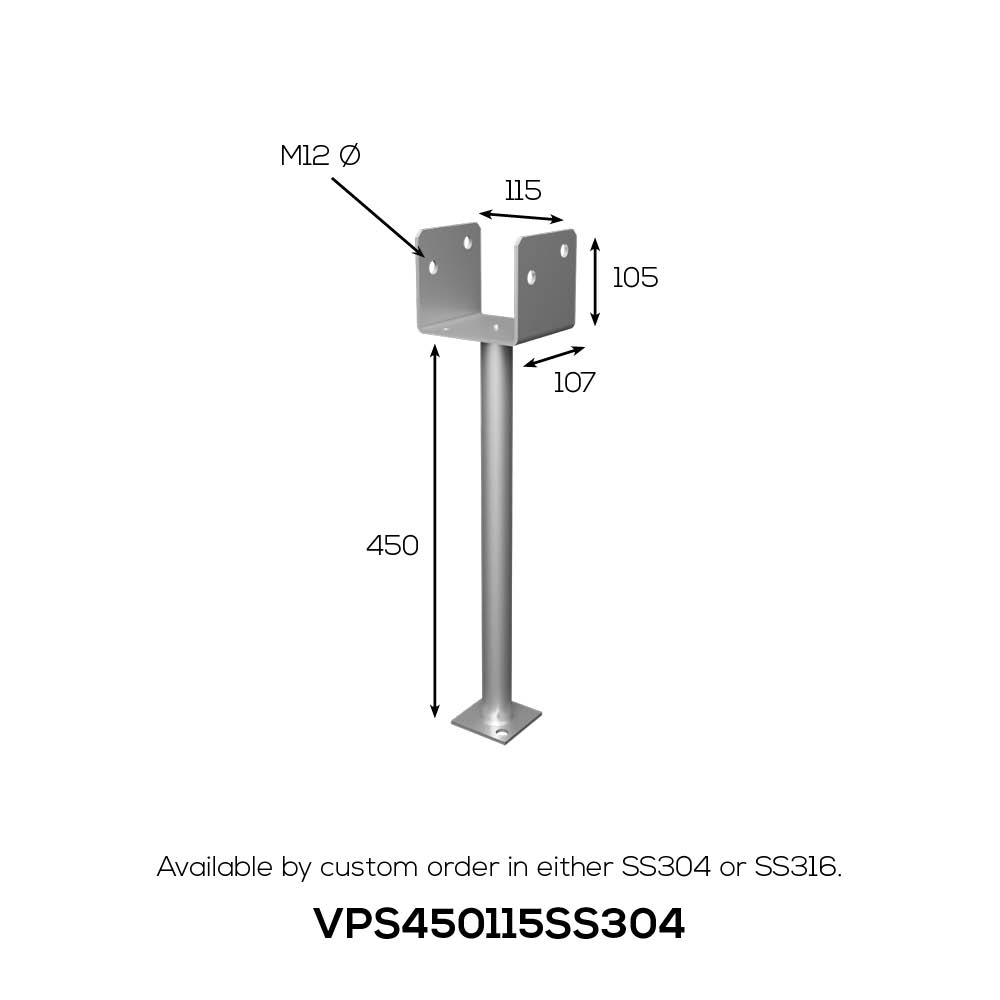

| VPS450115SS304* | 450mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |
Stirrup width 125mm: | |||

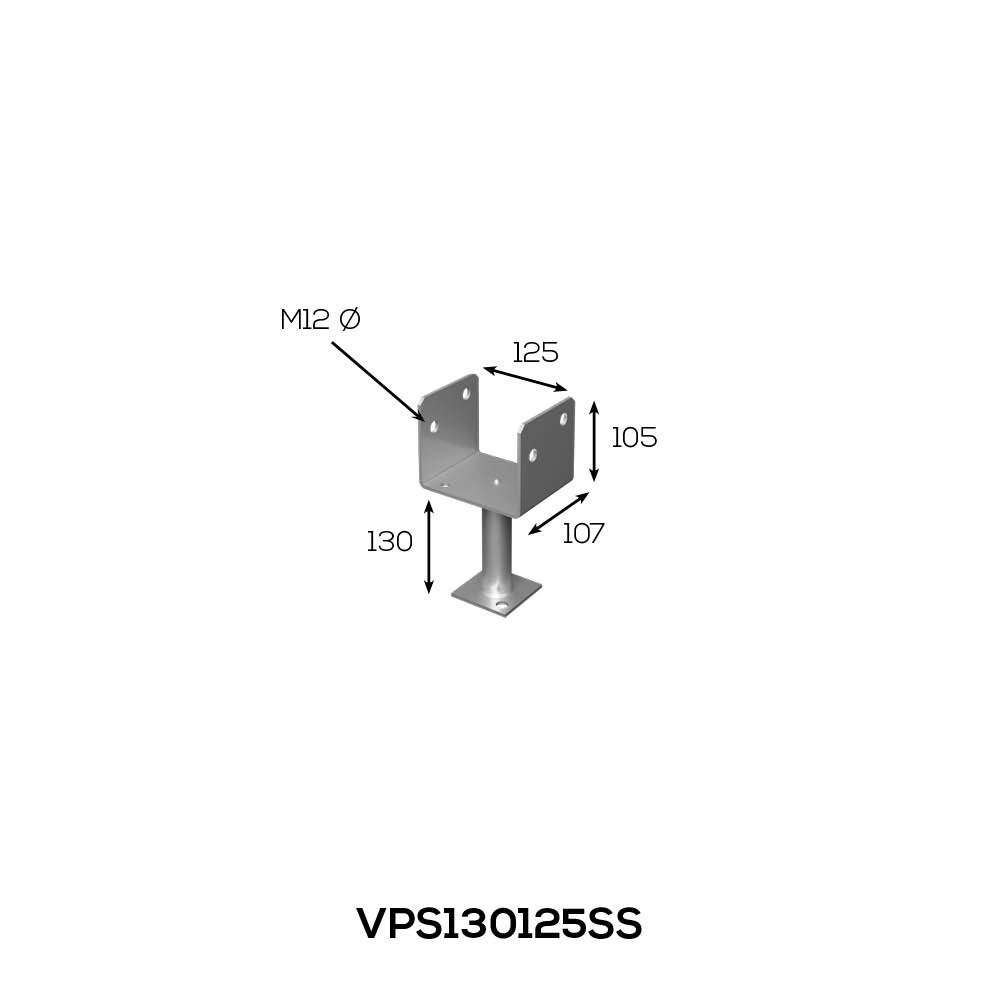

| VPS130125SS | 130mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

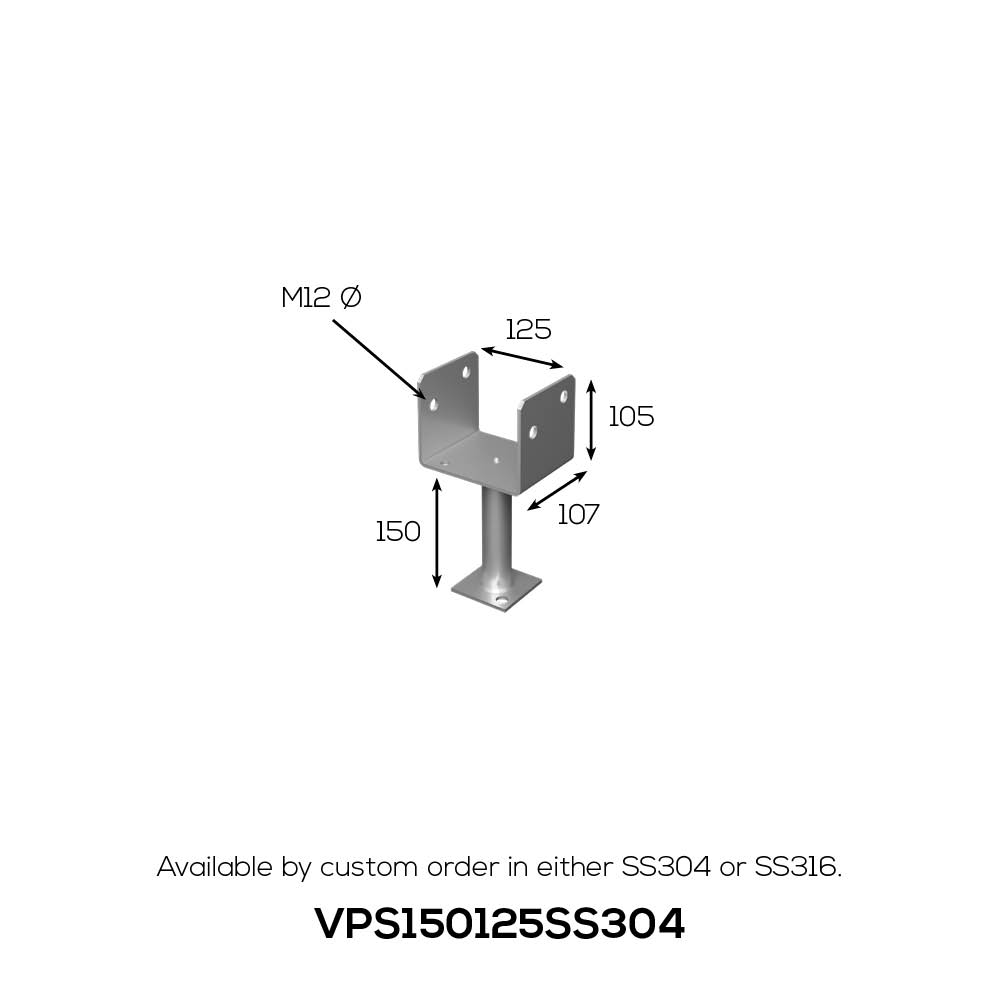

| VPS150125SS304* | 150mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

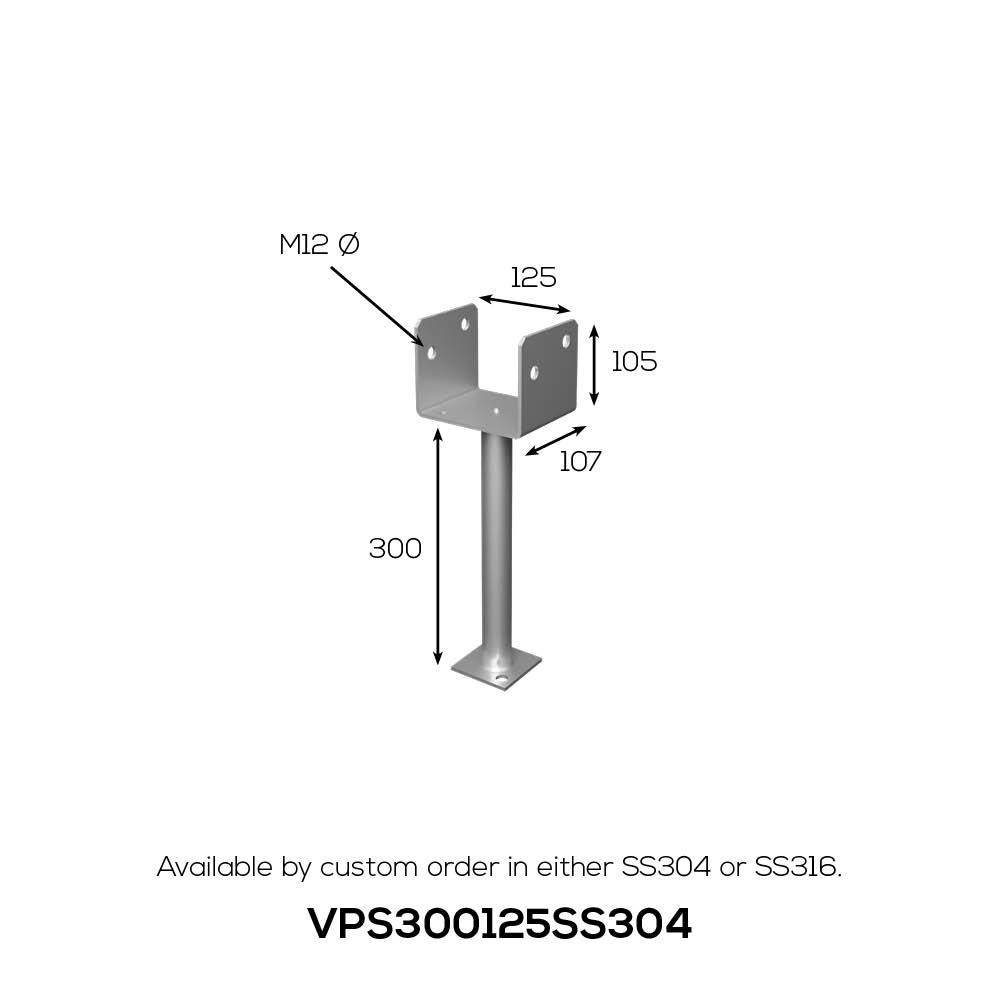

| VPS300125SS304* | 300mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

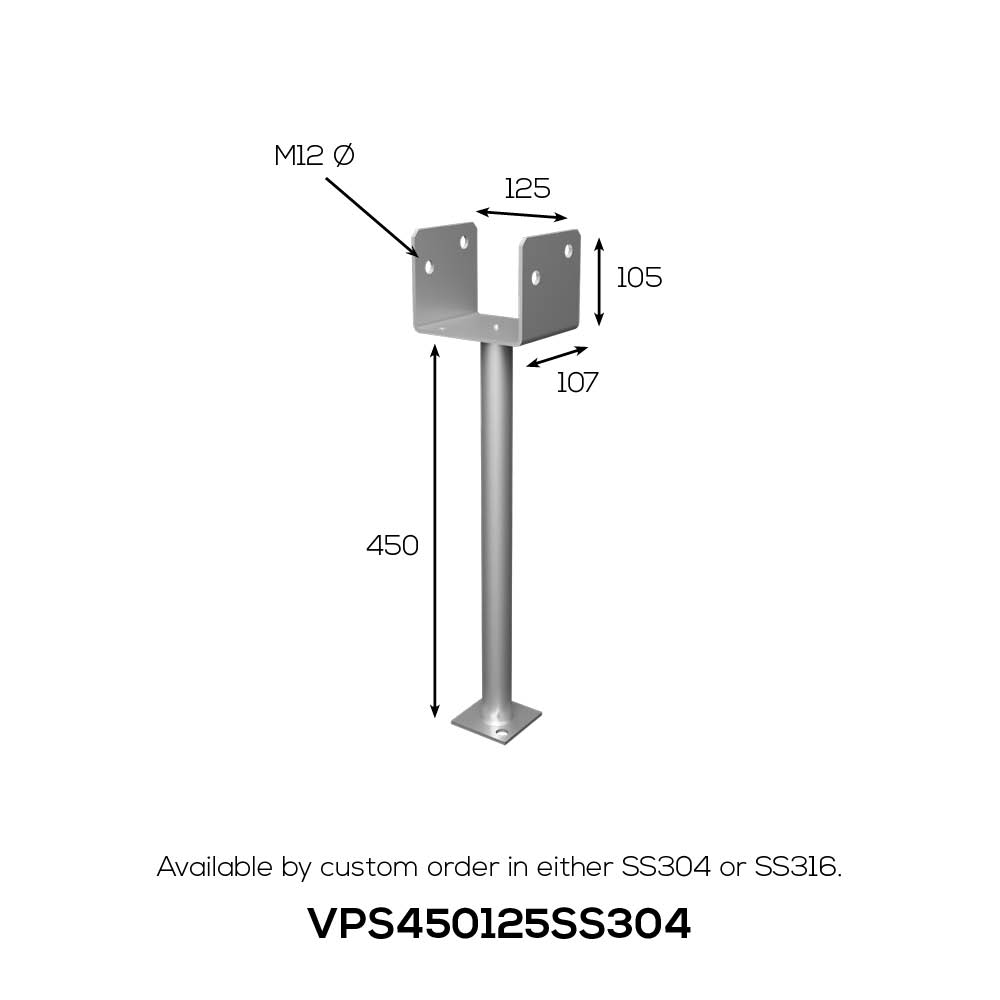

| VPS450125SS304* | 450mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |
Stirrup width 135mm: | |||

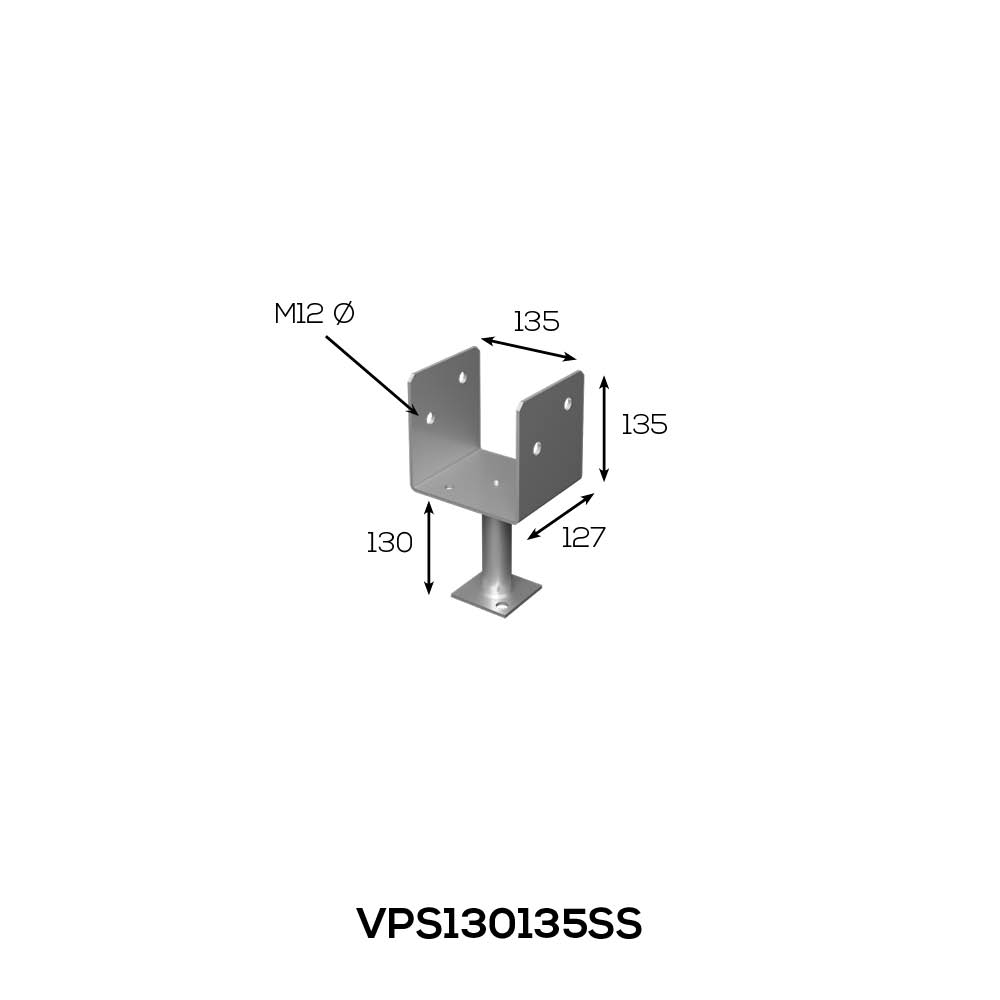

| VPS130135SS | 130mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

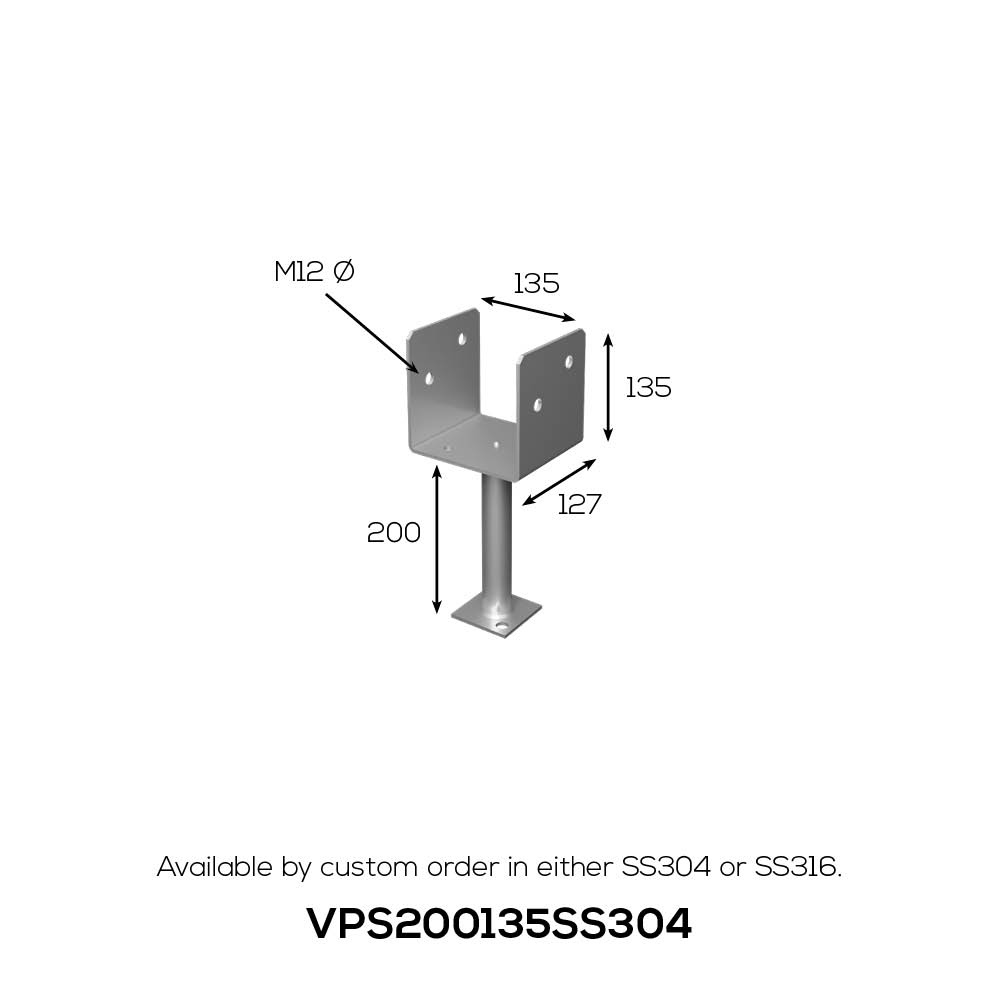

| VPS200135SS304* | 200mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

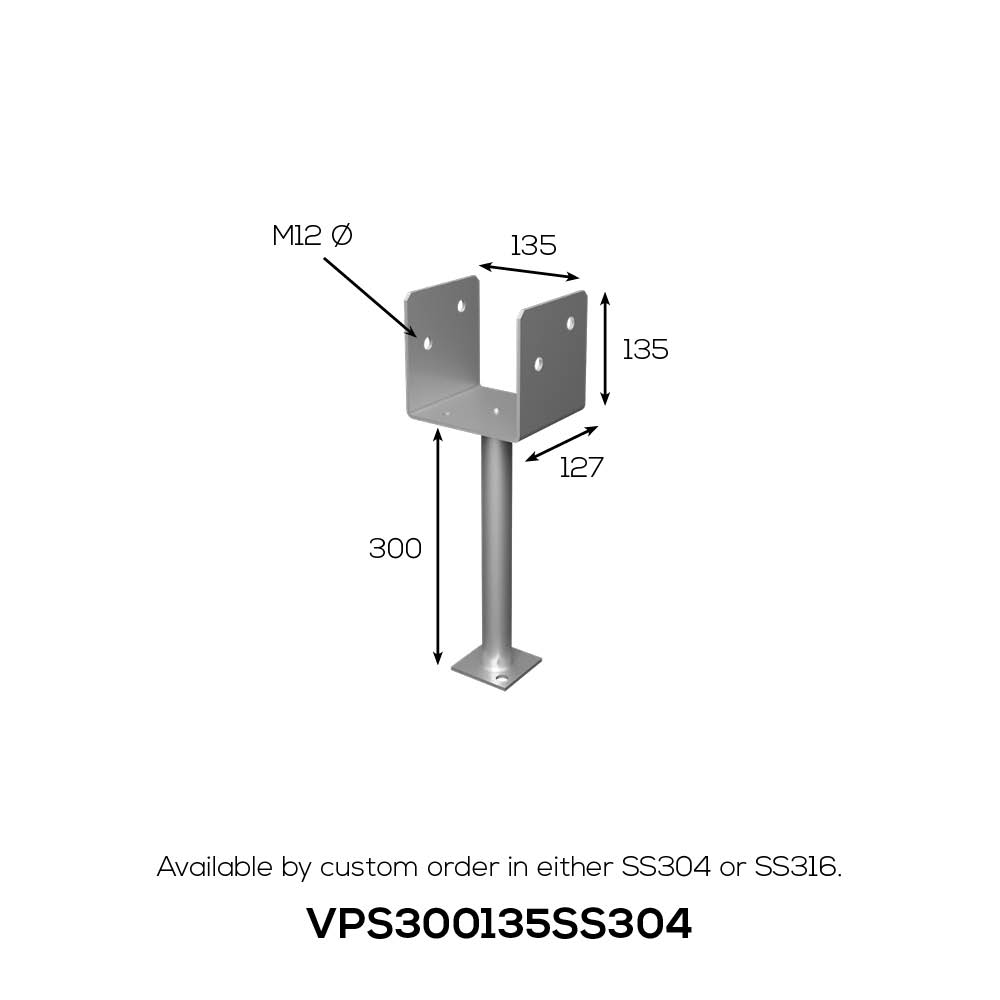

| VPS300135SS304* | 300mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |
| VPS450135SS304* | 450mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |
Stirrup width 140mm: | |||

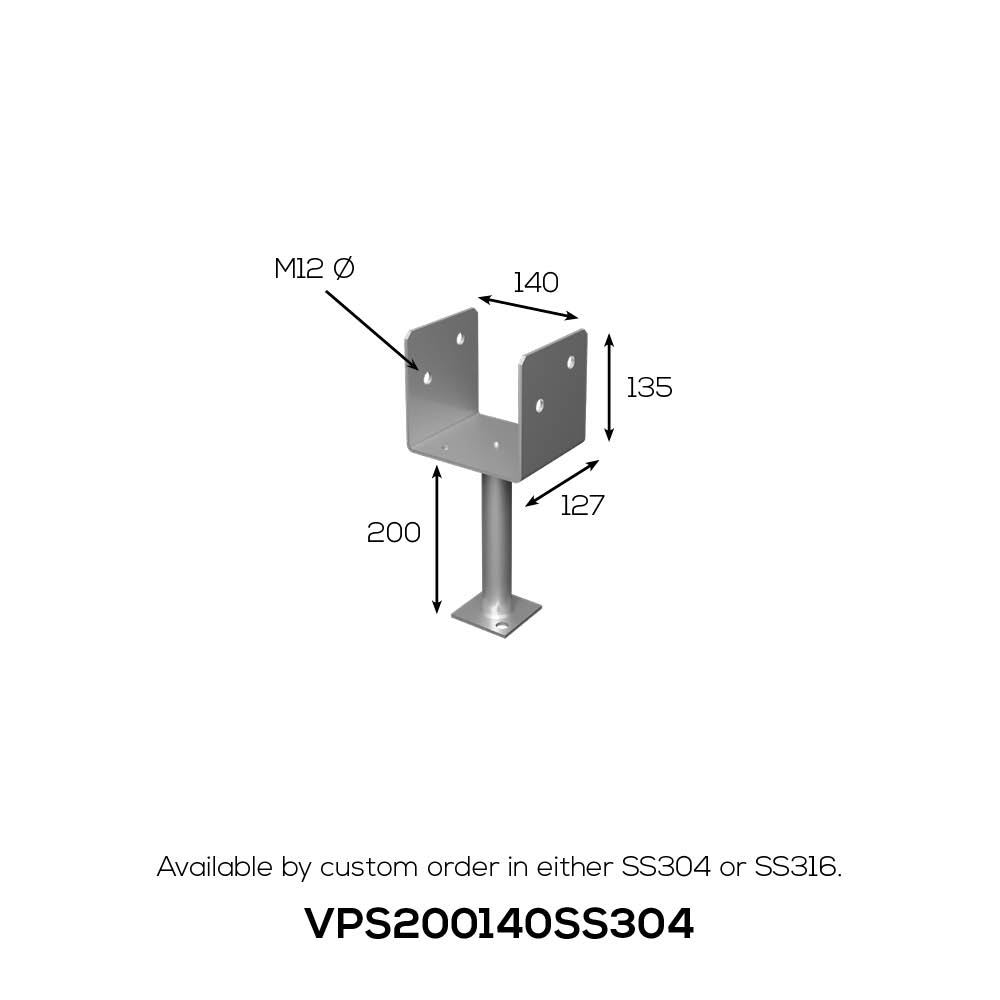

| VPS200140SS304* | 200mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |
| VPS300140SS304* | 300mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

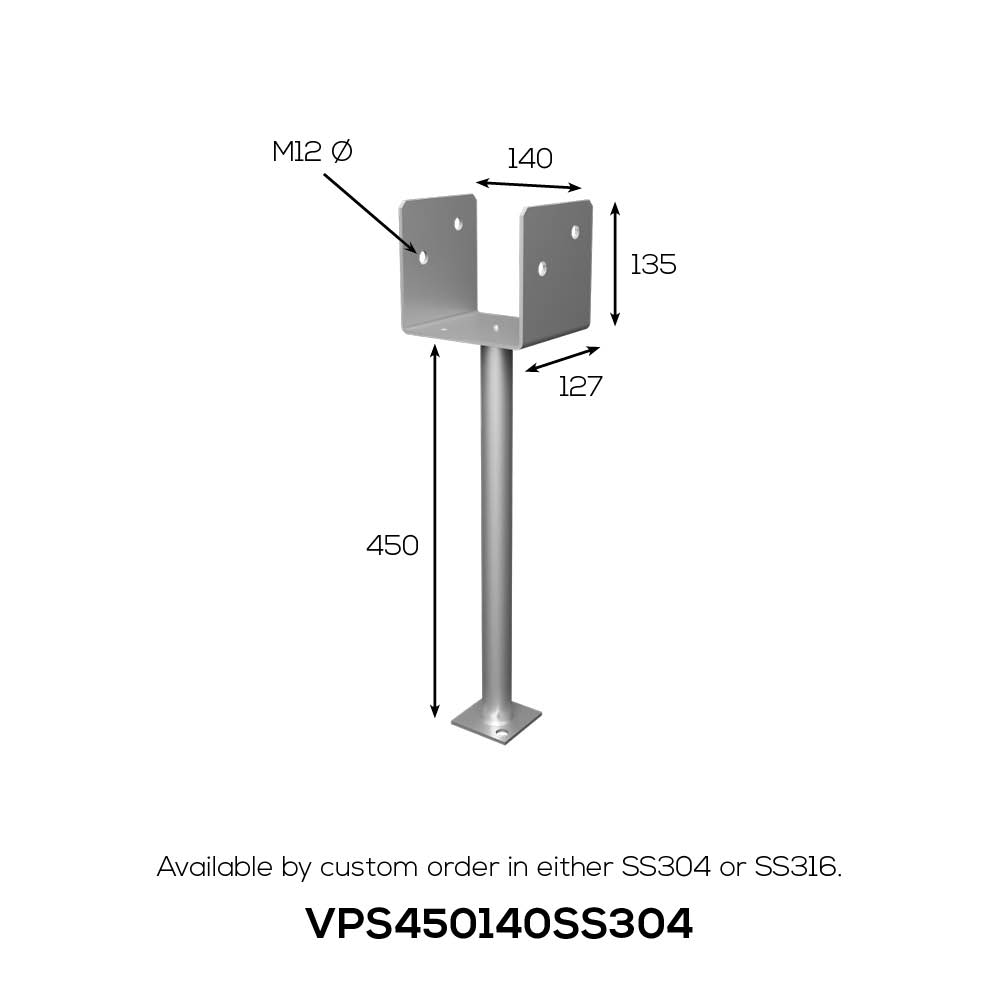

| VPS450140SS304* | 450mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |
Stirrup width 150mm: | |||

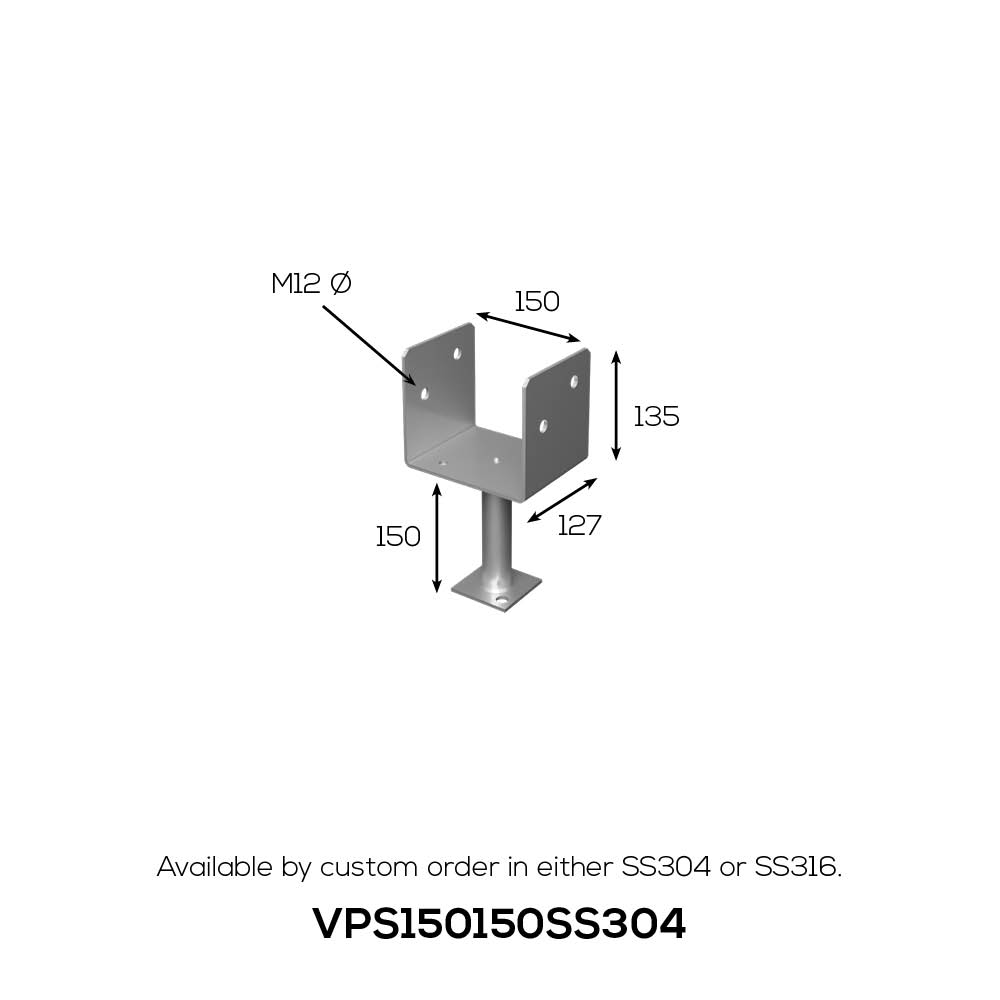

| VPS150150SS304* | 150mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

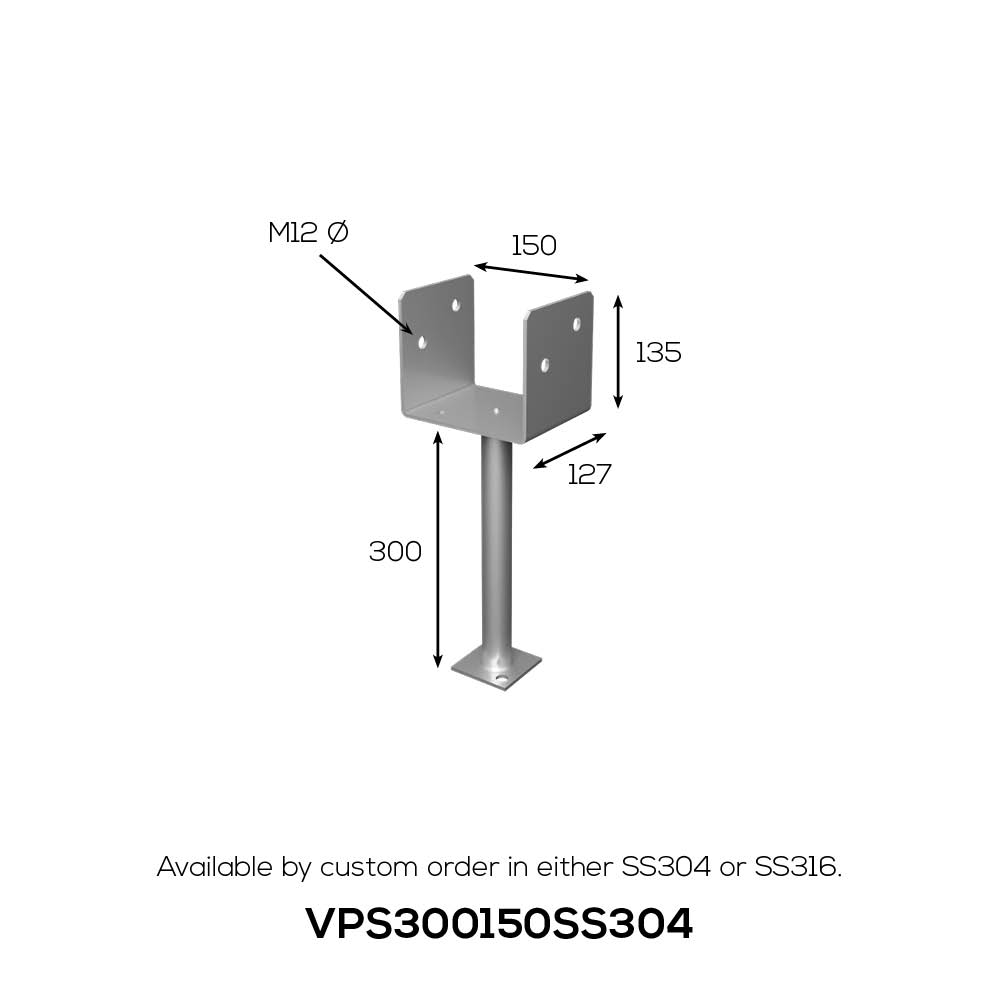

| VPS300150SS304* | 300mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |
| VPS450150SS304* | 450mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |
Stirrup width 200mm: | |||

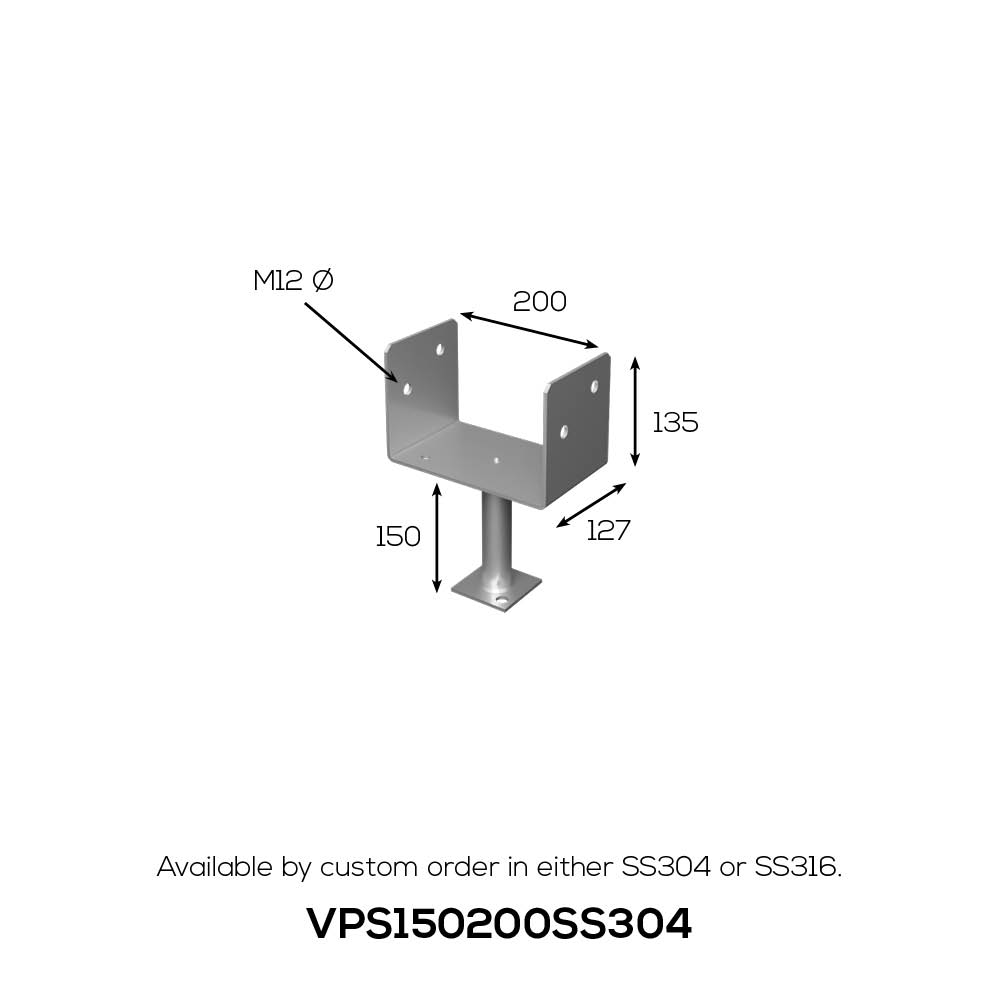

| VPS150200SS304* | 150mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

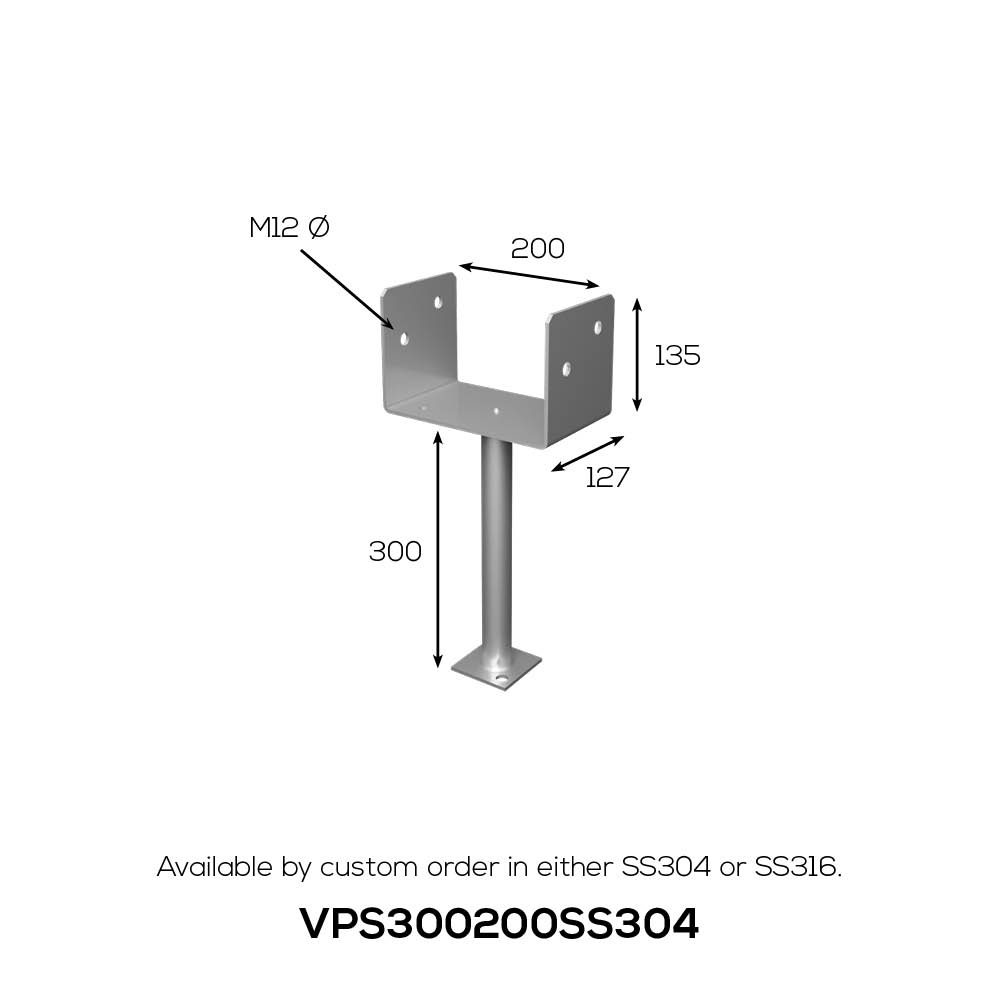

| VPS300200SS304* | 300mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

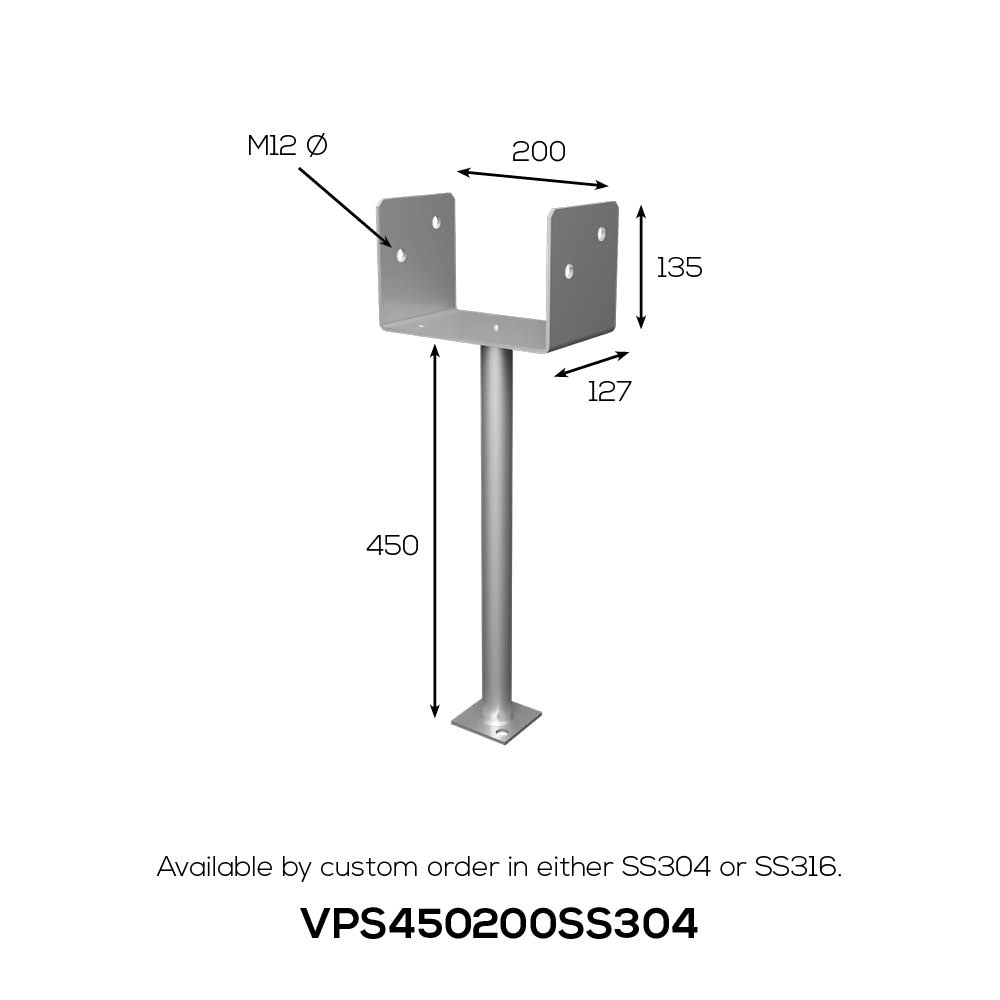

| VPS450200SS304* | 450mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |
*Available by special order.
