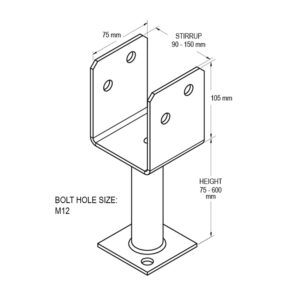

VUETRADE Full Stirrup Post Supports are brackets ideal for holding timber posts, installed by bolting onto or setting into concrete.
Also available in Stainless Steel.
• Prevents timber posts from decay
• Extra Heavy Duty 32mm Shaft, 2.0mm Thick
• 4.0mm thick steel saddle
• Post Stirrup to suit from 90mm up to 150mm square posts
• Post Support Leg Sizes from 75mm to 600mm
• Bolt Holes
2 x M12 Bolt Holes (Saddle & Base)
2 x M10 Bolt Holes (Base of Saddle)
• Galvanised finish for durability and long-life

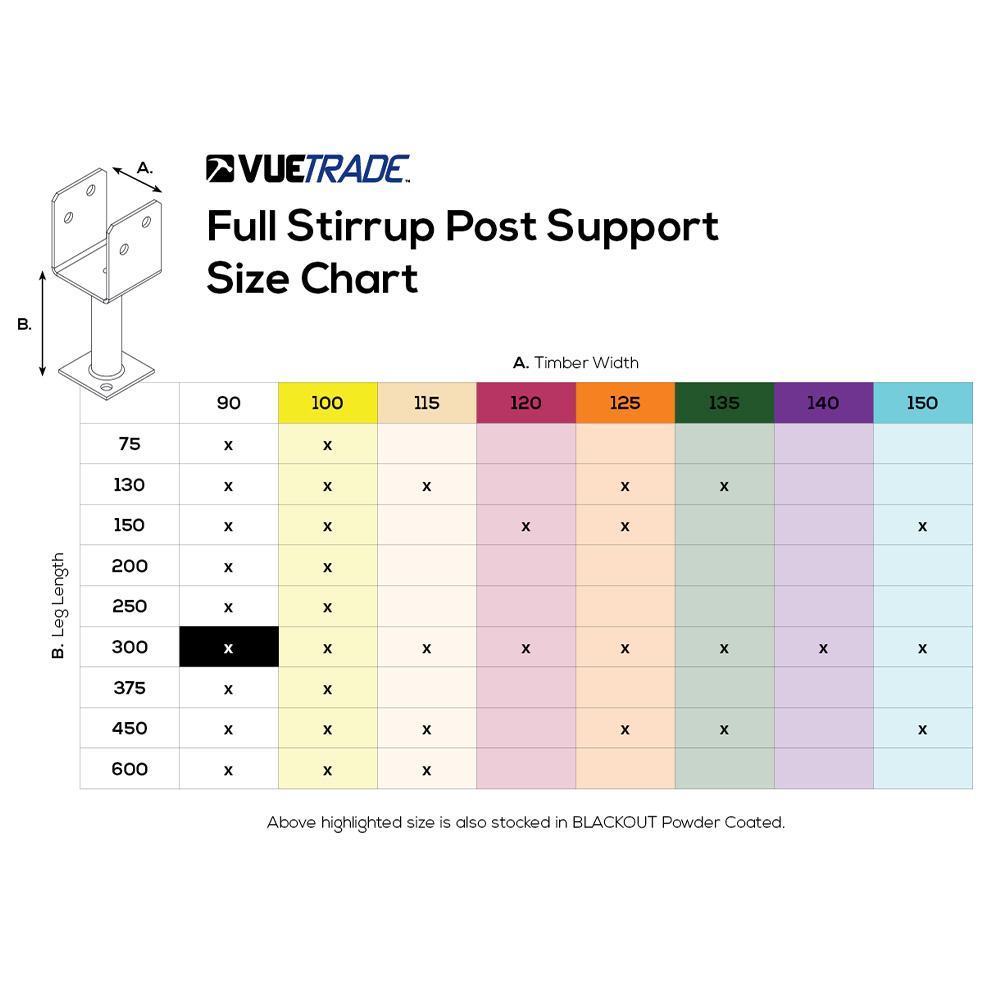

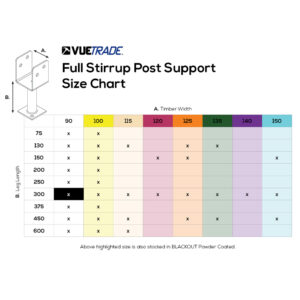

| Product Code(s) | Leg Height | Metal Thickness | Box Qty |
|---|---|---|---|
Stirrup width 90mm: | |||

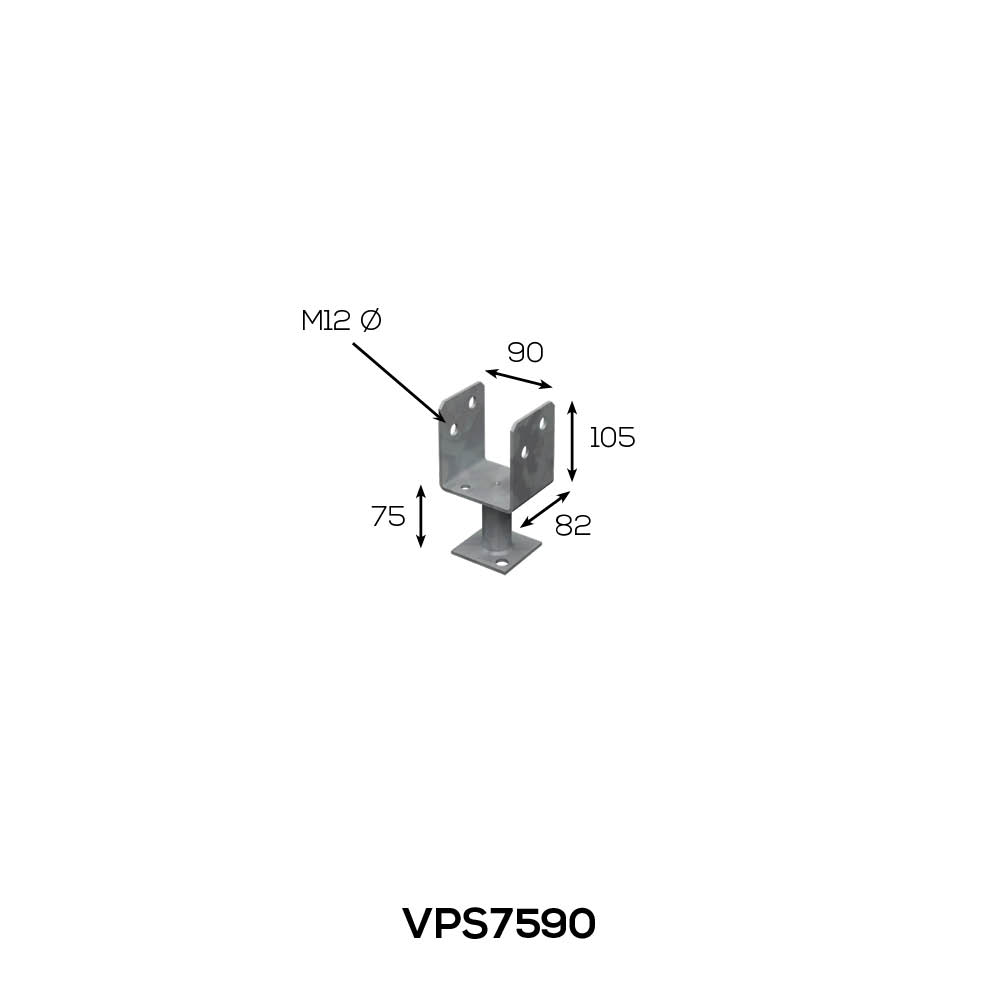

| VPS7590 | 75mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

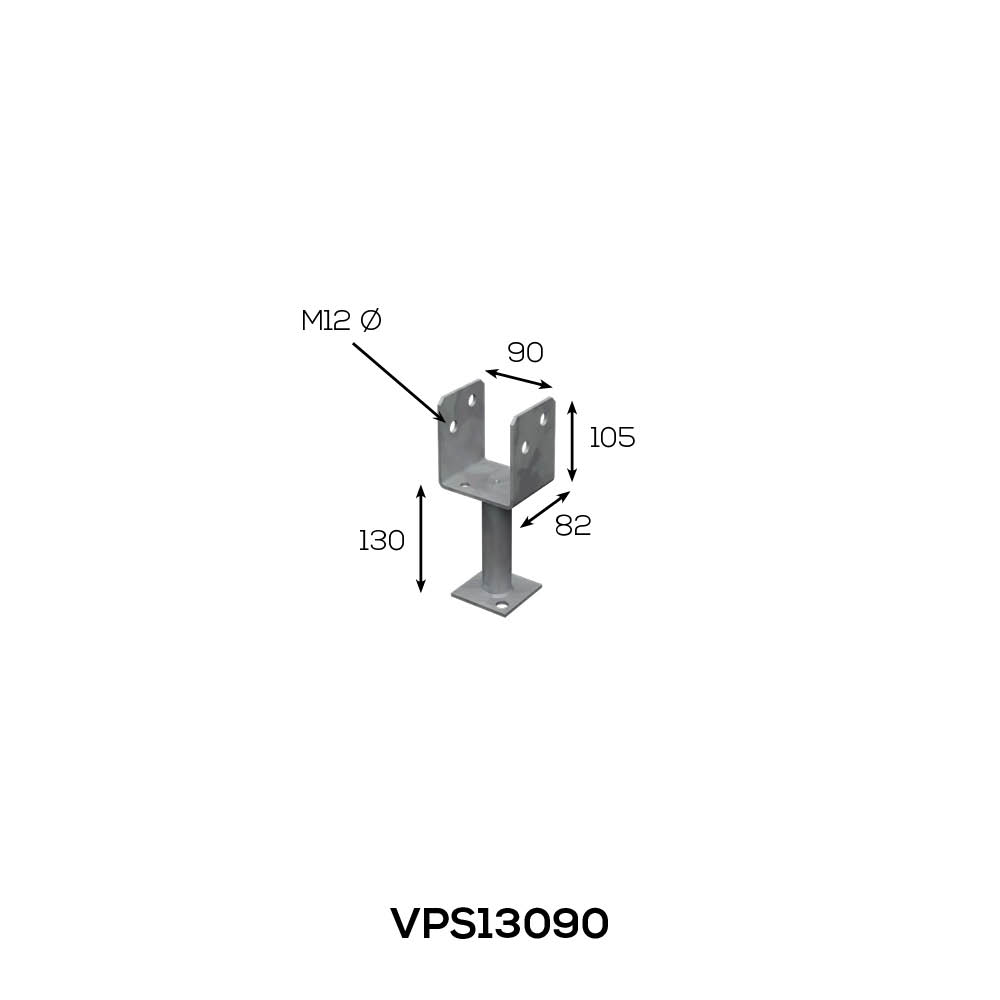

| VPS13090 | 130mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

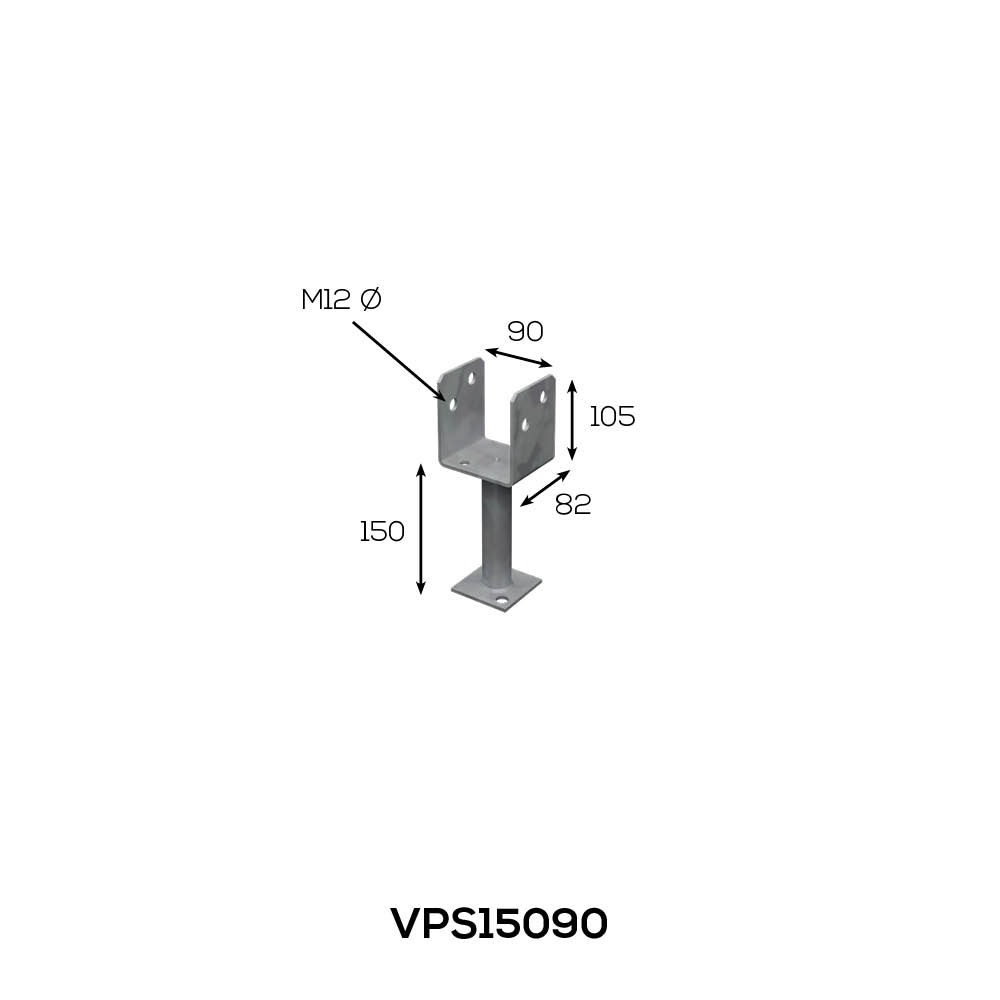

| VPS15090 | 150mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

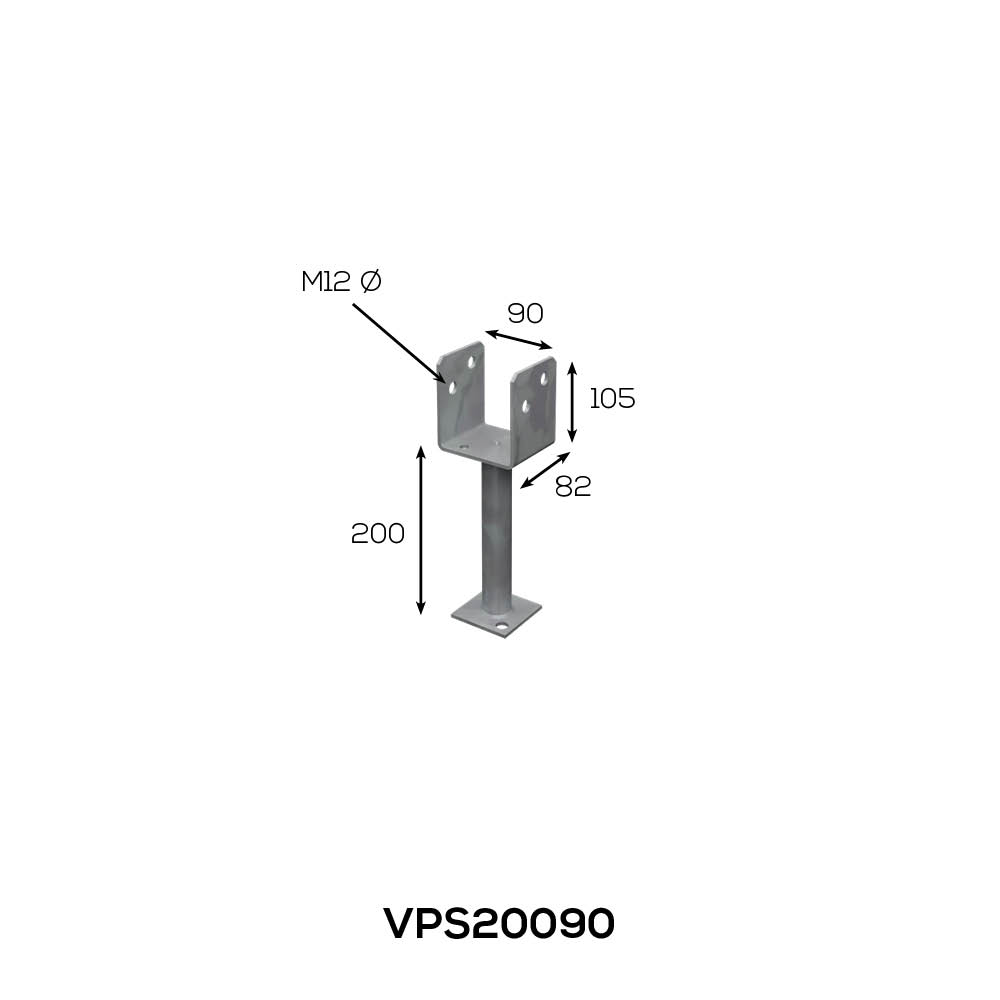

| VPS20090 | 200mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

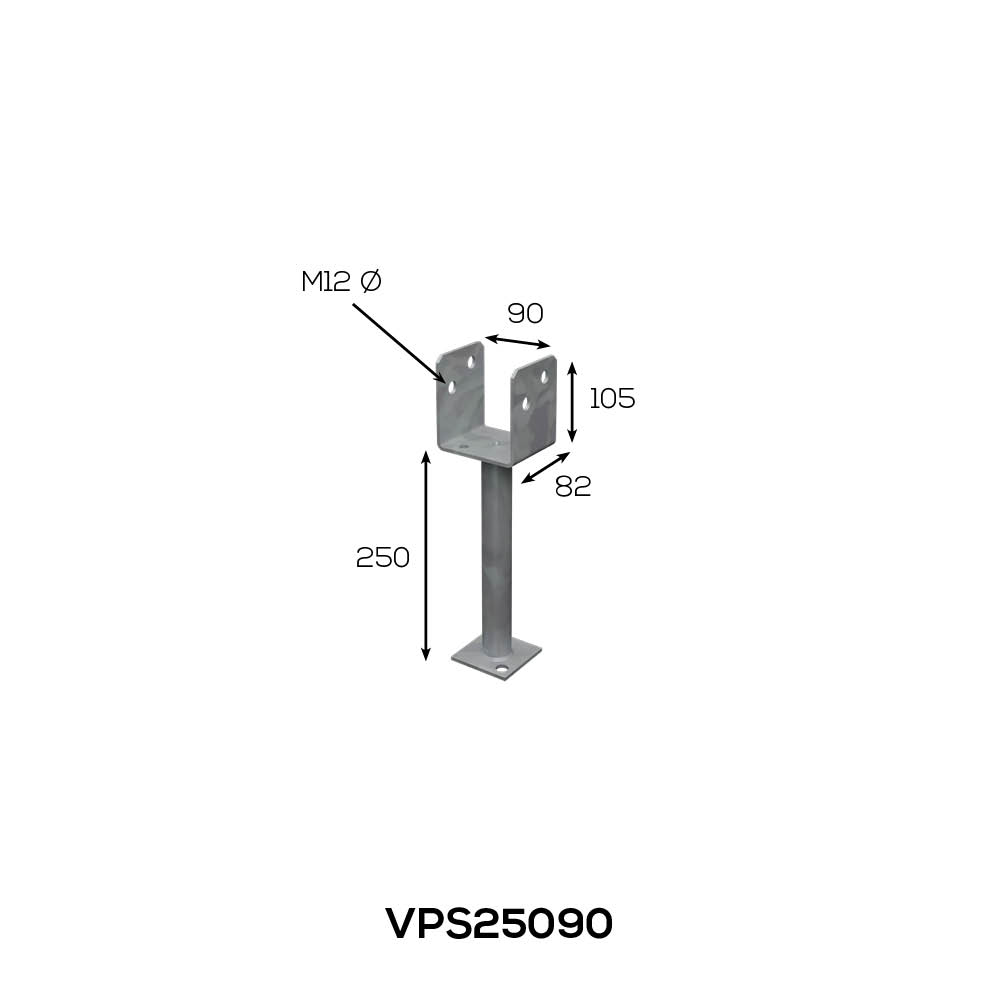

| VPS25090 | 250mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |
| VPS30090 | 300mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

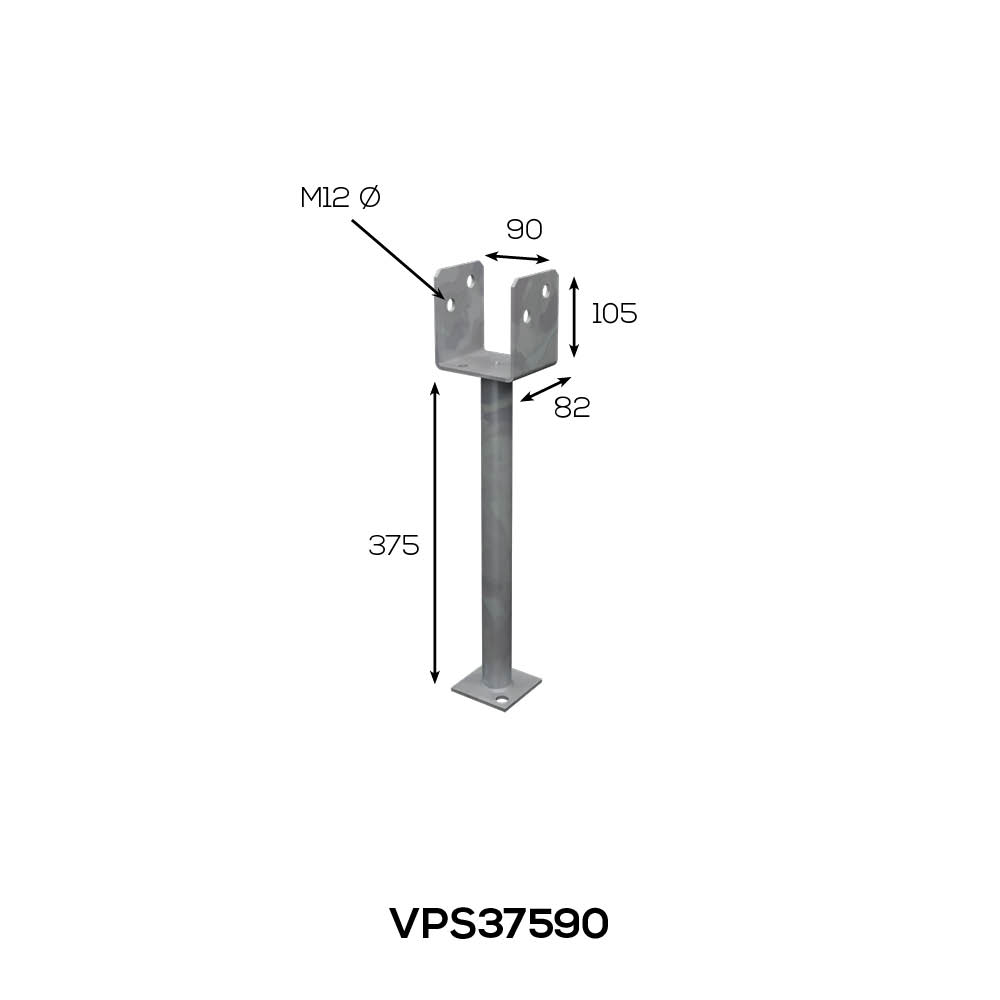

| VPS37590 | 375mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

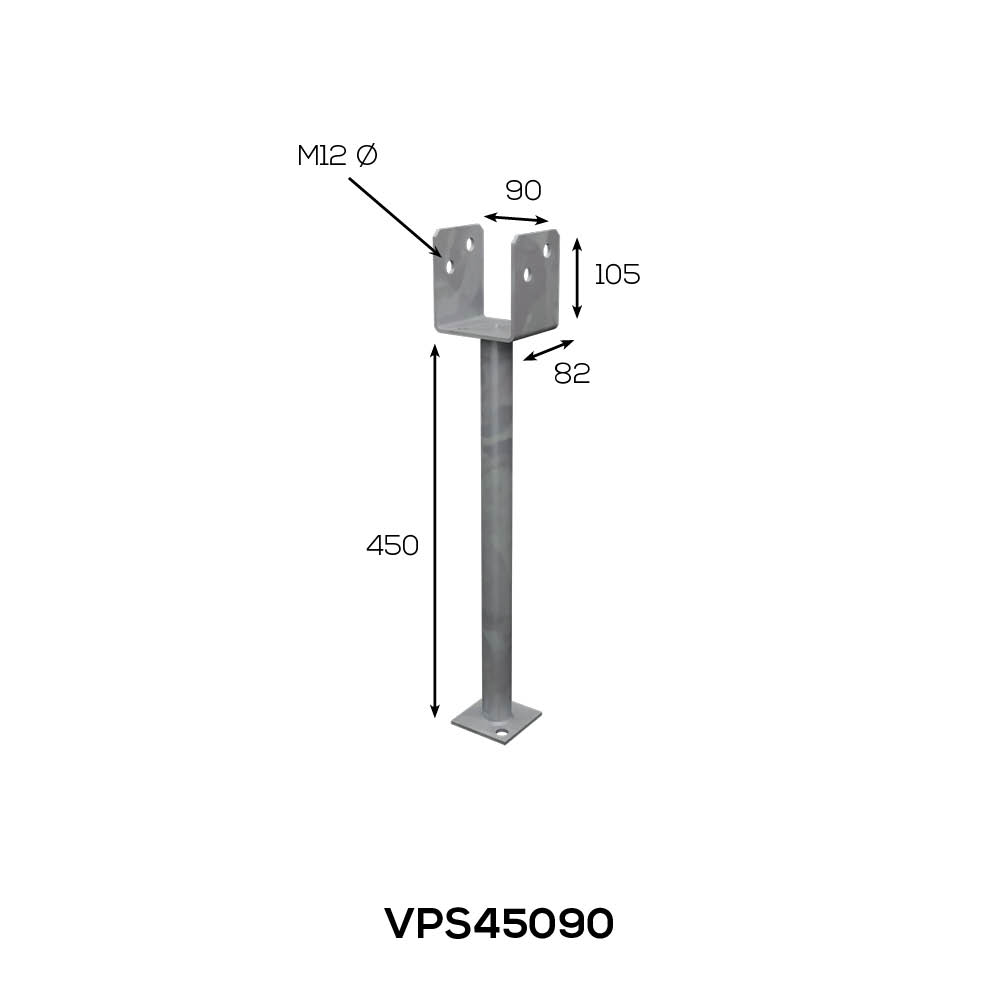

| VPS45090 | 450mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |
| VPS60090 | 600mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |
Stirrup width 100mm: | |||
| VPS75100 | 75mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

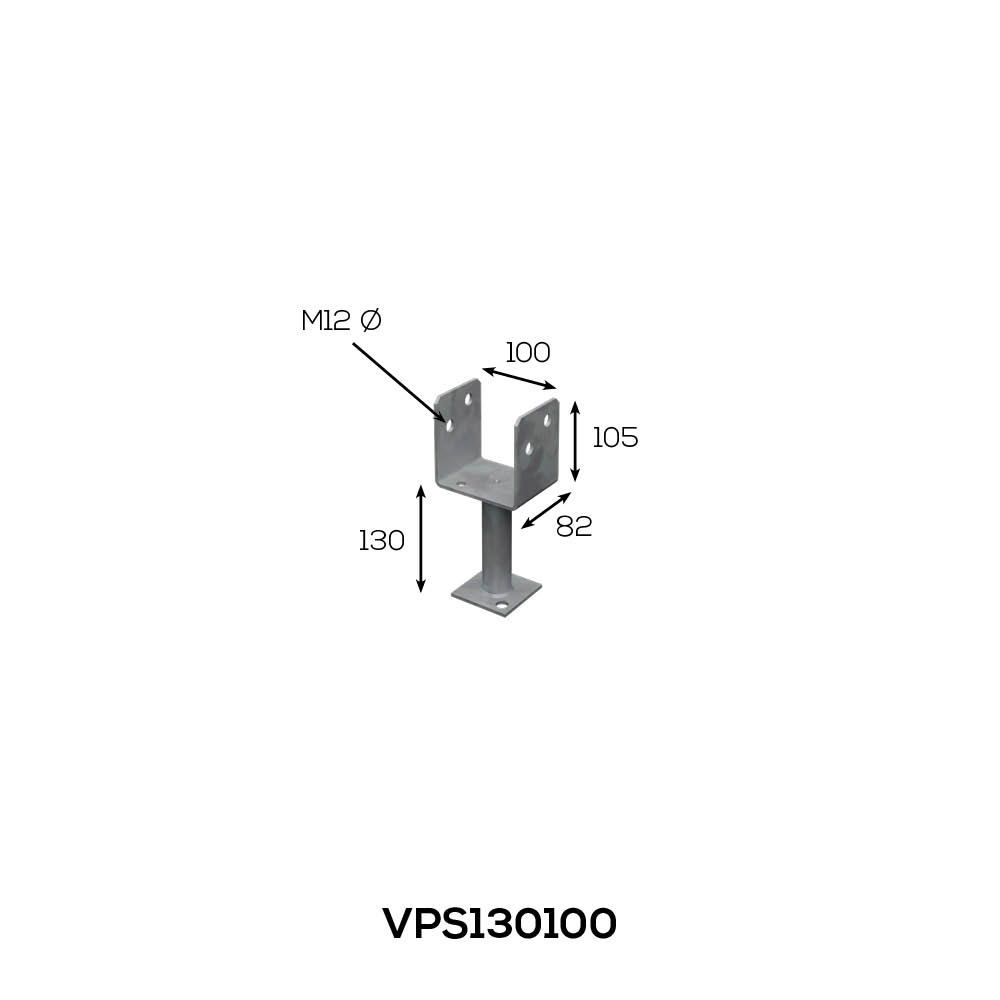

| VPS130100 | 130mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |
| VPS150100 | 150mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |
| VPS200100 | 200mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

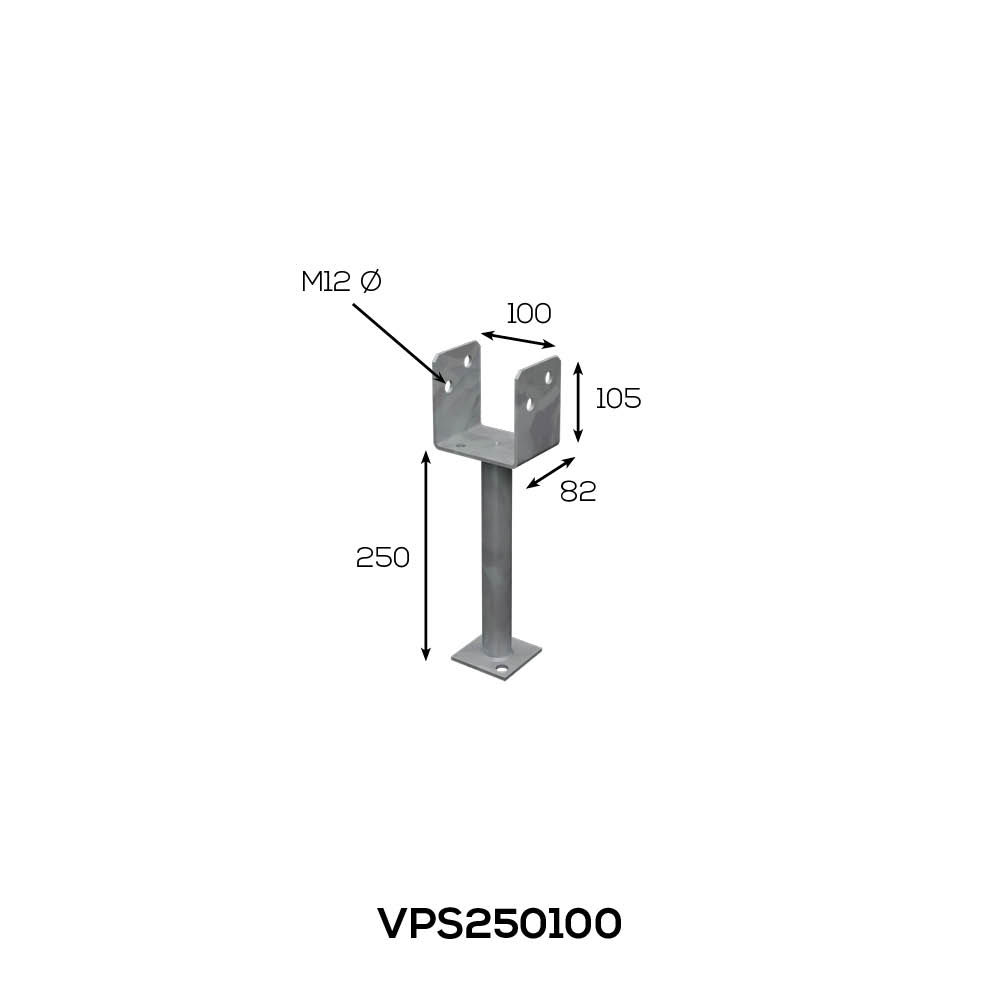

| VPS250100 | 250mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

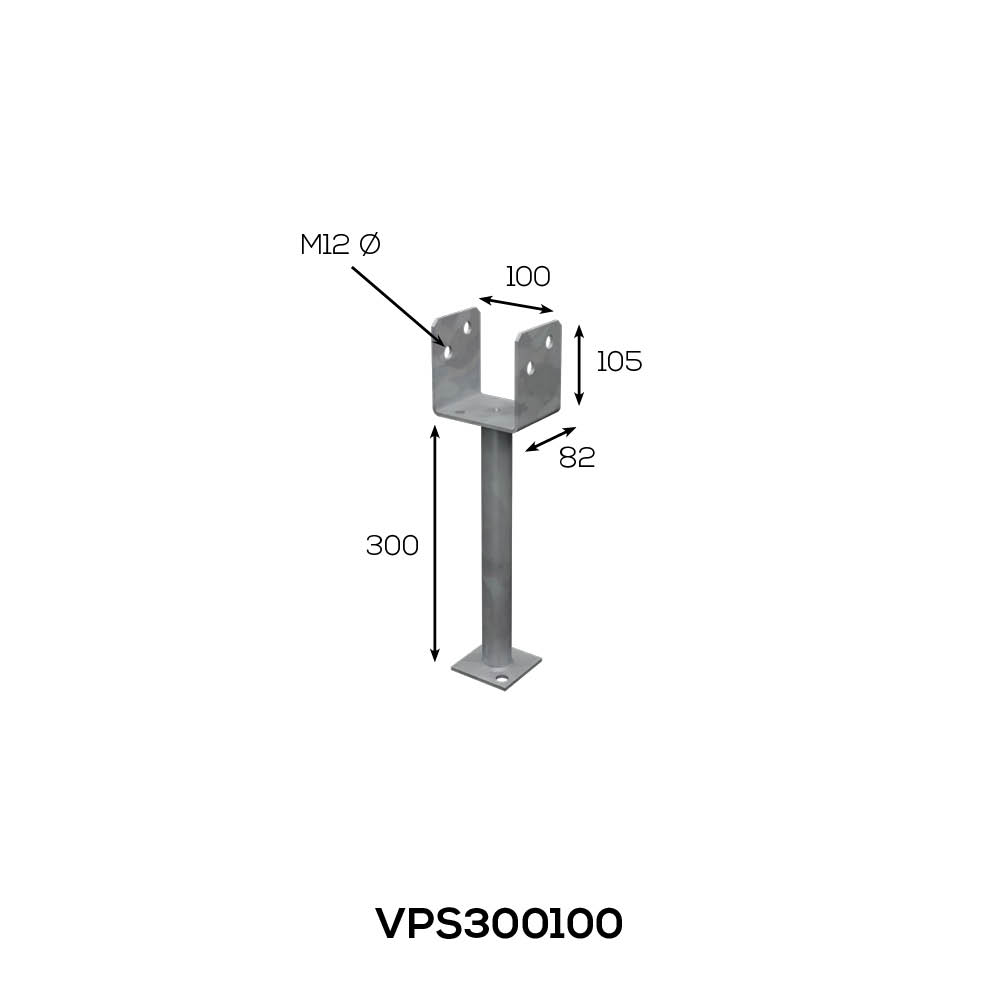

| VPS300100 | 300mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

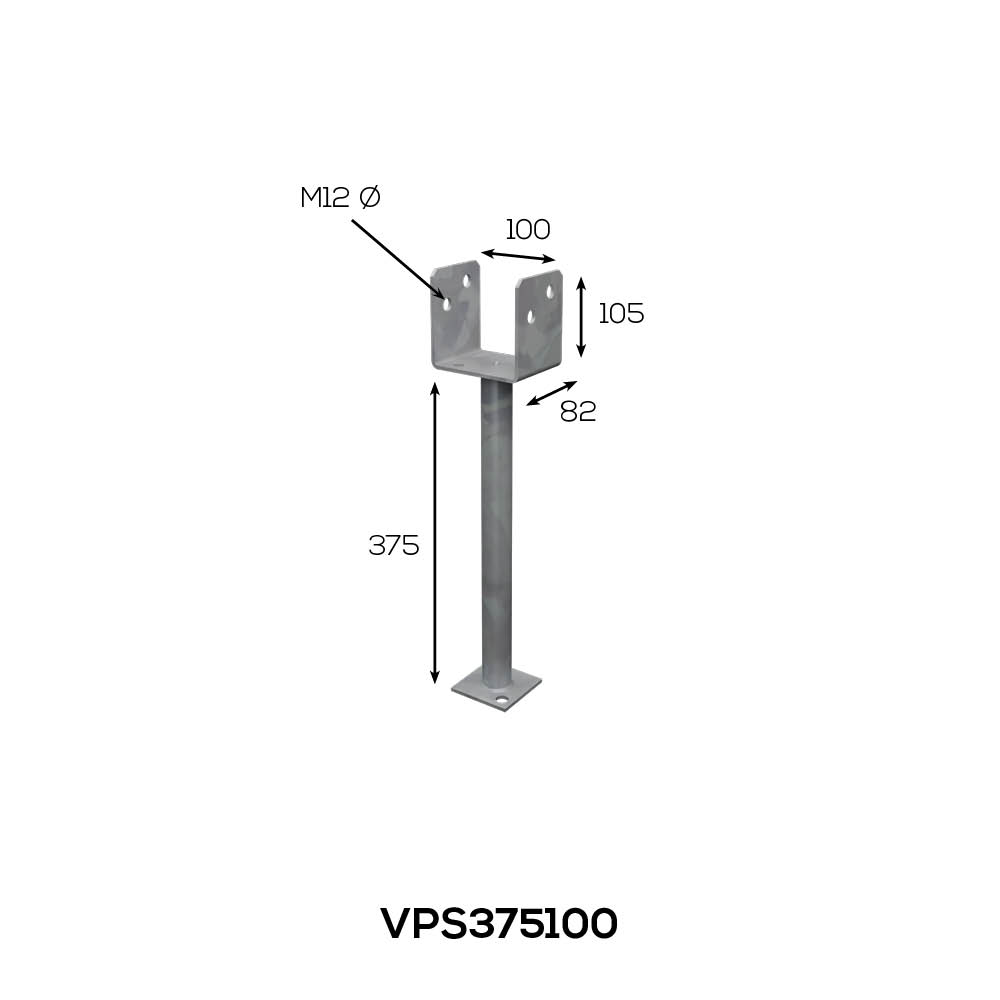

| VPS375100 | 375mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

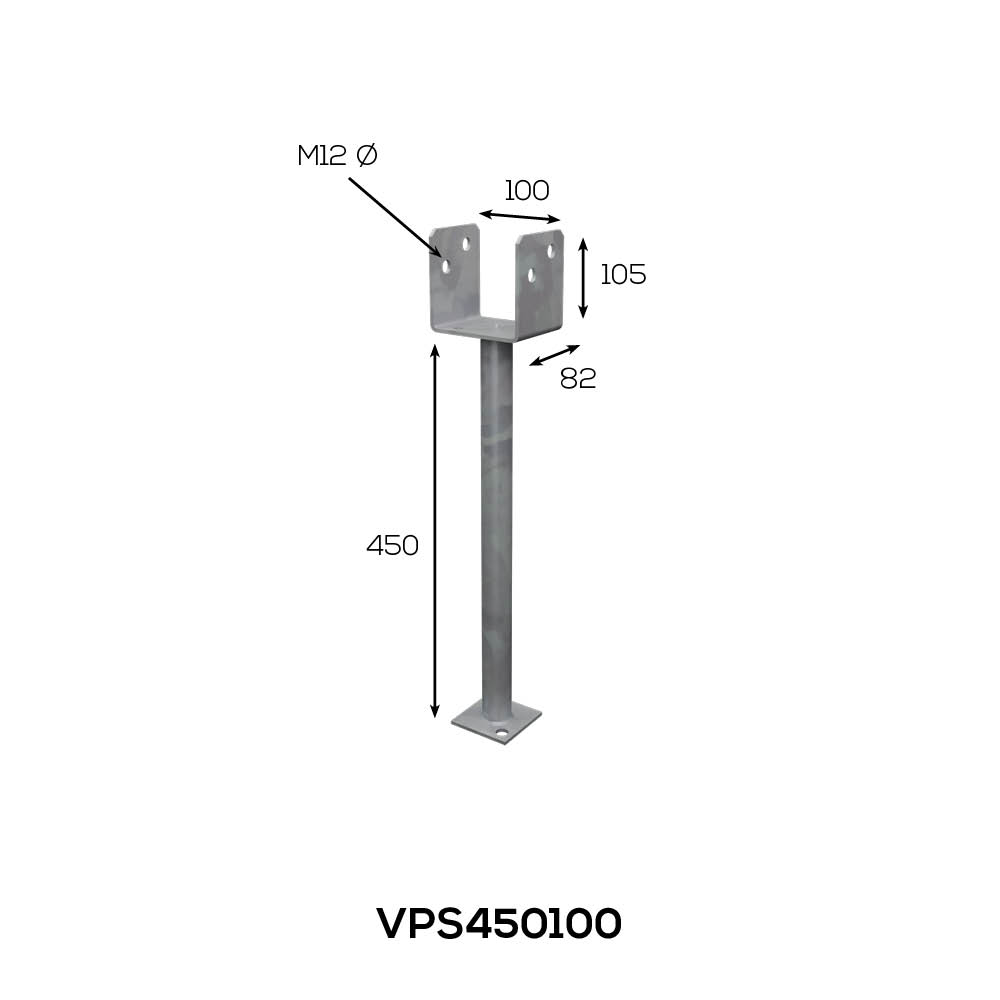

| VPS450100 | 450mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

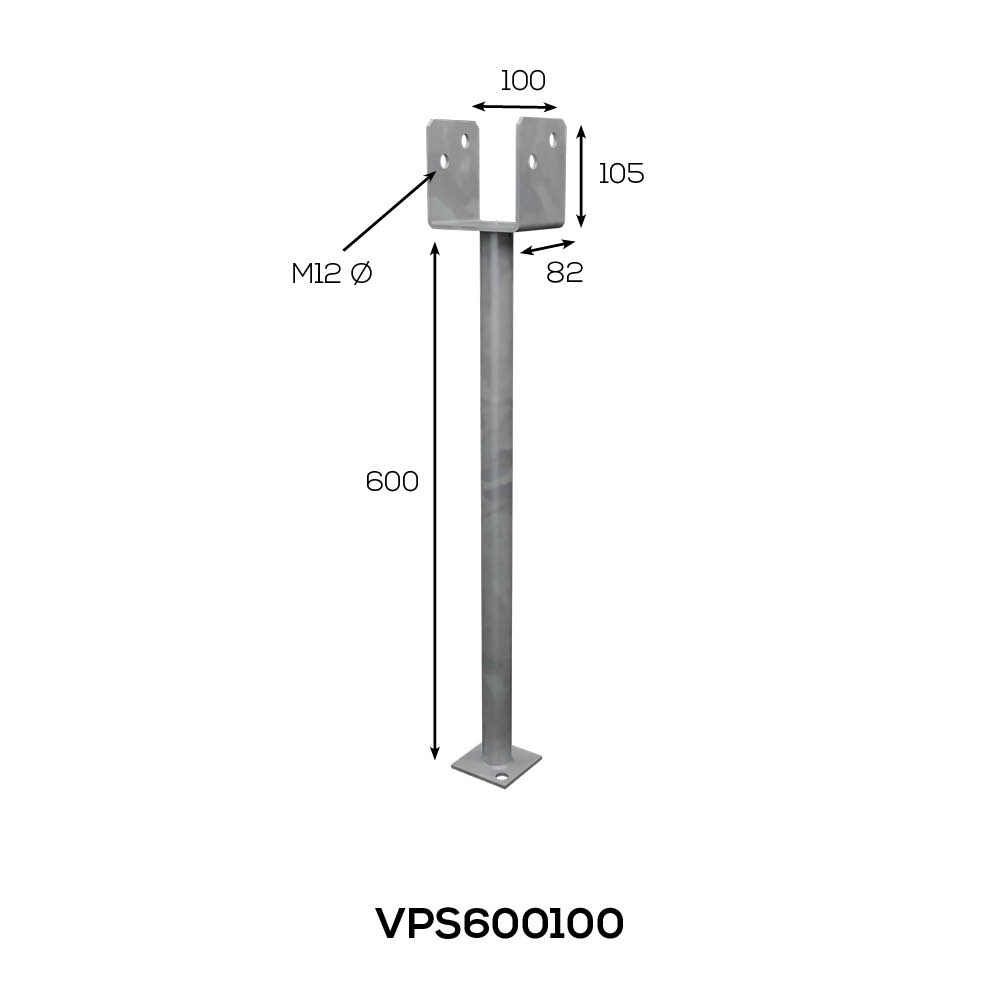

| VPS600100 | 600mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |
Stirrup width 115mm: | |||

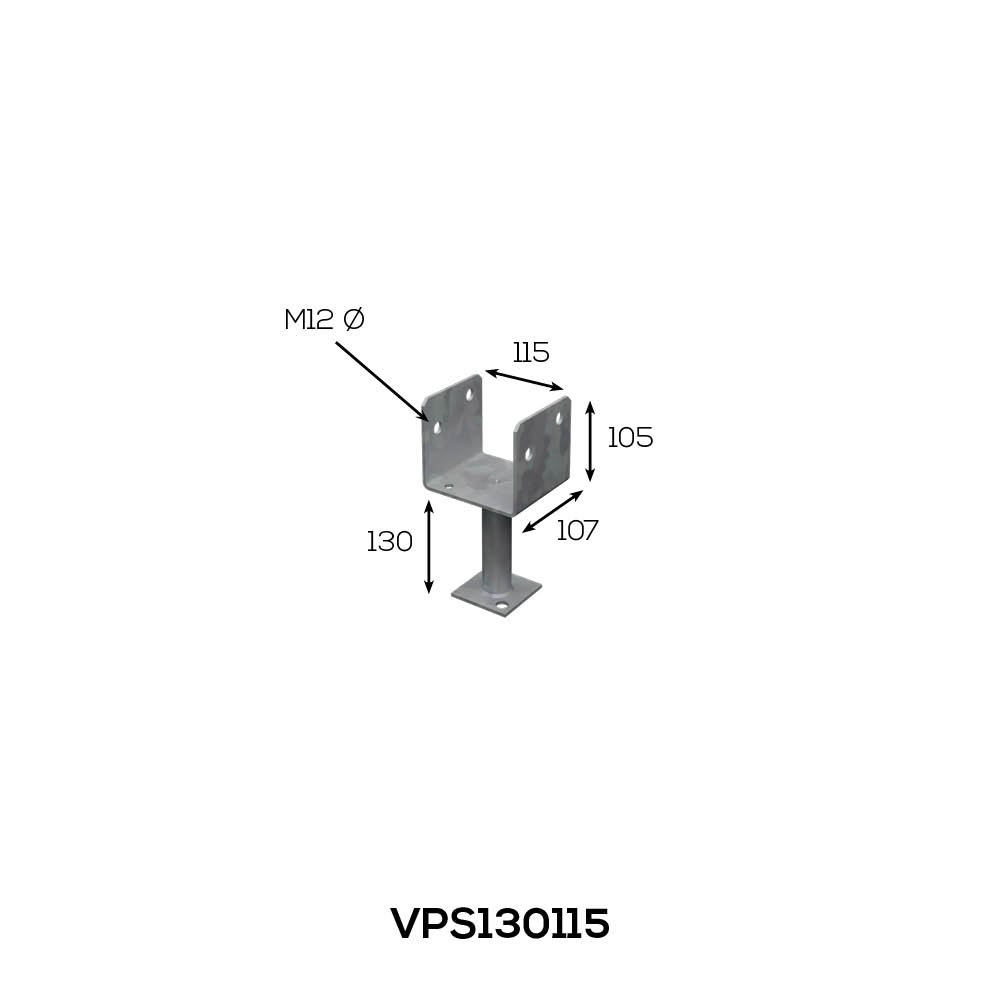

| VPS130115 | 130mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |
| VPS300115 | 300mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |
| VPS450115 | 450mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

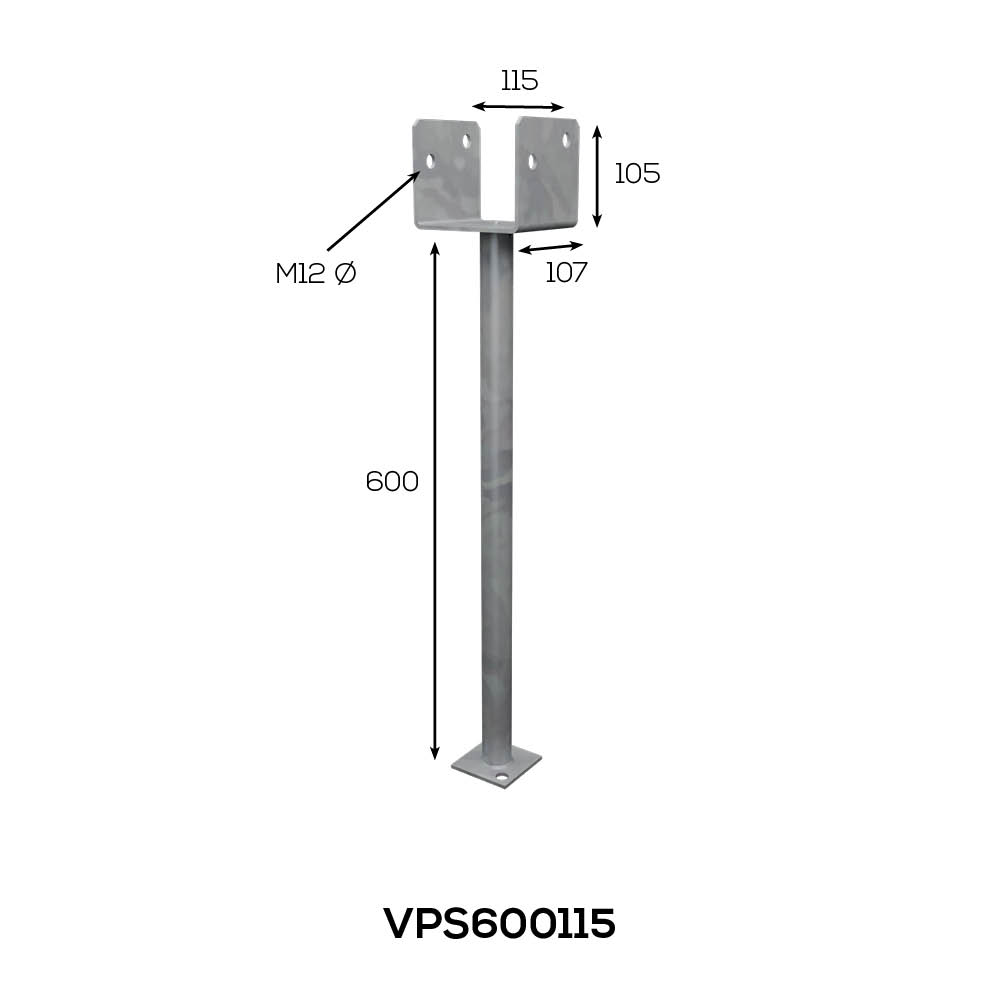

| VPS600115 | 600mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |
Stirrup width 120mm: | |||

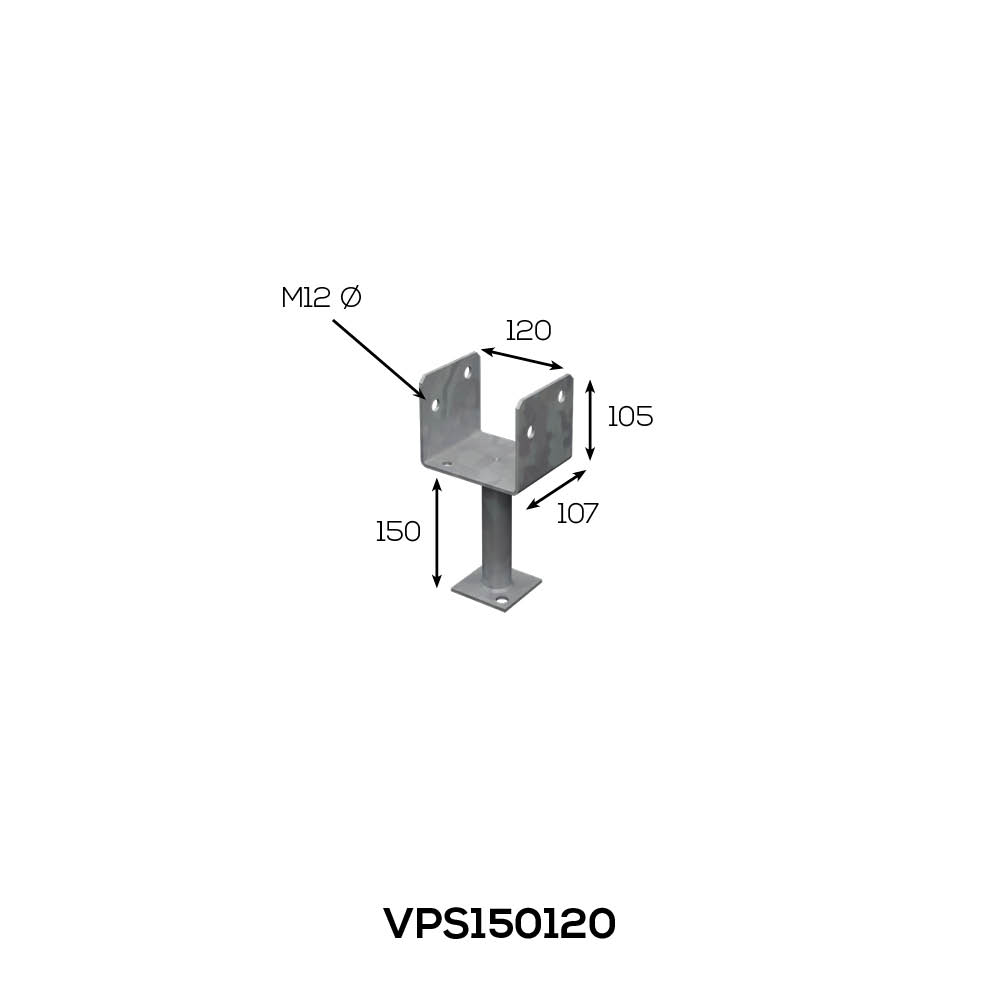

| VPS150120 | 150mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

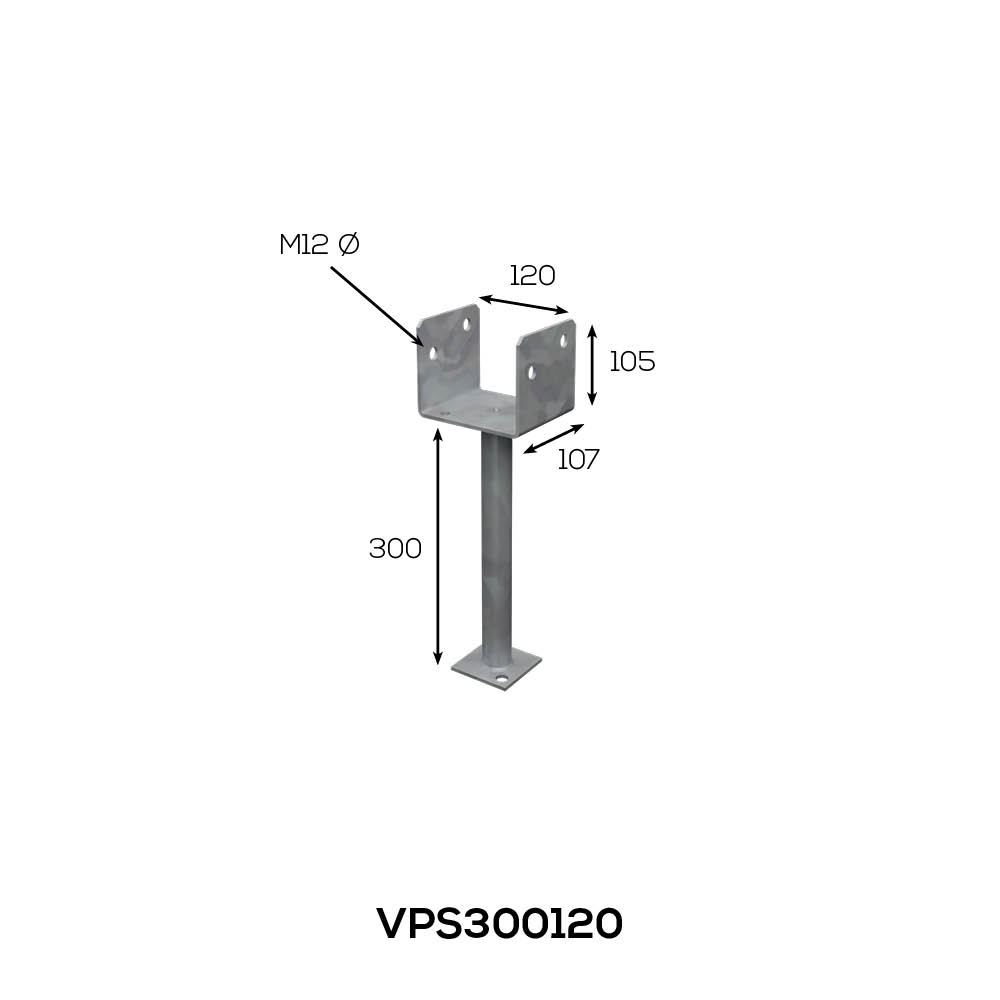

| VPS300120 | 300mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |
Stirrup width 125mm: | |||
| VPS130125 | 130mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

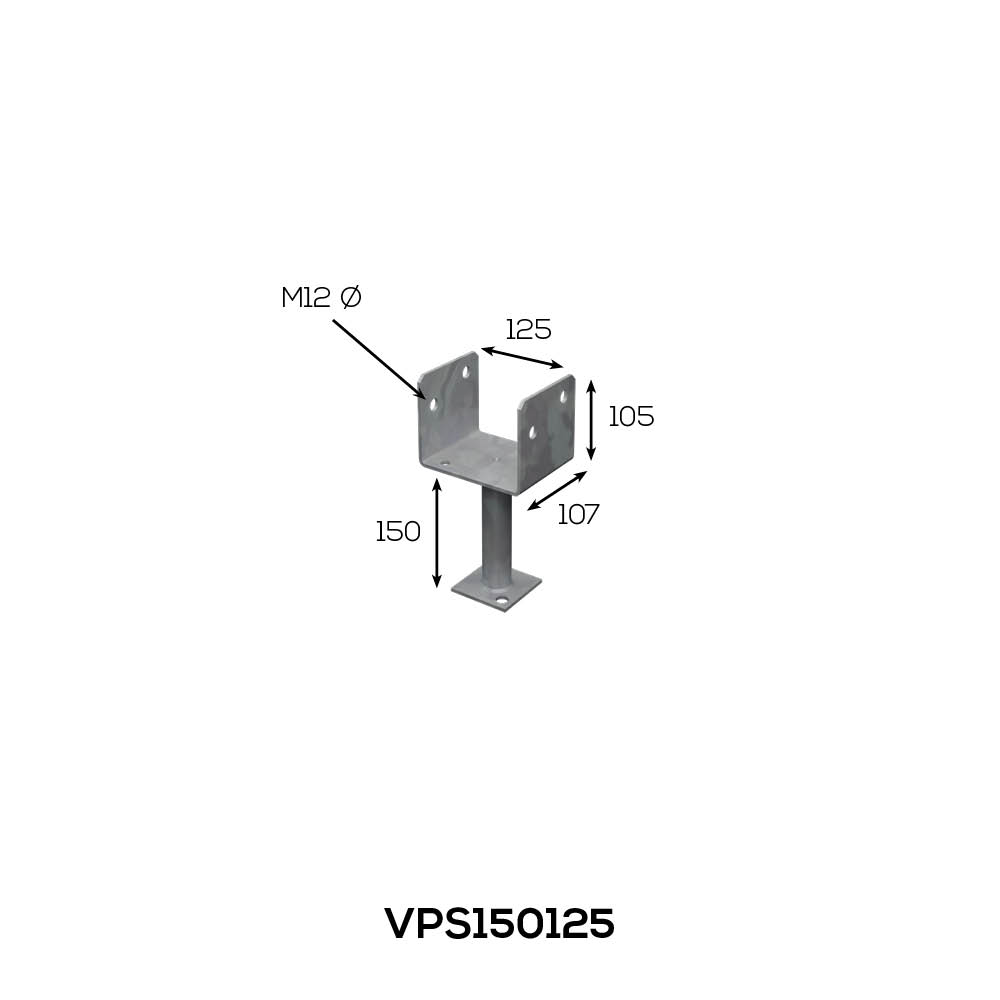

| VPS150125 | 150mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

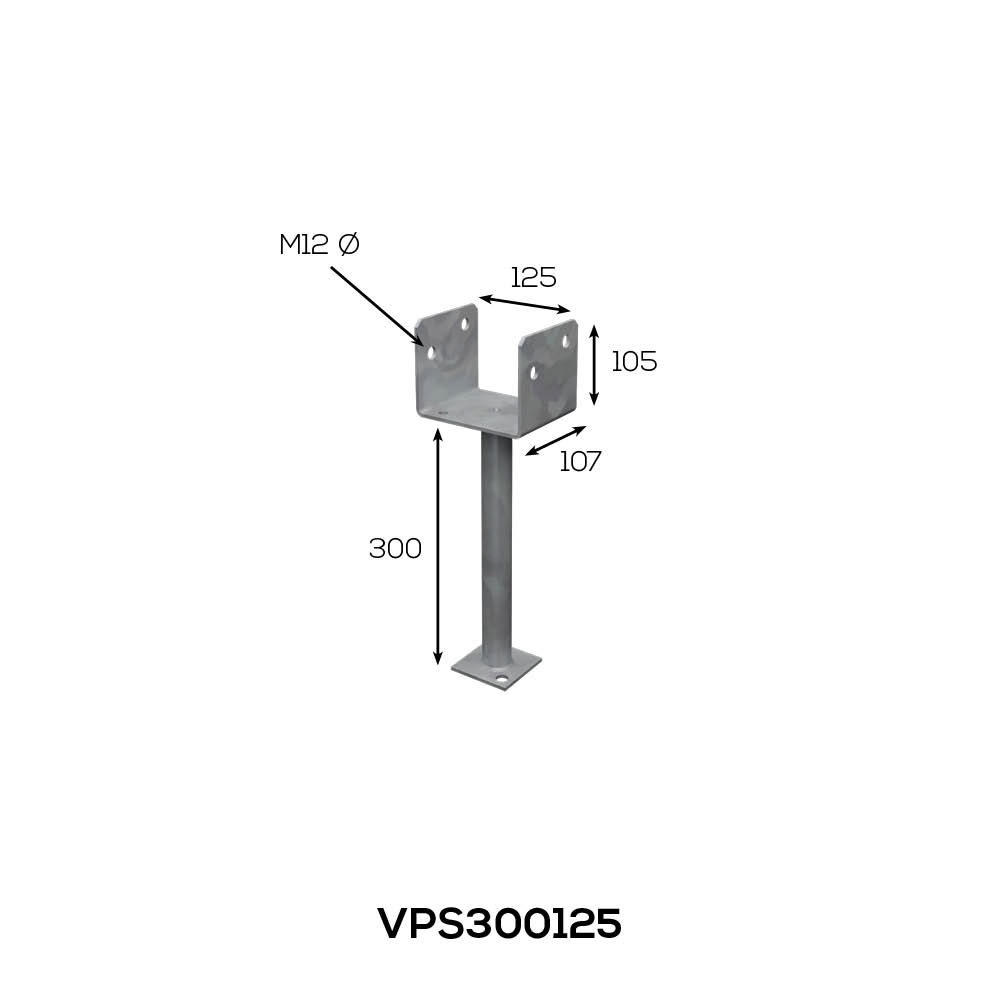

| VPS300125 | 300mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

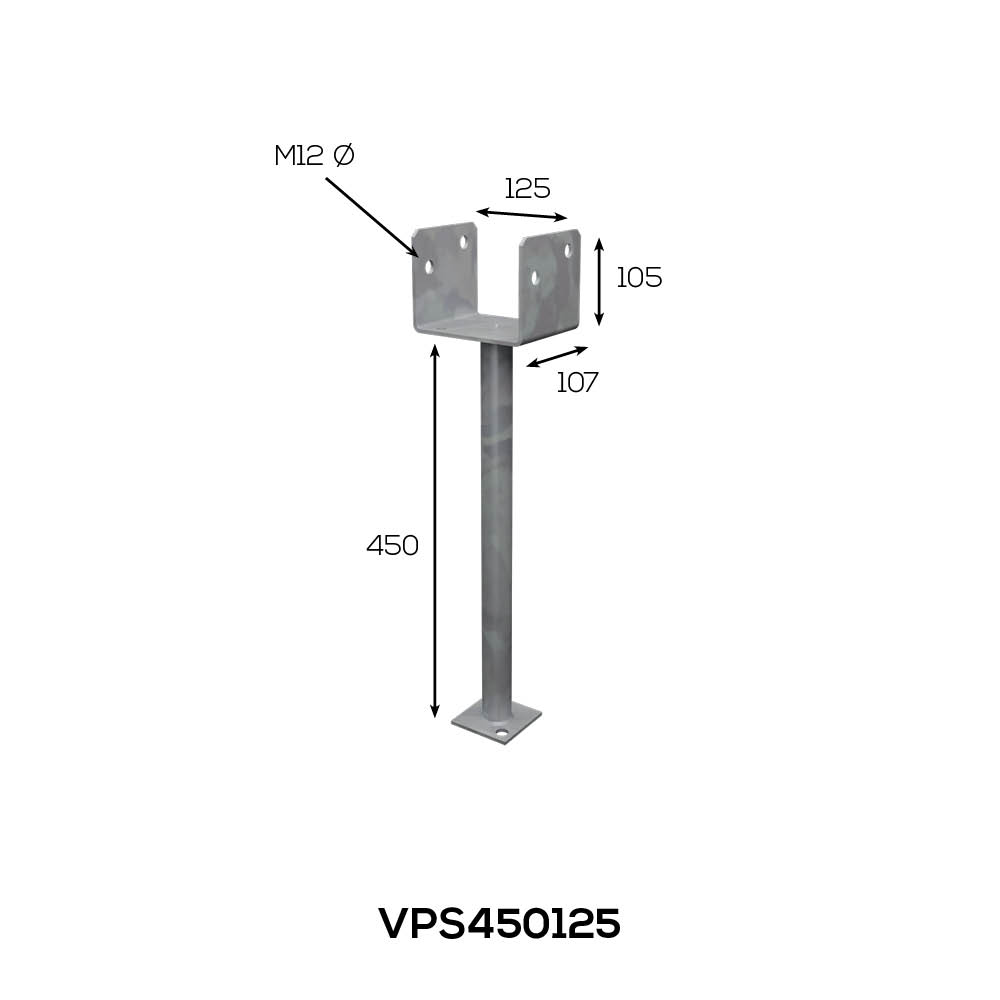

| VPS450125 | 450mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |
Stirrup width 135mm: | |||

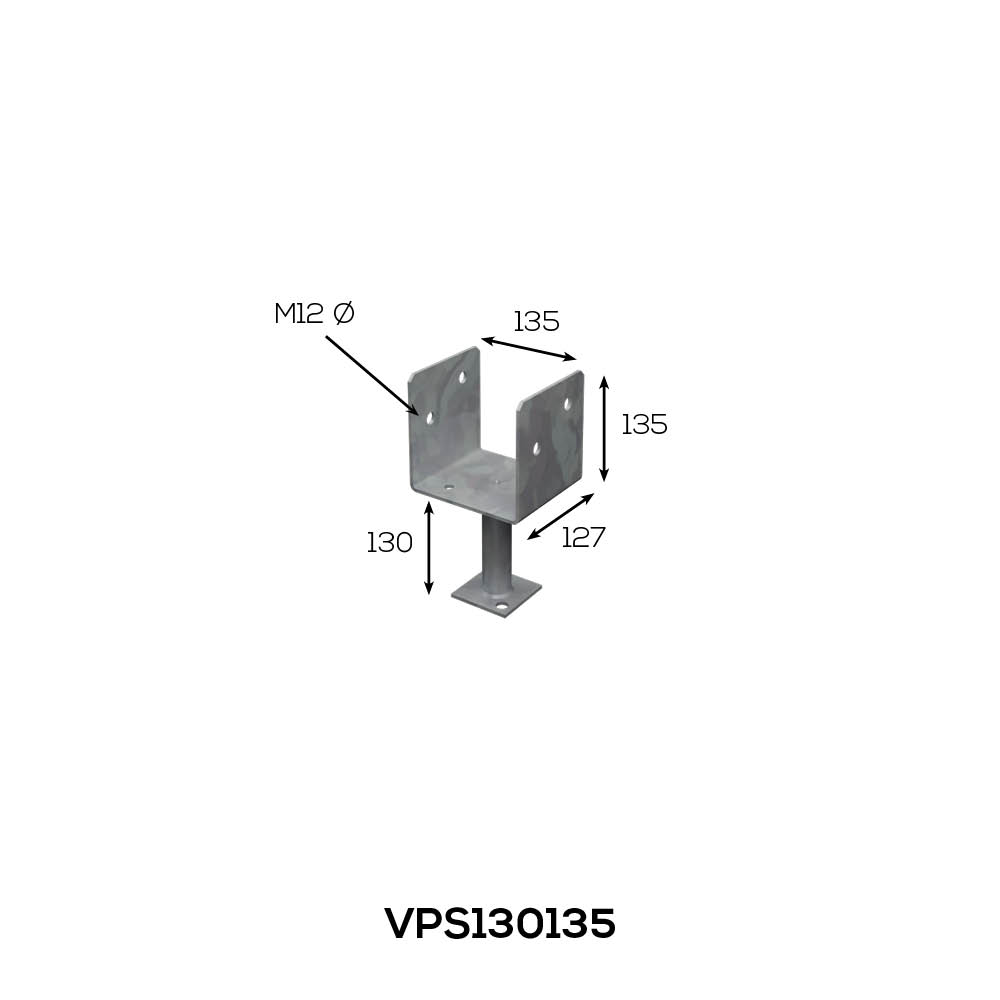

| VPS130135 | 130mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

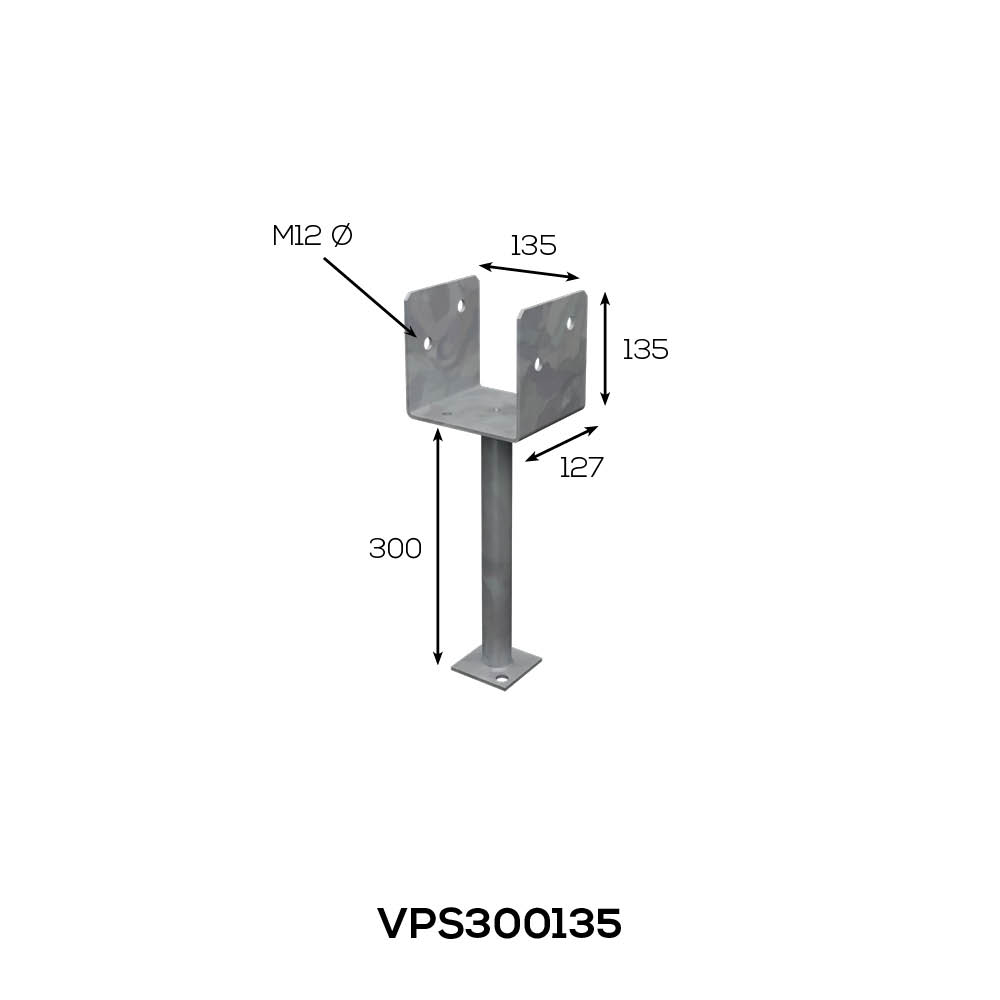

| VPS300135 | 300mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

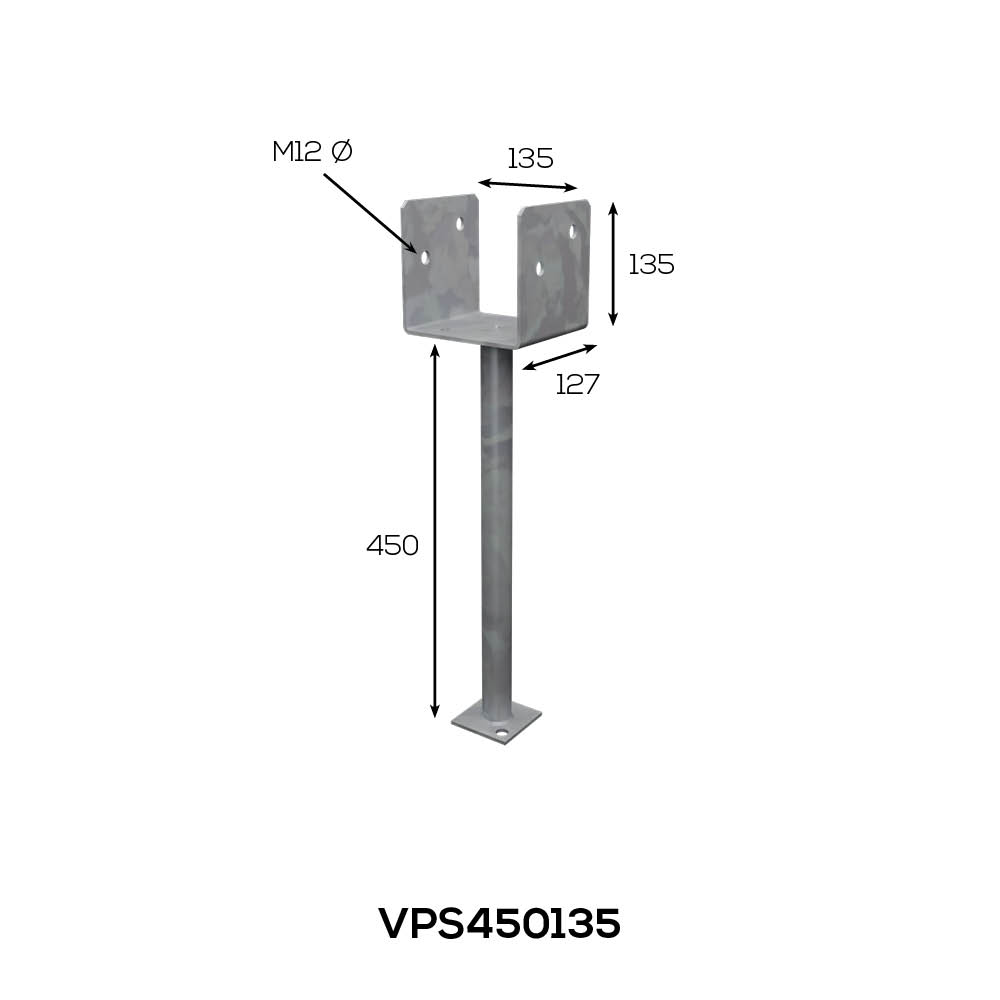

| VPS450135 | 450mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |
Stirrup width 140mm: | |||

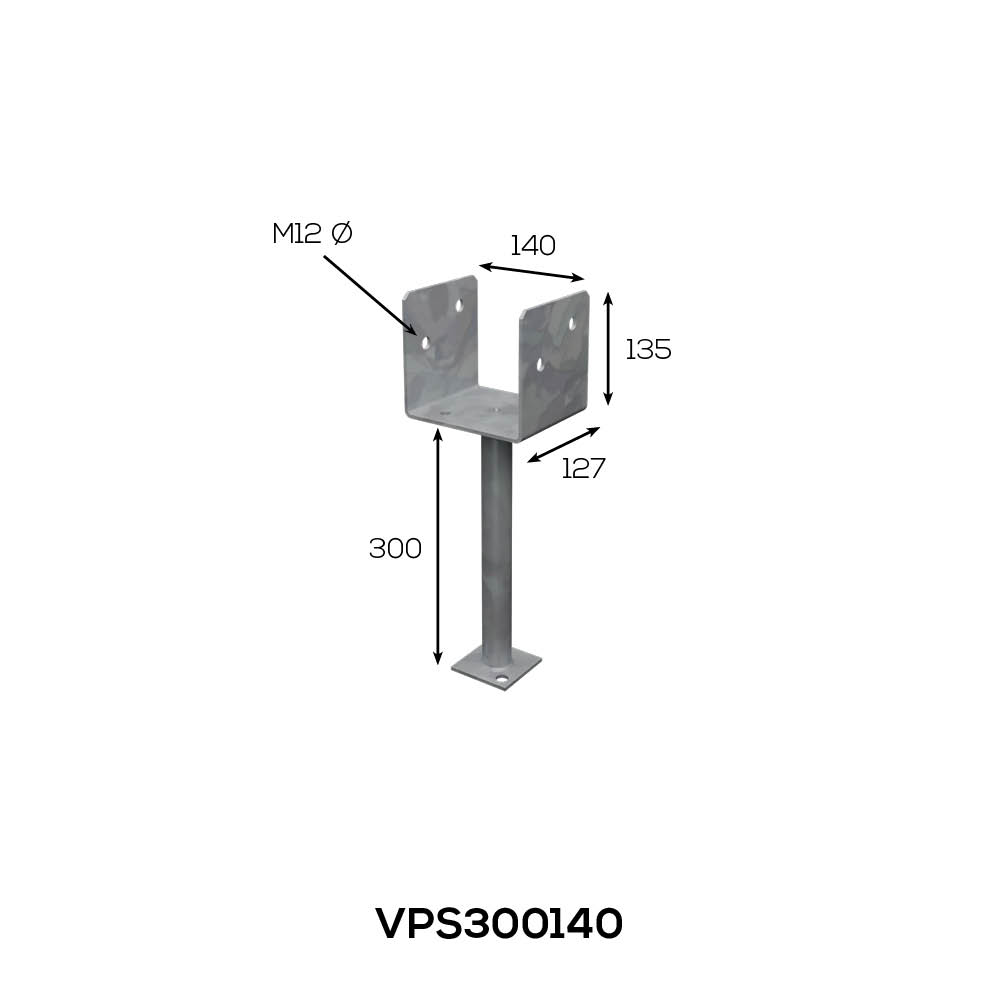

| VPS300140 | 300mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |
Stirrup width 150mm: | |||

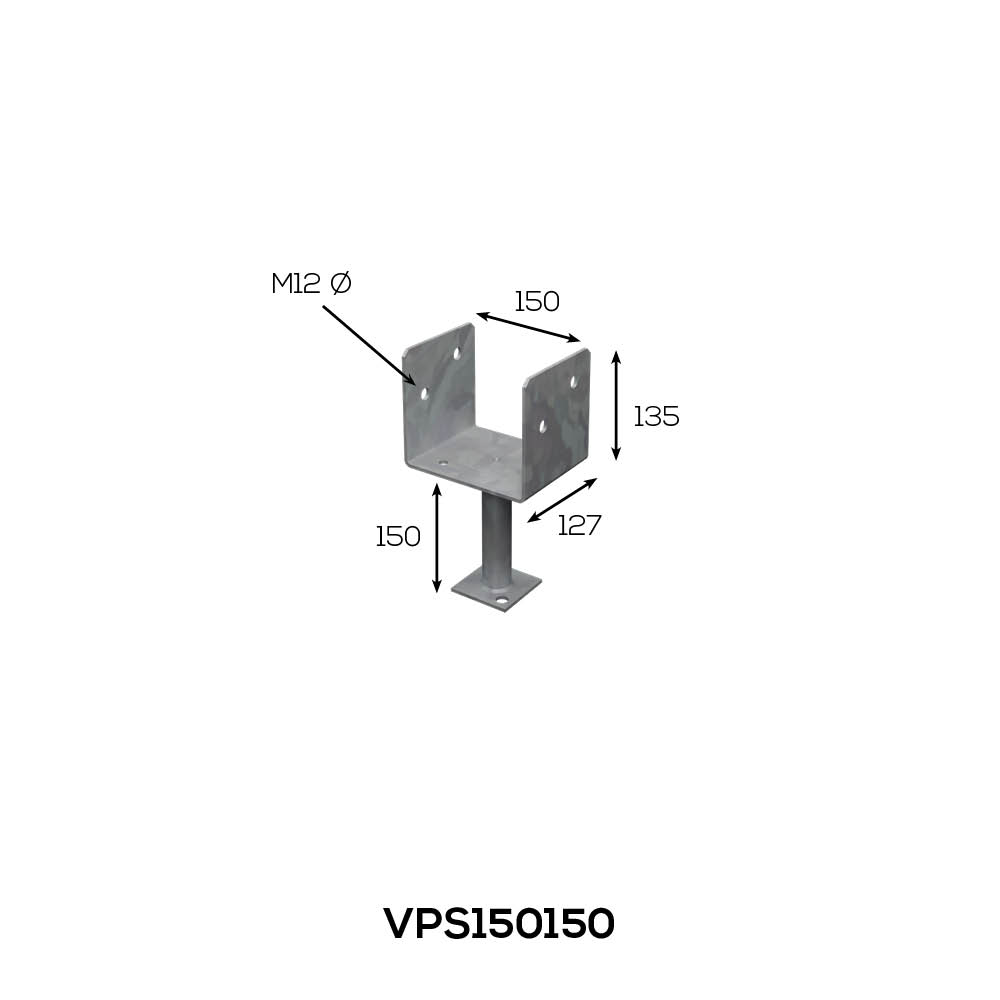

| VPS150150 | 150mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

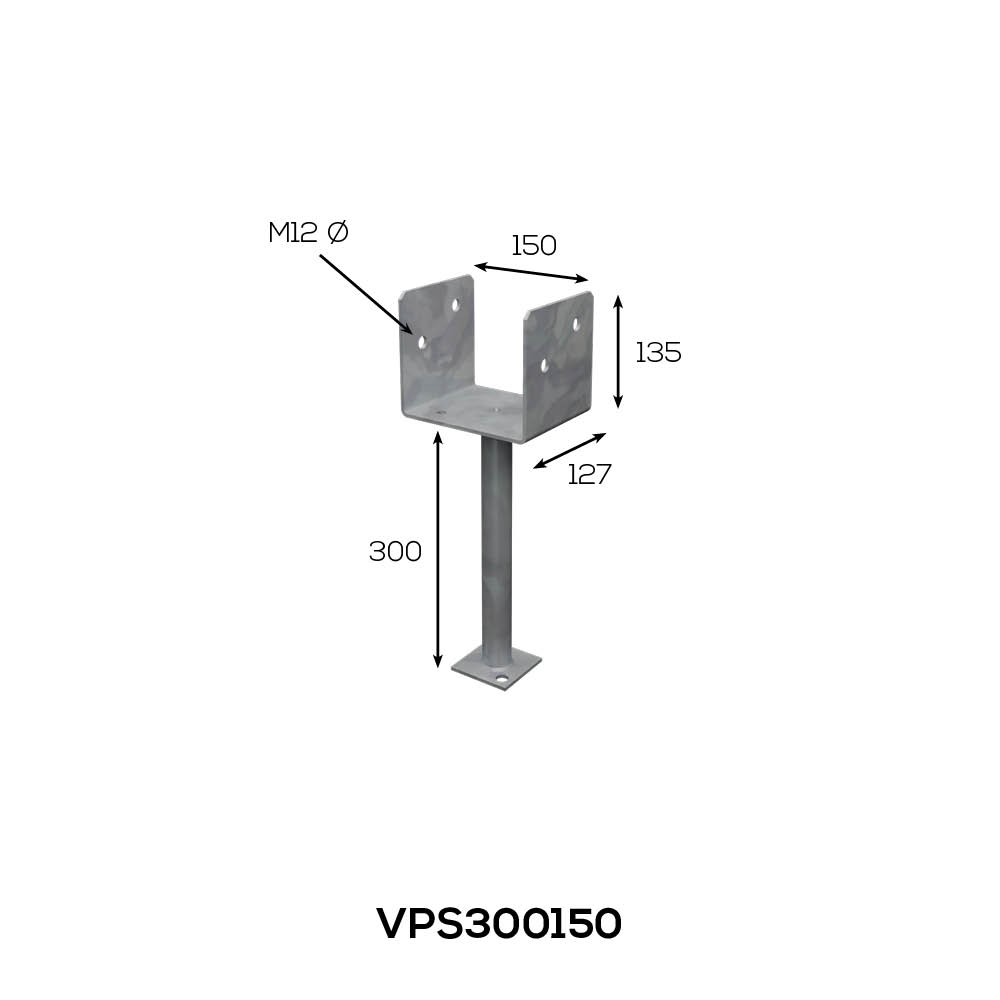

| VPS300150 | 300mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |
| VPS450150 | 450mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |
