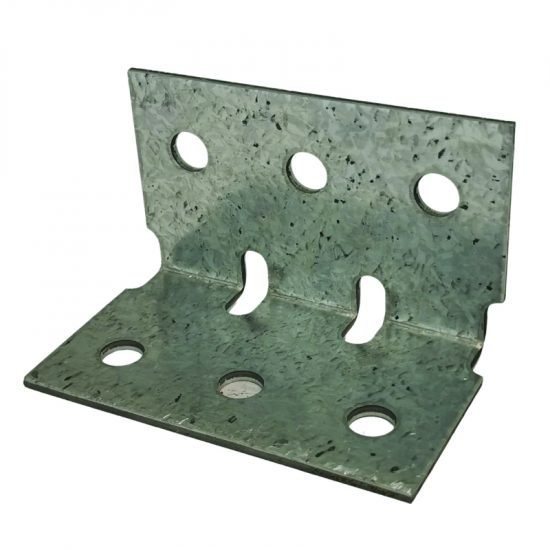

VUETRADE Angle Bracket Heavy Duty are multi-purpose right-angled brackets ideal for right angle applications.
Also available in Stainless Steel.
• Suitable for connecting timbers at right angle in both internal or external conditions.
• Suitable for use with M10 bolts
• 3.0mm thick steel for extra strength
• Made from Mild Steel
• Galvanised finish for durability and long-life
| Product Code(s) | Size | Metal Thickness (t) | Bolt/Fixing Size | Box Qty |
|---|---|---|---|---|

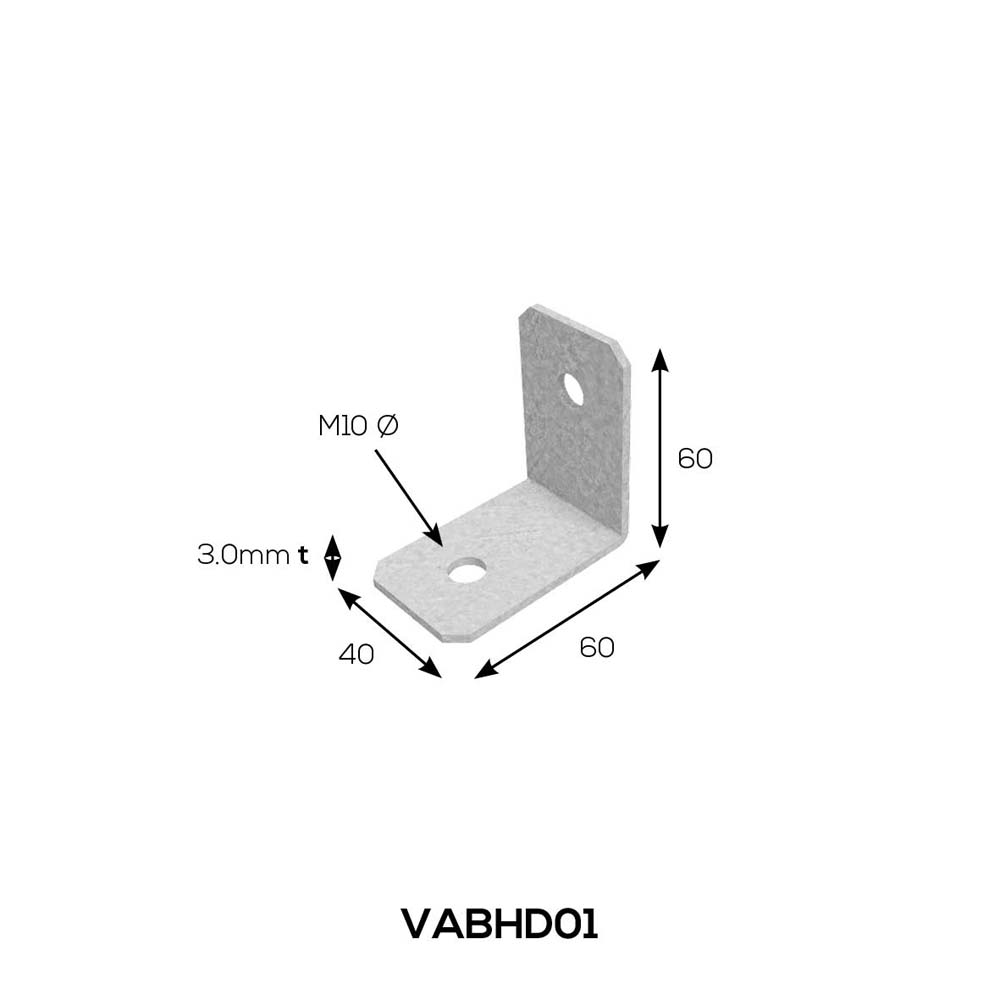

| VABHD01 | 40L x 60W x 60H | 3.0mm | M10 | 50 |

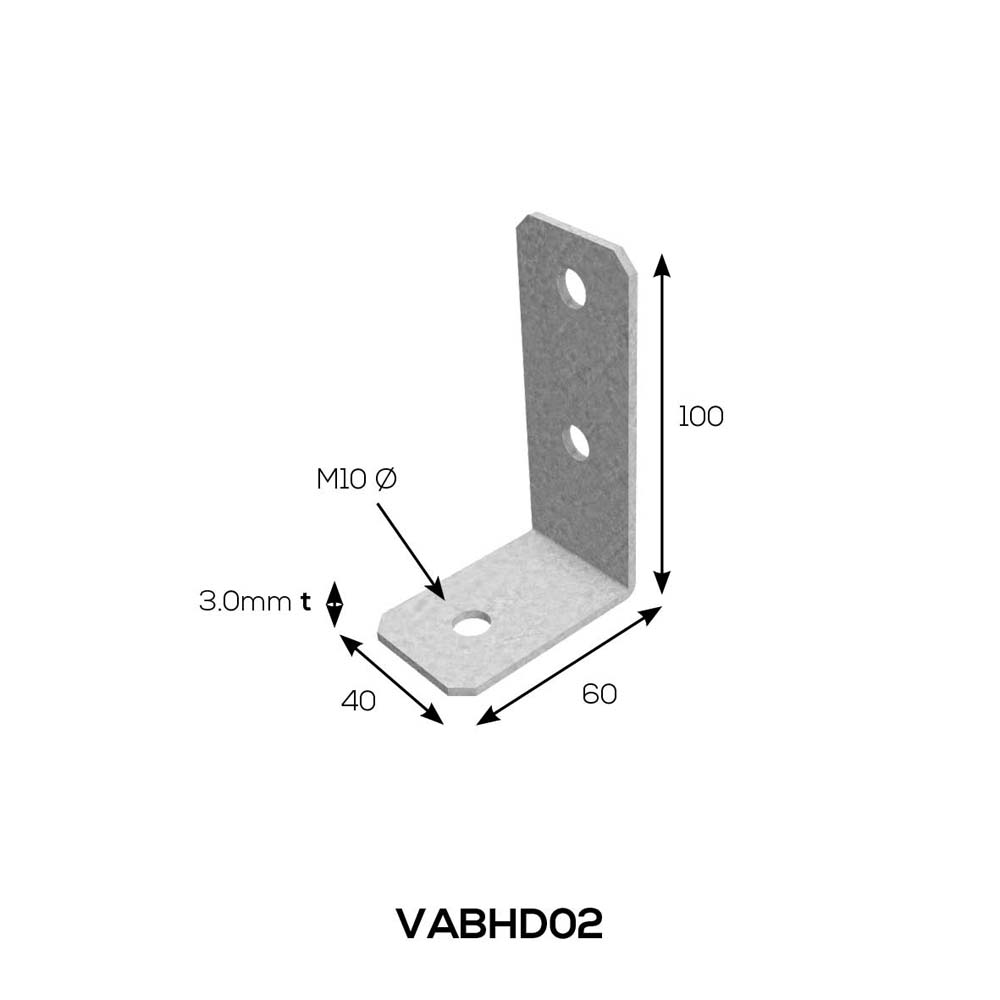

| VABHD02 | 40L x 60W x 100H | 3.0mm | M10 | 50 |

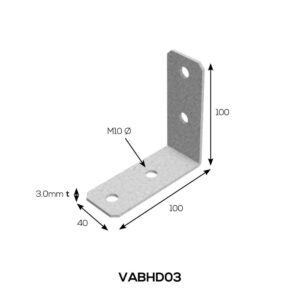

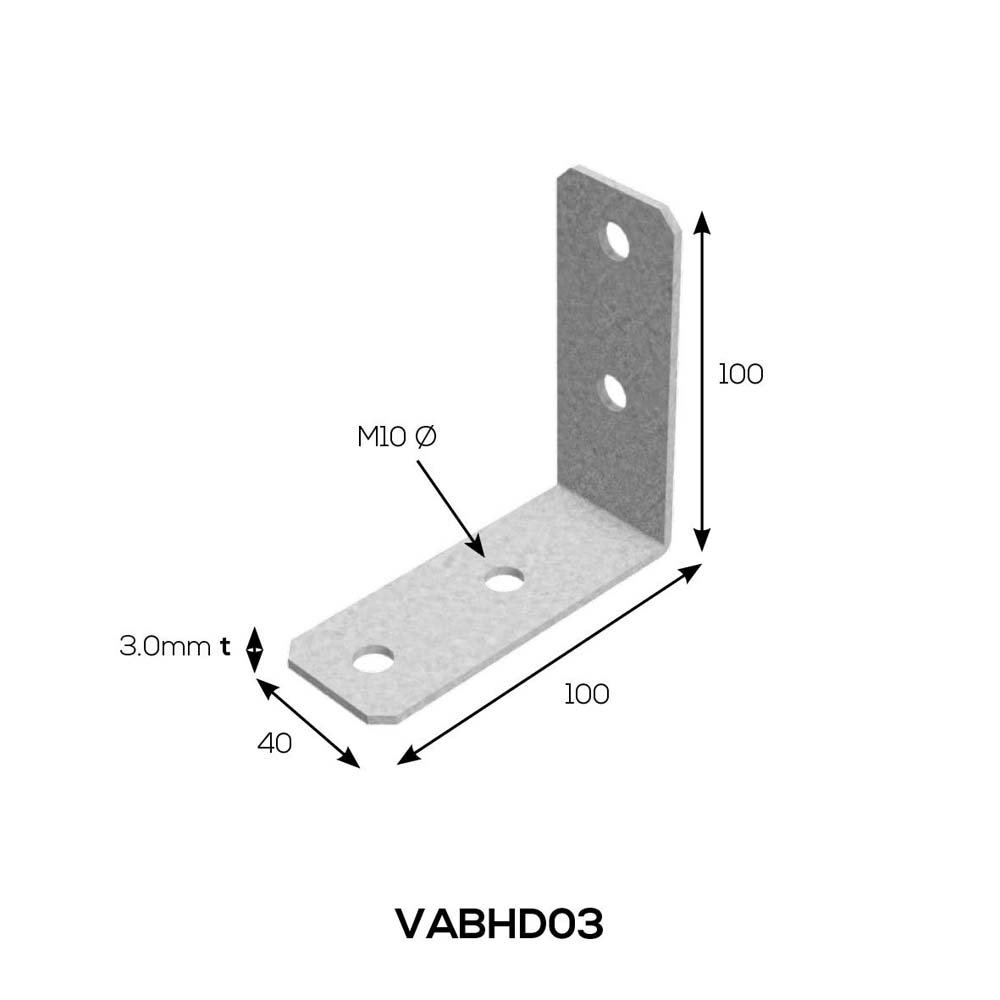

| VABHD03 | 40L x 100W x 100H | 3.0mm | M10 | 50 |

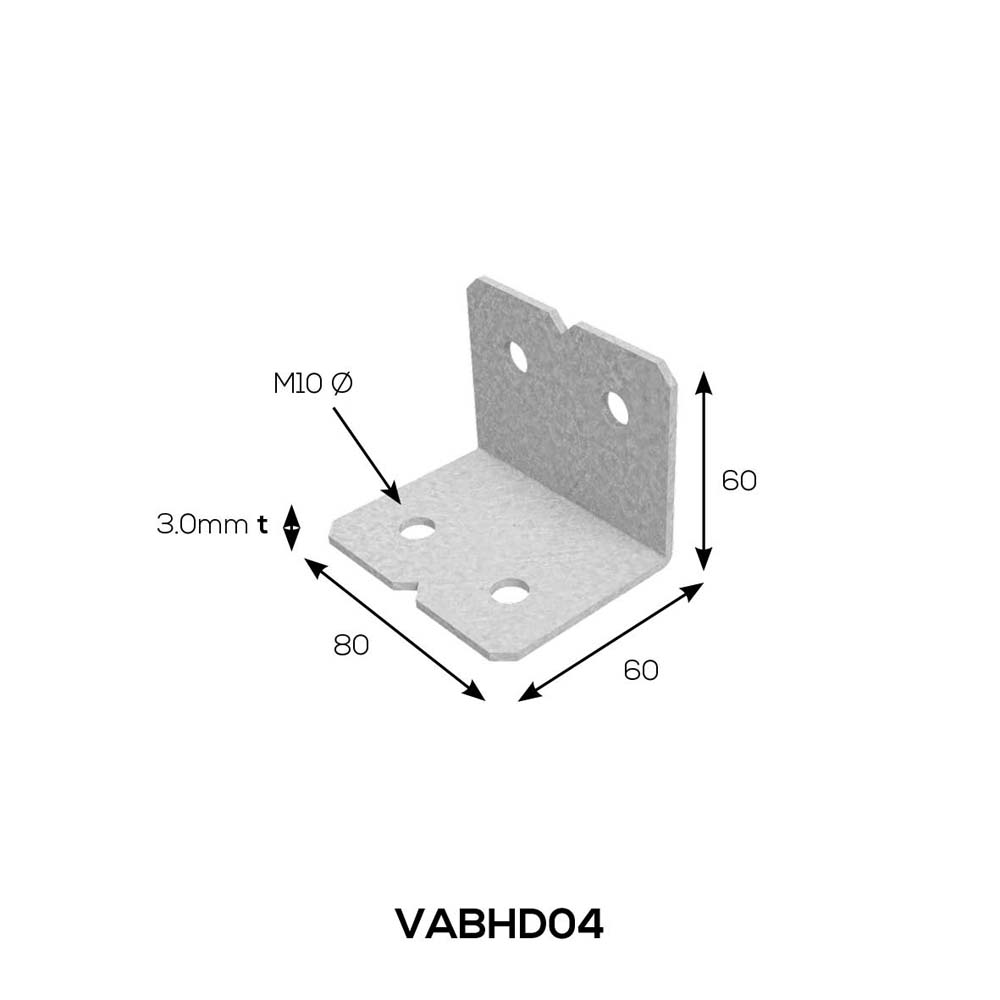

| VABHD04 | 80L x 60W x 60H | 3.0mm | M10 | 50 |

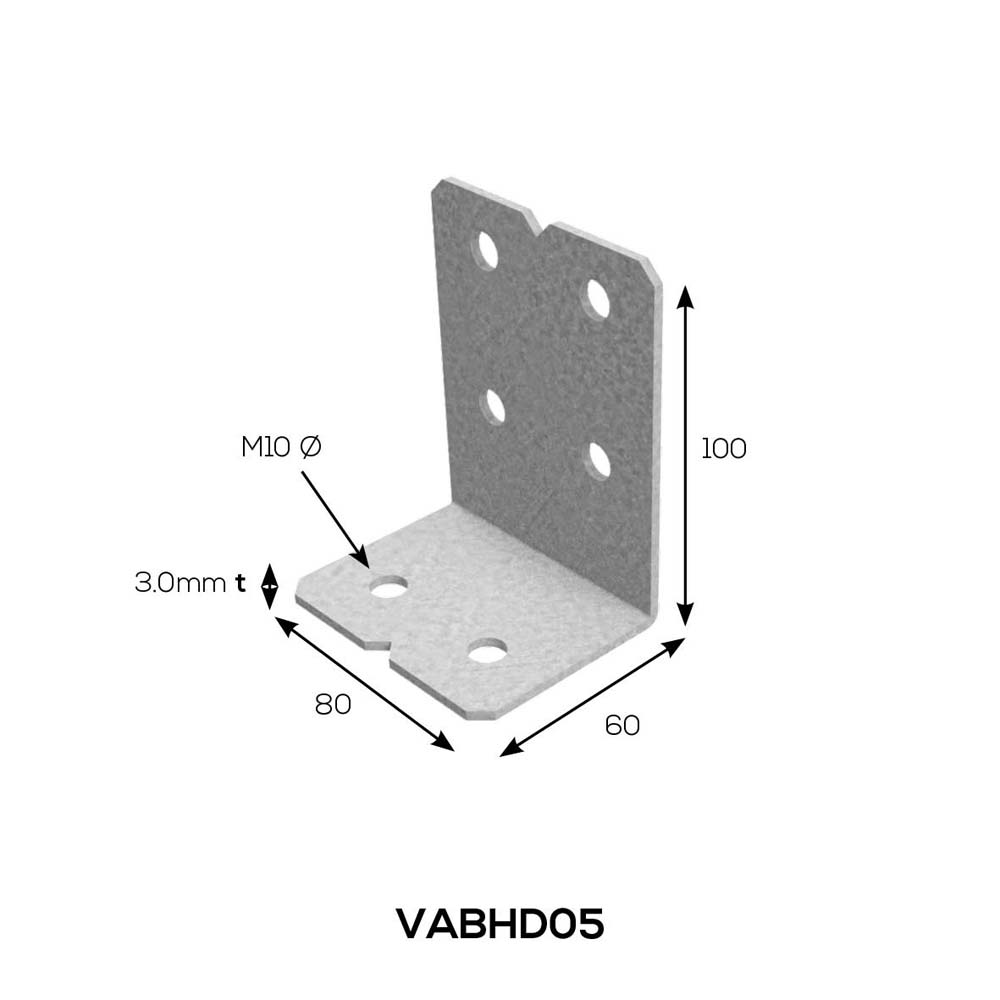

| VABHD05 | 80L x 60W x 100H | 3.0mm | M10 | 25 |

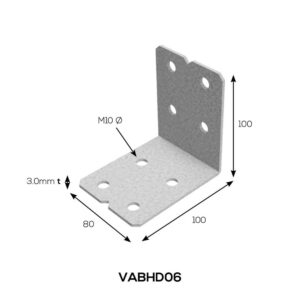

| VABHD06 | 80L x 100W x 100H | 3.0mm | M10 | 25 |

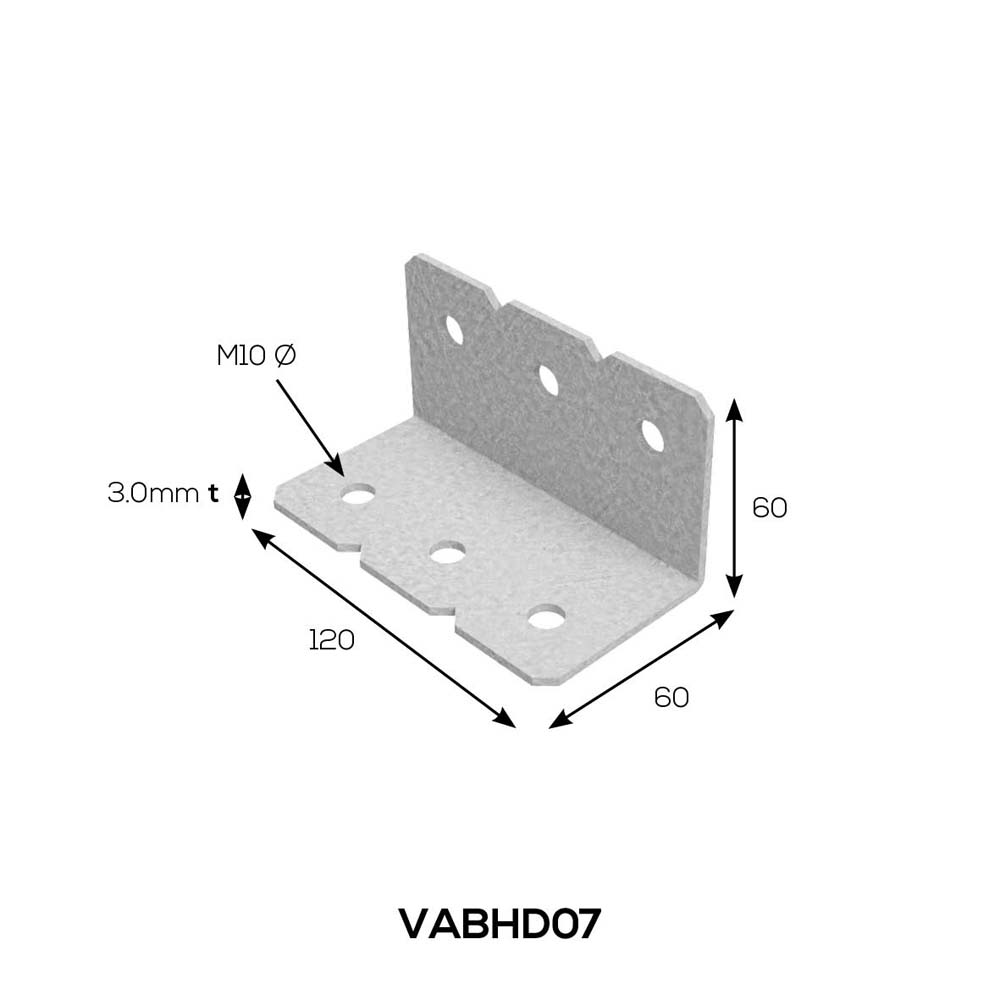

| VABHD07 | 120L x 60W x 60H | 3.0mm | M10 | 25 |

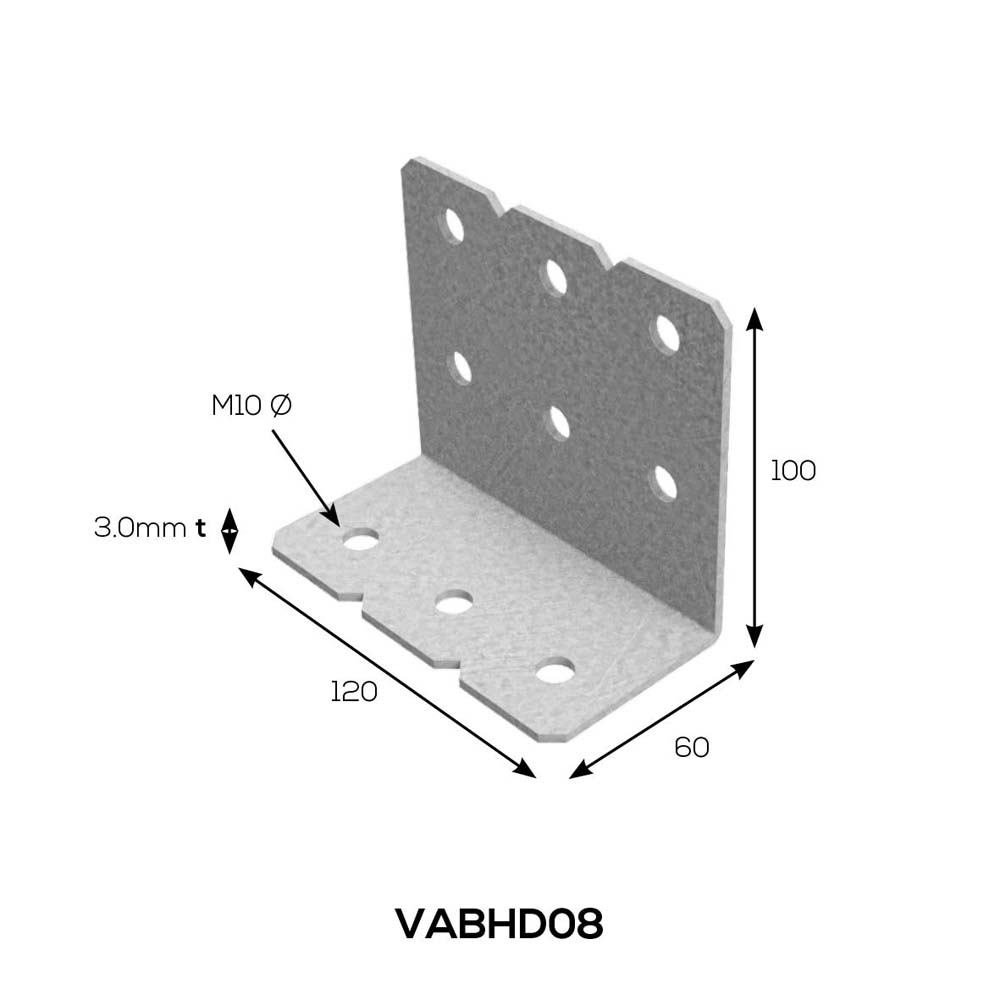

| VABHD08 | 120L x 60W x 100H | 3.0mm | M10 | 25 |

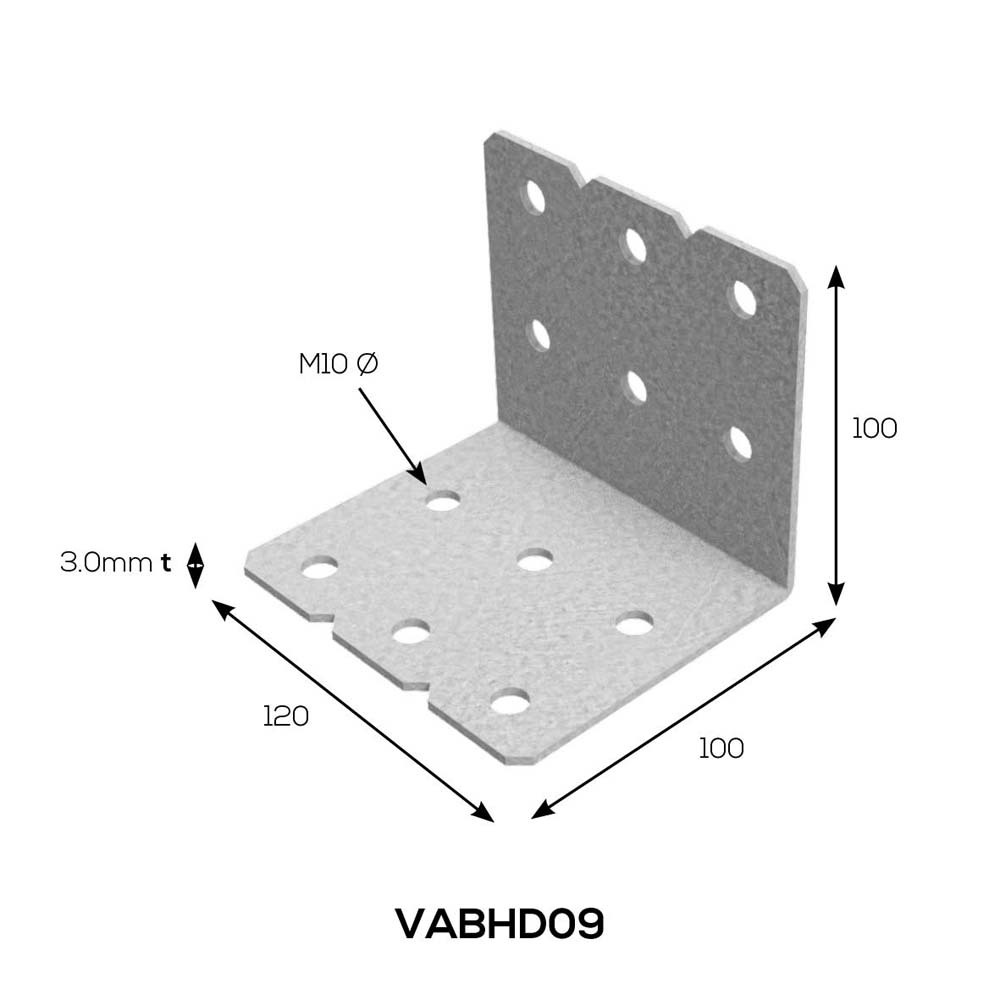

| VABHD09 | 120L x 100W x 100H | 3.0mm | M10 | 20 |

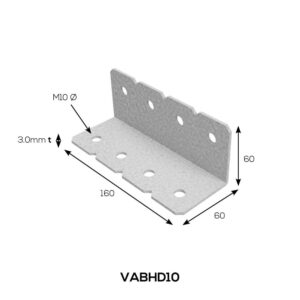

| VABHD10 | 160L x 60W x 60H | 3.0mm | M10 | 25 |

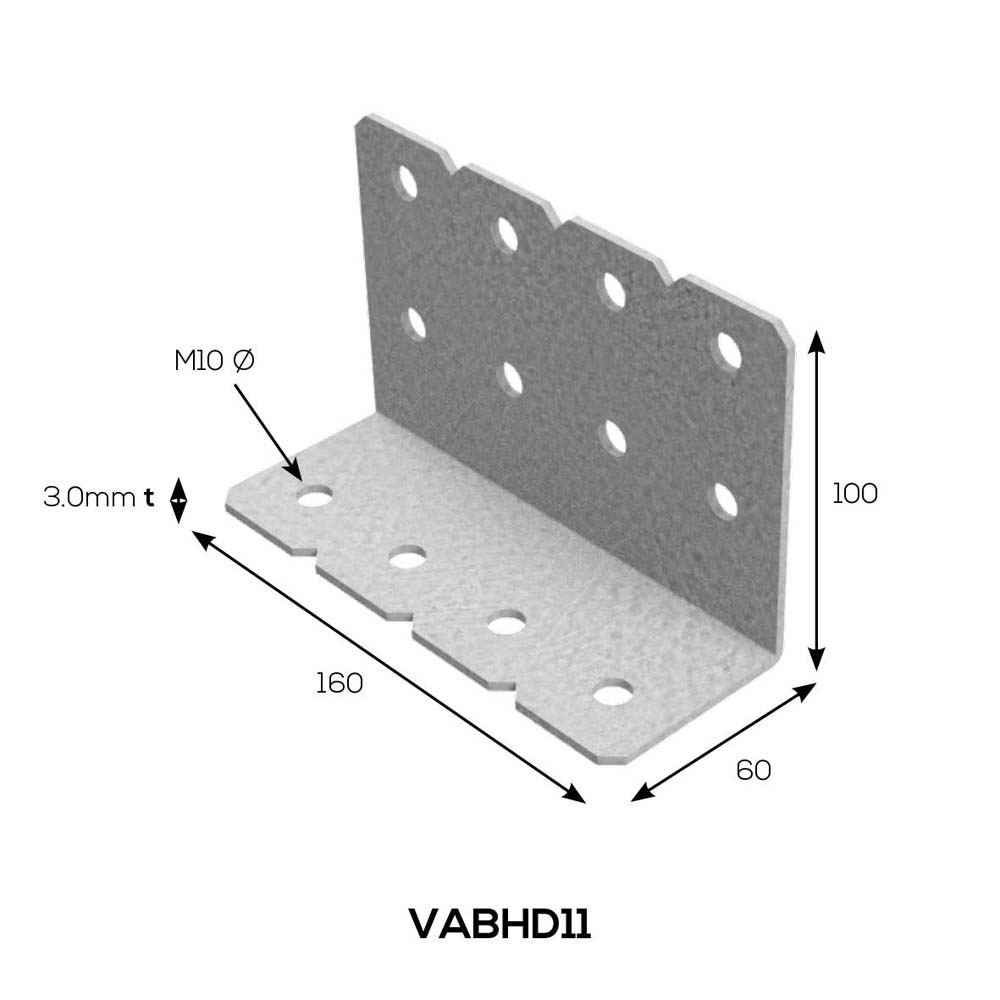

| VABHD11 | 160L x 60W x 100H | 3.0mm | M10 | 20 |

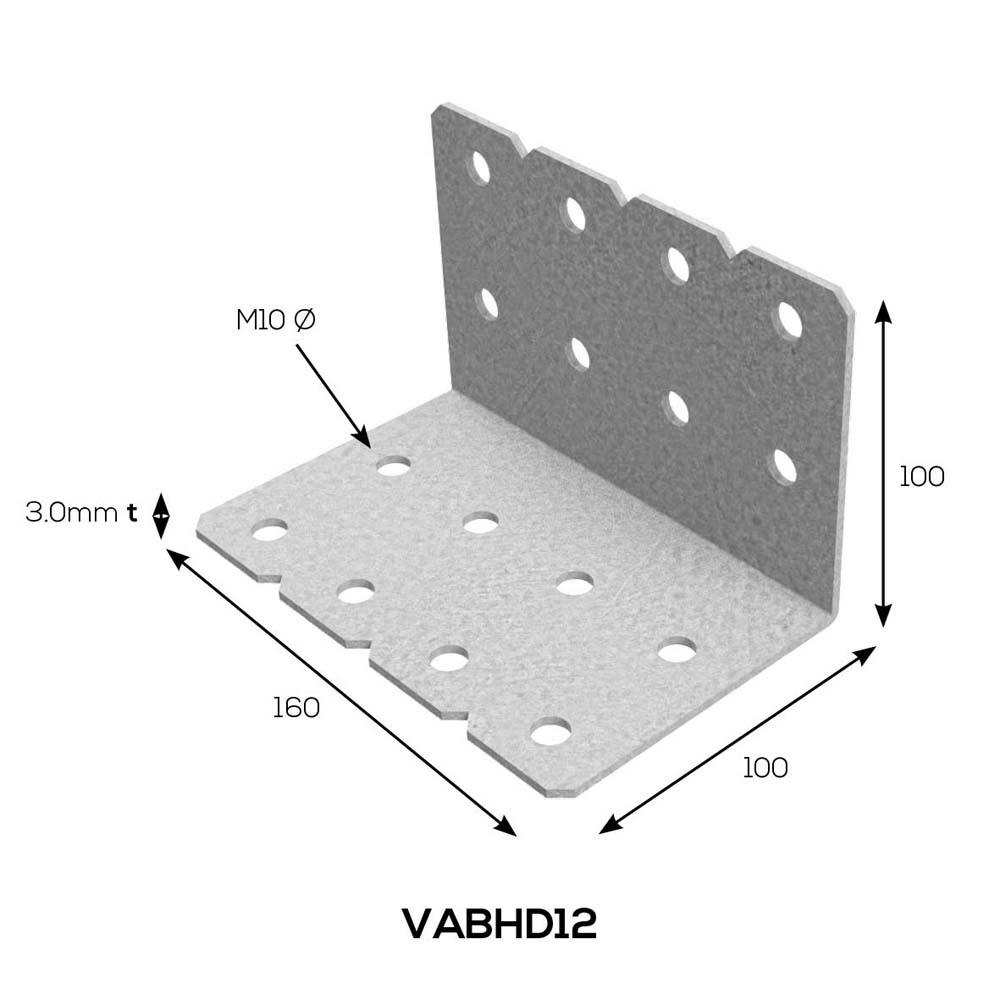

| VABHD12 | 160L x 100L x 100W | 3.0mm | M10 | 20 |
