VUETRADE L TYPE HDG Brackets are multi-purpose right-angled brackets.

• Suitable for heavy duty connection between timber and timber at right angle
• Suitable for bolt fixings – Use only M10 or M12 bolts
• 5.0 or 6.5mm thick steel for extra strength
• Made from Mild Steel
• Available in a range of size
• Galvanised finish for durability and long-life

Product Code(s)SizeMetal Thickness (t)Bolt/Fixing SizeBox Qty

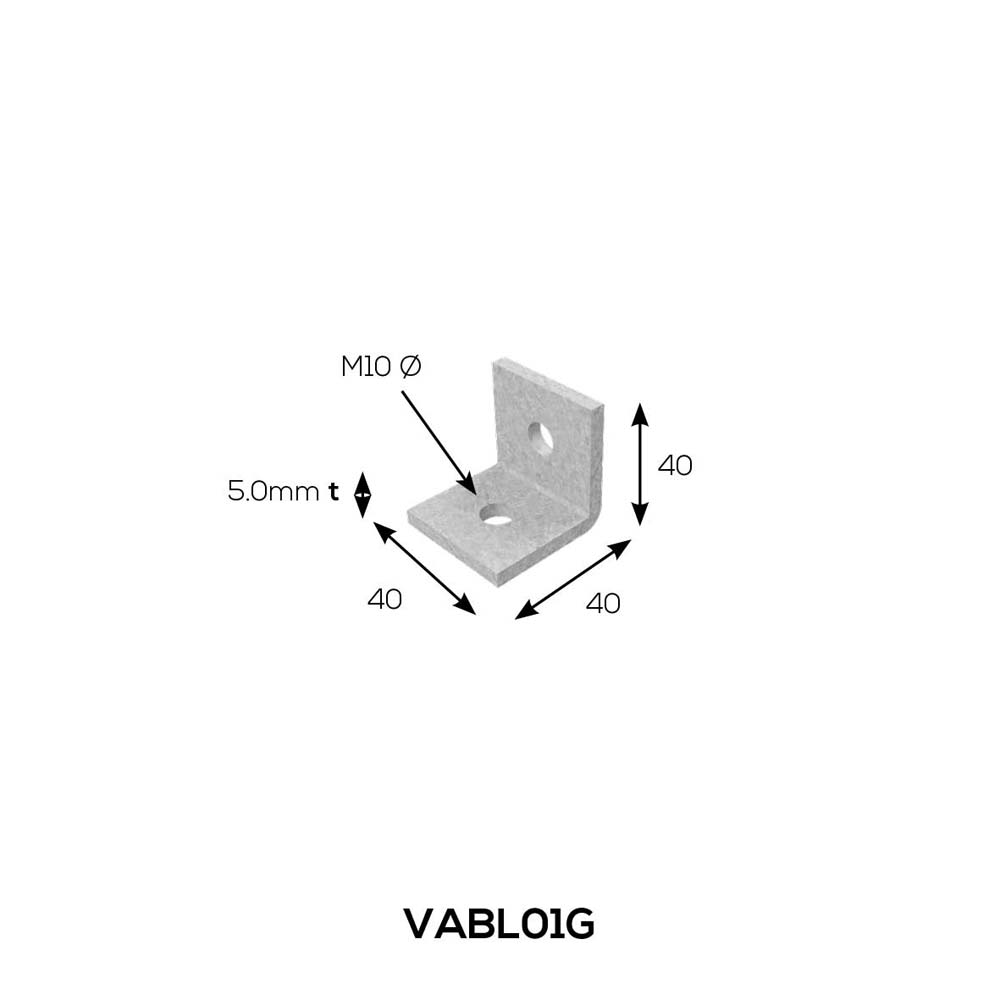

VABL01G40L x 40W x 40H5.0mmM1050

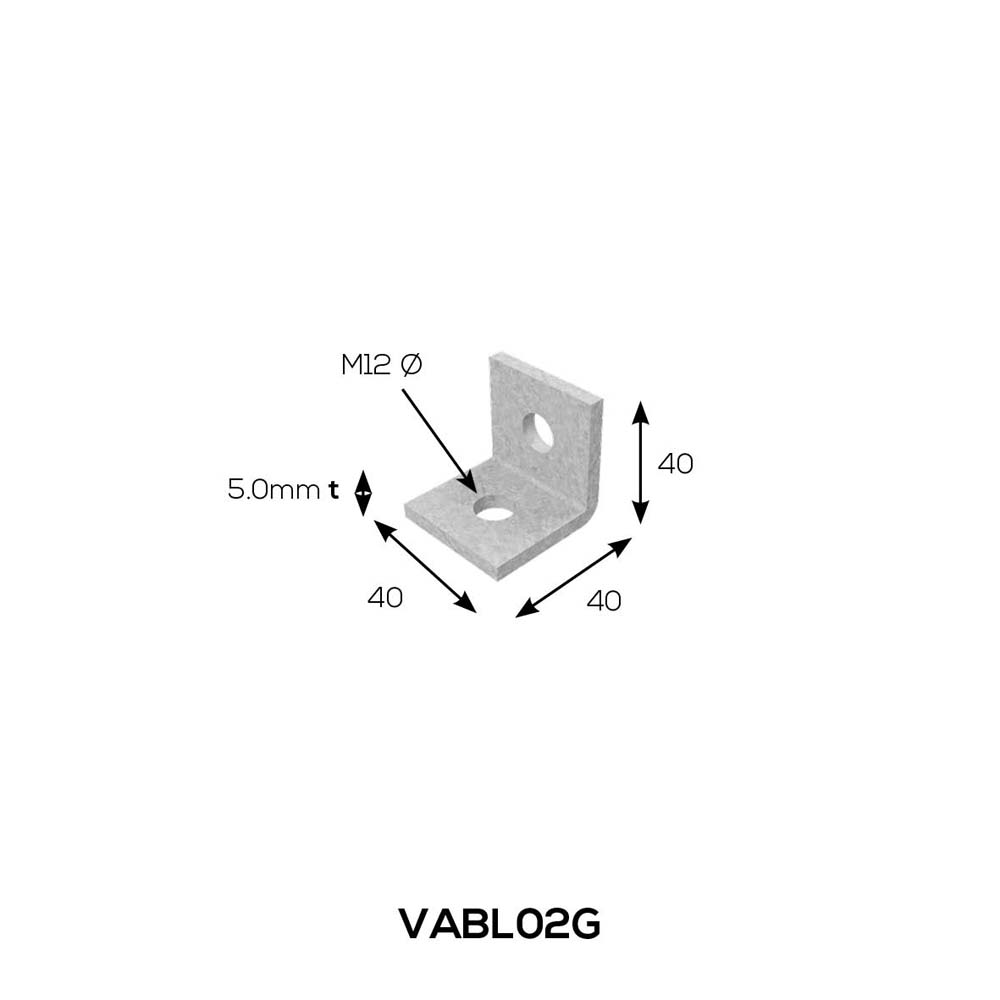

VABL02G40L x 40W x 40H5.0mmM1250

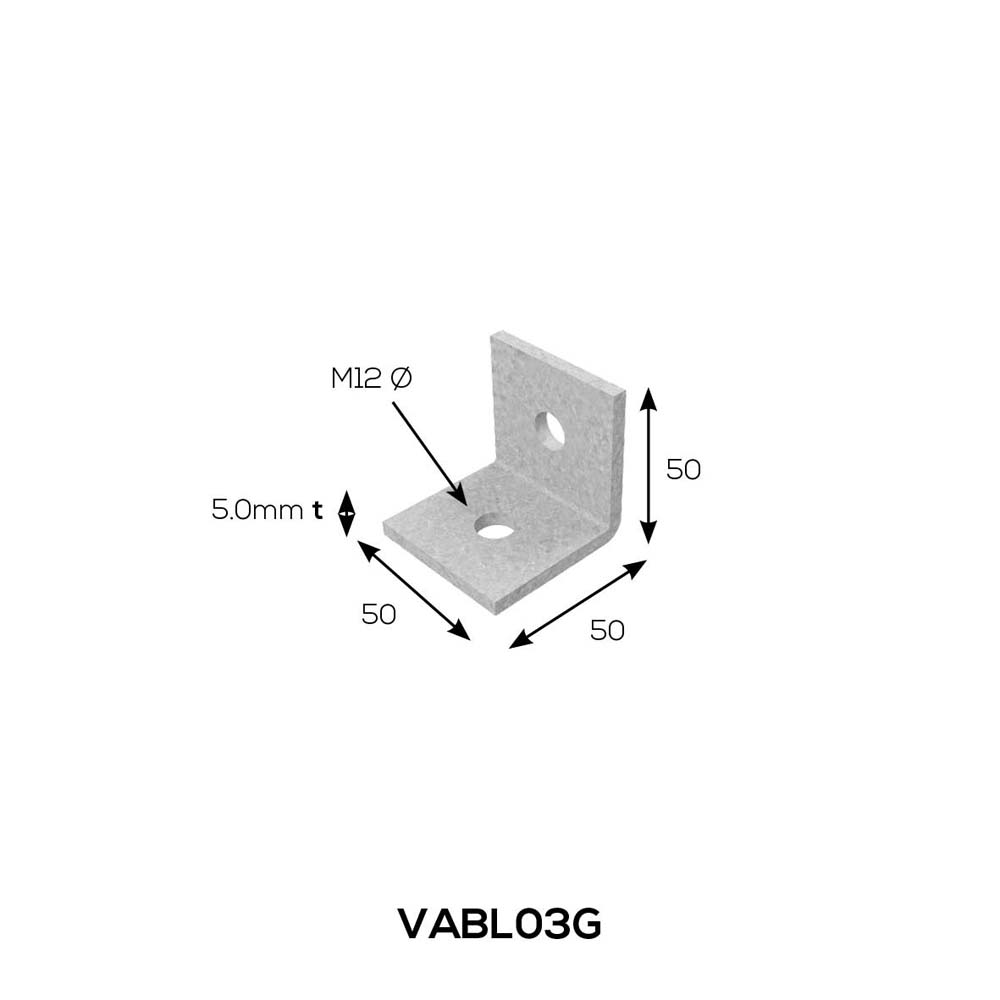

VABL03G50L x 50W x 50H5.0mmM1250

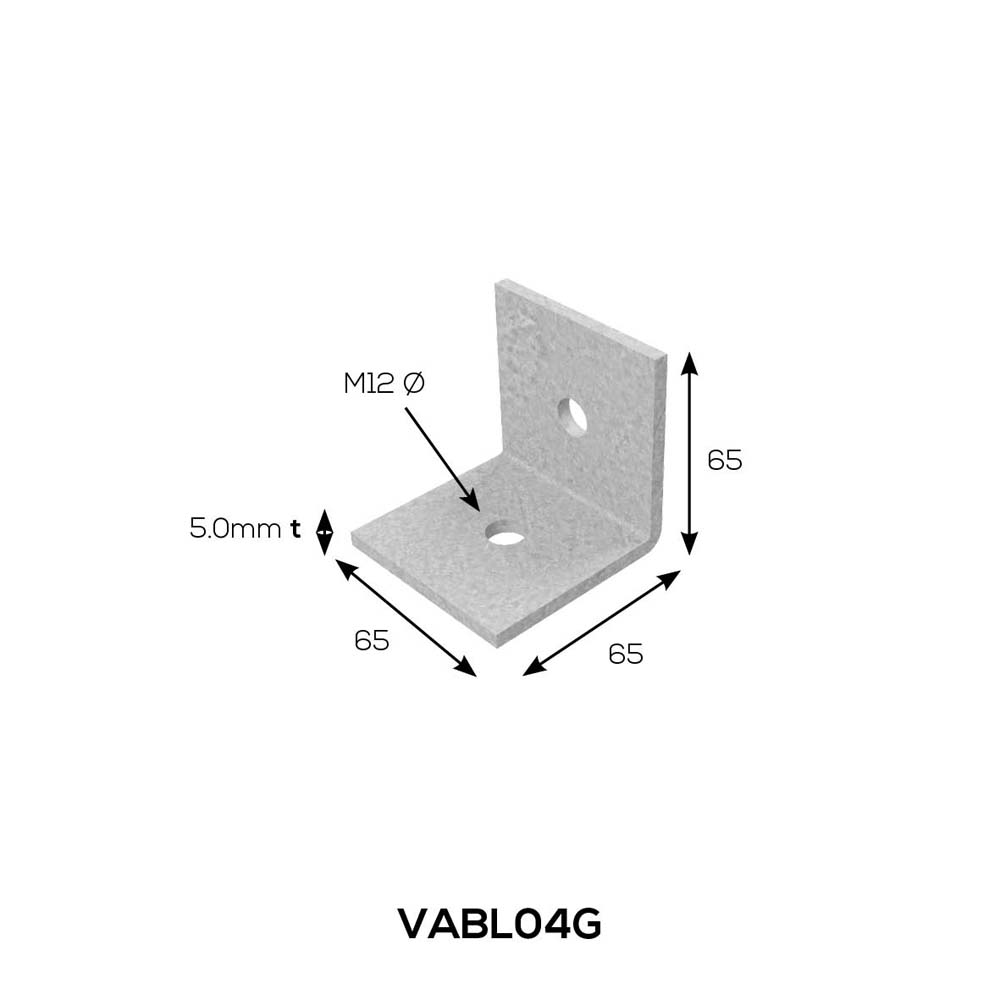

VABL04G65L x 65W x 65H5.0mmM1225

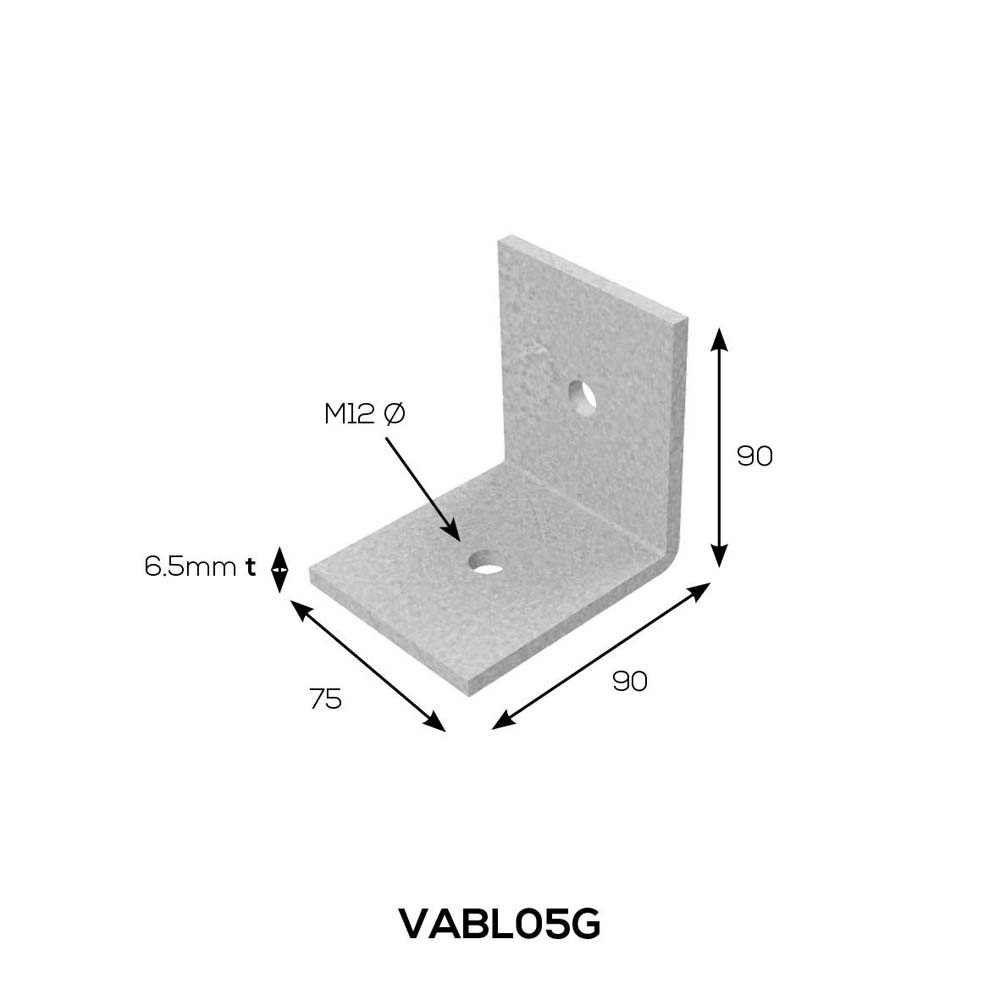

VABL05G75L x 90W x 90H6.5mmM1210

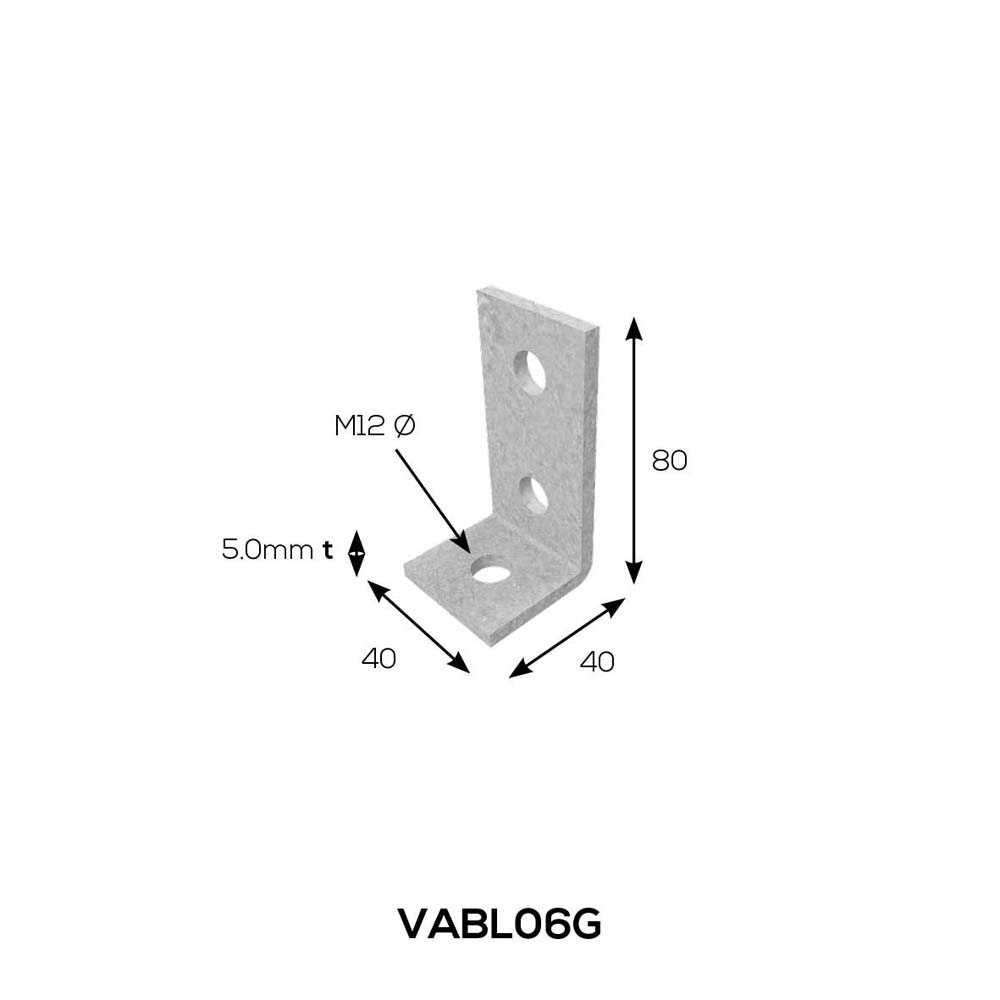

VABL06G40L x 40W x 80H5.0mmM1250

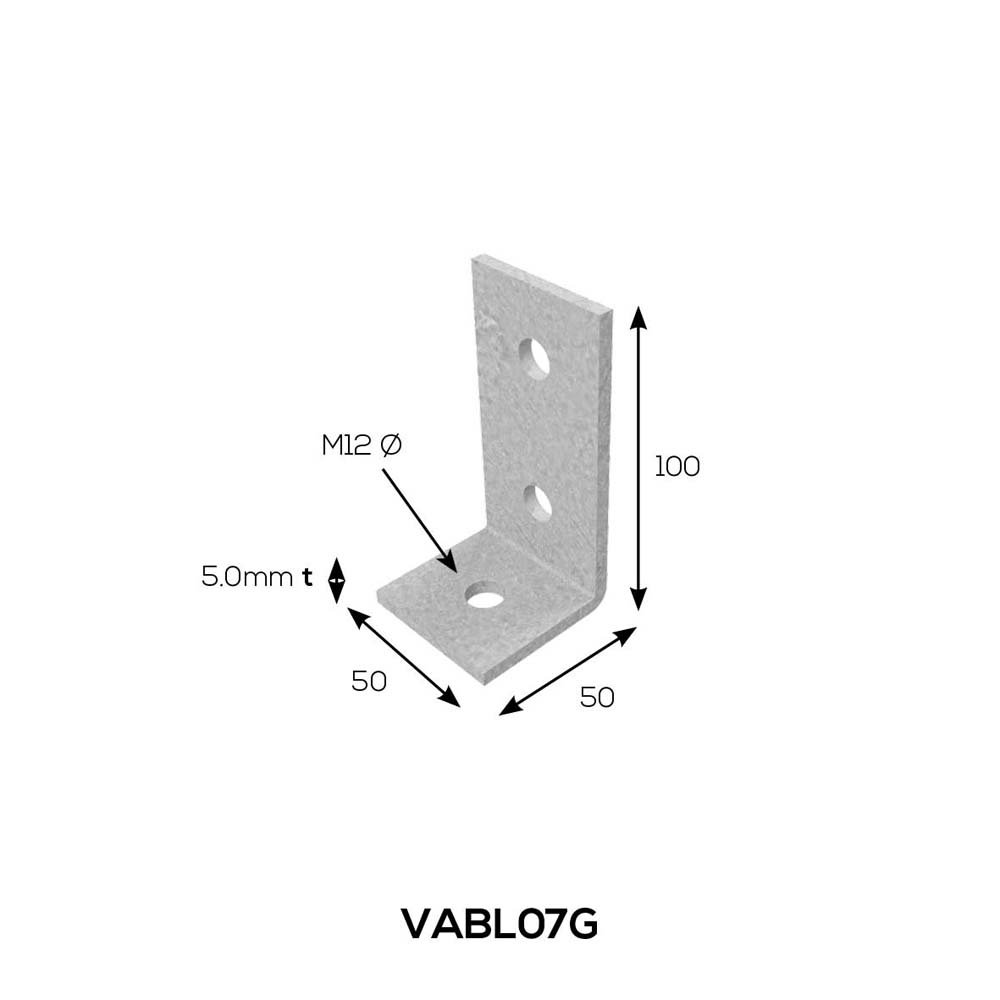

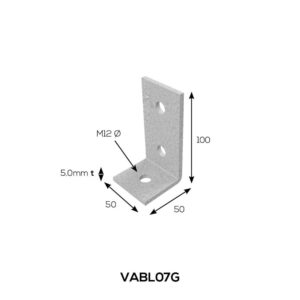

VABL07G50L x 50W x 100H5.0mmM1225

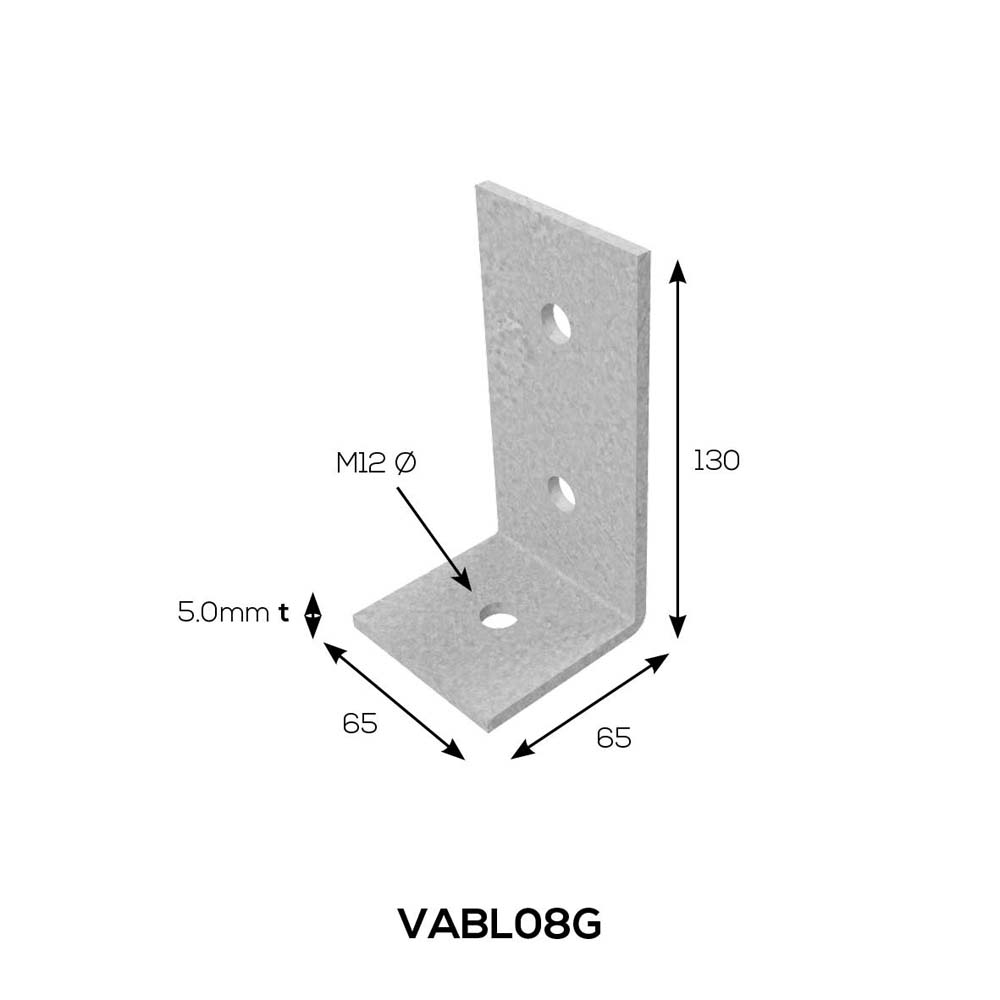

VABL08G65L x 65W x 130H5.0mmM1220

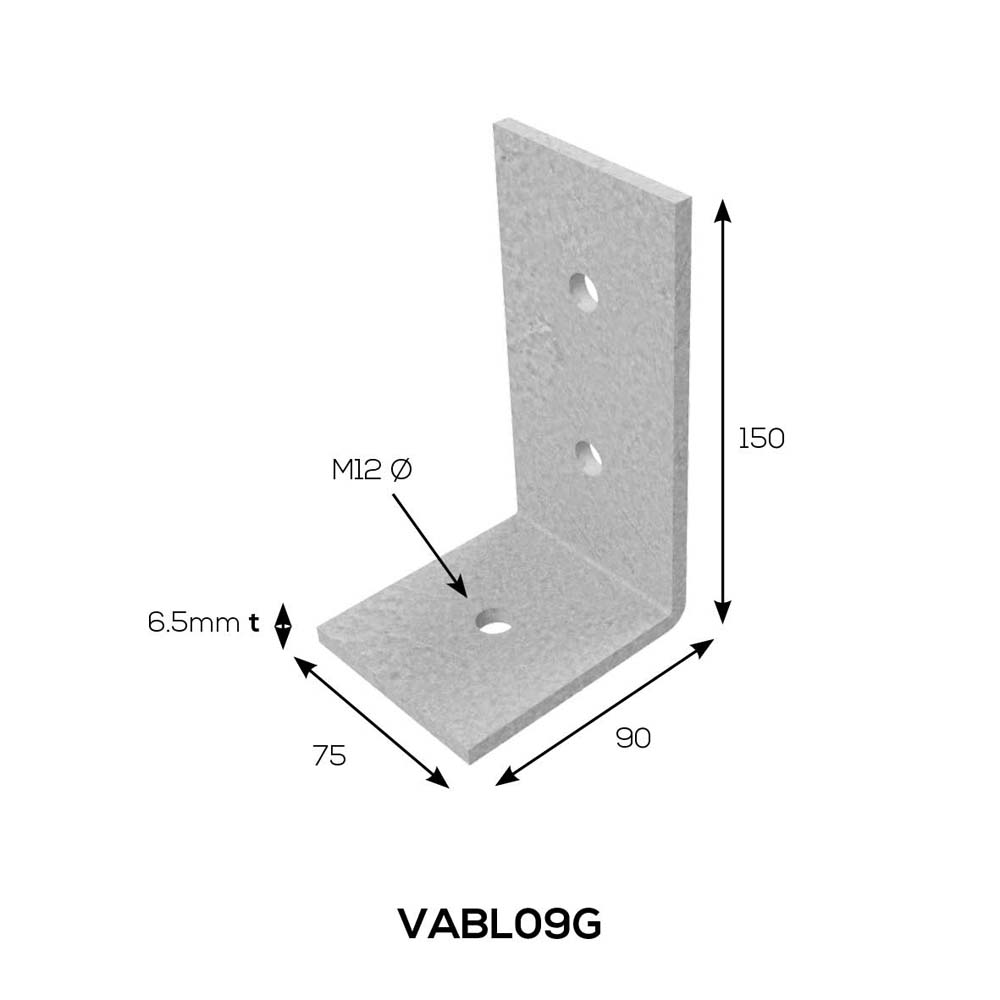

VABL09G75L x 90W x 150H6.5mmM1210

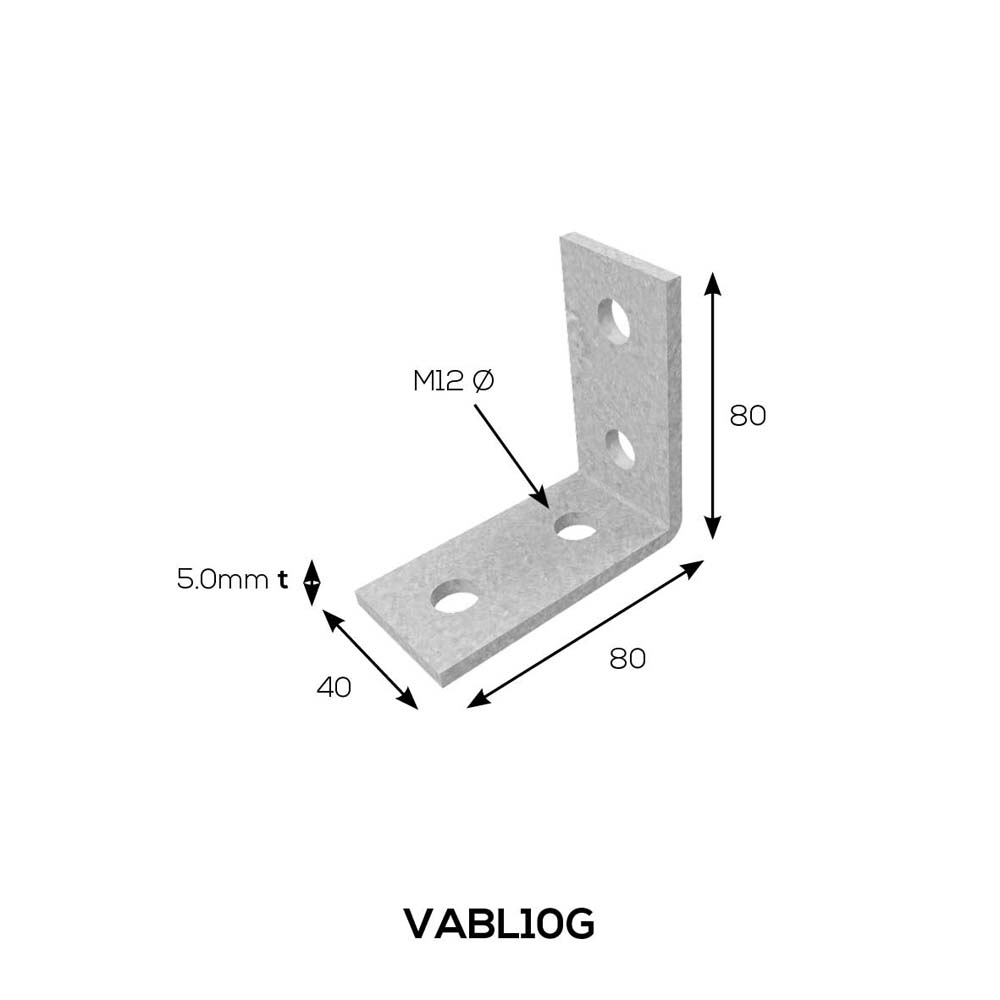

VABL10G40L x 80W x 80H5.0mmM1225

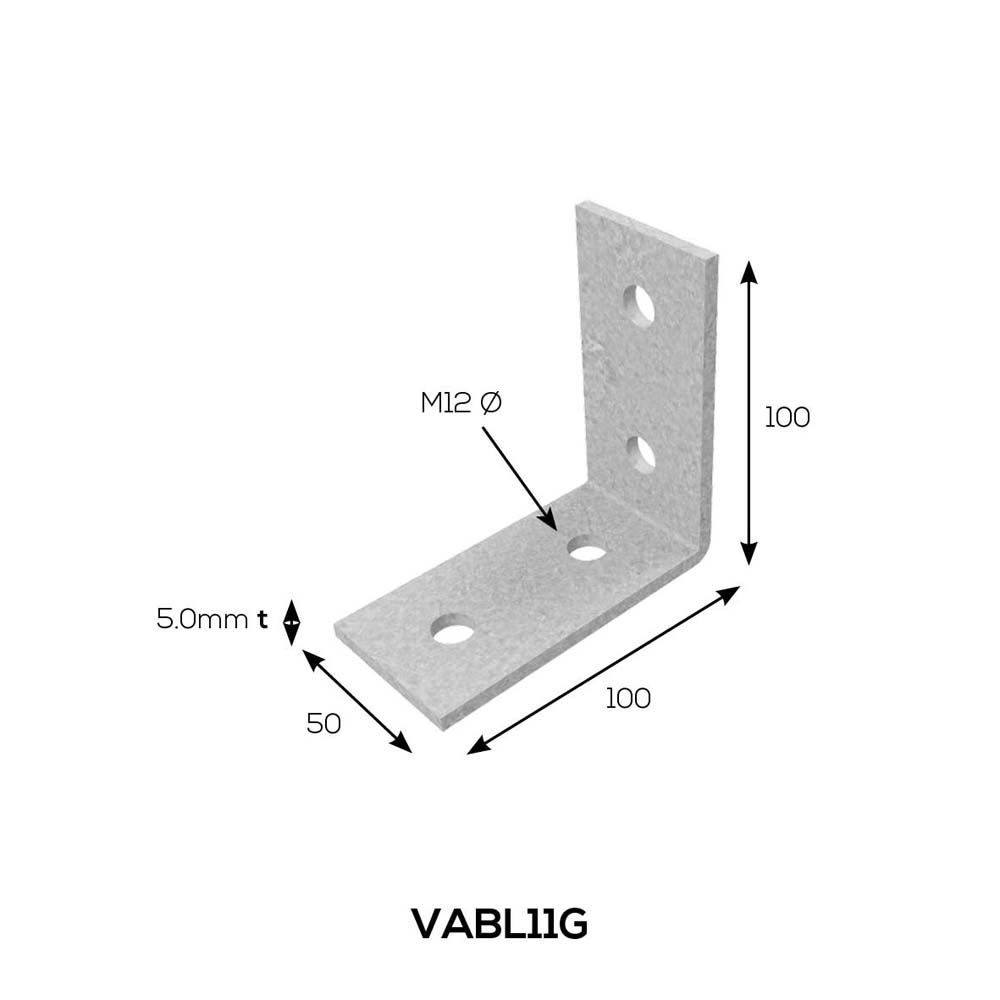

VABL11G50L x 100W x 100H5.0mmM1225

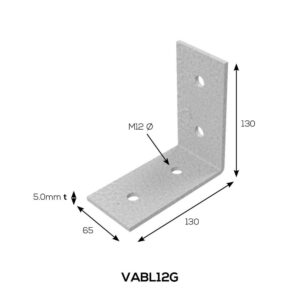

VABL12G65L x 130W x 130H5.0mmM1210

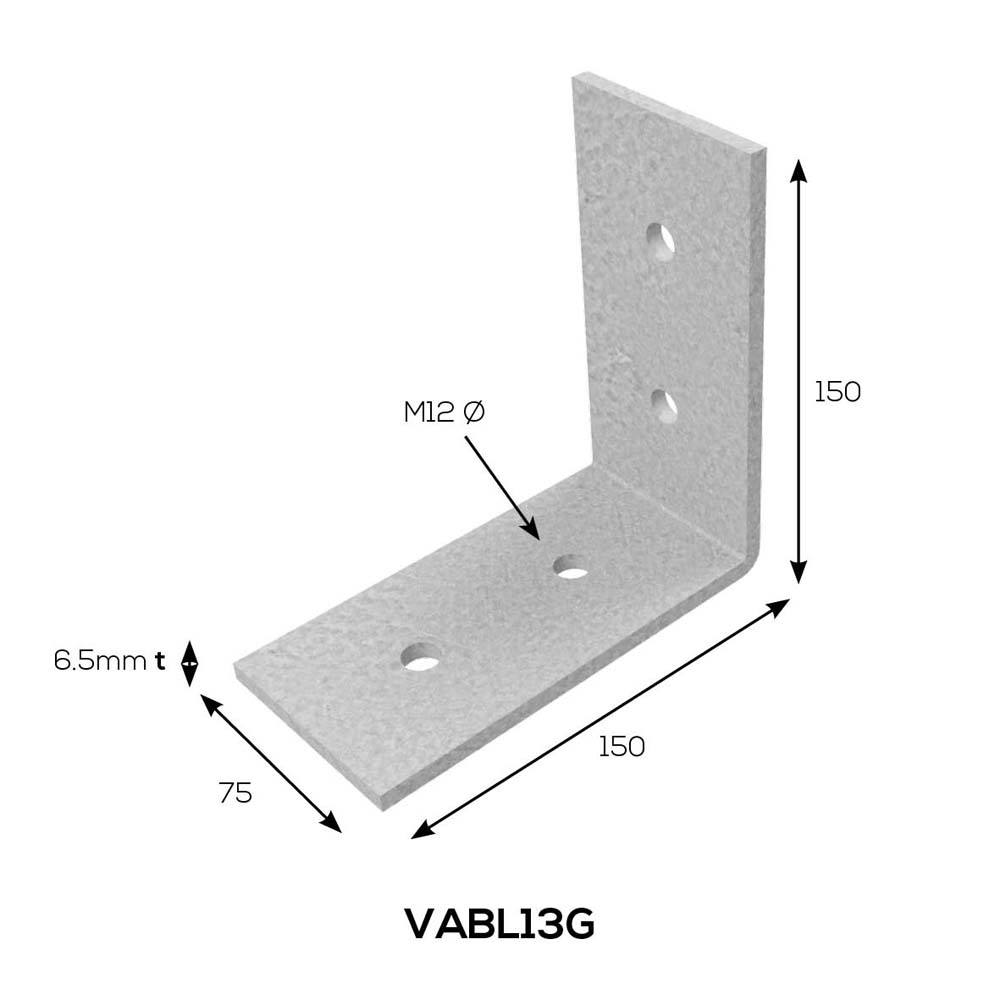

VABL13G75L x 150W x 150H6.5mmM1210
