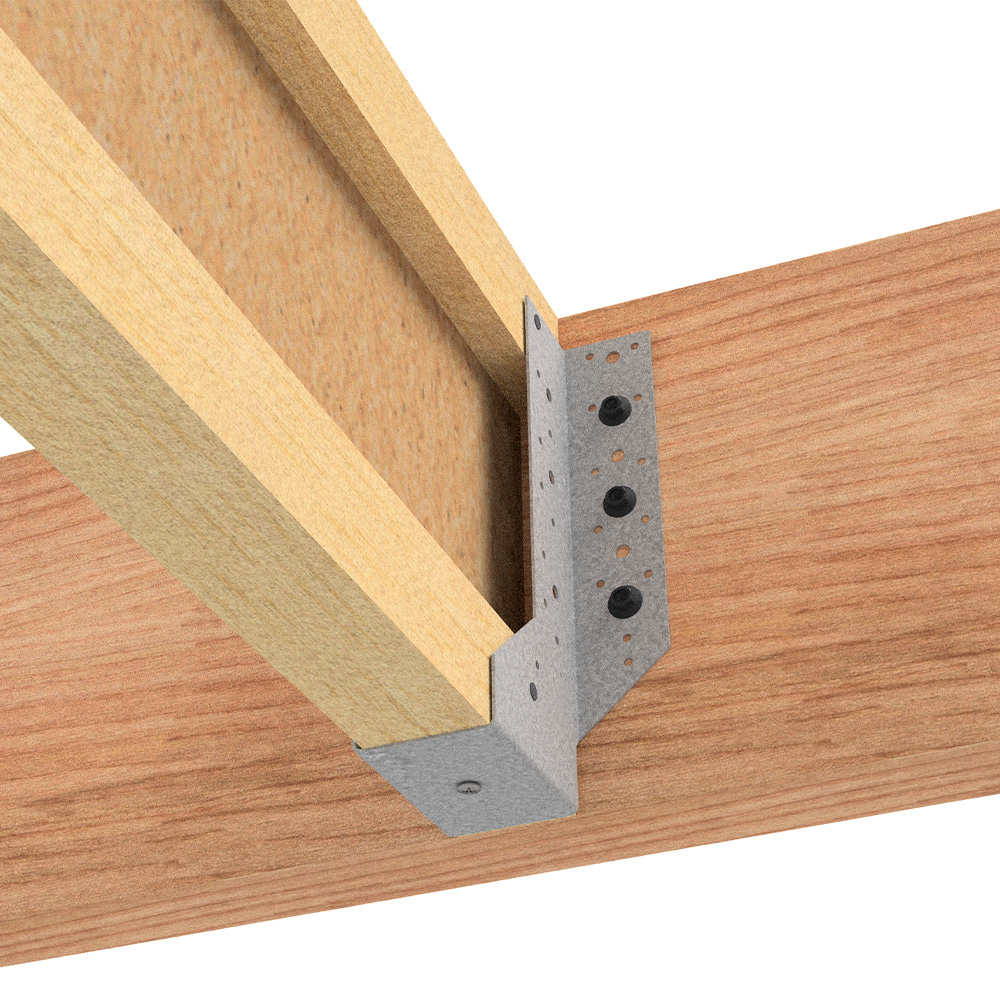

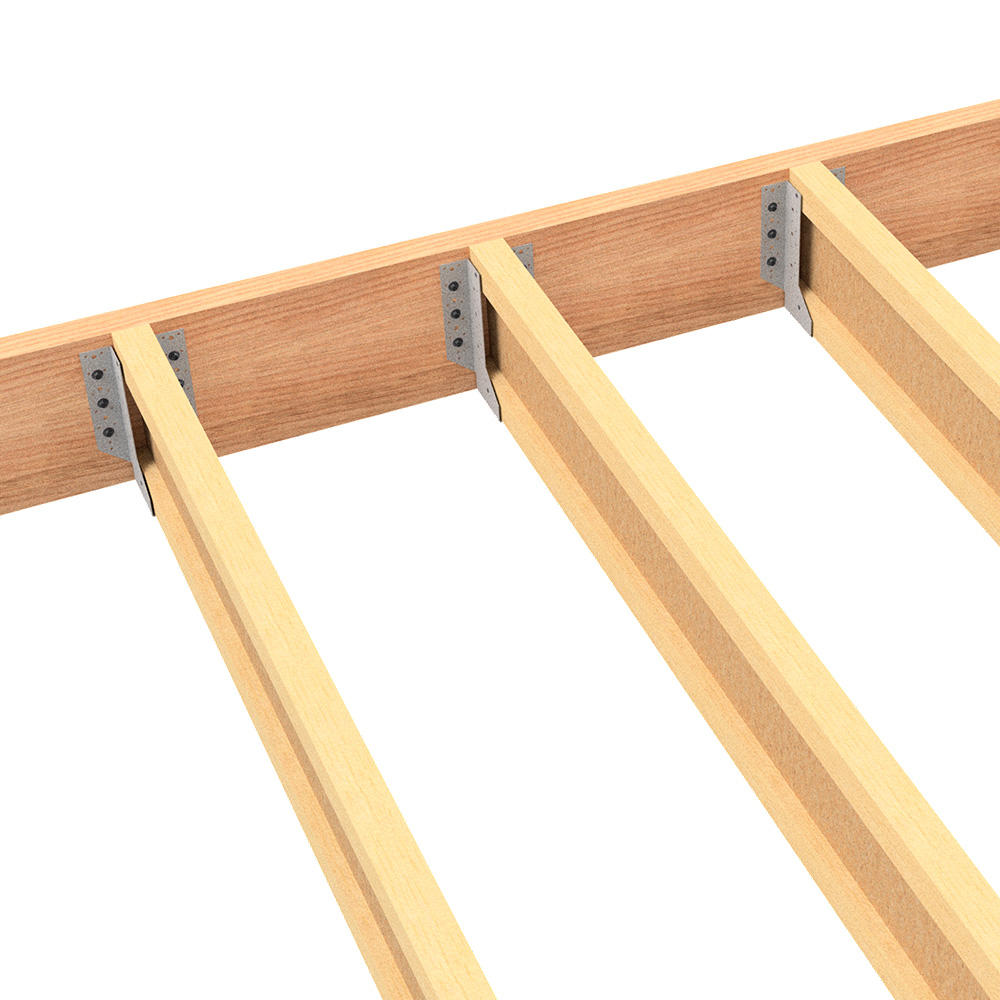

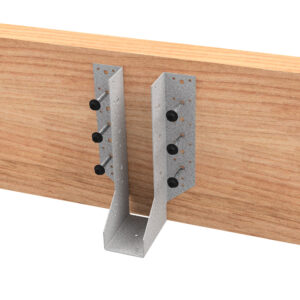

VUETRADE I-Beam Hangers are multi-purpose hanger brackets for securely connecting I-Beams and large joists to framing structures.
• Easy to install
• Strong, secure support
• Suitable for use with a wide range of I-Beams, and rough sawn timber sizes
• Meets and exceeds Australian Standard AS1720
• Australian Made – High quality, peace of mind, and supporting Aussie jobs
Warning: Use ONLY 33mm x 3.15mm VUETRADE hot-dipped galvanised connector plate nails into timber members. Ensure the pre-bored holes are used for installation.
| Product Code(s) | Size | Box Qty | Required Screw Quantity (12G x 35mm) | Required Nail Quantity (33mm x 3.15mm) |
|---|---|---|---|---|

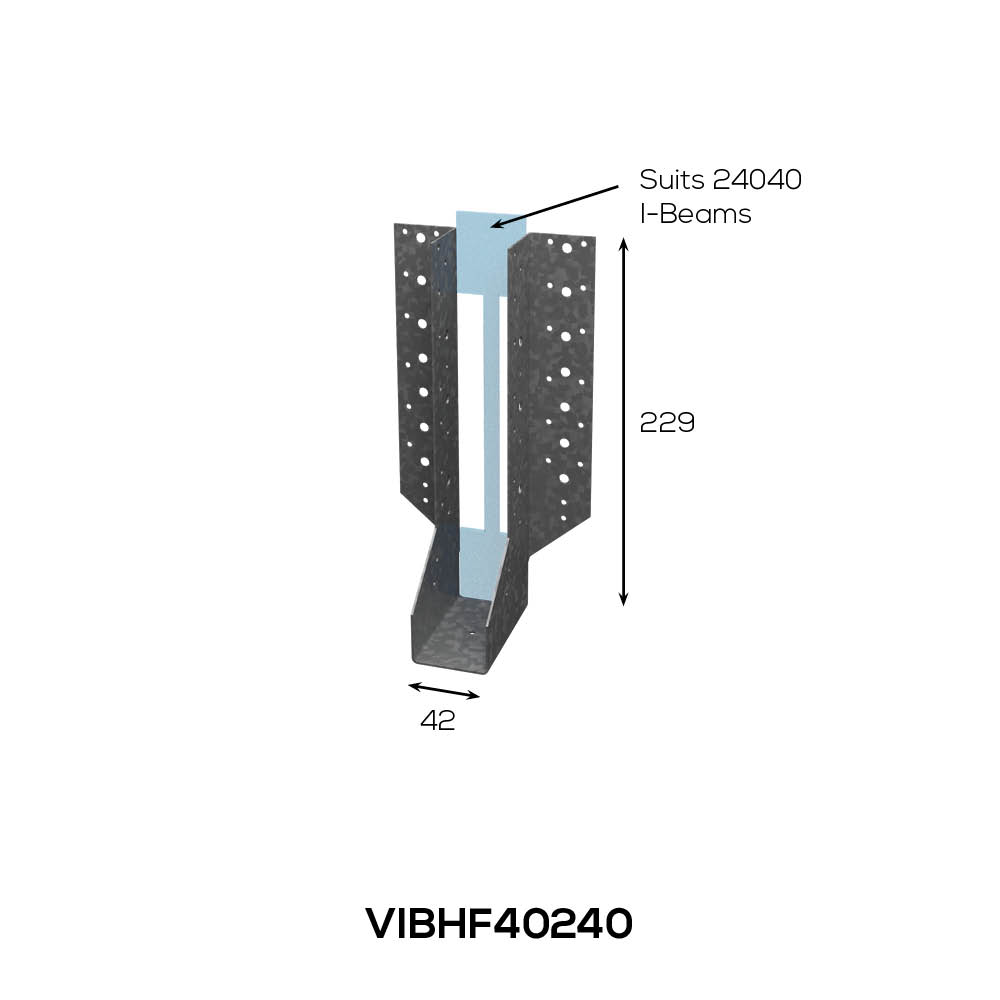

| VIBHF40240 | 40mm x 240mm | 20 | 6 | 16 |

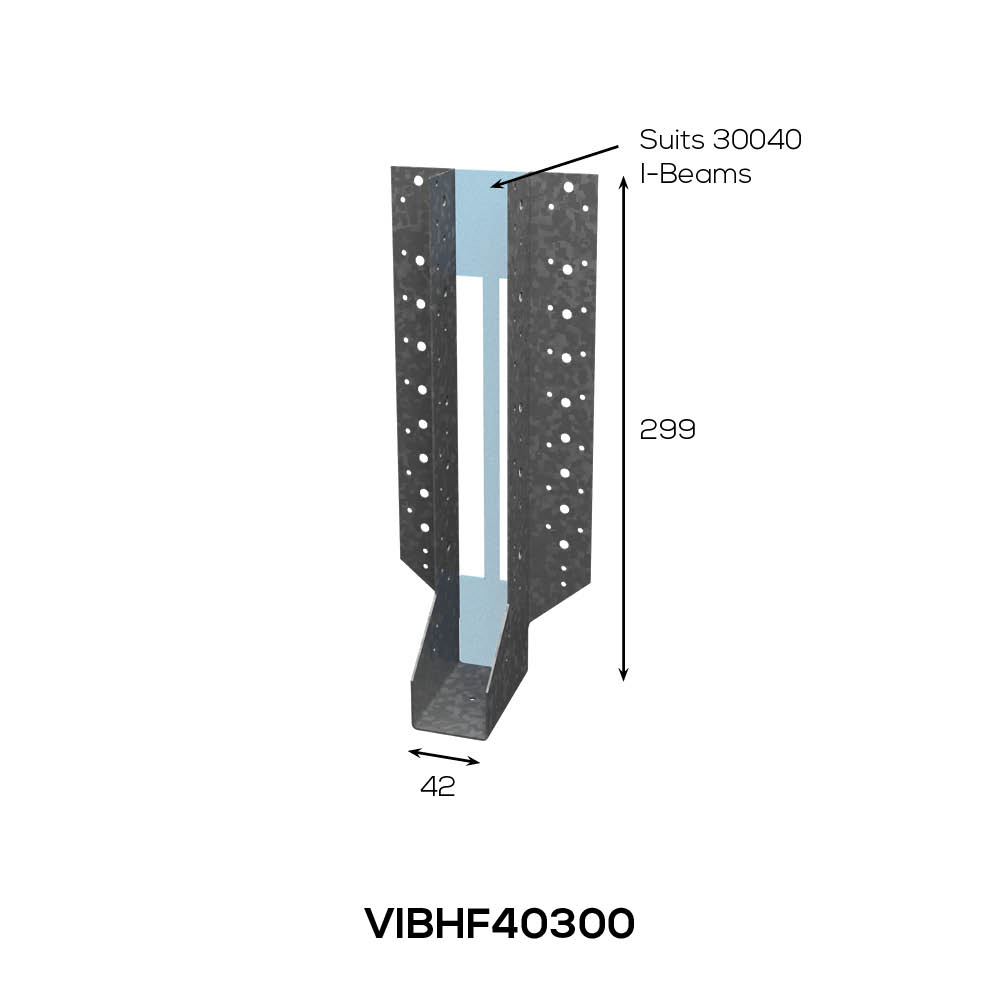

| VIBHF40300 | 40mm x 300mm | 20 | 8 | 18 |

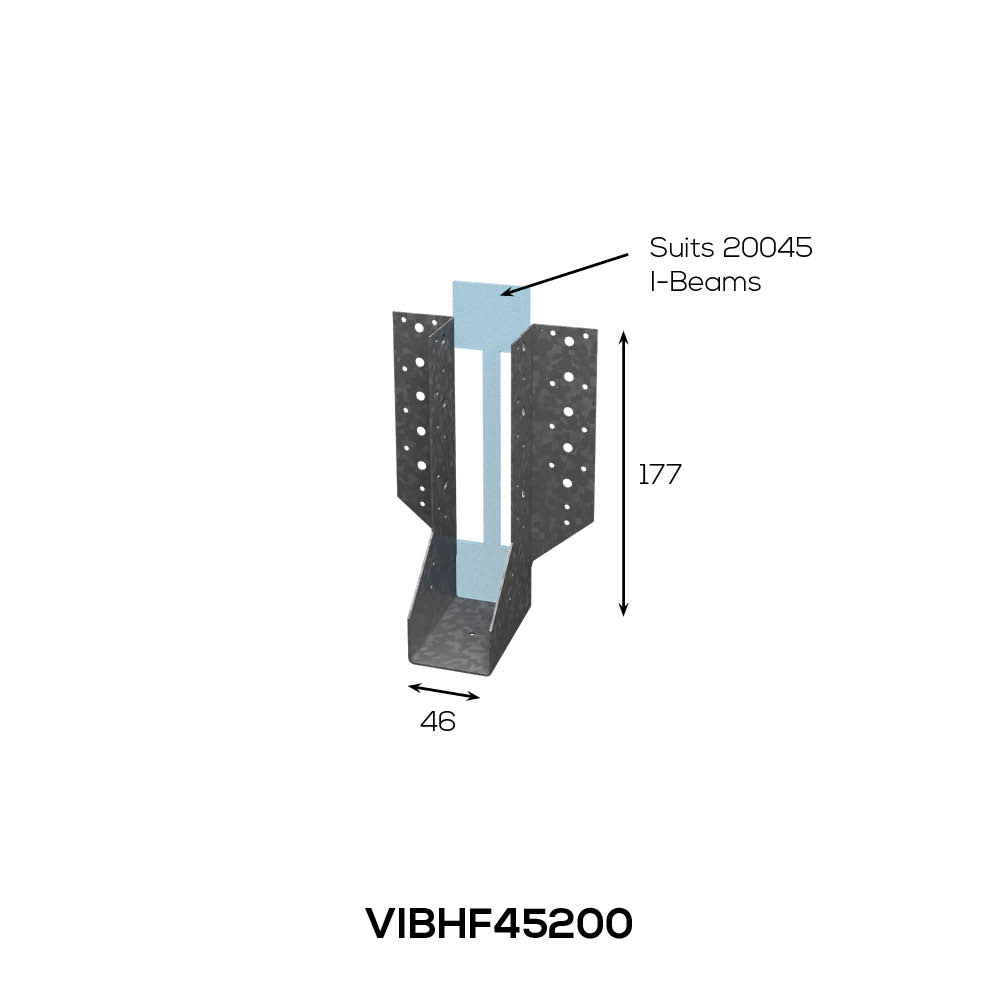

| VIBHF45200 | 45mm x 200mm | 20 | 6 | 12 |
| VIBHF45240 | 45mm x 240mm | 20 | 6 | 16 |

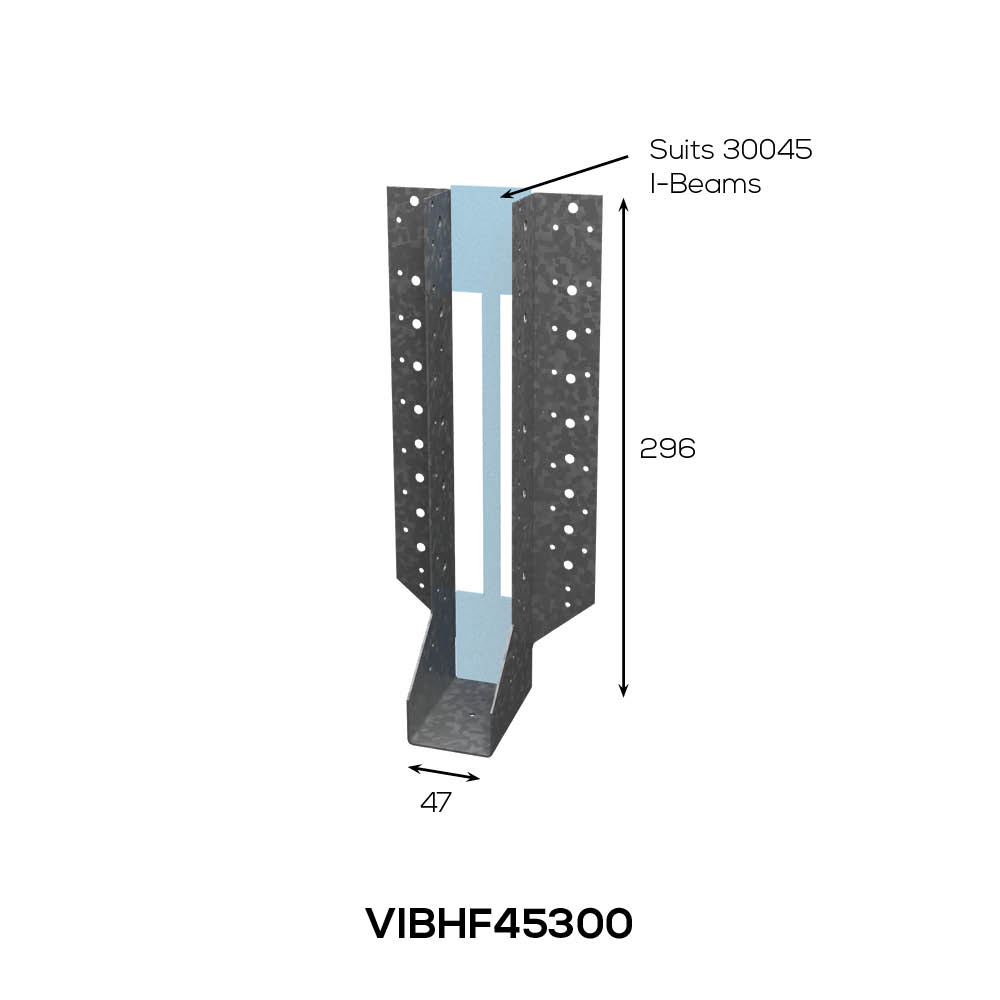

| VIBHF45300 | 45mm x 300mm | 20 | 8 | 18 |

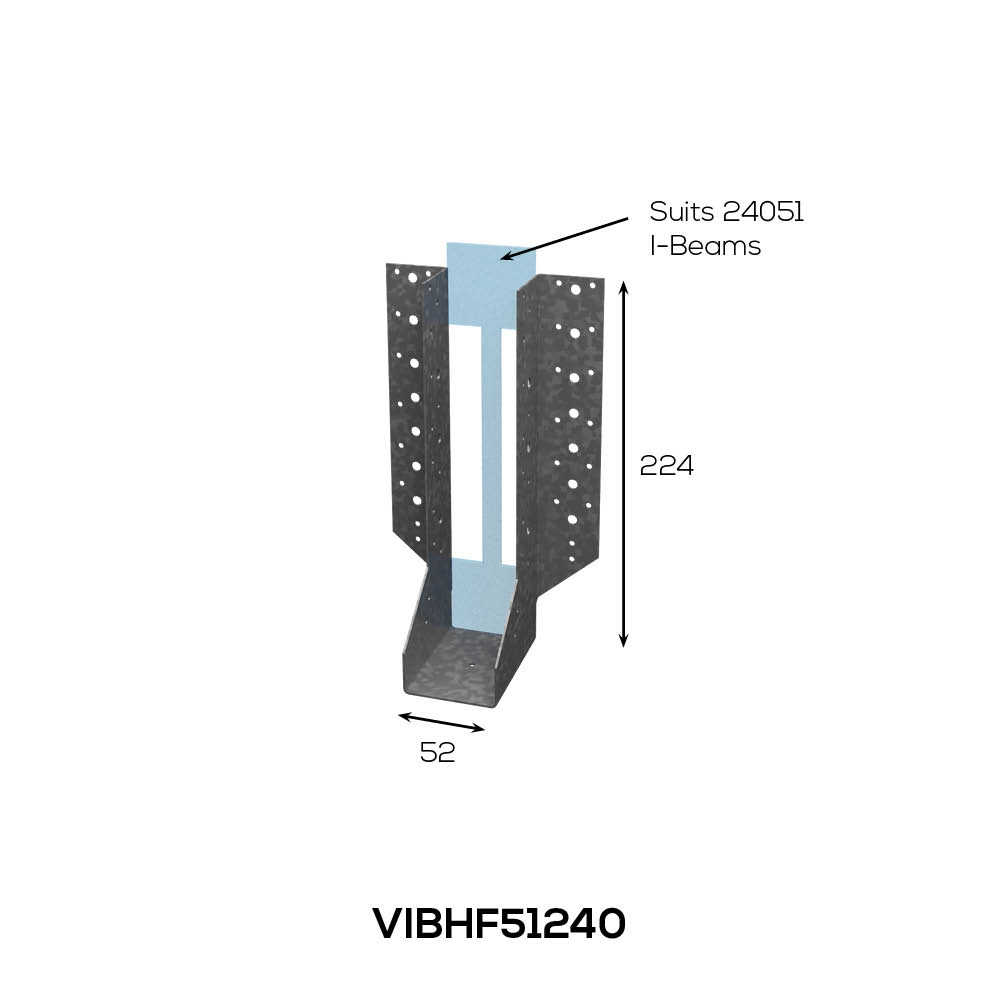

| VIBHF51240 | 51mm x 240mm | 20 | 6 | 16 |
| VIBHF51300 | 51mm x 300mm | 20 | 8 | 18 |

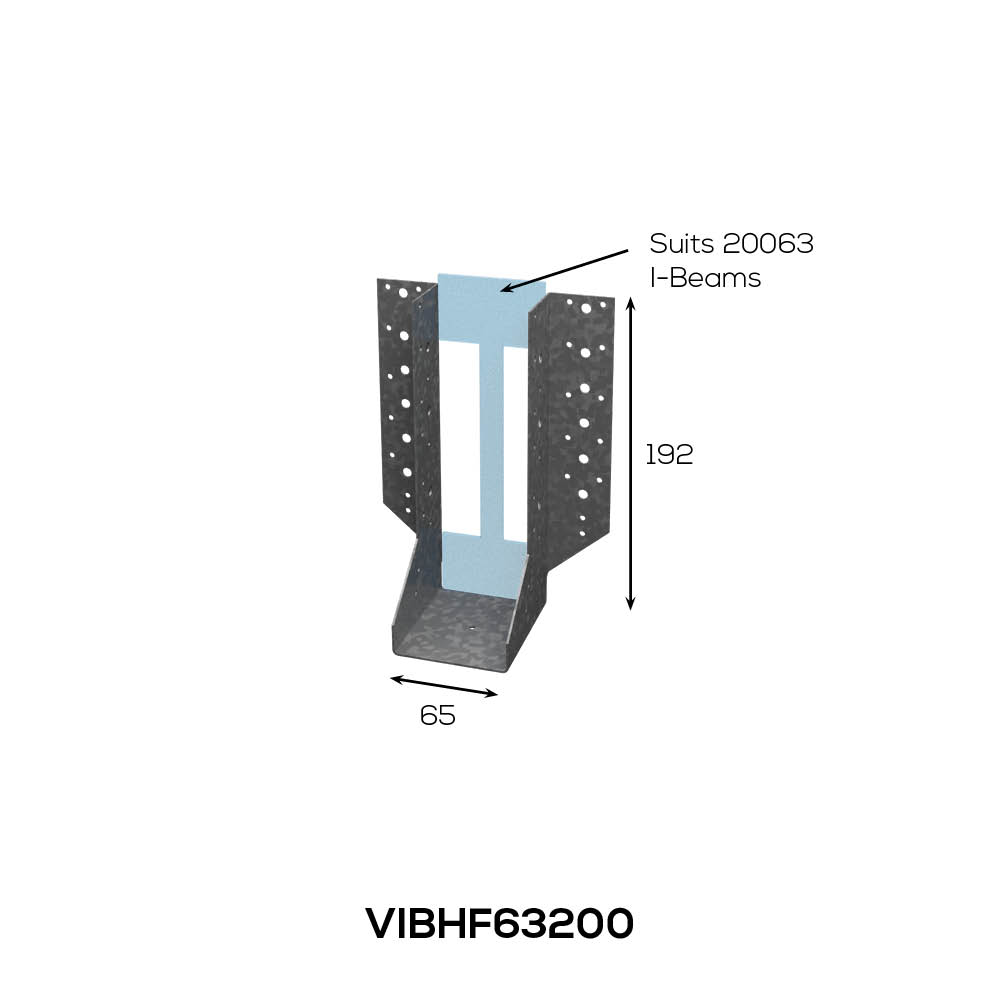

| VIBHF63200 | 63mm x 200mm | 20 | 6 | 12 |

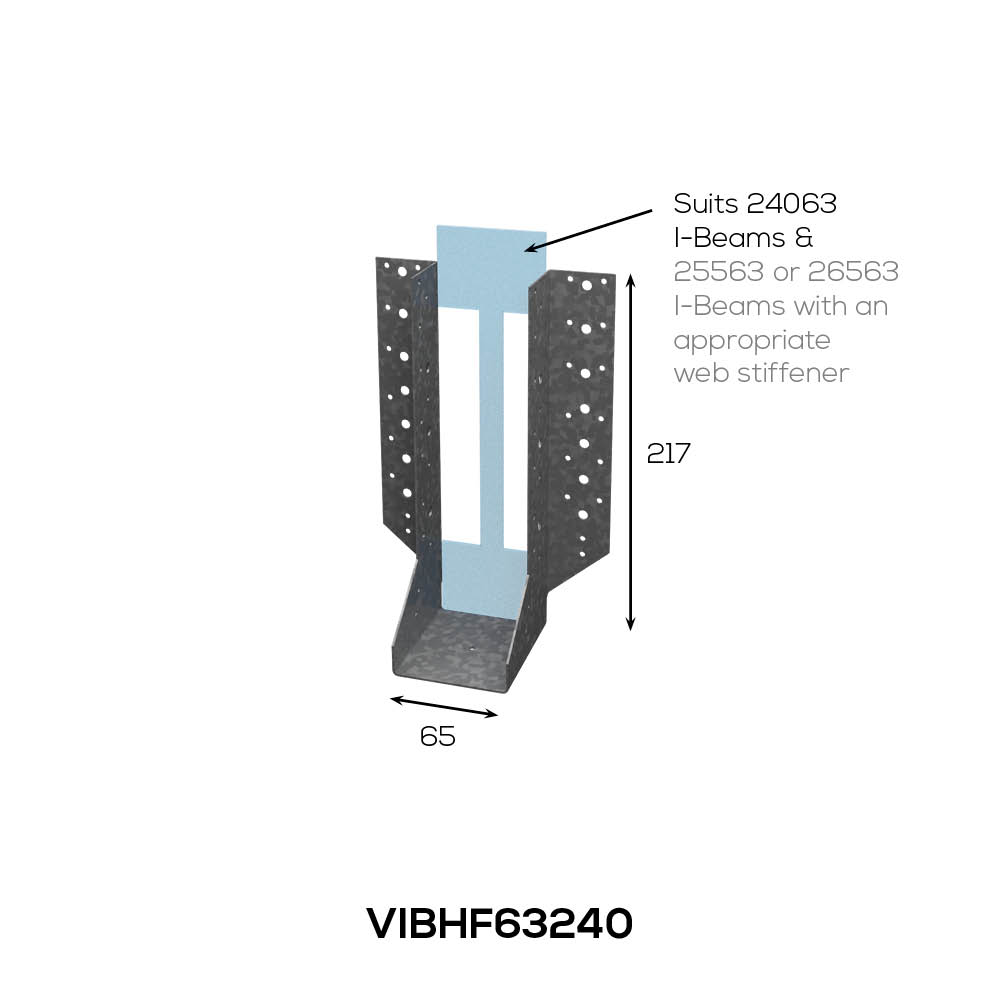

| VIBHF63240 | 63mm x 240mm | 20 | 6 | 16 |

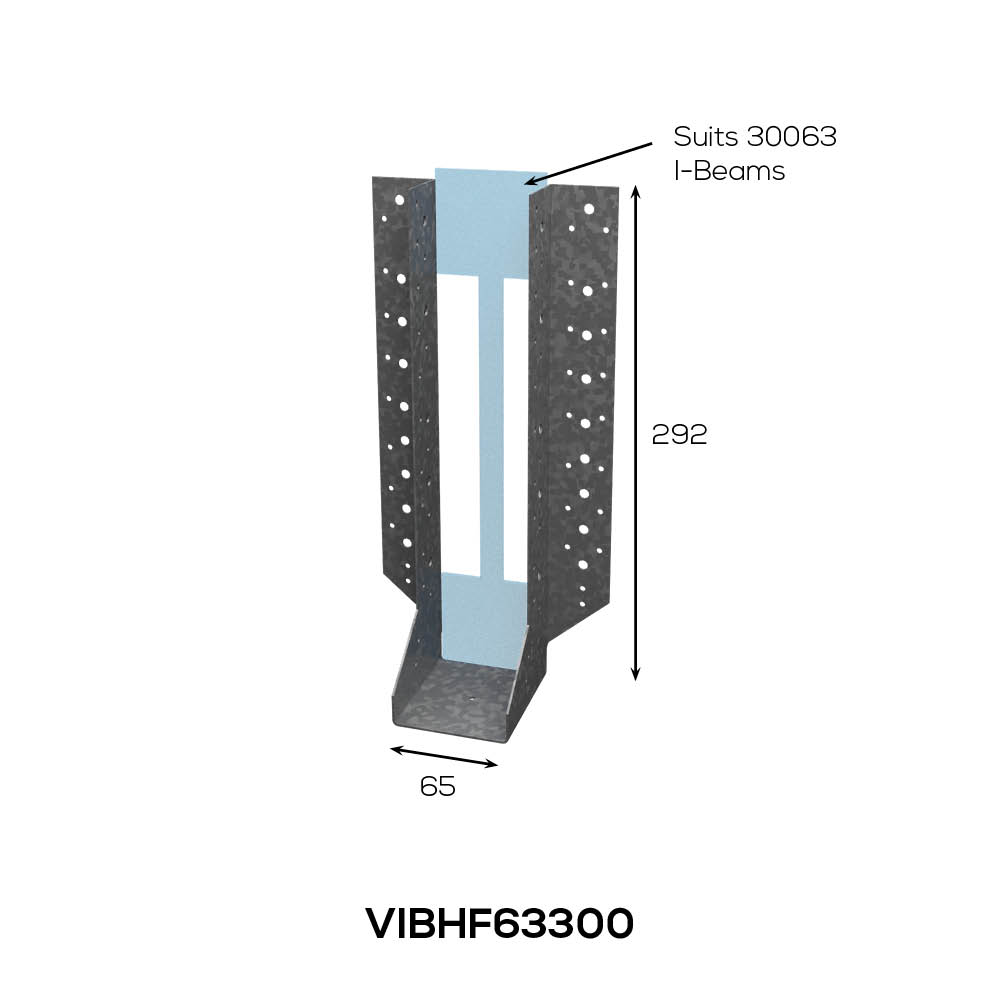

| VIBHF63300 | 63mm x 300mm | 20 | 8 | 18 |

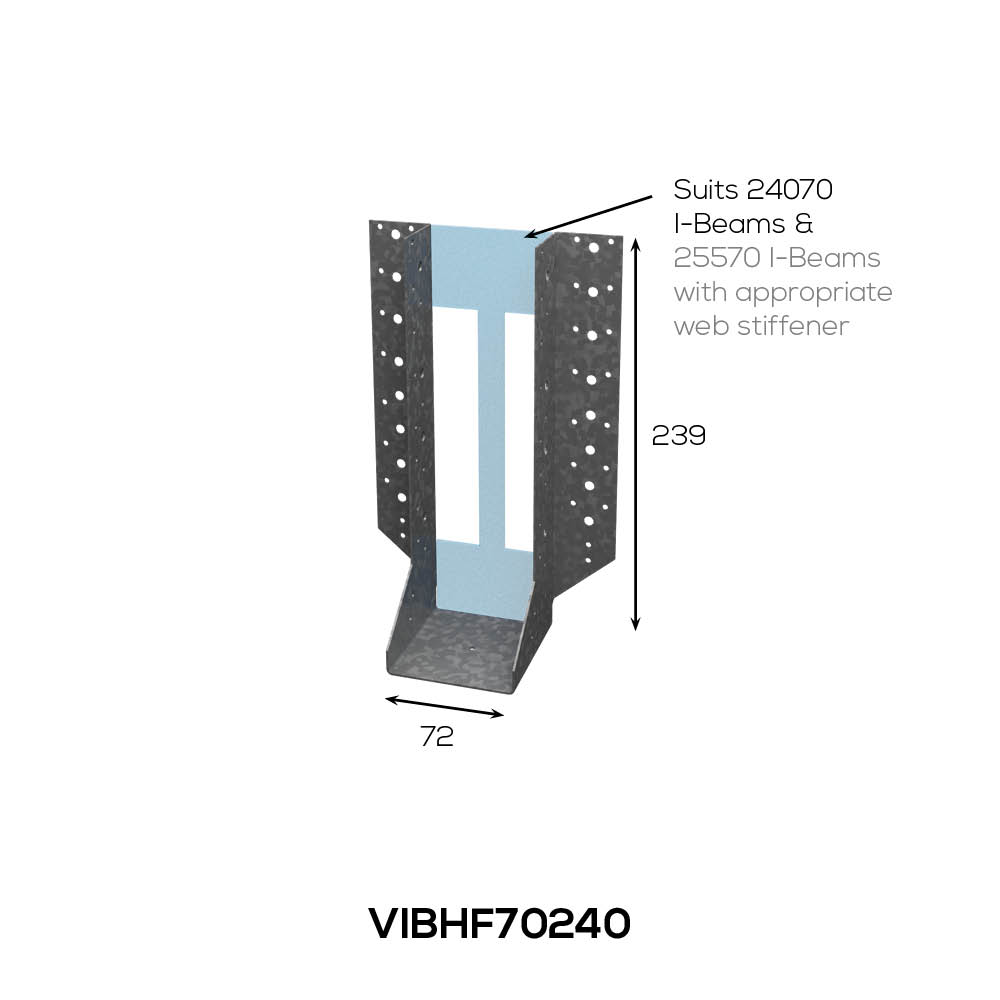

| VIBHF70240 | 70mm x 240mm | 20 | 6 | 16 |

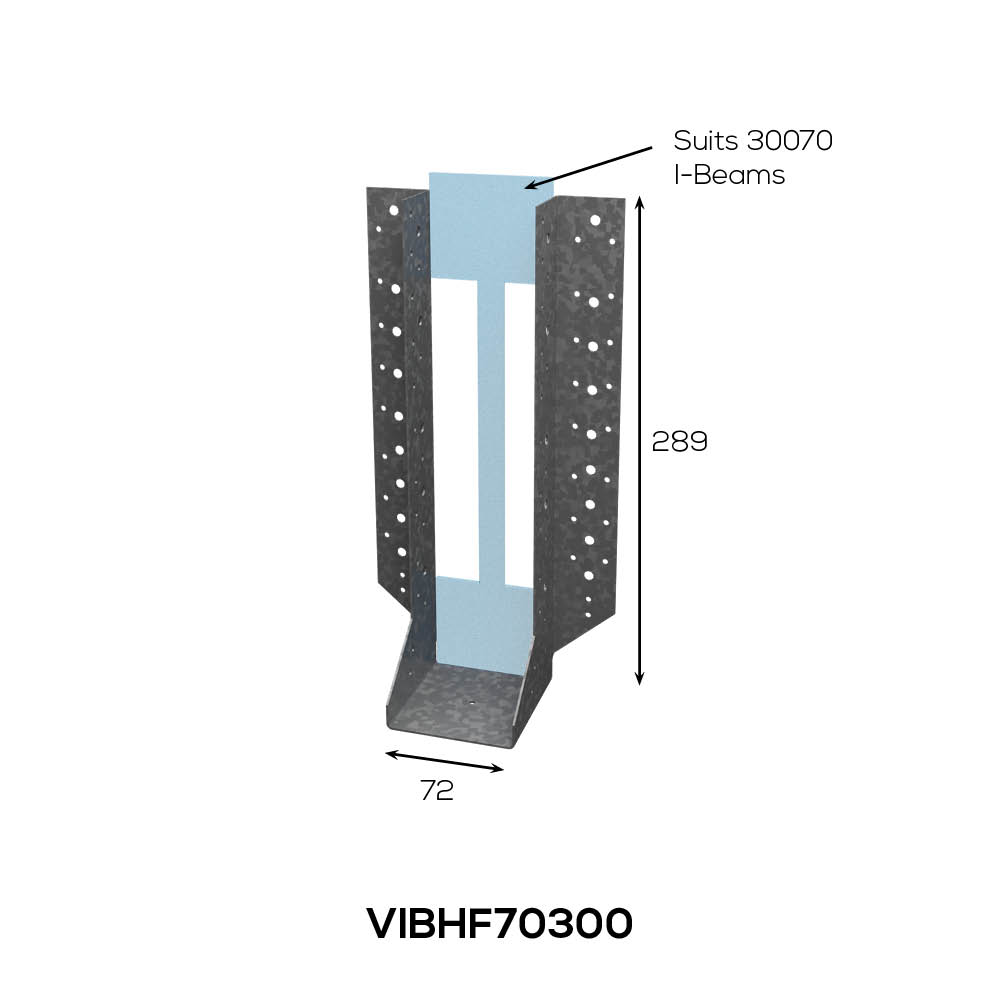

| VIBHF70300 | 70mm x 300mm | 20 | 8 | 18 |

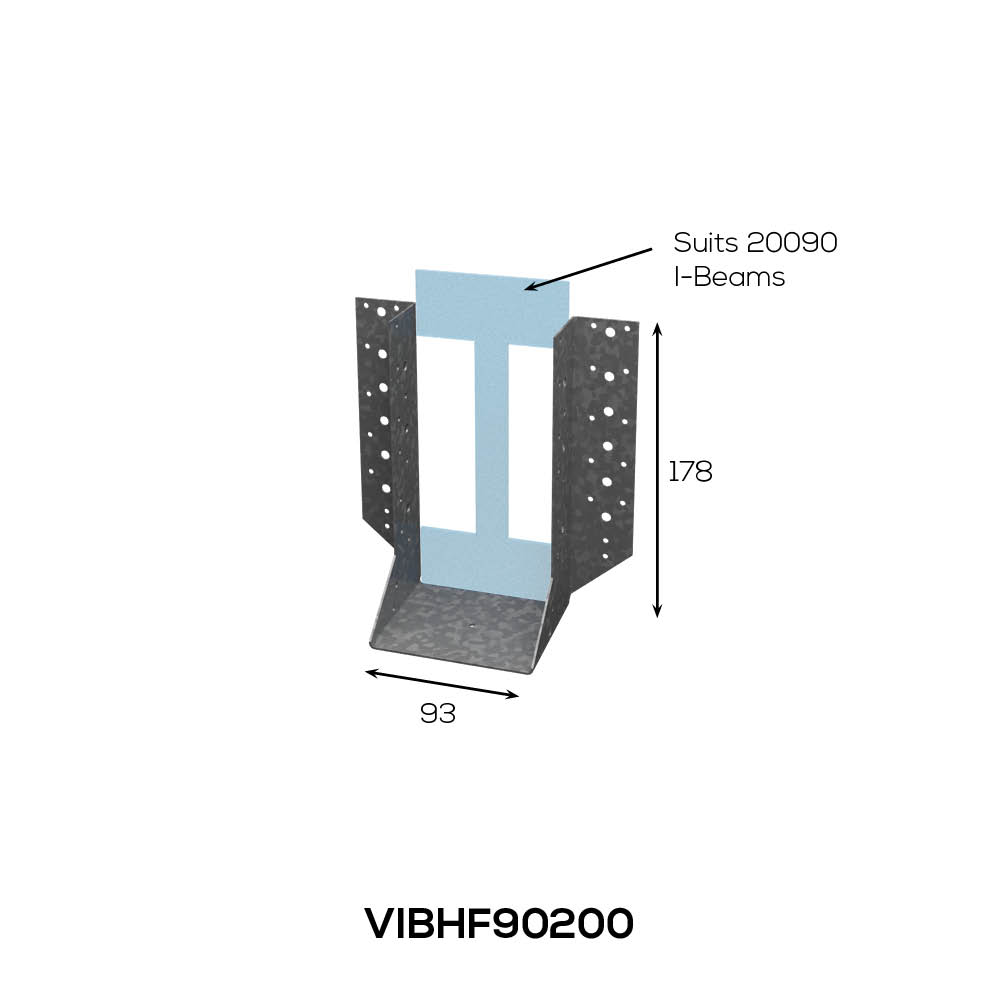

| VIBHF90200 | 90mm x 200mm | 20 | 6 | 12 |

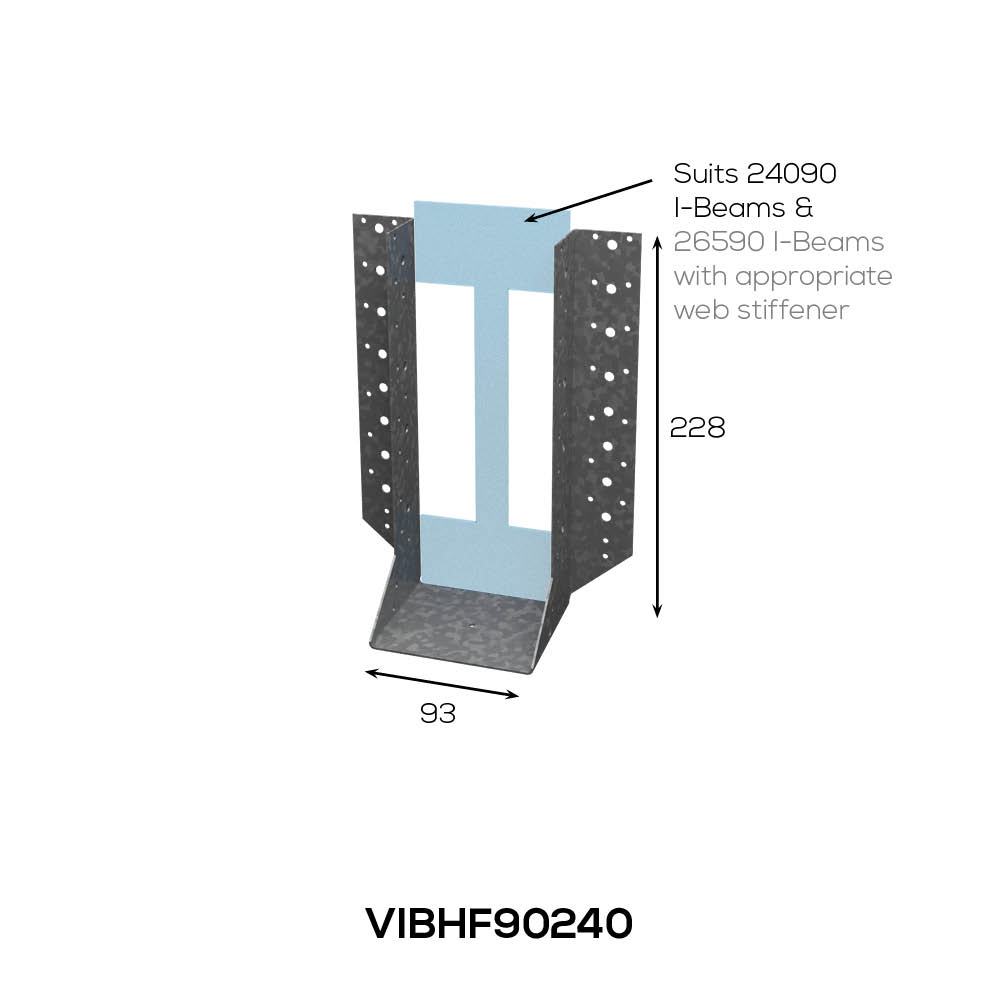

| VIBHF90240 | 90mm x 240mm | 20 | 6 | 16 |

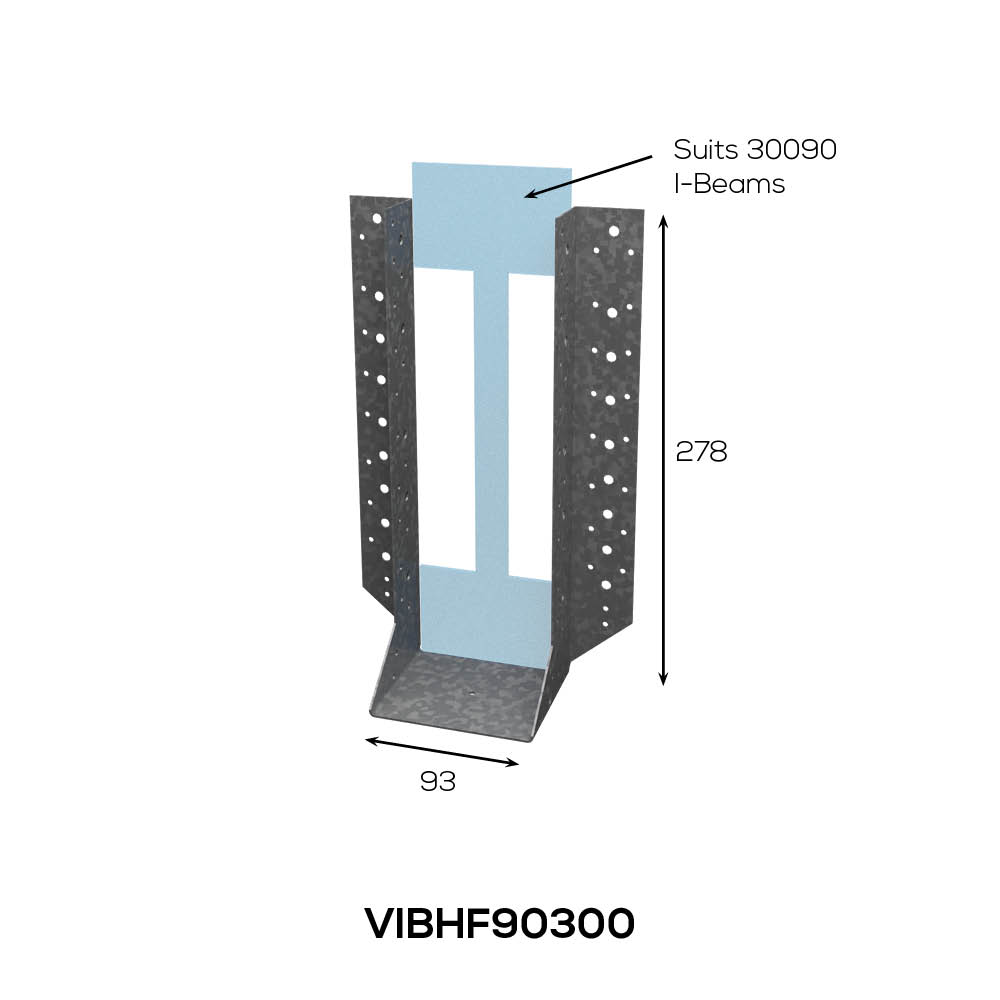

| VIBHF90300 | 90mm x 300mm | 20 | 8 | 18 |

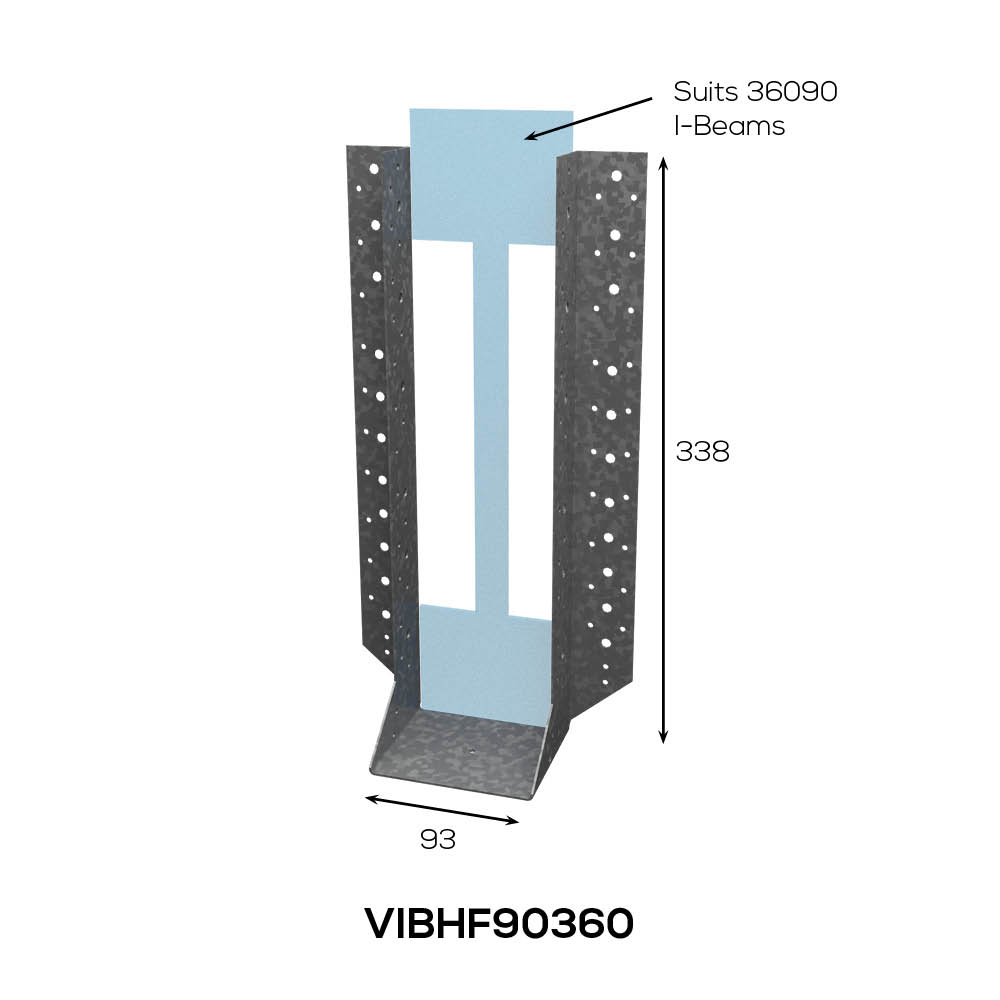

| VIBHF90360 | 90mm x 360mm | 20 | 10 | 20 |

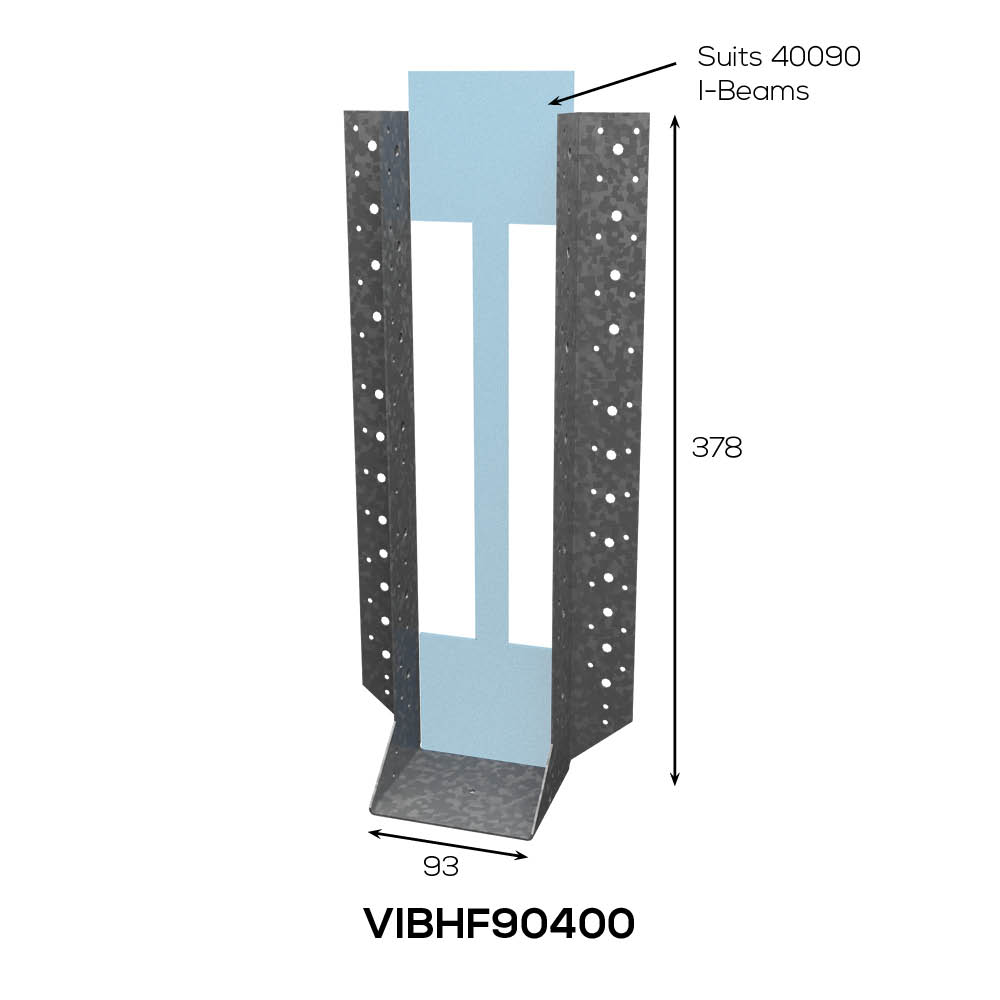

| VIBHF90400 | 90mm x 400mm | 20 | 10 | 20 |
