VUETRADE Joist Hangers are fast fixing, multi-purpose hangers for connecting joists to beams, trusses to beams, and roof trusses to girders.

Also available in Stainless Steel.

• Unique Nail Spike Feature – removes hassle when positioning, no need to hold a nail and the hanger in position while you hammer!
• Meets and exceeds Australian Standard AS1720
• Galvanised finish for durability and long-life
• Australian Made – High quality, peace of mind, and supporting Aussie jobs

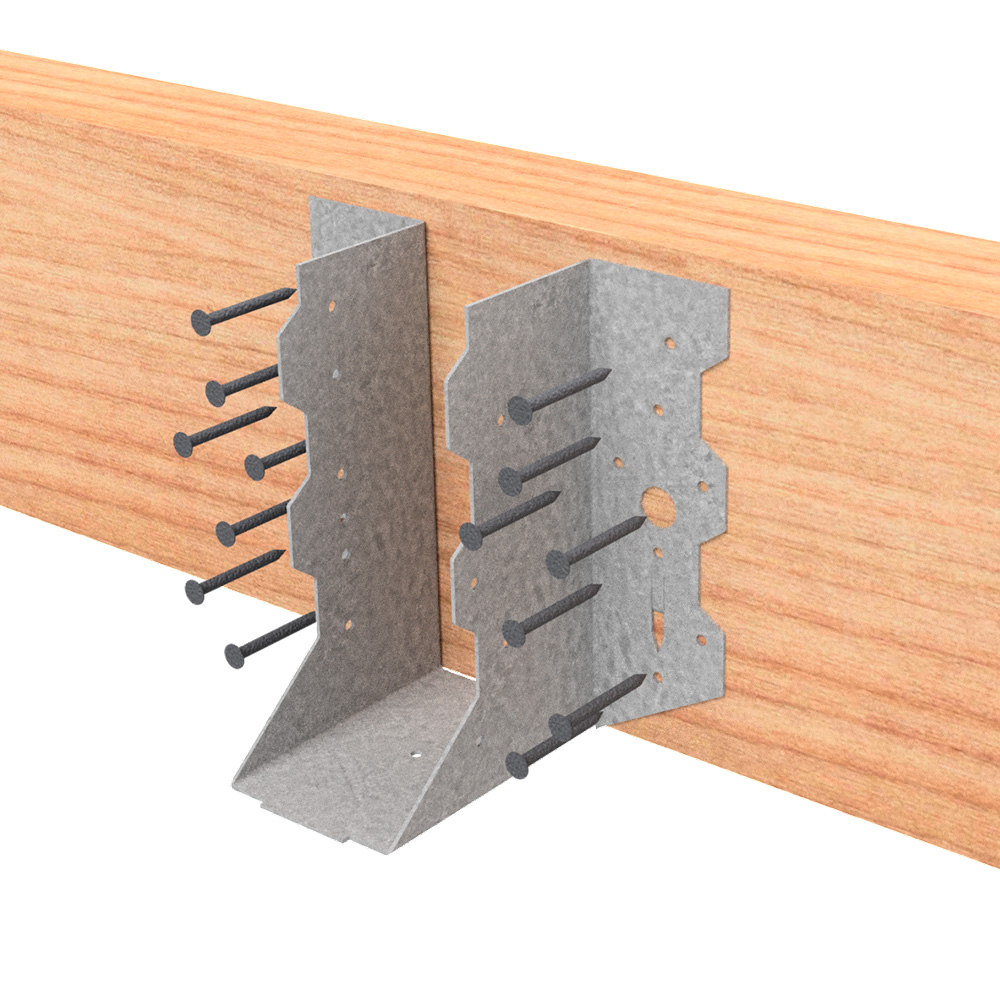

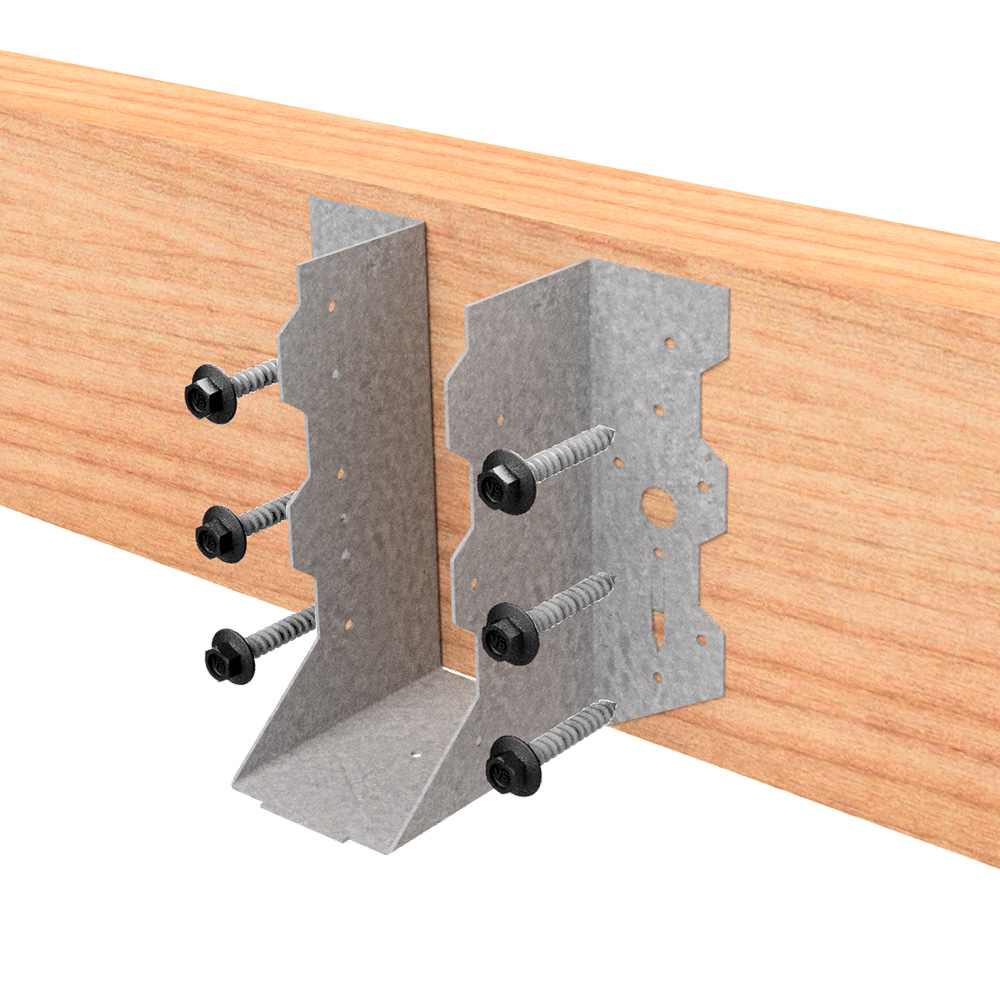

Warning: Use ONLY 30mm x 2.8mm VUETRADE hot-dipped galvanised connector plate nails or VUETRADE Type 17 12G x 35mm screws into timber members and ensure to install them through pre-bored holes.

Product Code(s)SizeBox Qty
VJH359035mm x 90mm45

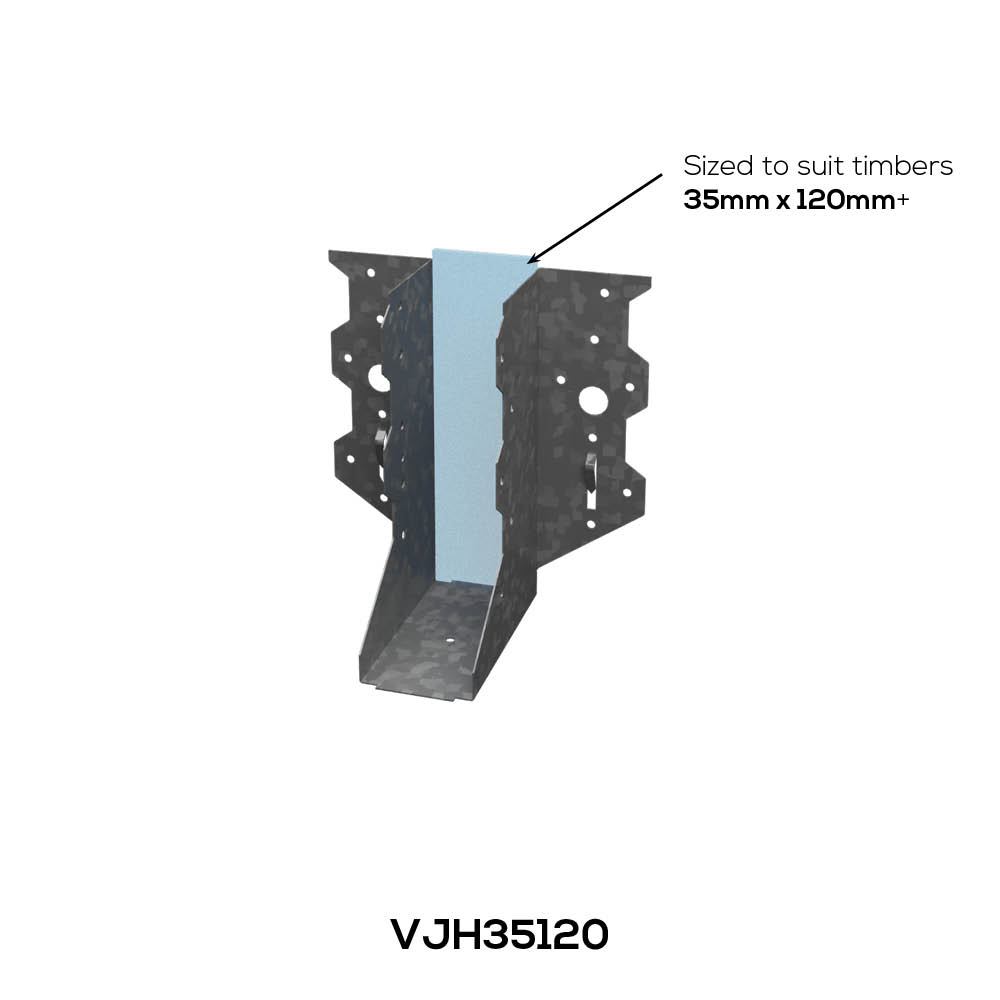

VJH3512035mm x 120mm30

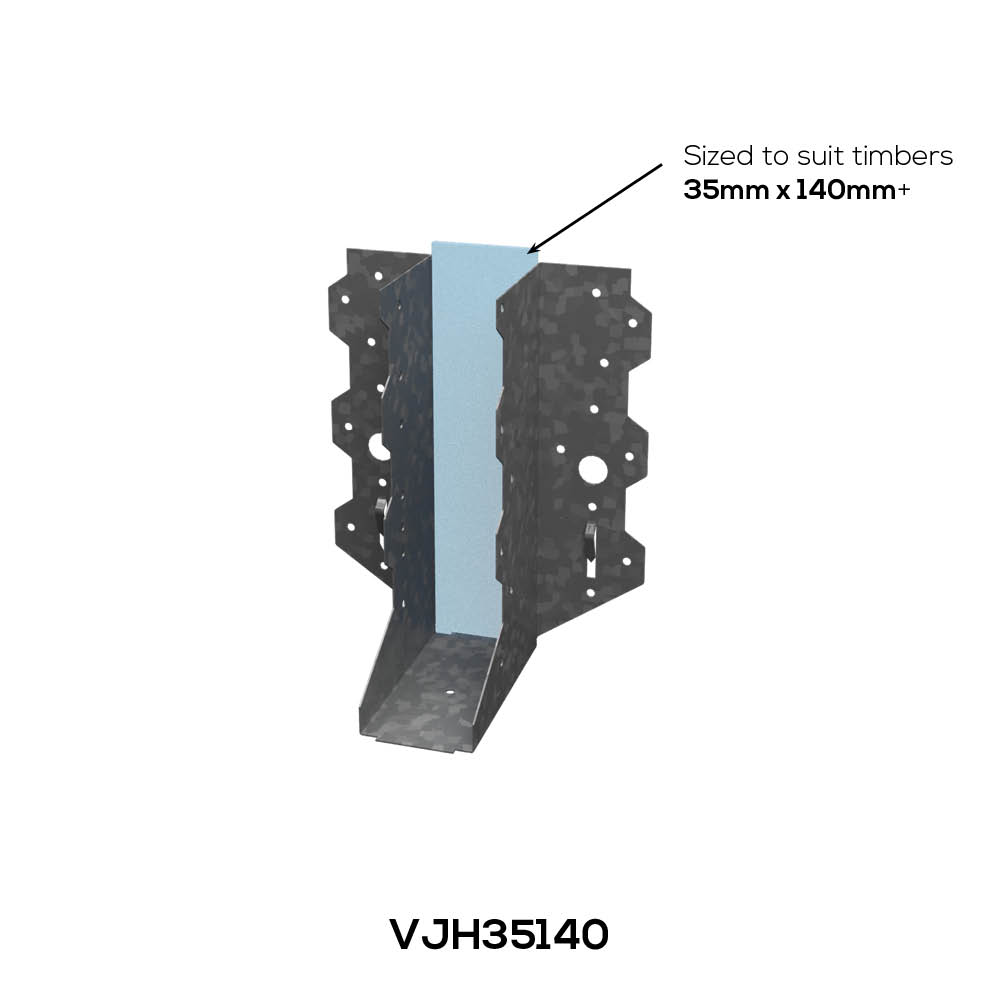

VJH3514035mm x 140mm30

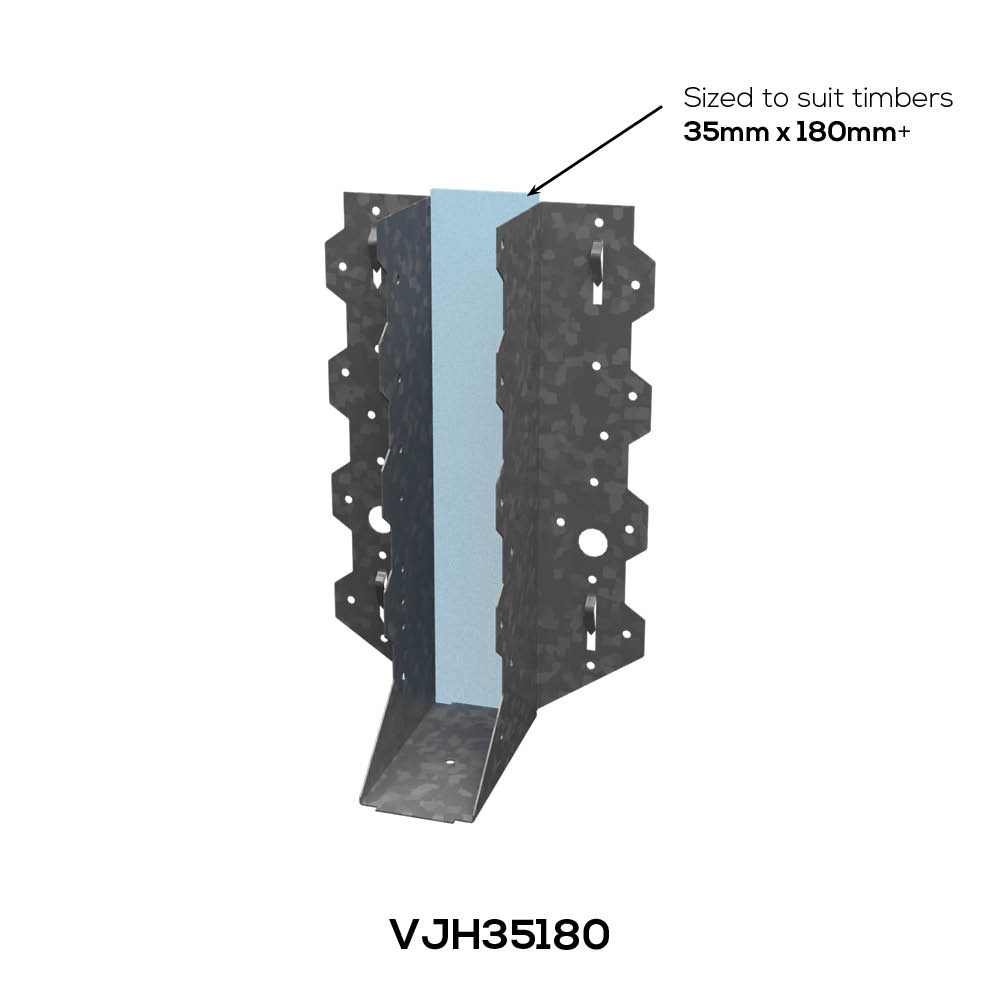

VJH3518035mm x 180mm30

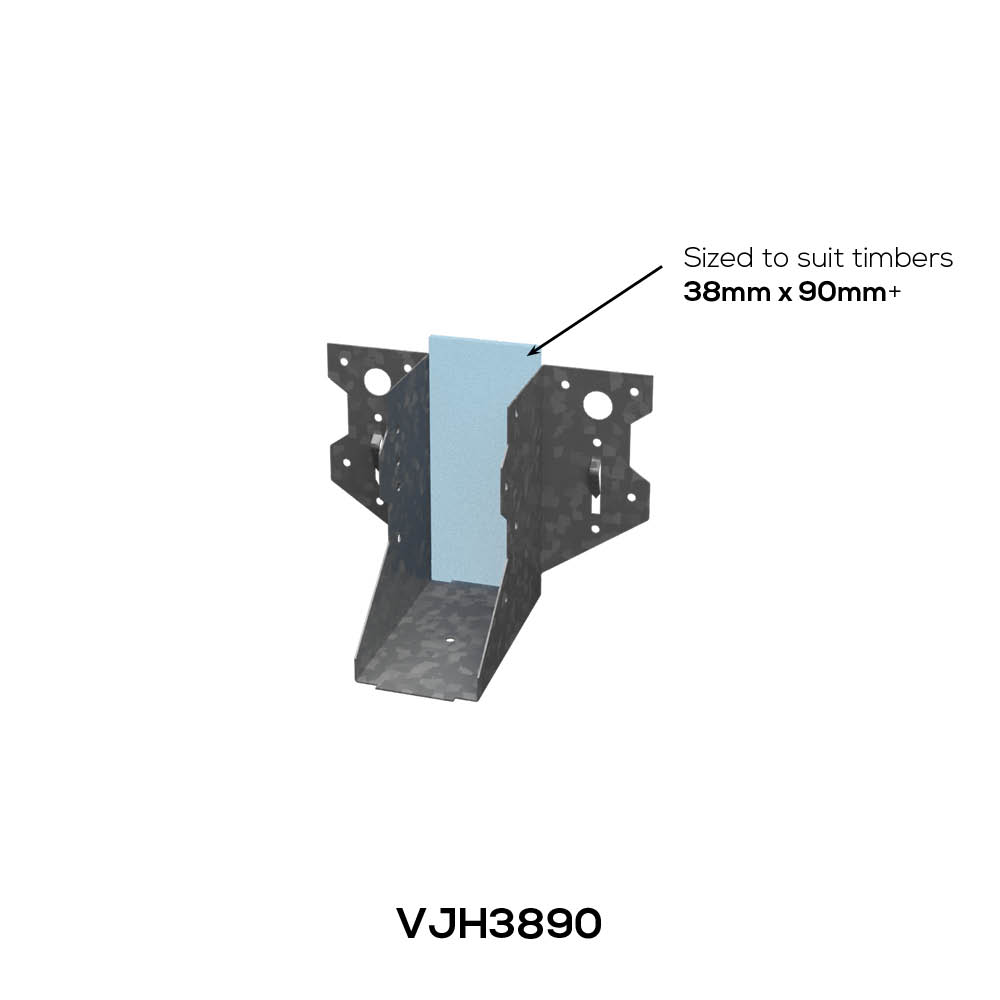

VJH389038mm x 90mm45

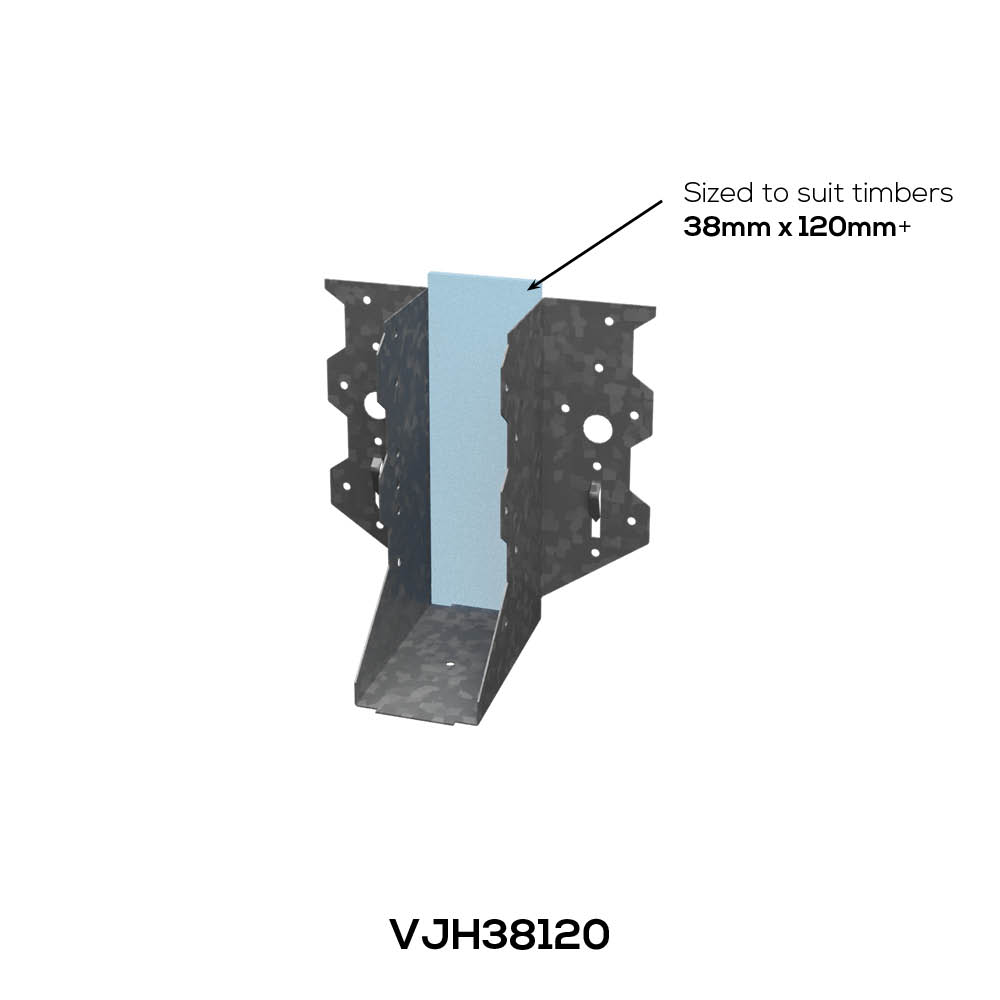

VJH3812038mm x 120mm30

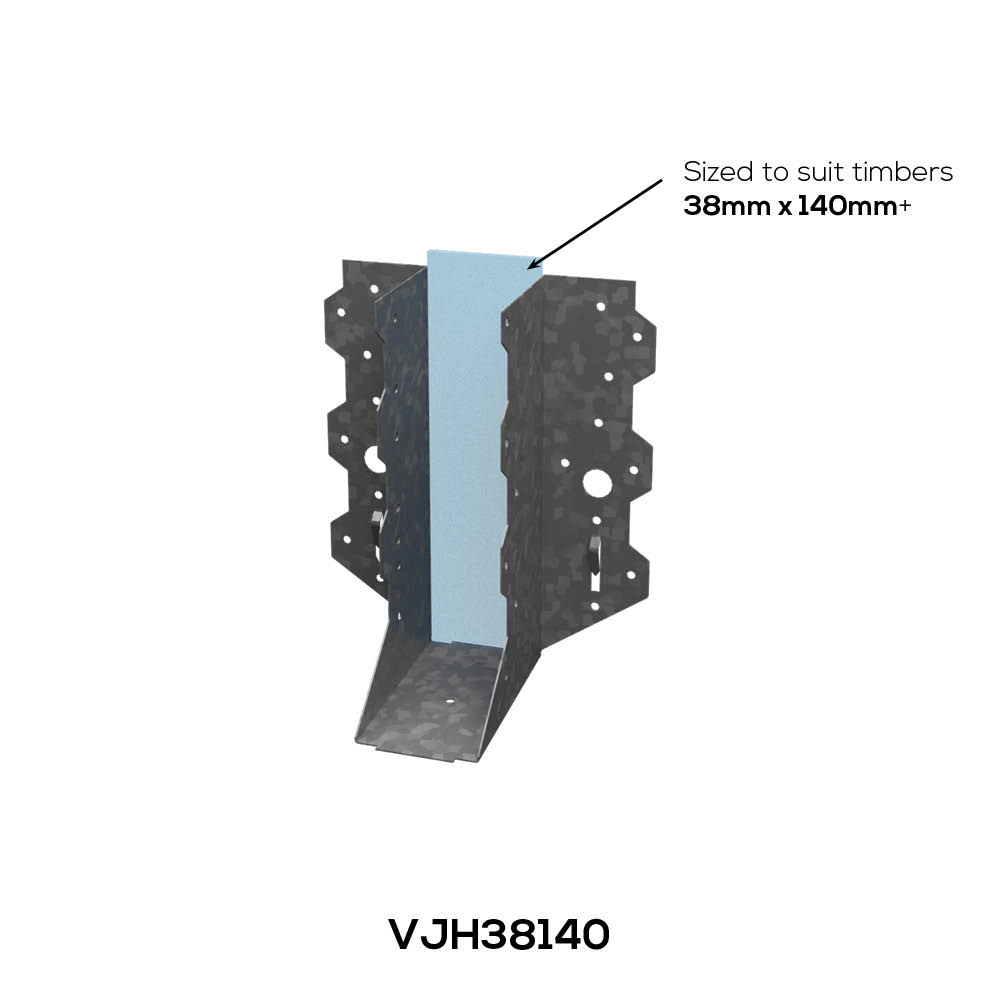

VJH3814038mm x 140mm30
VJH3818038mm x 180mm30

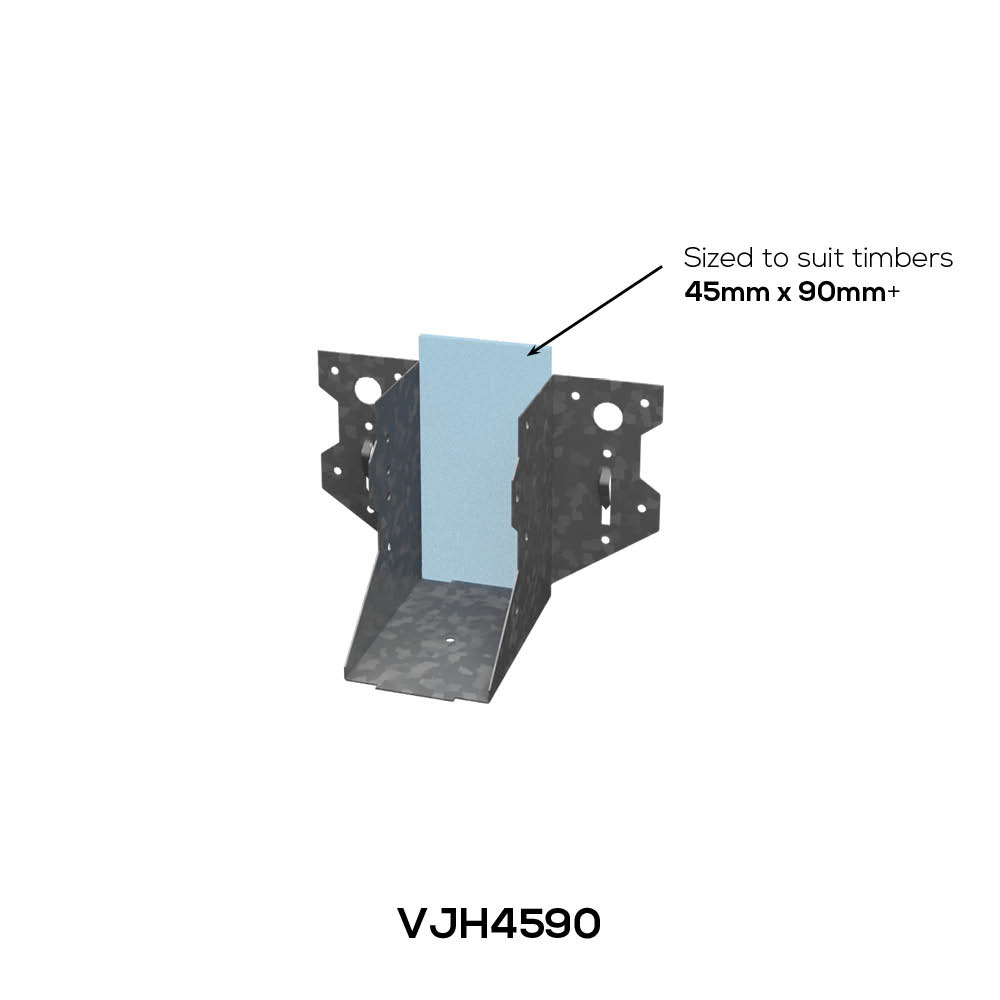

VJH459045mm x 90mm45

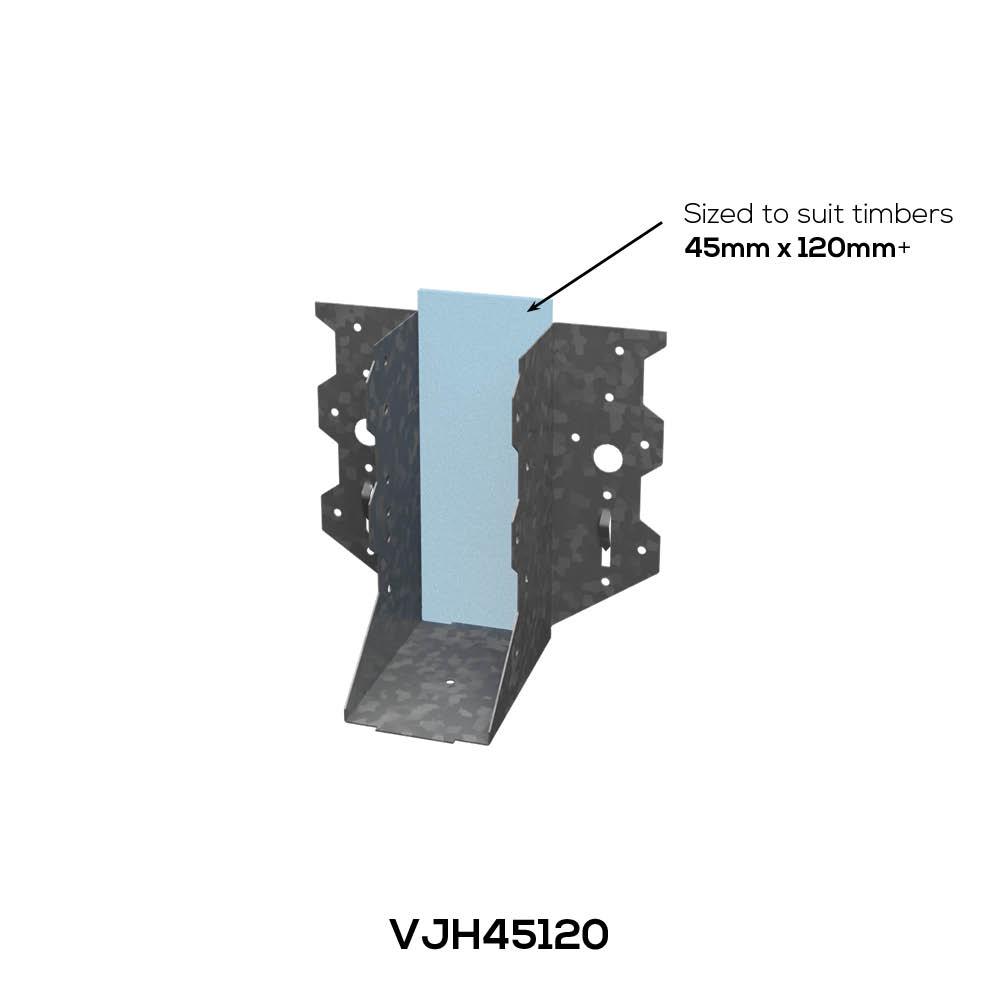

VJH4512045mm x 120mm30

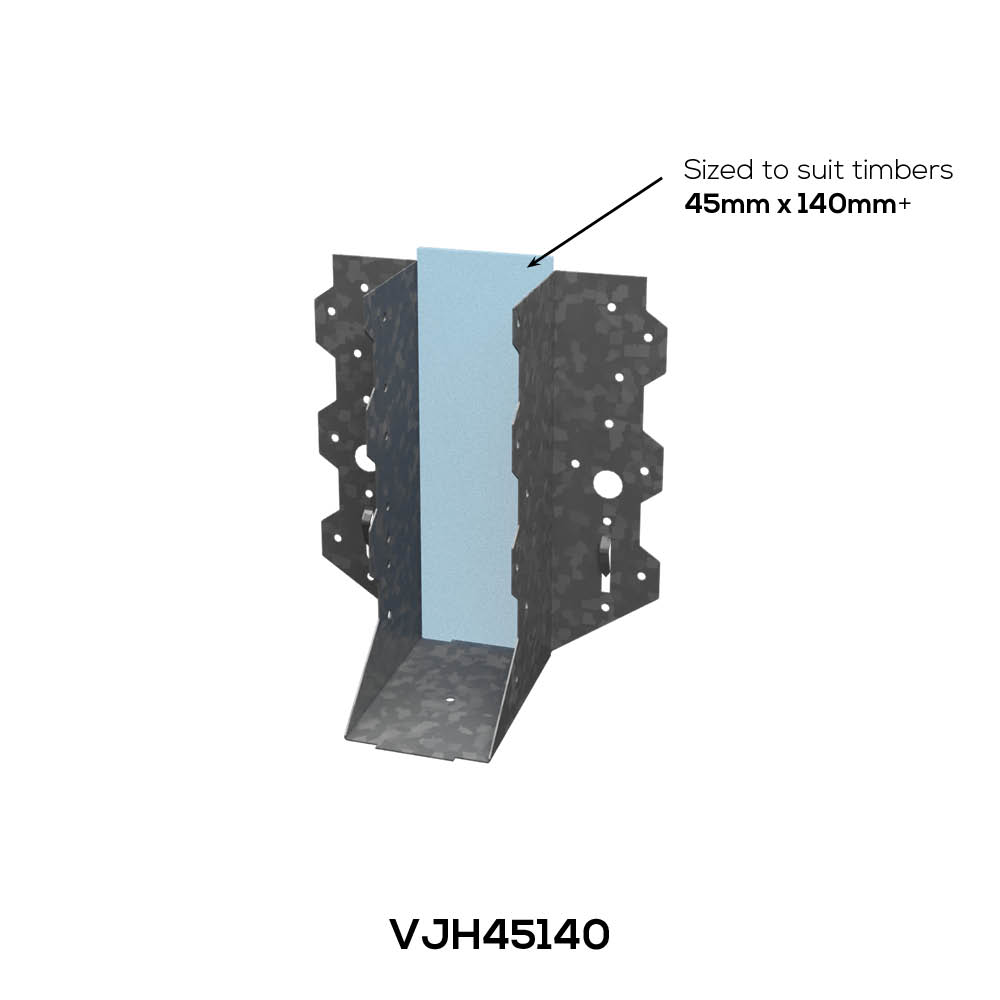

VJH4514045mm x 140mm30

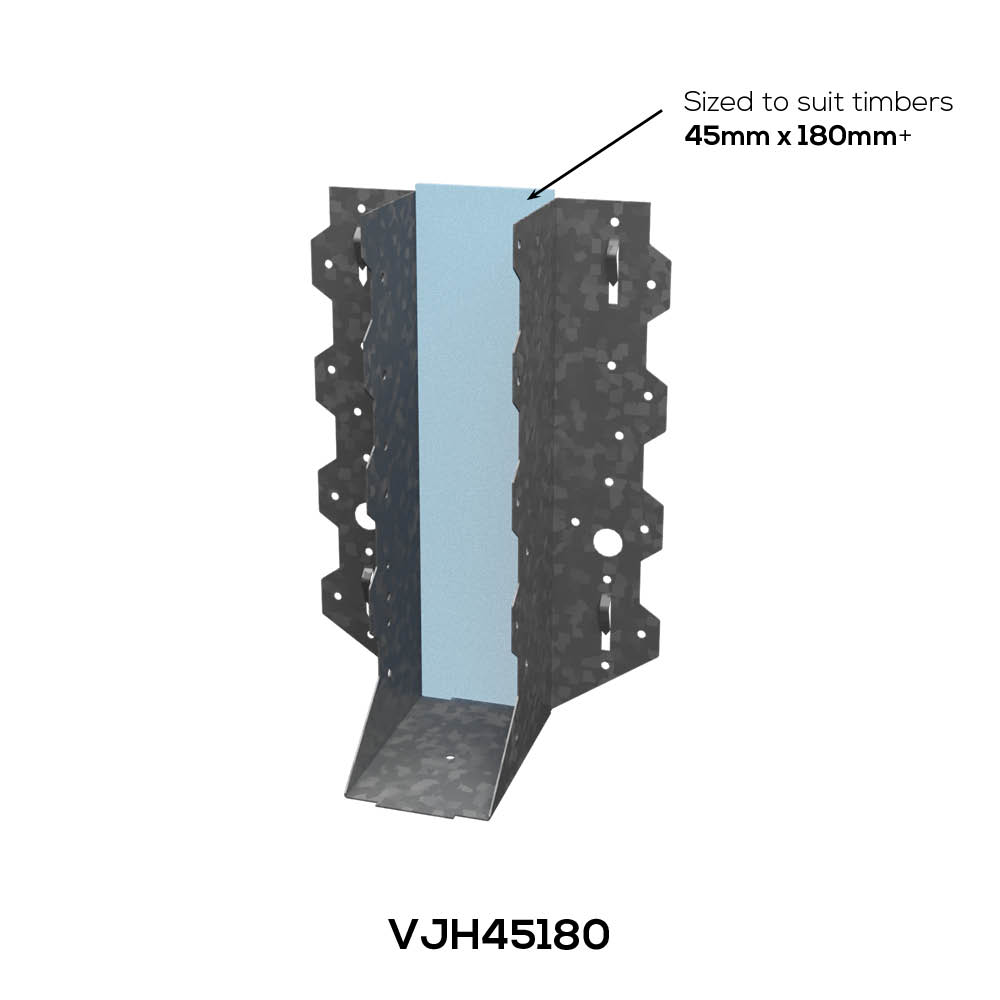

VJH4518045mm x 180mm30

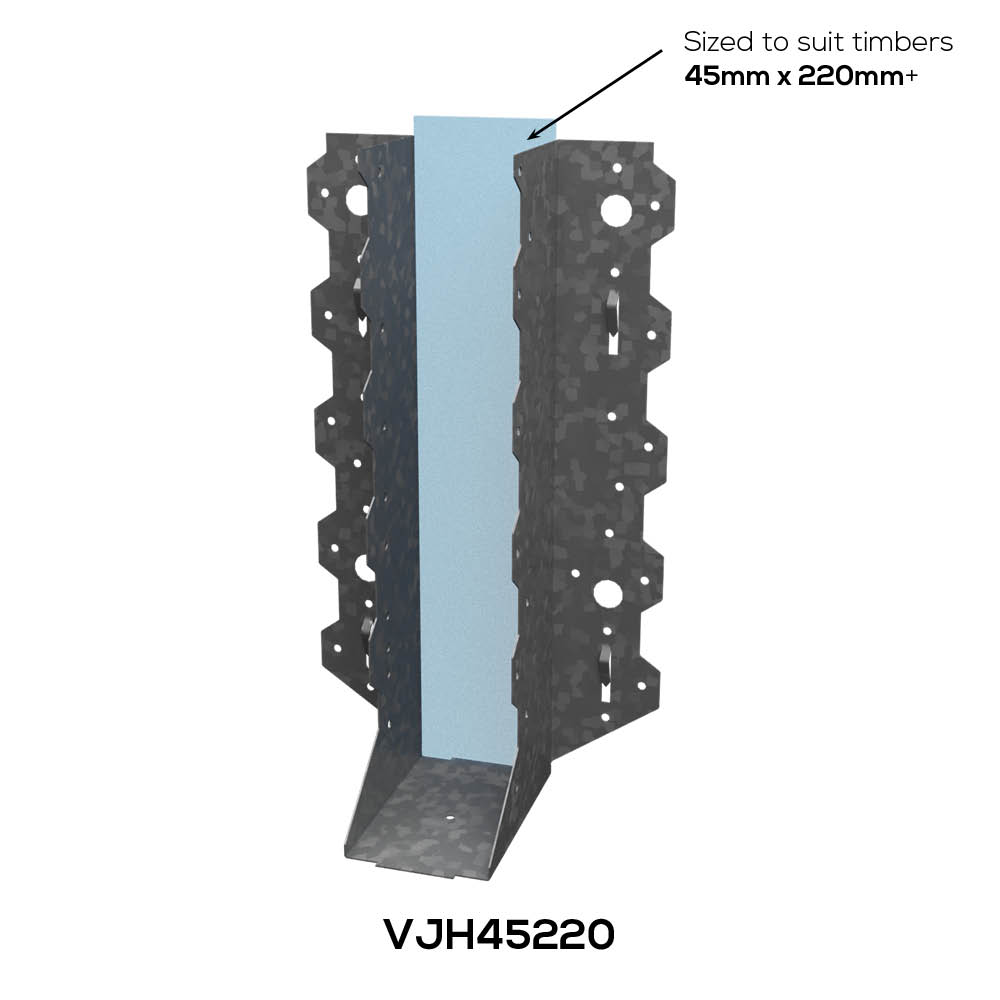

VJH4522045mm x 220mm20

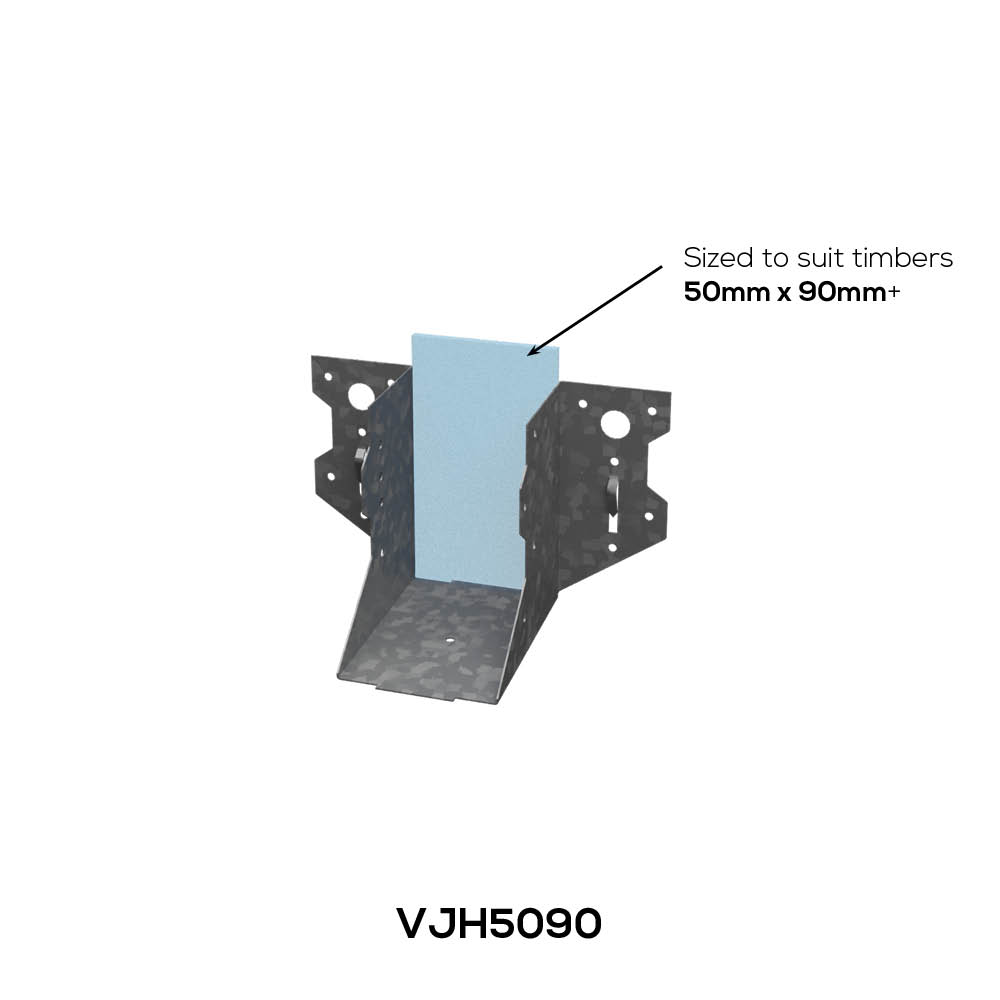

VJH509050mm x 90mm45

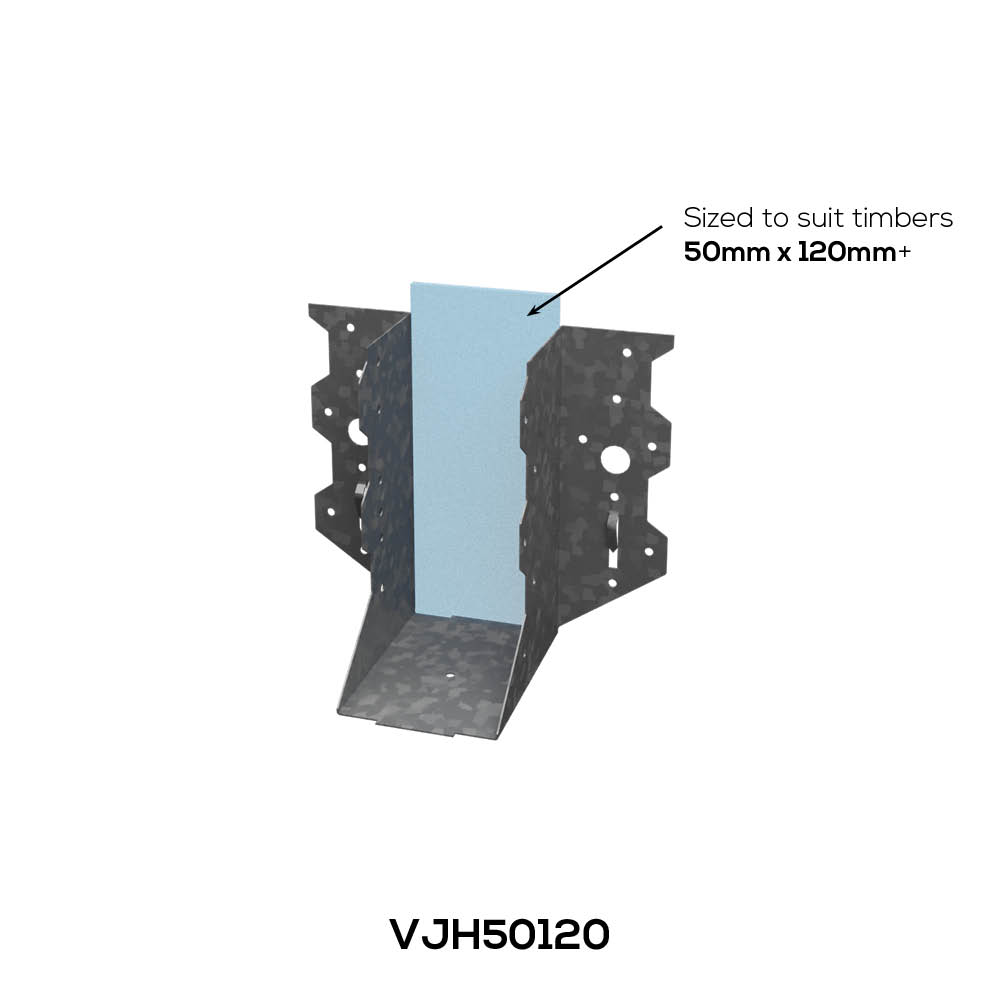

VJH5012050mm x 120mm30

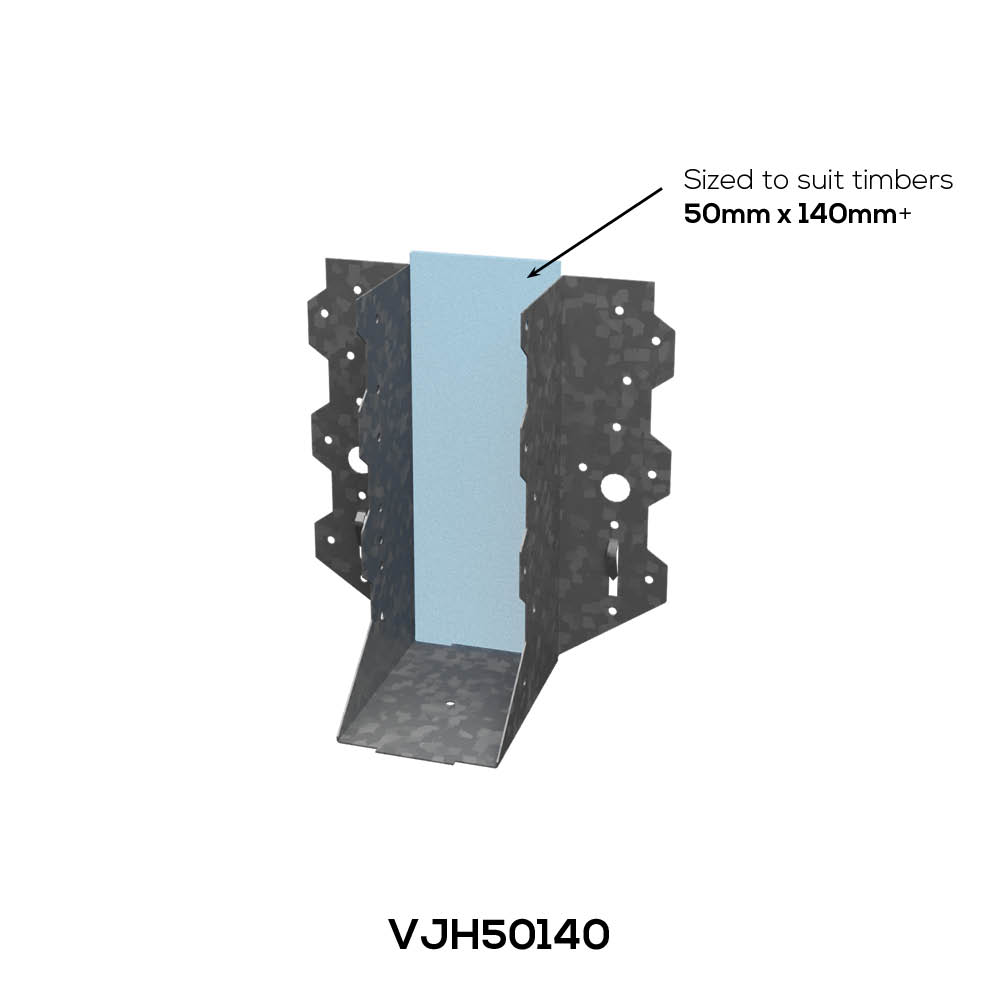

VJH5014050mm x 140mm30

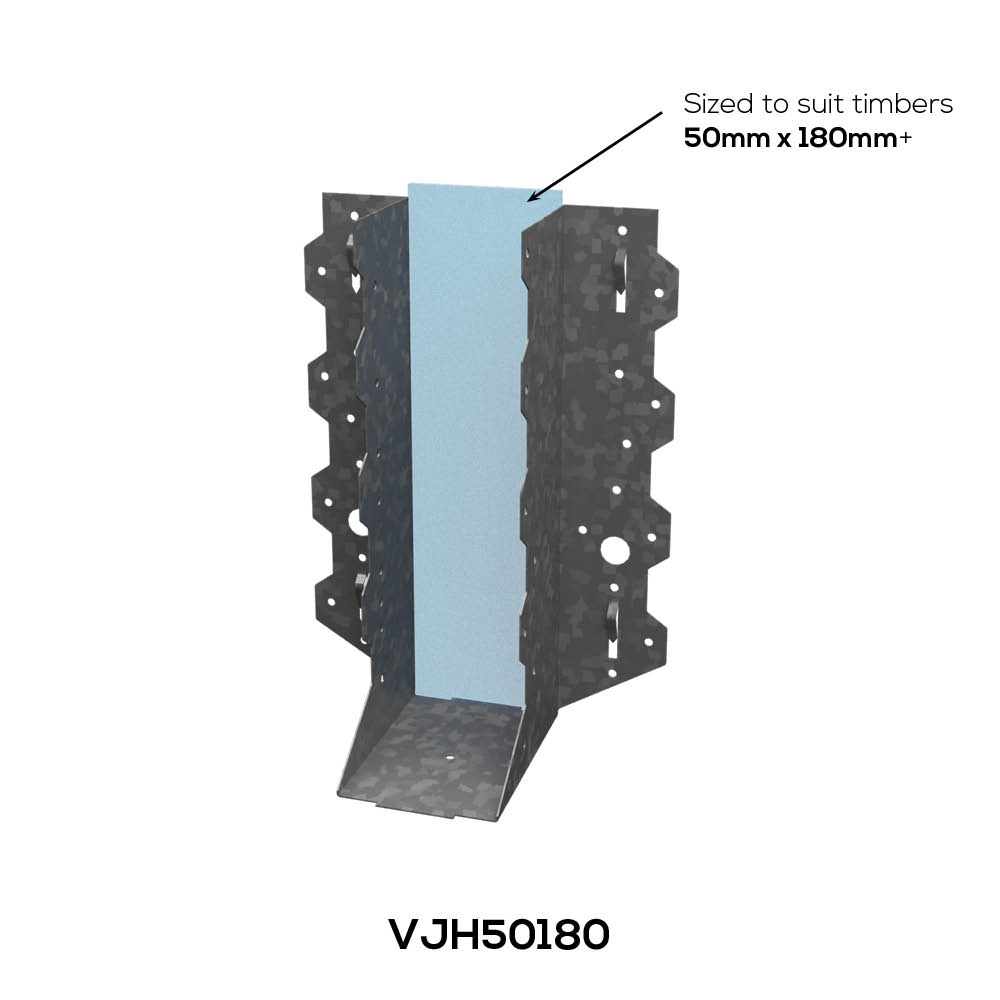

VJH5018050mm x 180mm30

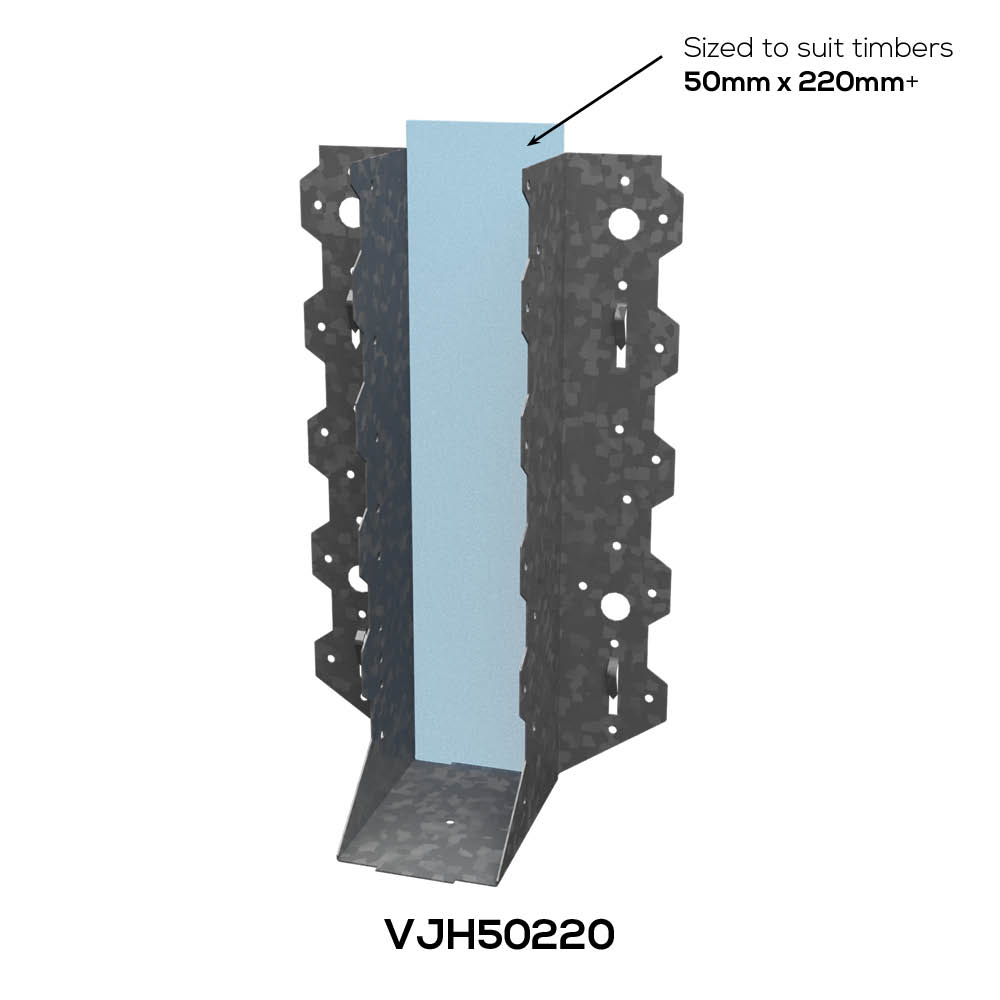

VJH5022050mm x 220mm20

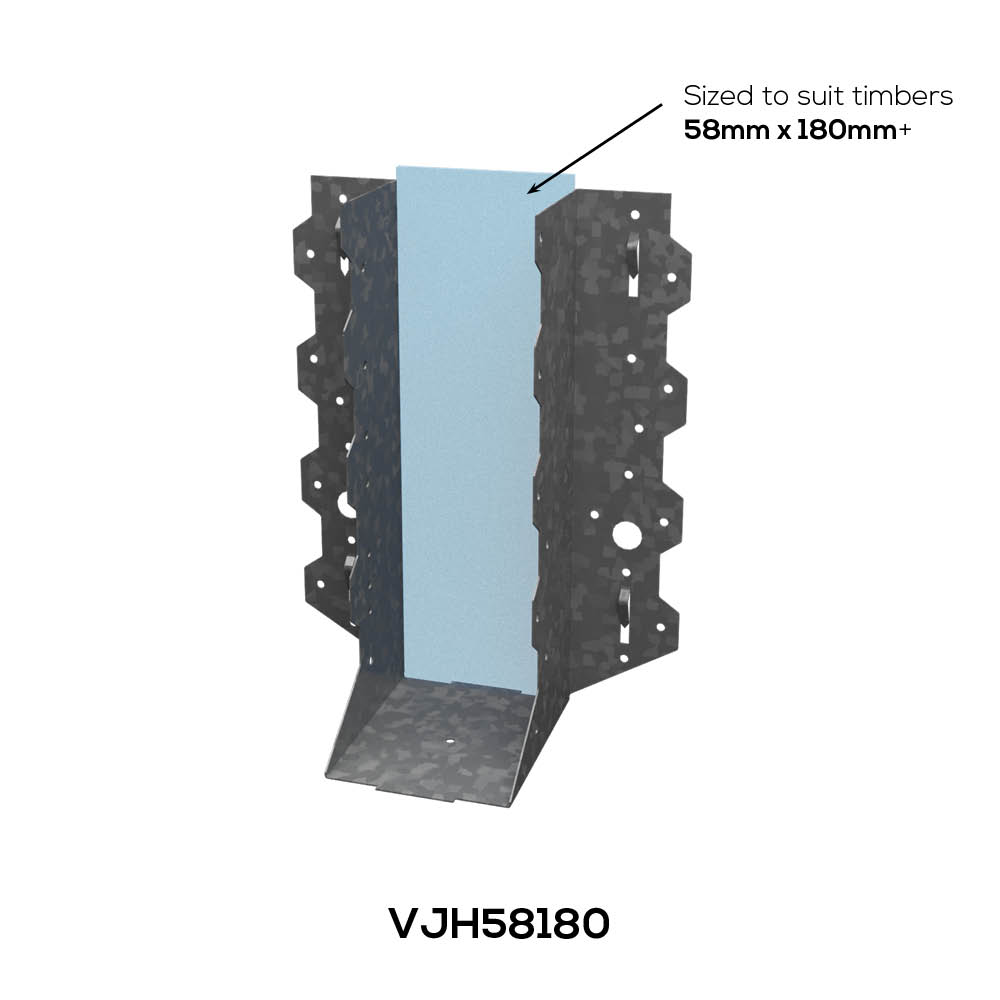

VJH5818058mm x 180mm30
