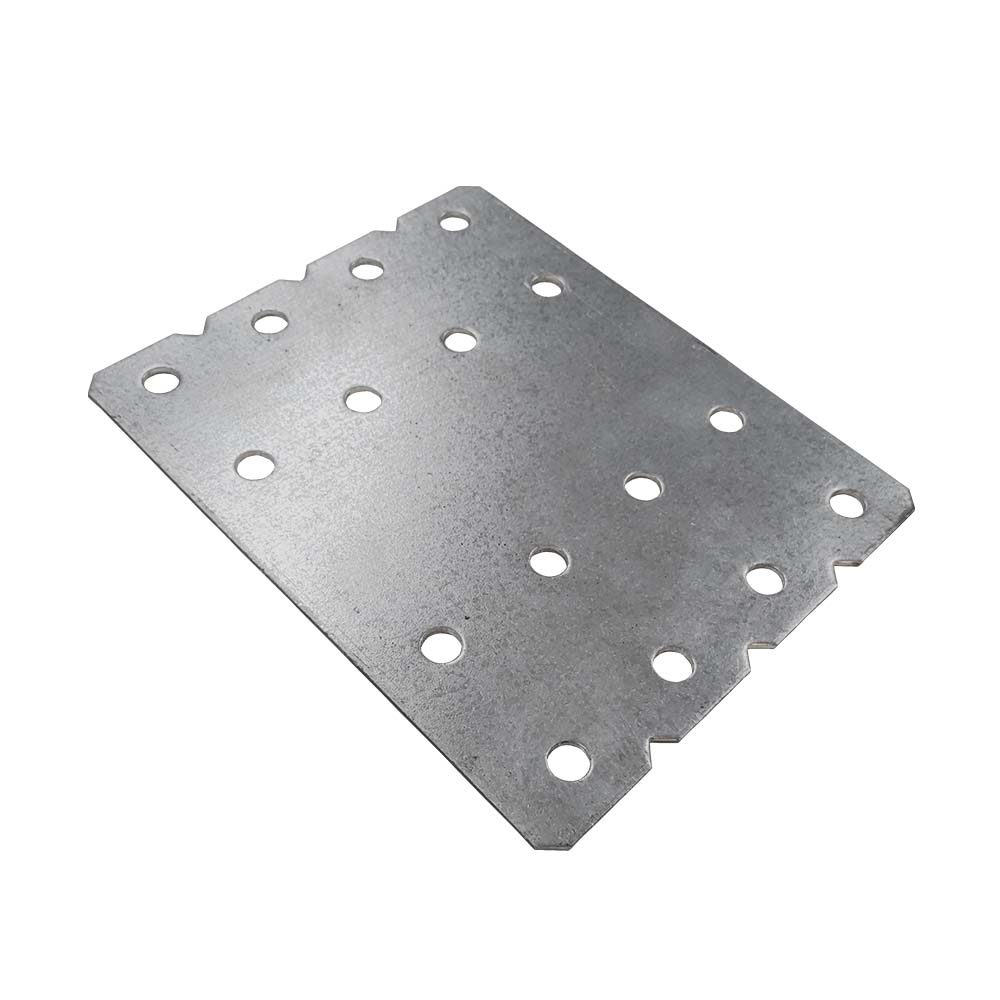

VUETRADE PLATES – Heavy Duty are designed to allow connection between flat timber faces.
Also available in Stainless Steel.

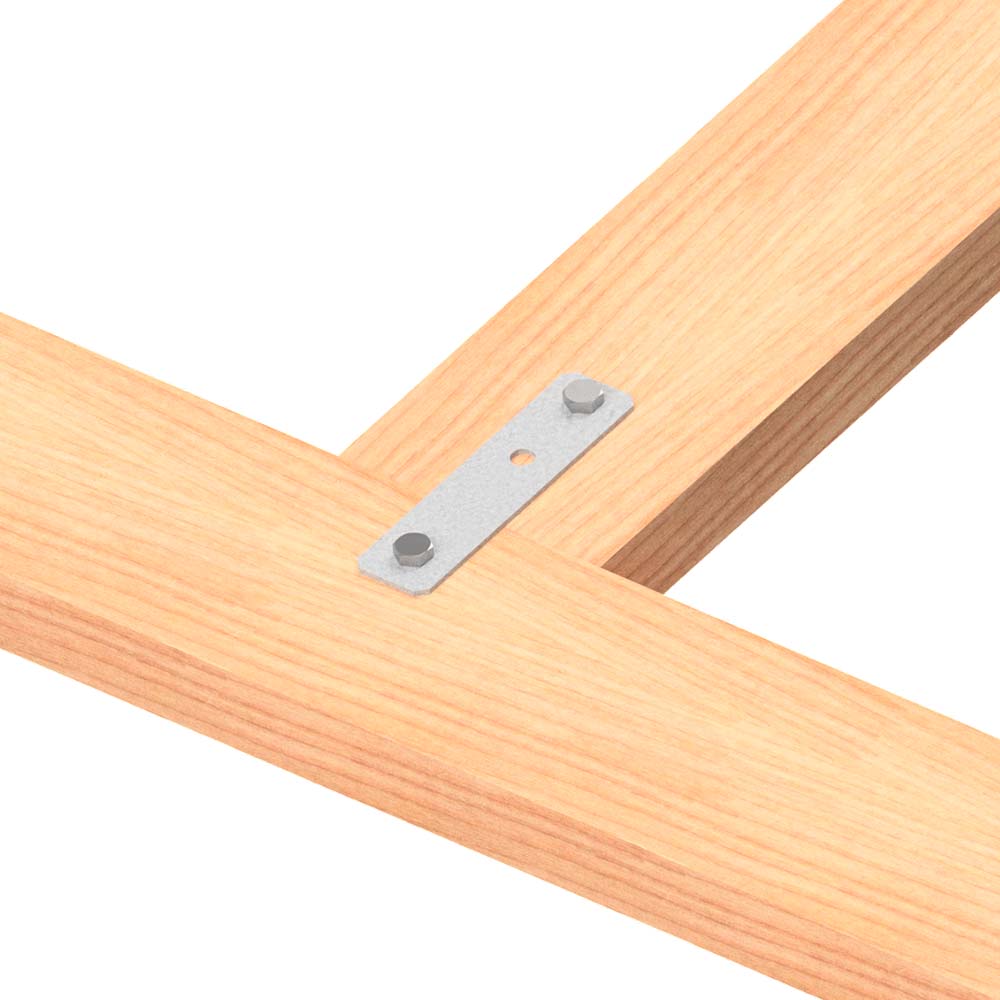

• Suitable for a variety of Timber-Timber Connections where connection between one flat to another is required.
• Suitable for use with M10 bolts
• 3.0mm thick steel for extra strength
• Made from Mild Steel
• Galvanised finish for durability and long-life
| Product Code(s) | Size (L x W) | Metal Thickness (t) | Bolt/Fixing Size | Box Qty |
|---|---|---|---|---|

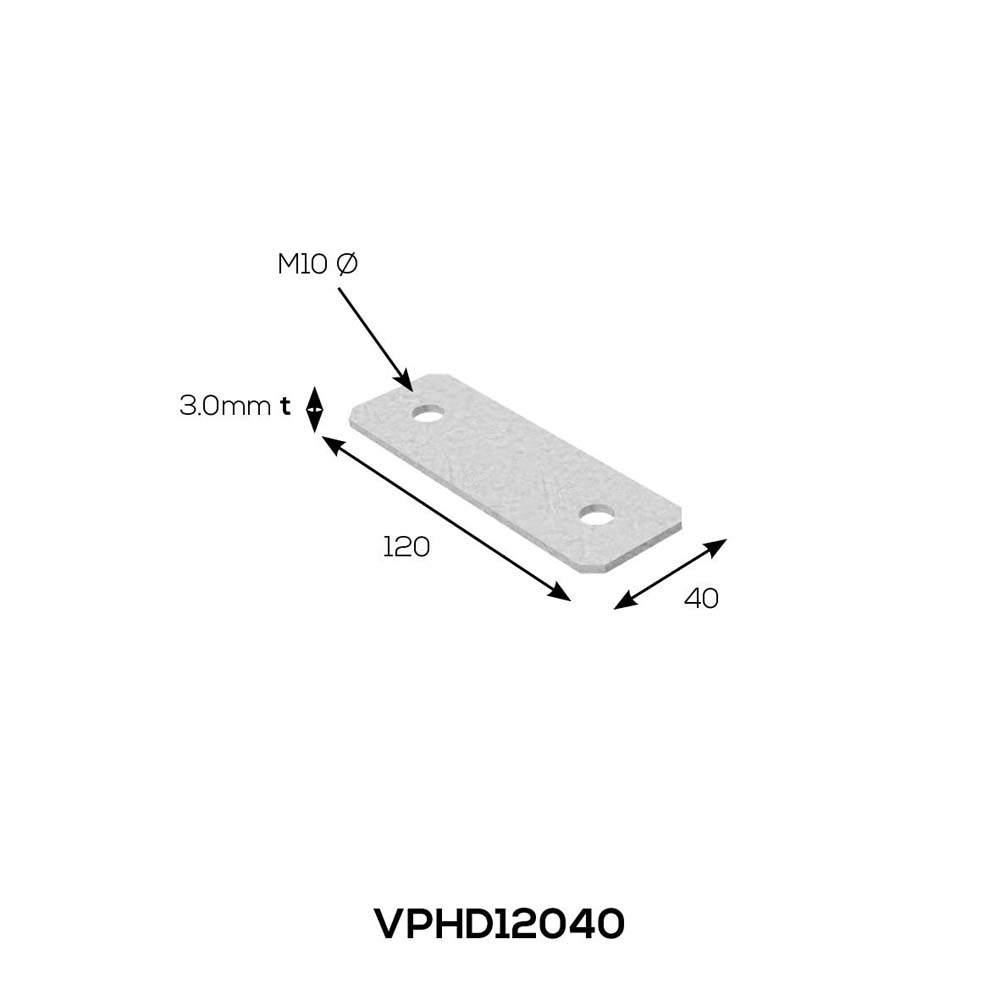

| VPHD12040 | 120 x 40mm | 3.0mm | M10 | 50 |

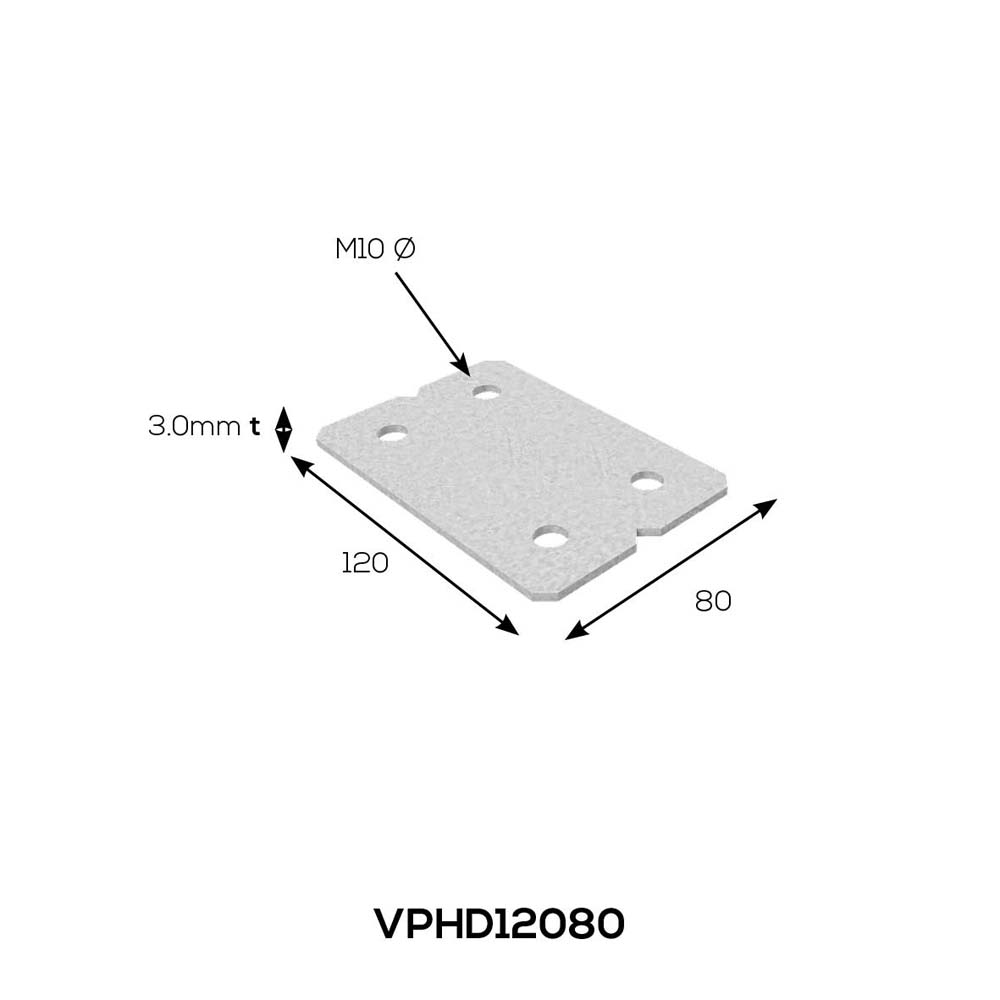

| VPHD12080 | 120 x 80mm | 3.0mm | M10 | 25 |

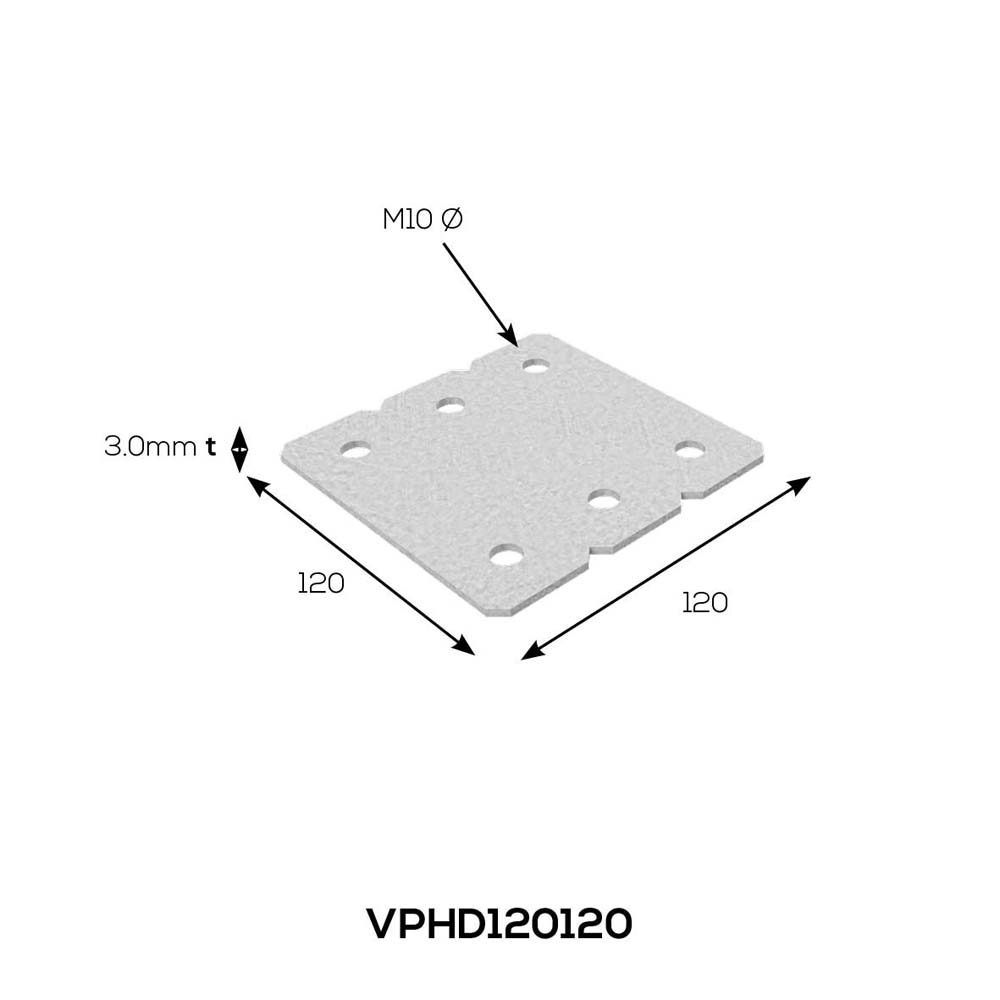

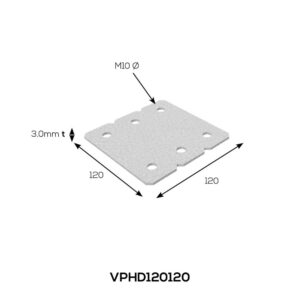

| VPHD120120 | 120 x 120mm | 3.0mm | M10 | 25 |

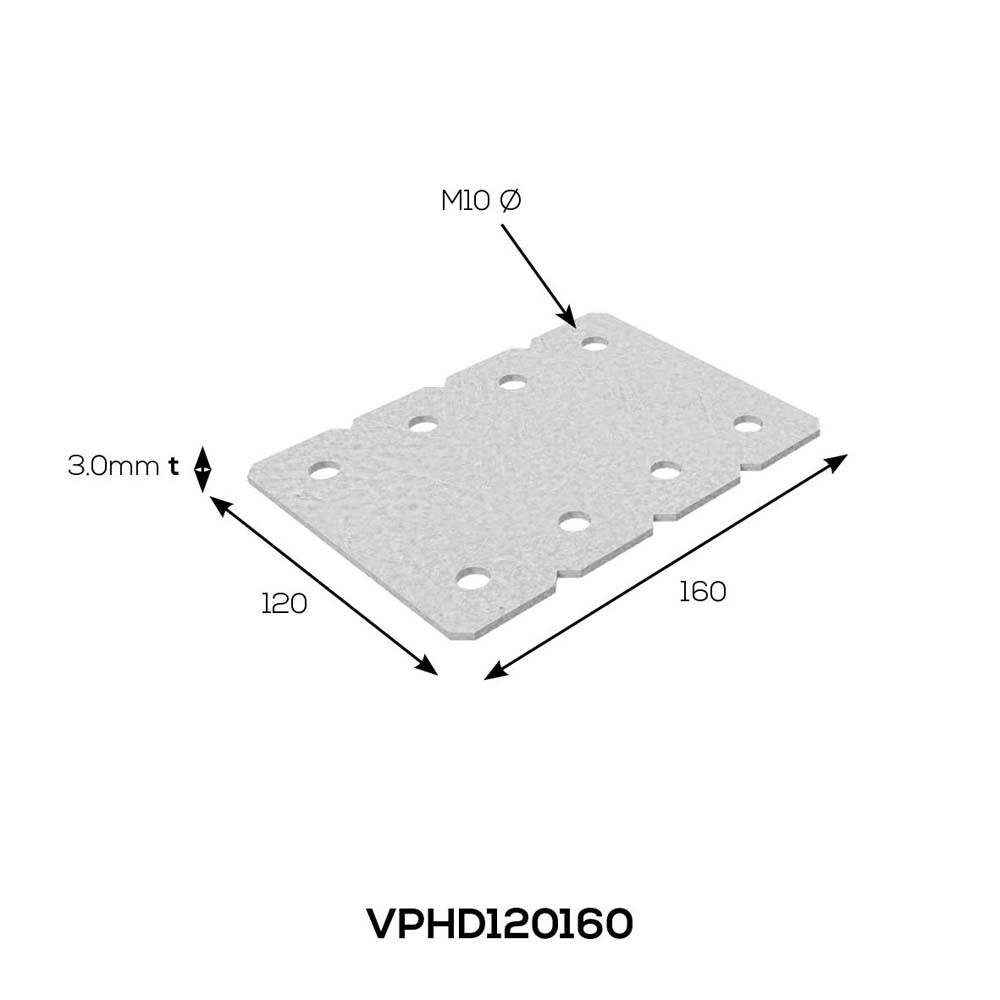

| VPHD120160 | 120 x 160mm | 3.0mm | M10 | 25 |

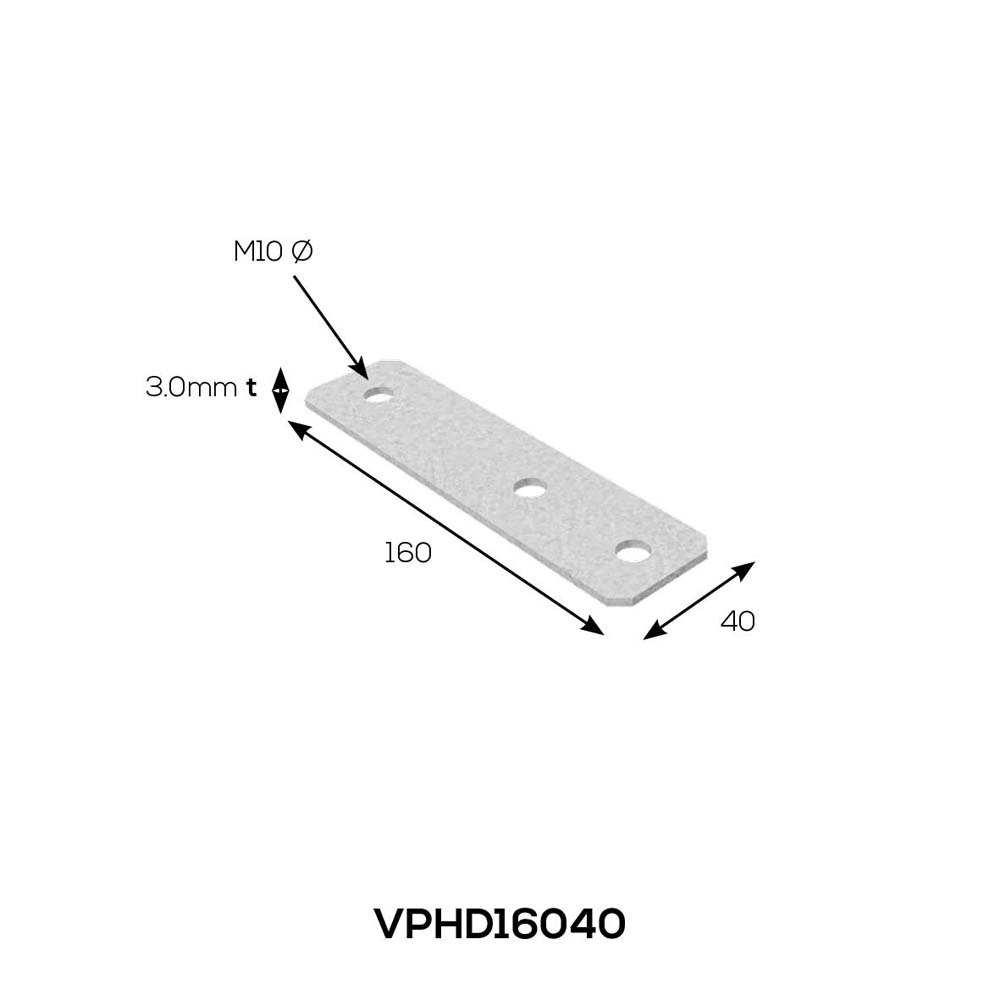

| VPHD16040 | 160 x 40mm | 3.0mm | M10 | 50 |

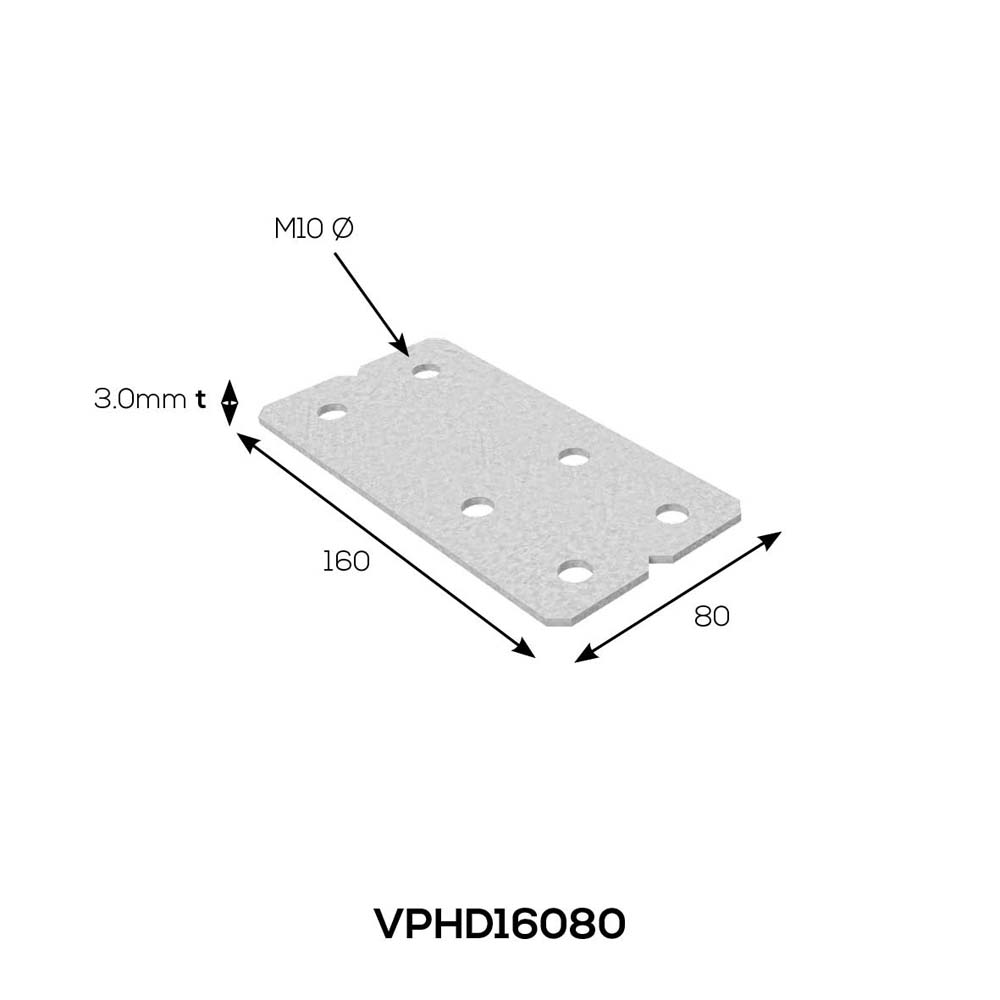

| VPHD16080 | 160 x 80mm | 3.0mm | M10 | 25 |

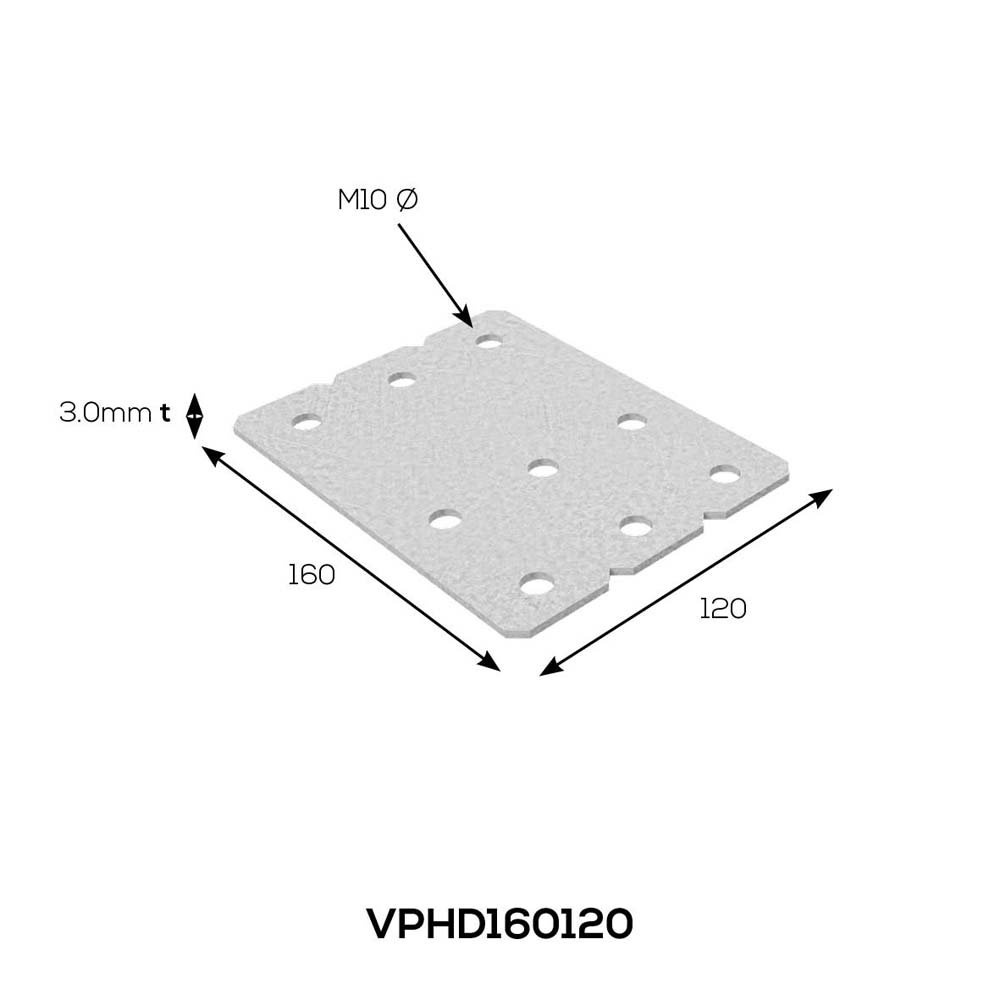

| VPHD160120 | 160 x 120mm | 3.0mm | M10 | 25 |

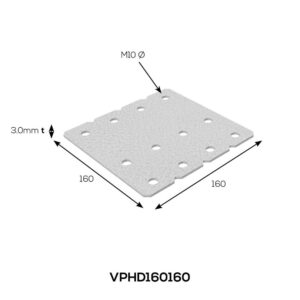

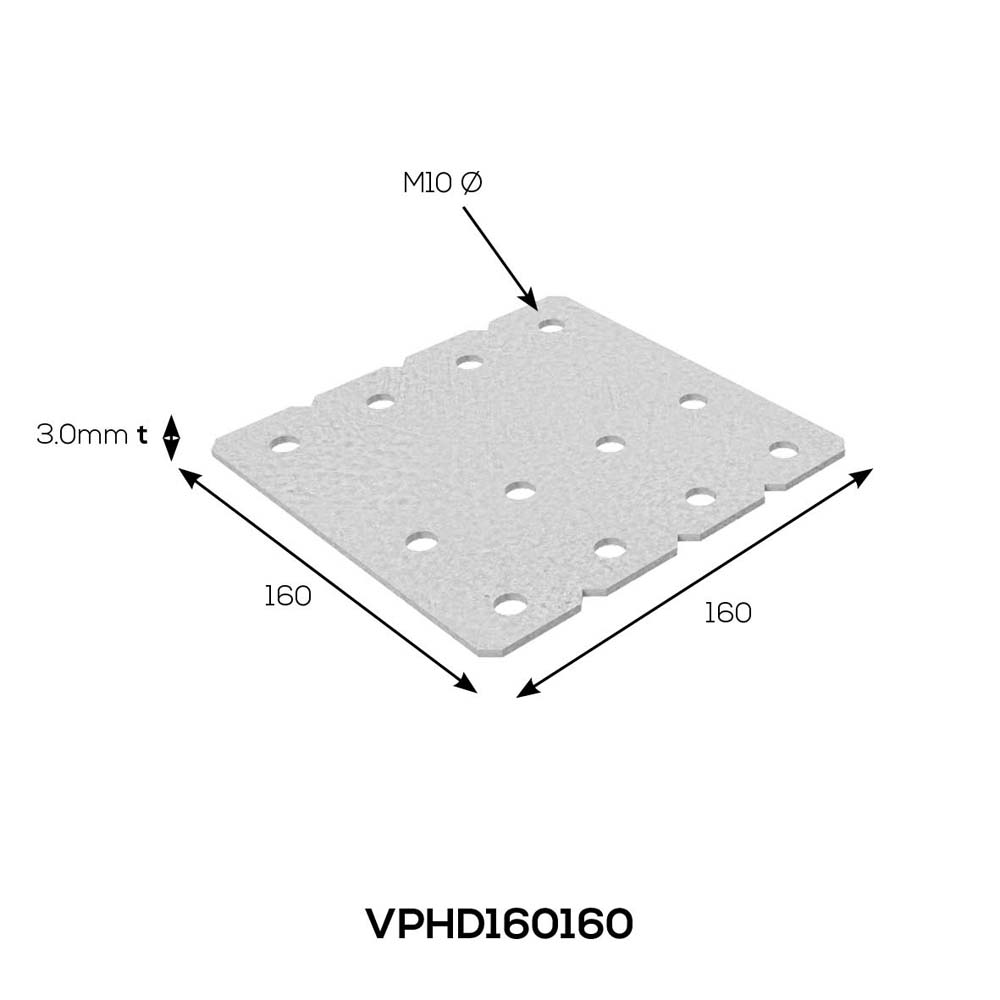

| VPHD160160 | 160 x 160mm | 3.0mm | M10 | 25 |

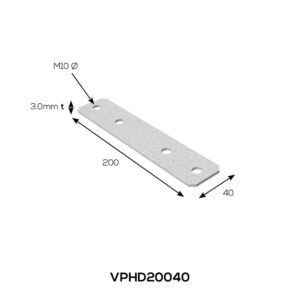

| VPHD20040 | 200 x 40mm | 3.0mm | M10 | 50 |

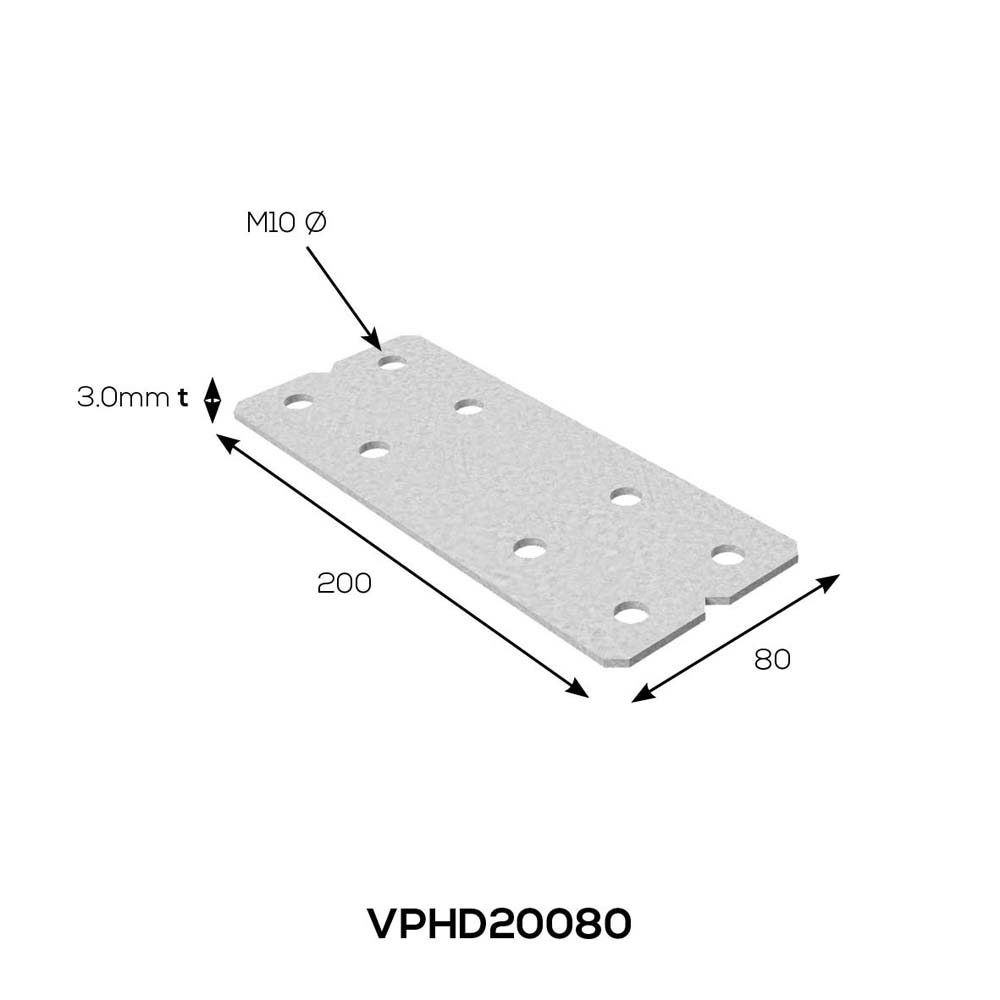

| VPHD20080 | 200 x 80mm | 3.0mm | M10 | 25 |

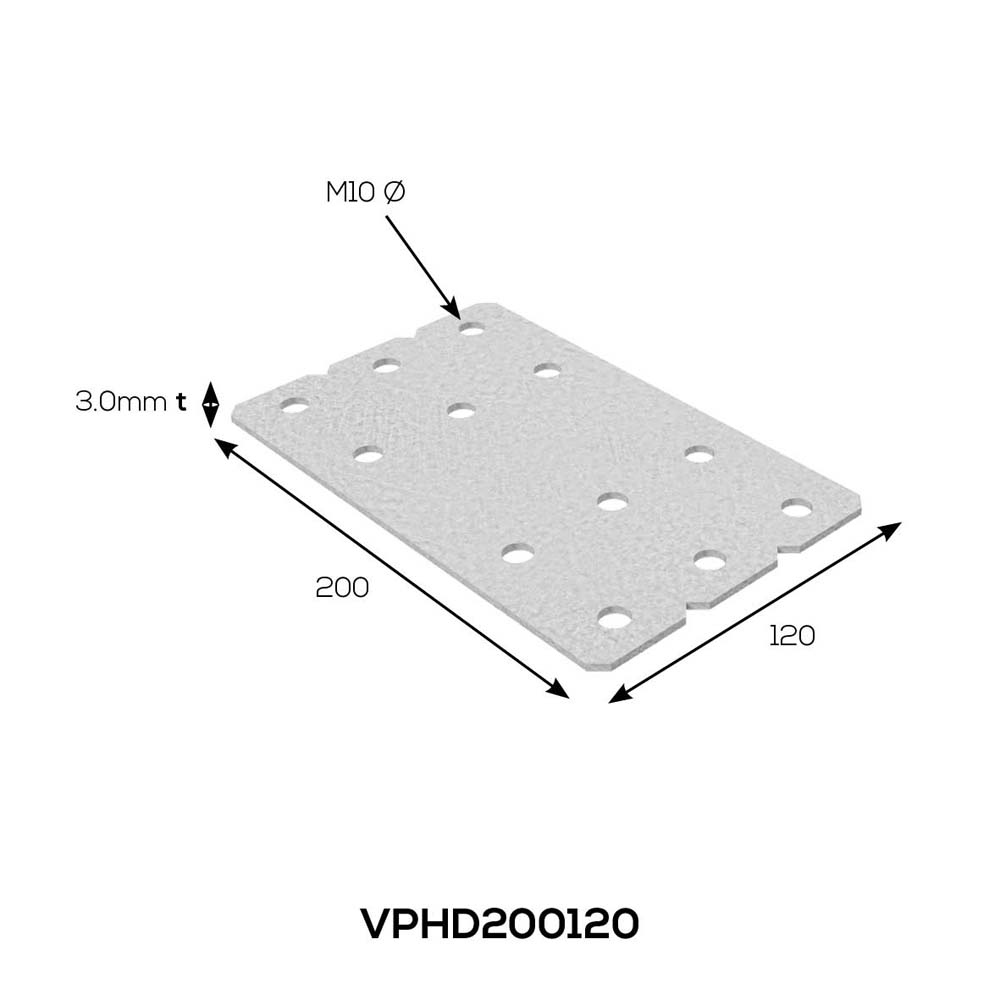

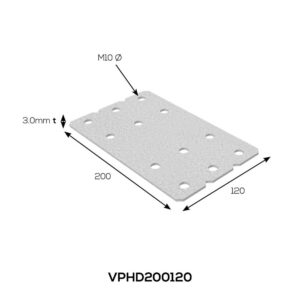

| VPHD200120 | 200 x 120mm | 3.0mm | M10 | 20 |

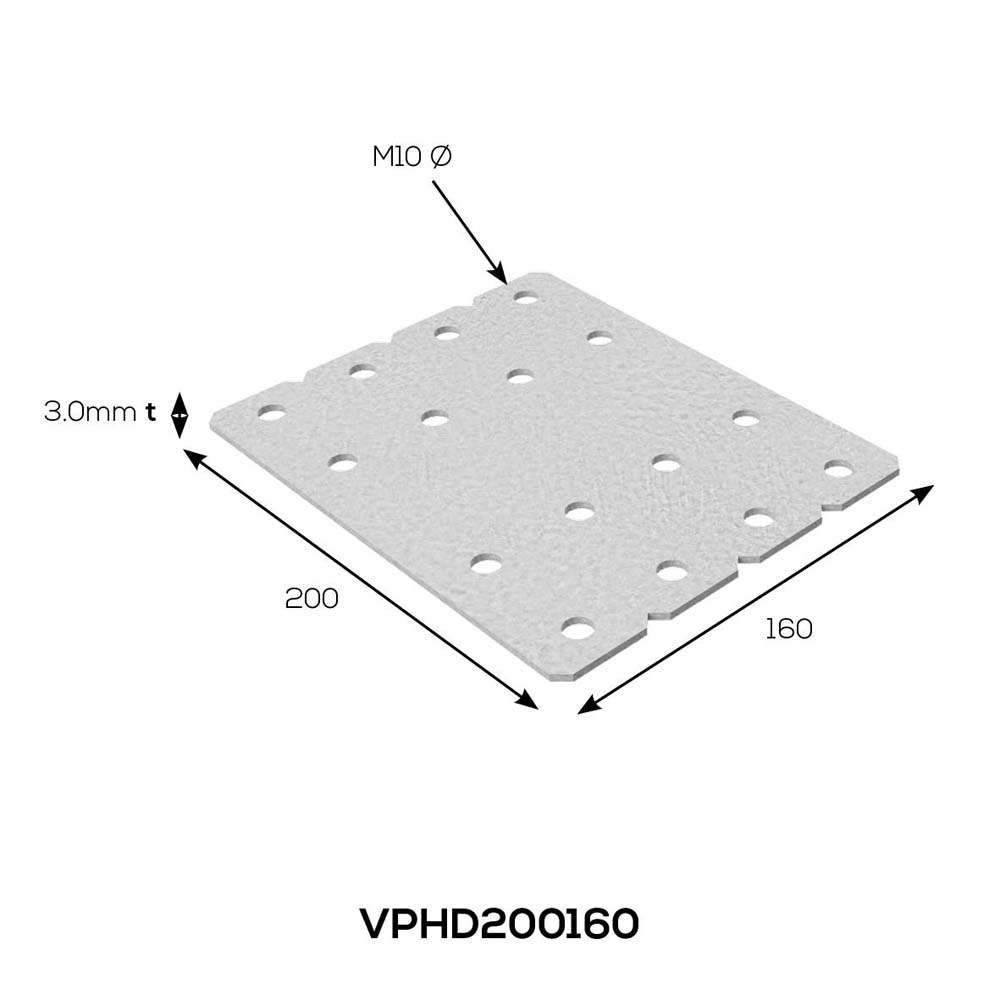

| VPHD200160 | 200 x 160mm | 3.0mm | M10 | 15 |
