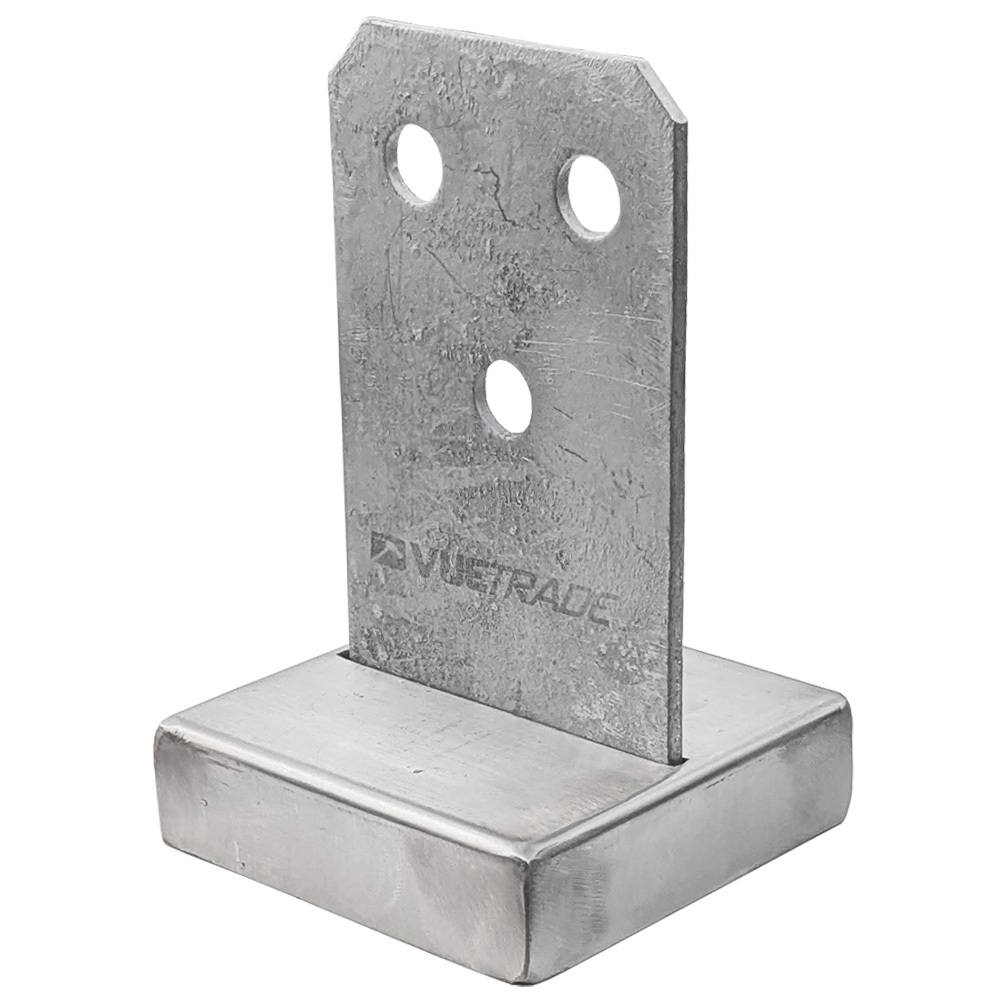

The VUETRADE Concealed Bolt Down Post Support Kit is a system ideal for fixing decorative timber posts with an architectural, concealed finish.
• Suits 90-100mm timber
• Architectural finish with concealed blade and cap
• 3.0mm thick steel blade

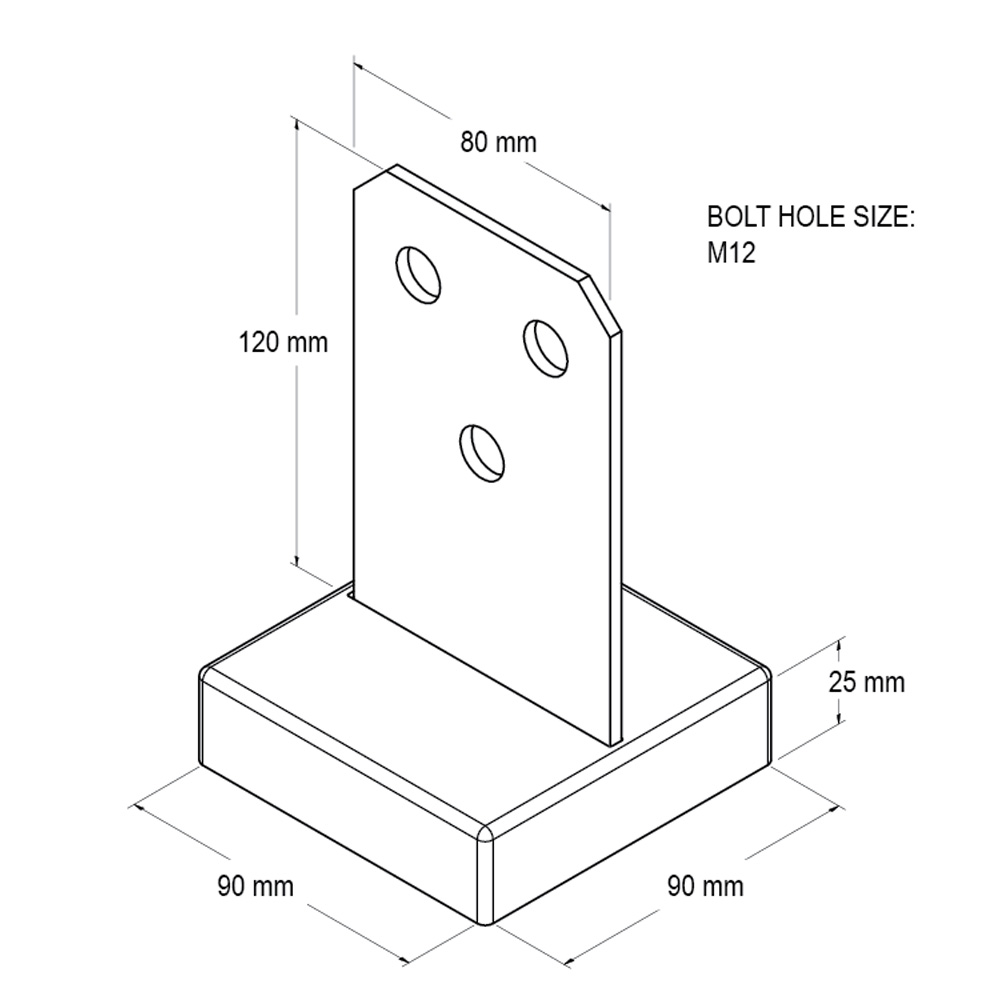

• 145mm Blade Height (including base plate)
• 80mm Blade Width
• Bolt Holes
2 x M12 Bolt Holes (Base)
3 x M12 Bolt Holes (Blade)
• Galvanised finish for durability and long-life
| Product Code(s) | Size | Metal Thickness | Fits Post Size | Bolt/Fixing Size | Box Qty |
|---|---|---|---|---|---|

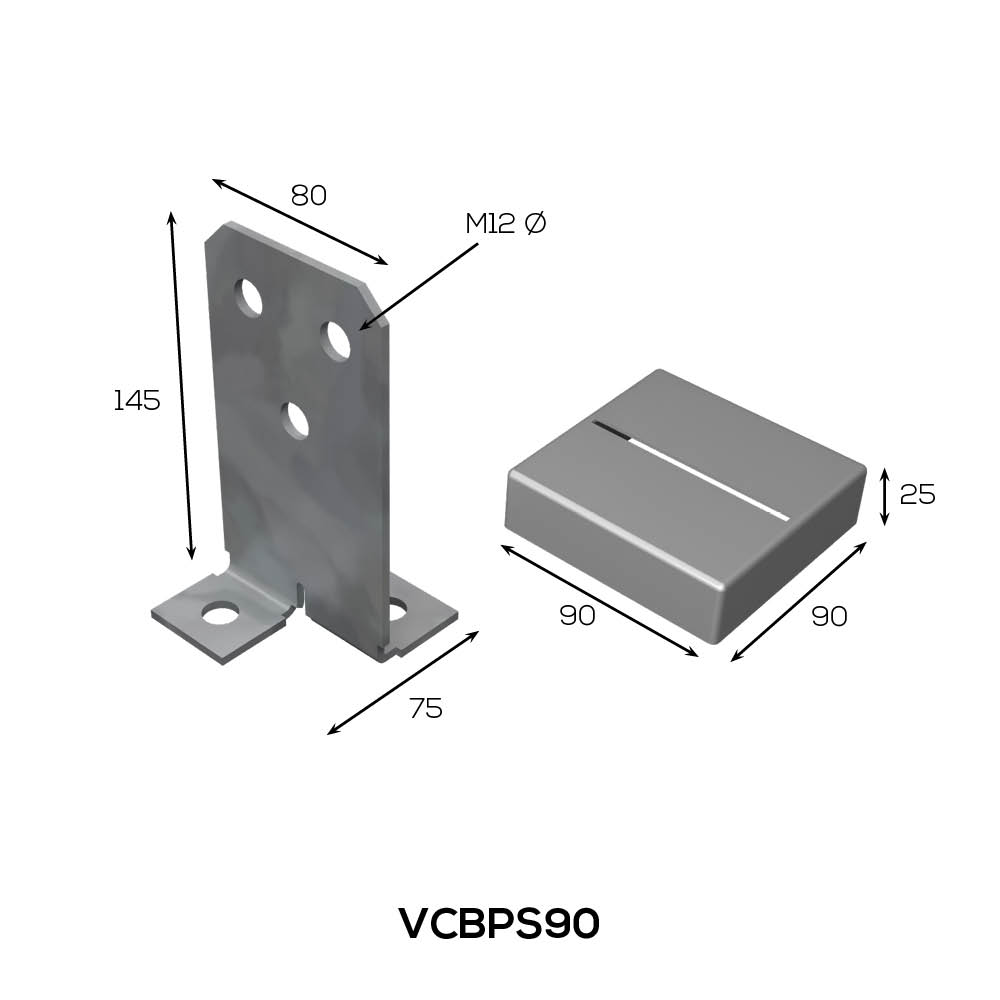

| VCBPS90 | 80mm W x 145mm H | 3.0mm | 90 - 100mm | M12 | 10 |
