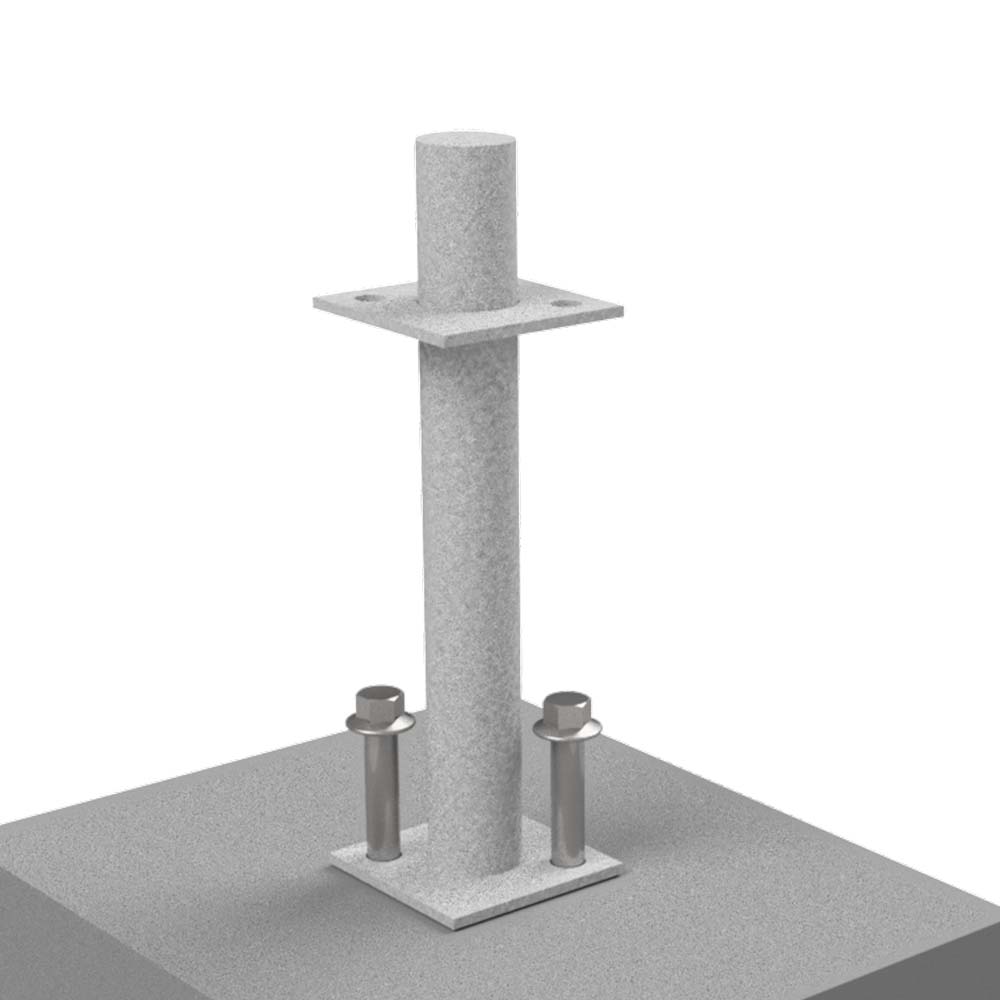

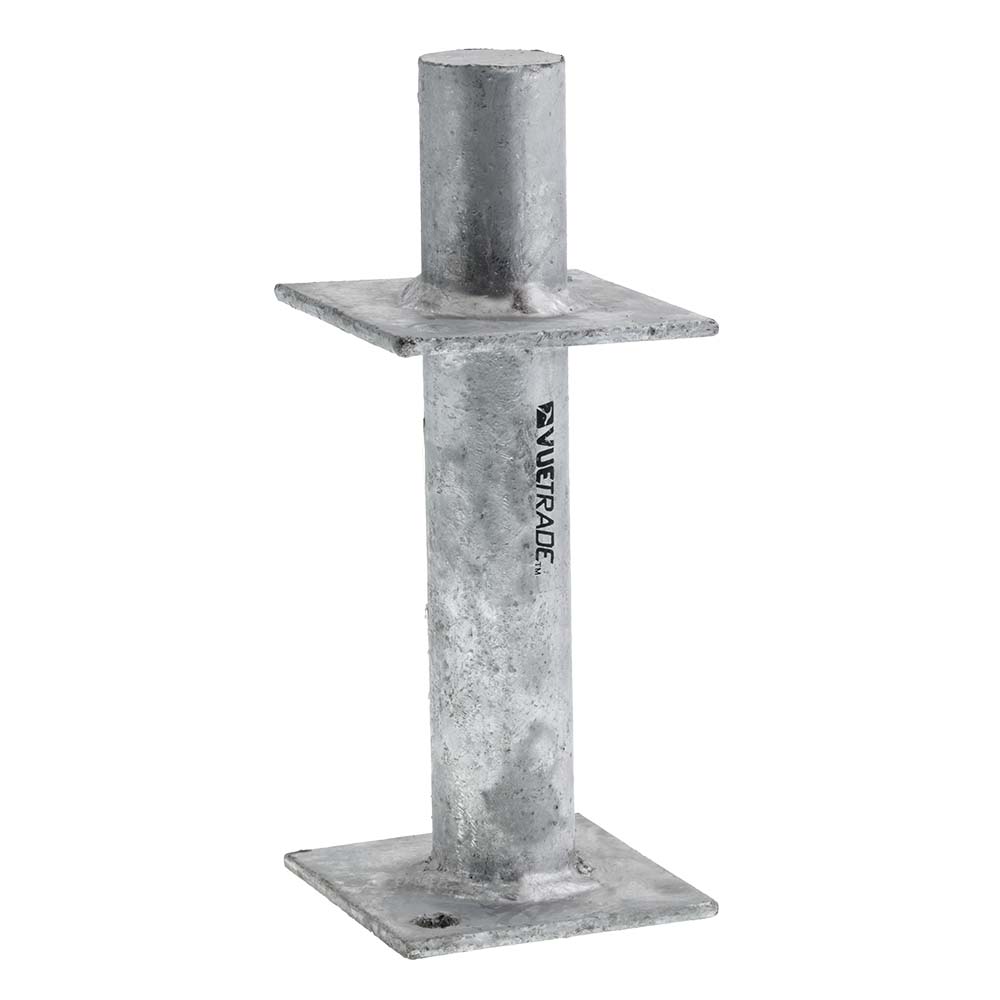

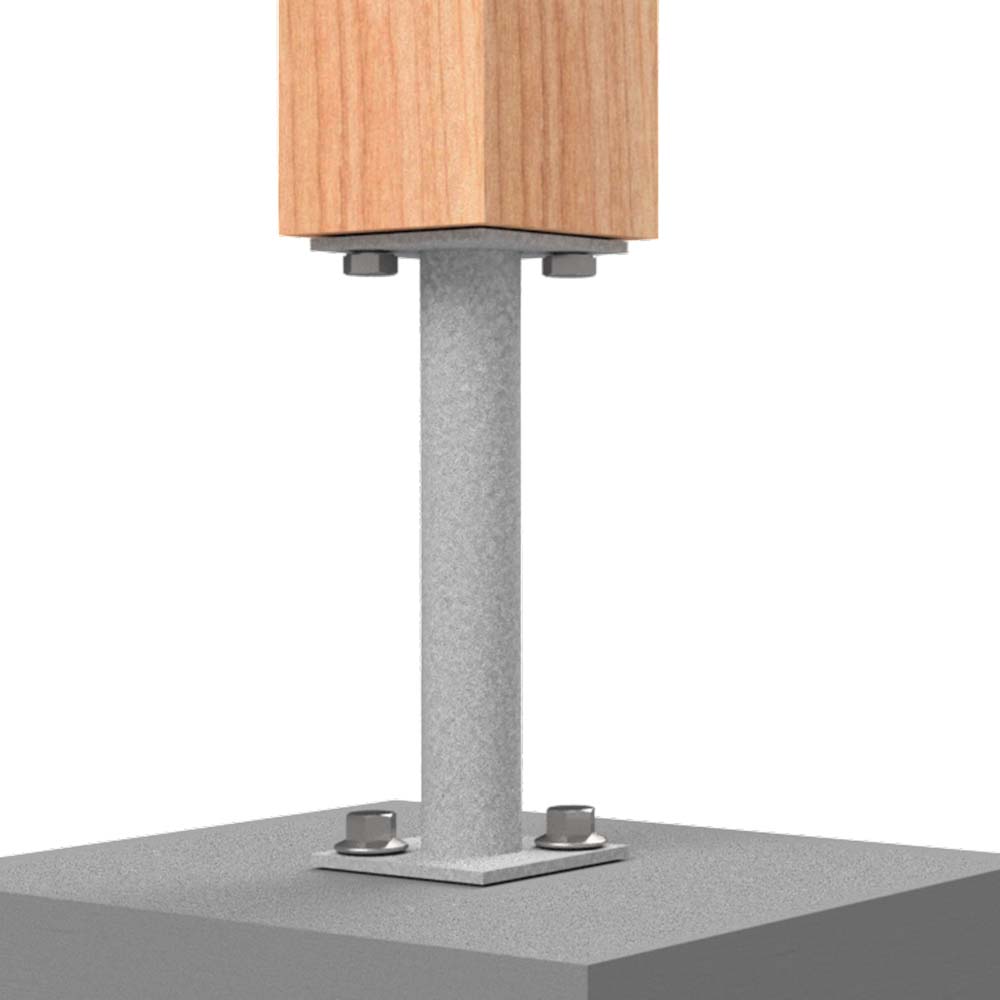

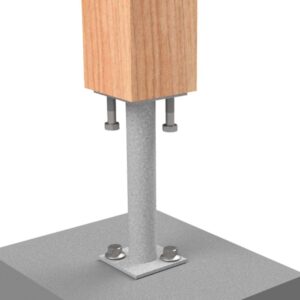

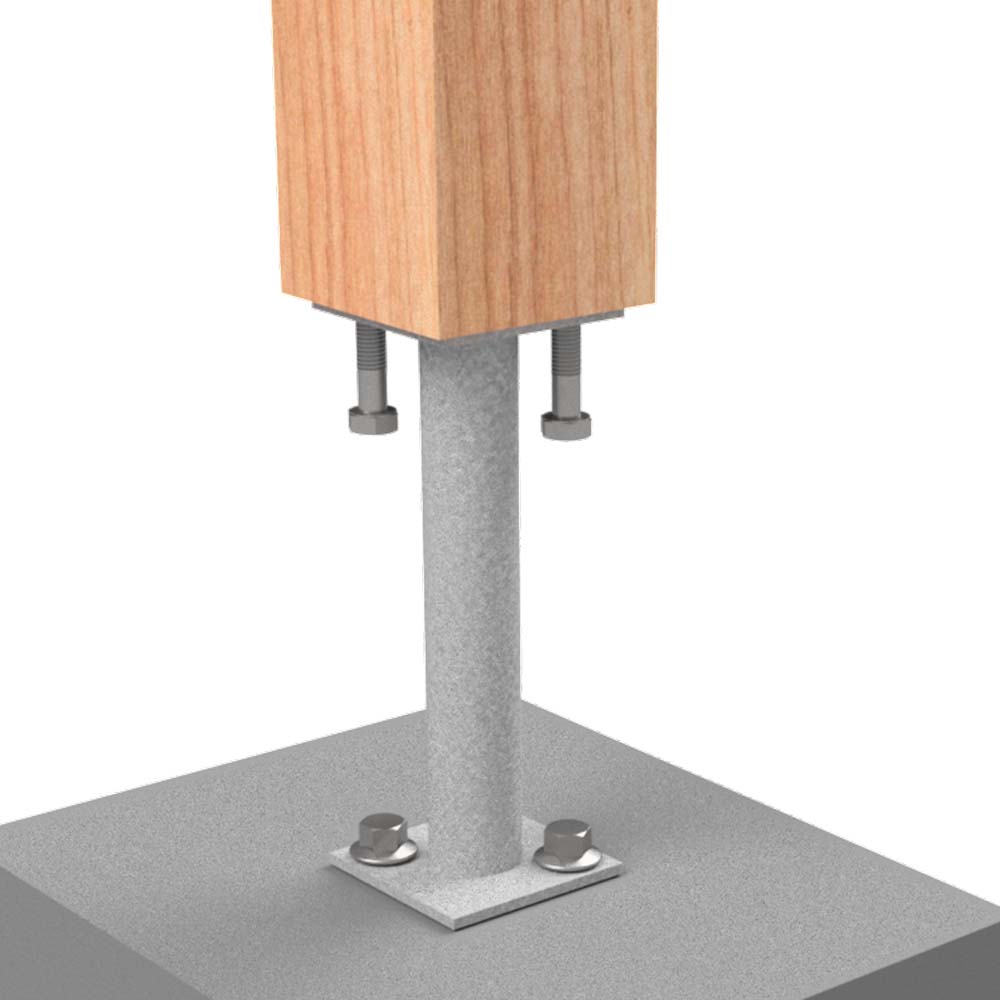

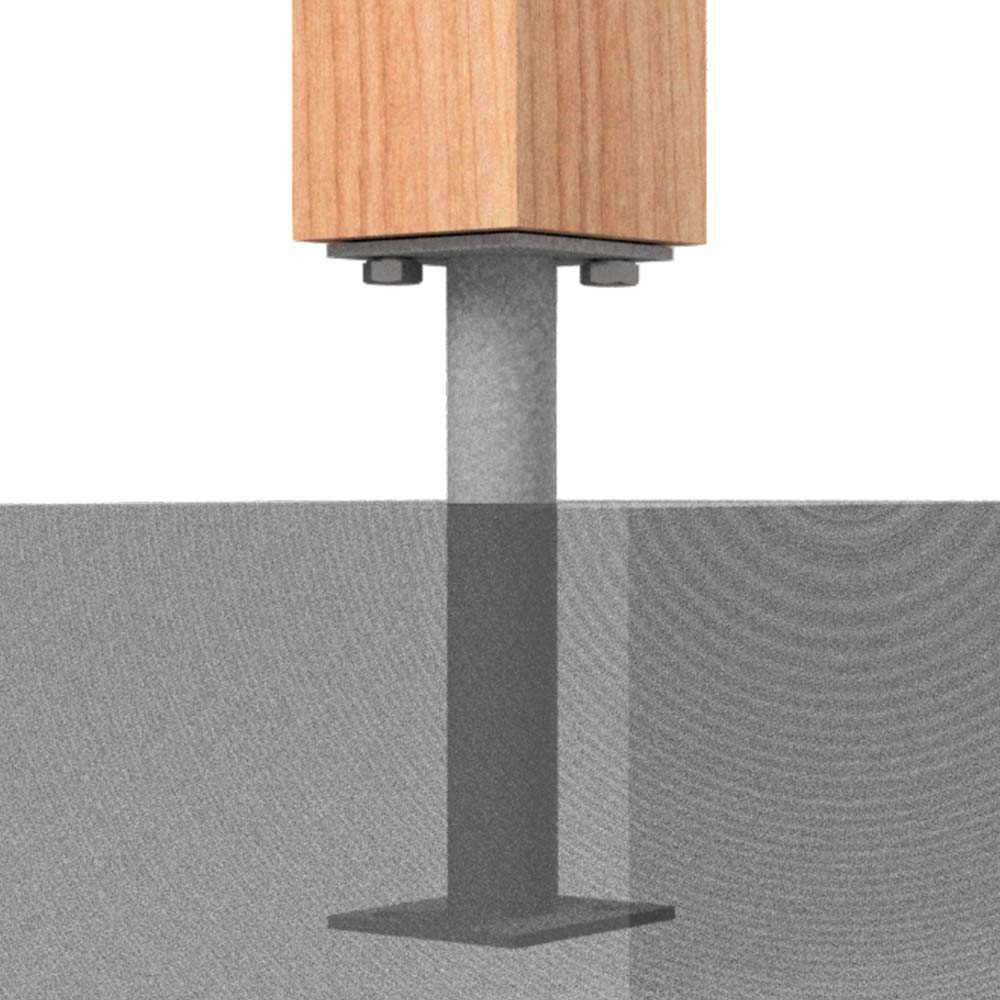

VUETRADE Pin Stirrup Post Supports are brackets ideal for holding timber posts in applications where the post support needs to be totally concealed.
• 32mm Solid Shaft, 2.0mm Thick
• Prevents timber posts from decay
• 4.0mm thick steel saddle
• Bolt Holes
2 x M10 (Base of Saddle)
2 x M12 (Base)
• Galvanised finish for durability and long-life
Warning: Check with your engineer or consult our technical data as centre pin post anchors may not achieve the correct ratings for some applications.
| Product Code(s) | Size | Metal Thickness | Box Qty |
|---|---|---|---|
| VPPS125 | 125mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |
| VPPS200 | 200mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |
| VPPS300 | 300mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |
