VUETRADE Structural HDG Brackets are multi-purpose equal right-angled brackets ideal for structural capacity connections.
• Suitable for variety of applications, internal and external at right angle joins
• Suitable for use with M12 or M16 bolts for high strength connection
• 5.0, 6.0, or 8.0mm thick steel for extra strength
• Made from Mild Steel
• Available in a range of sizes
• Galvanised finish for durability and long-life
| Product Code(s) | Size | Metal Thickness (t) | Bolt/Fixing Size | Box Qty |
|---|---|---|---|---|

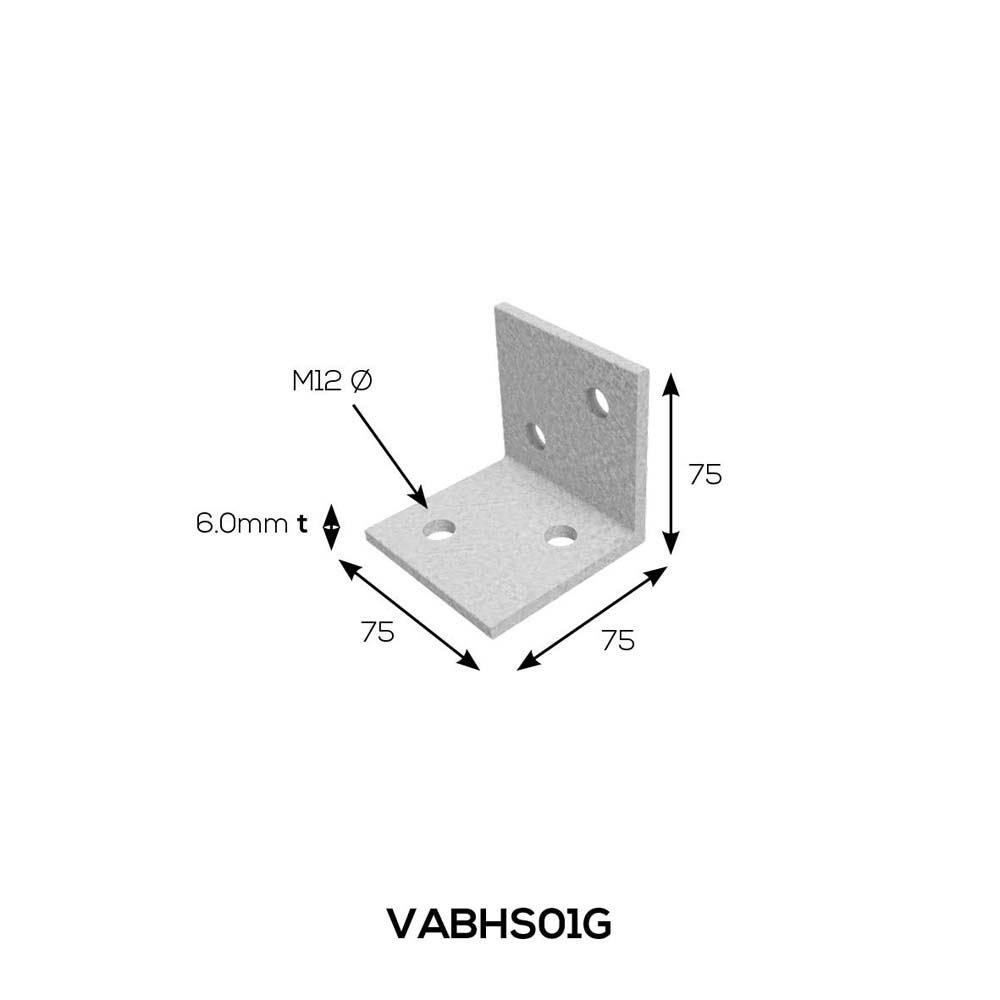

| VABHS01G | 75L x 75W x 75H | 6.0mm | M12 | 10 |

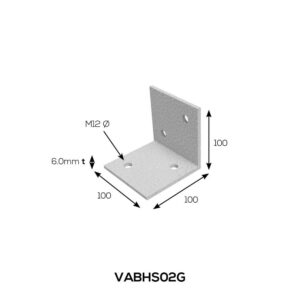

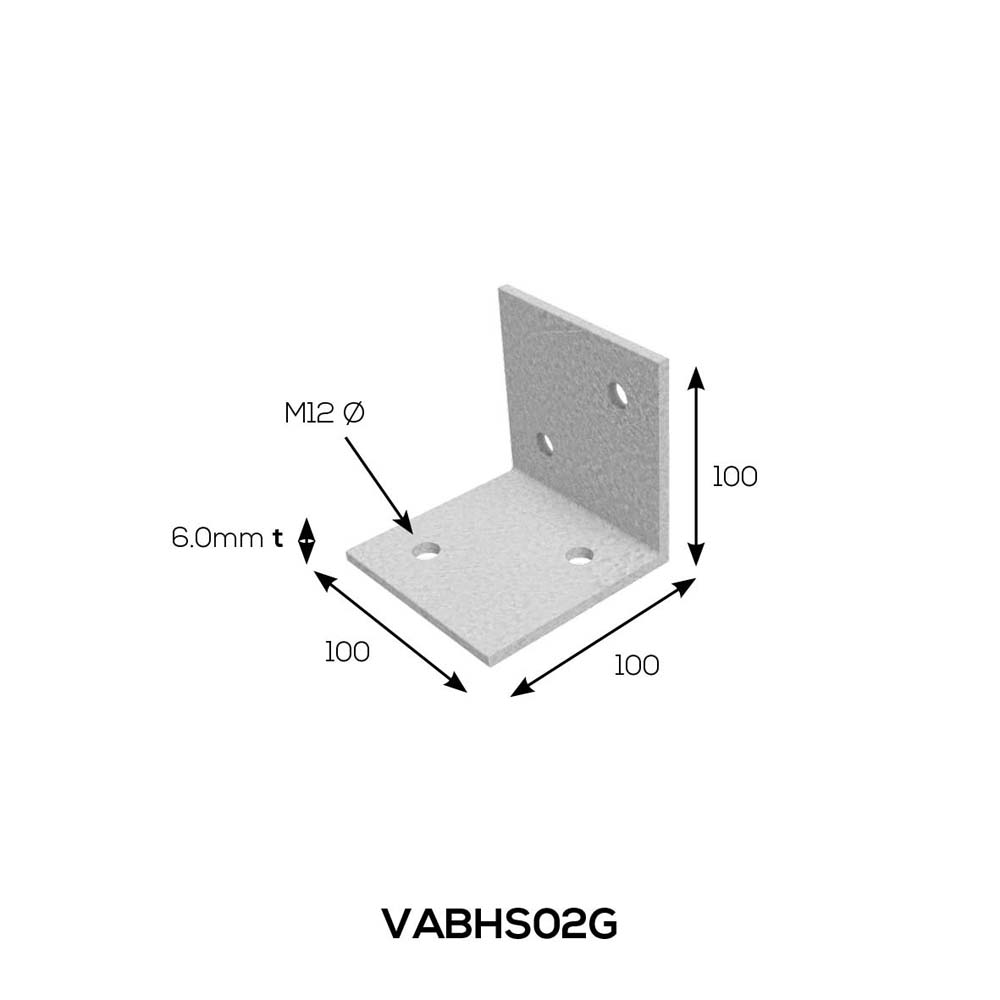

| VABHS02G | 100L x 100W x 100H | 6.0mm | M12 | 10 |

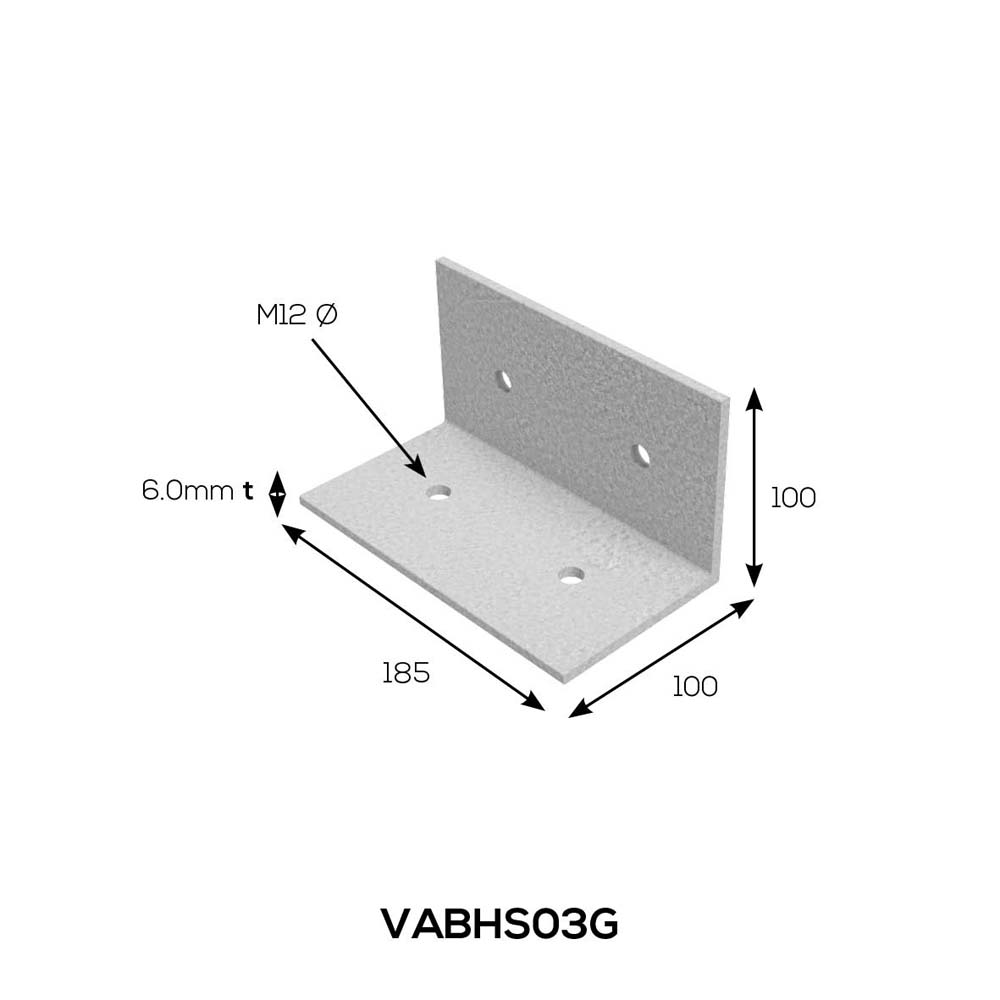

| VABHS03G | 185L x 100W x 100H | 6.0mm | M12 | 10 |

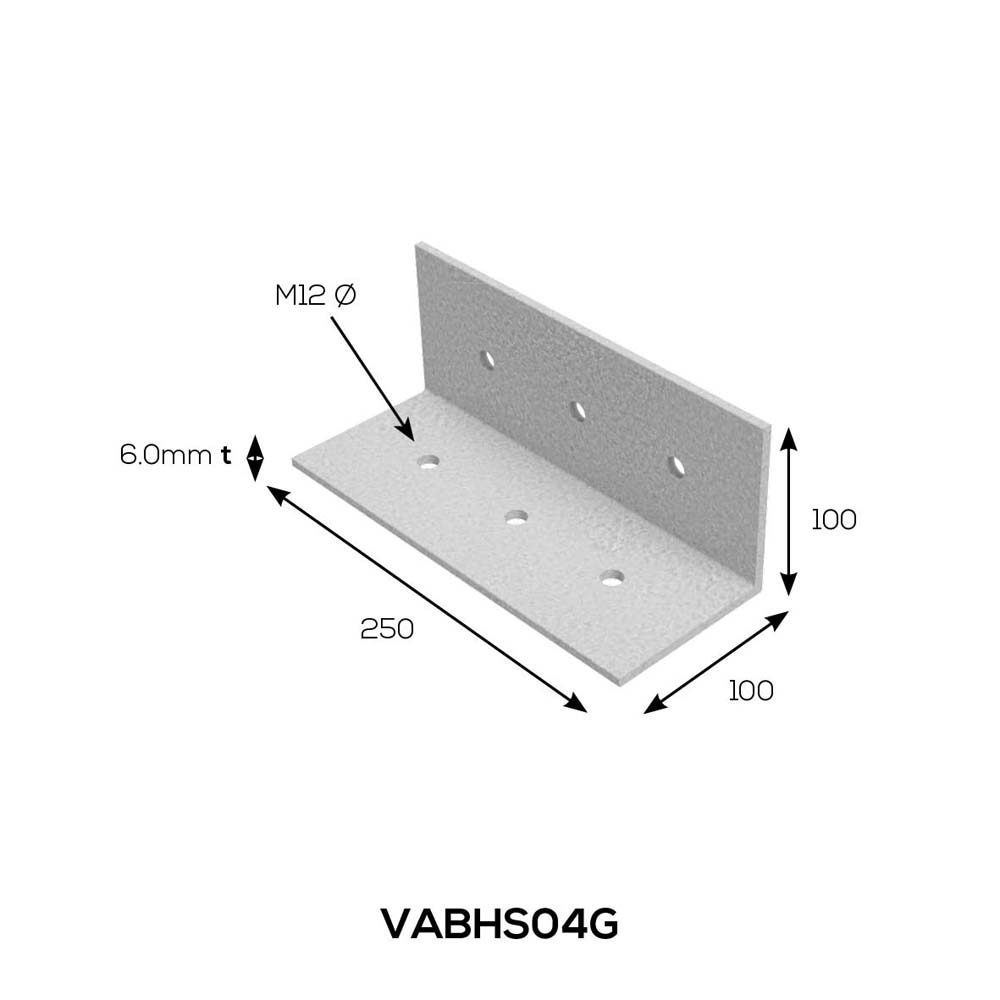

| VABHS04G | 250L x 100W x 100H | 6.0mm | M12 | 6 |

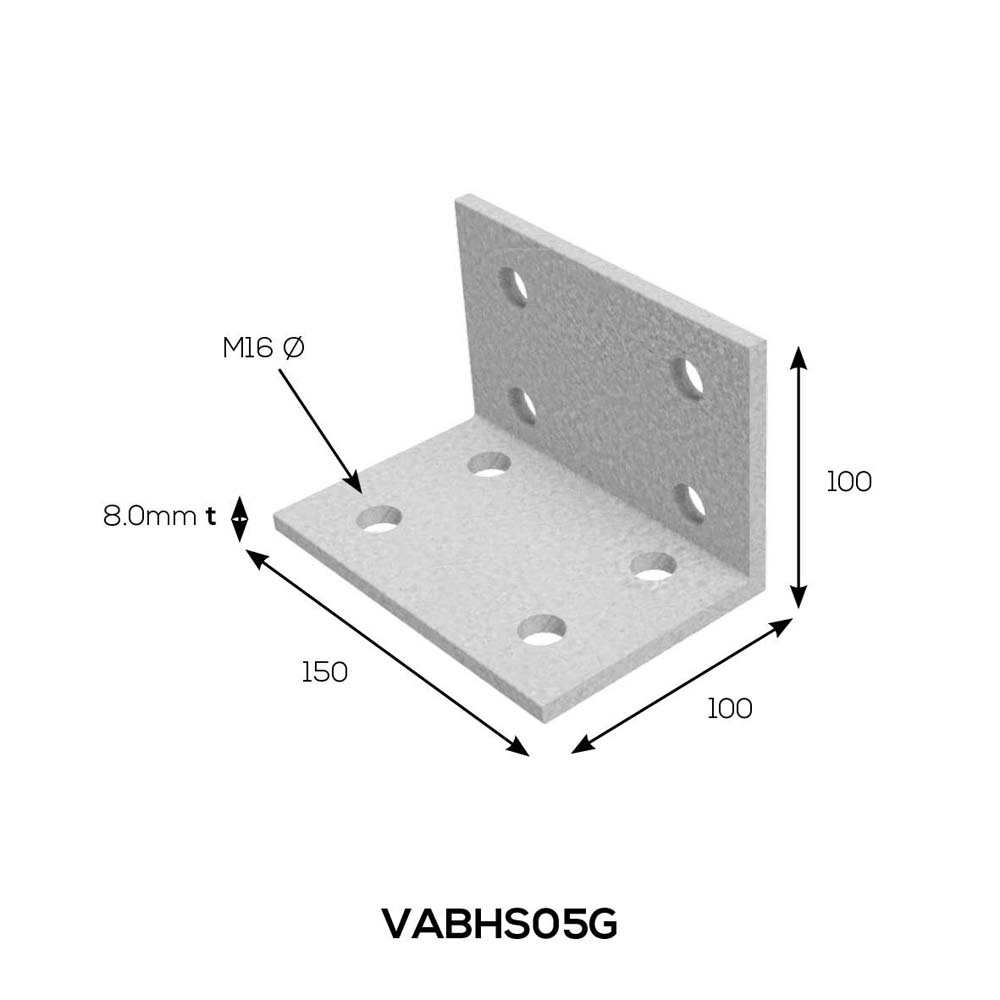

| VABHS05G | 150L x 100W x 100H | 8.0mm | M16 | 6 |

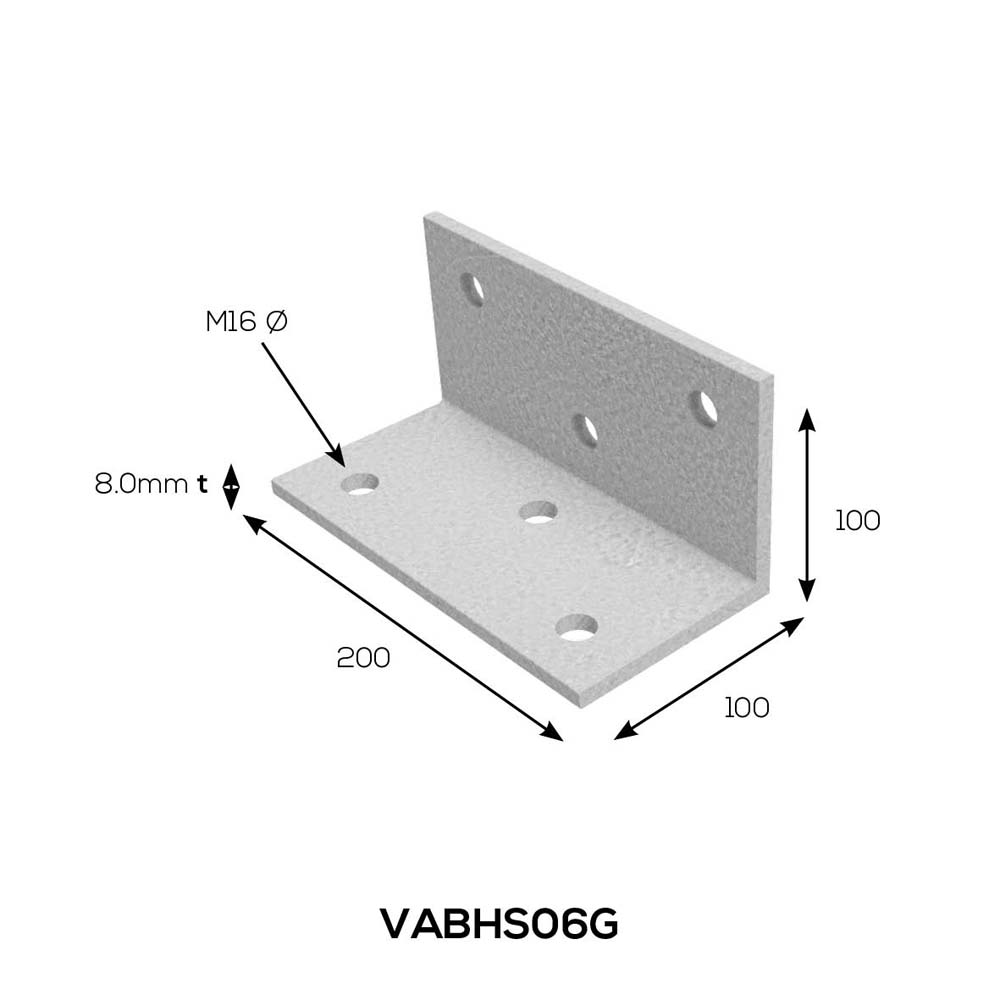

| VABHS06G | 200L x 100W x 100H | 8.0mm | M16 | 6 |

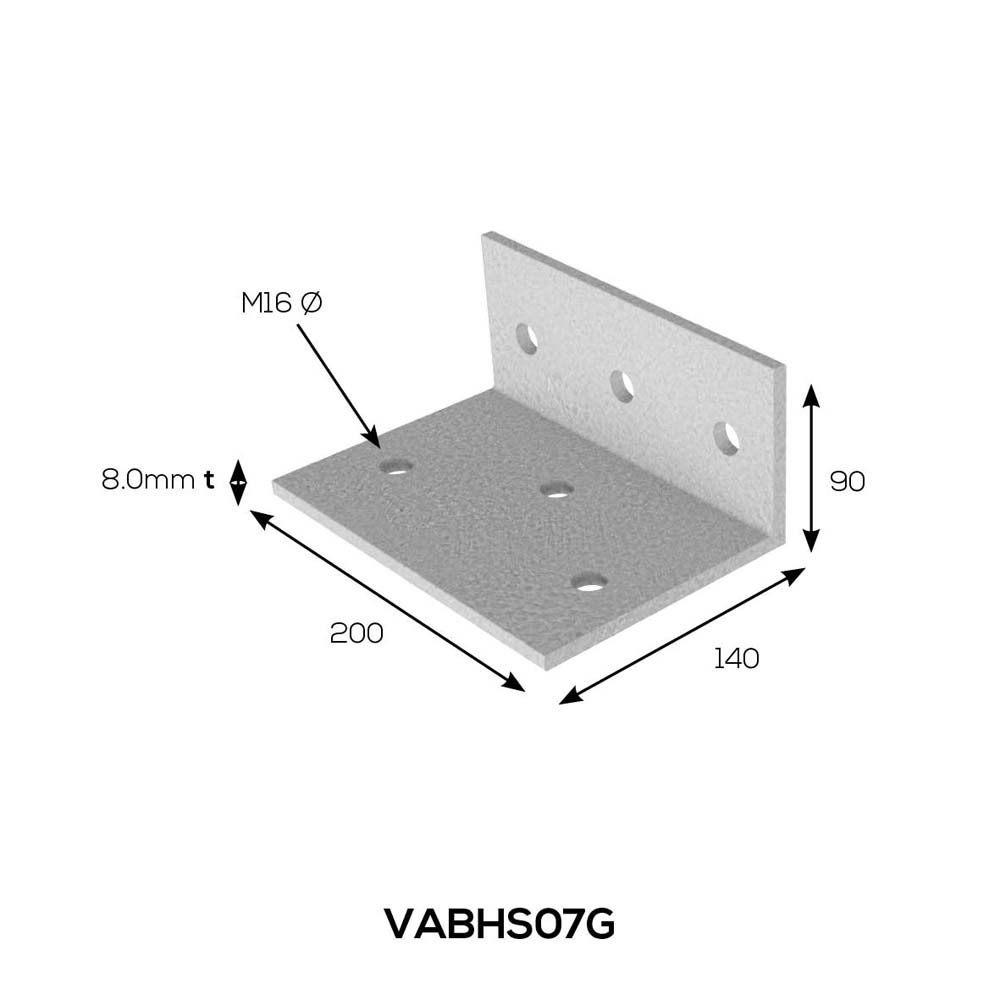

| VABHS07G | 200L x 140W x 90H | 8.0mm | M16 | 6 |

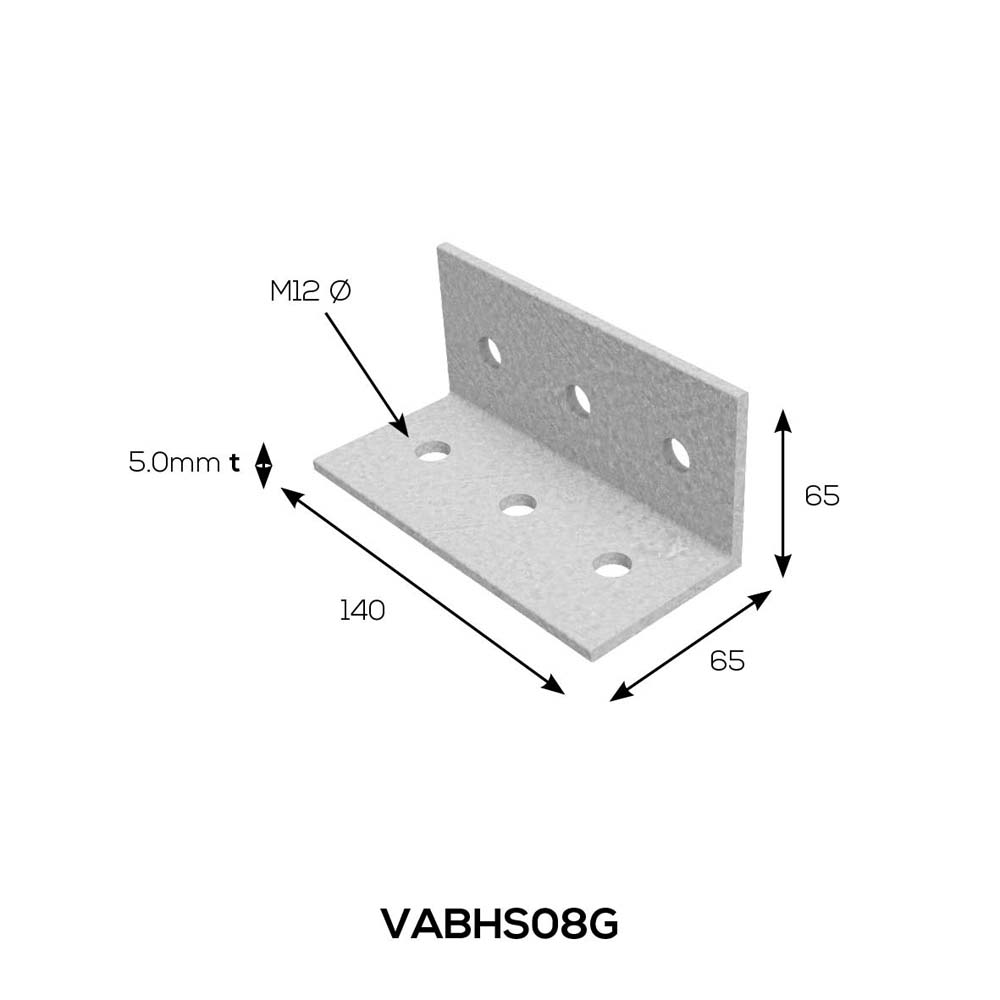

| VABHS08G | 140L x 65W x 65H | 5.0mm | M12 | 10 |

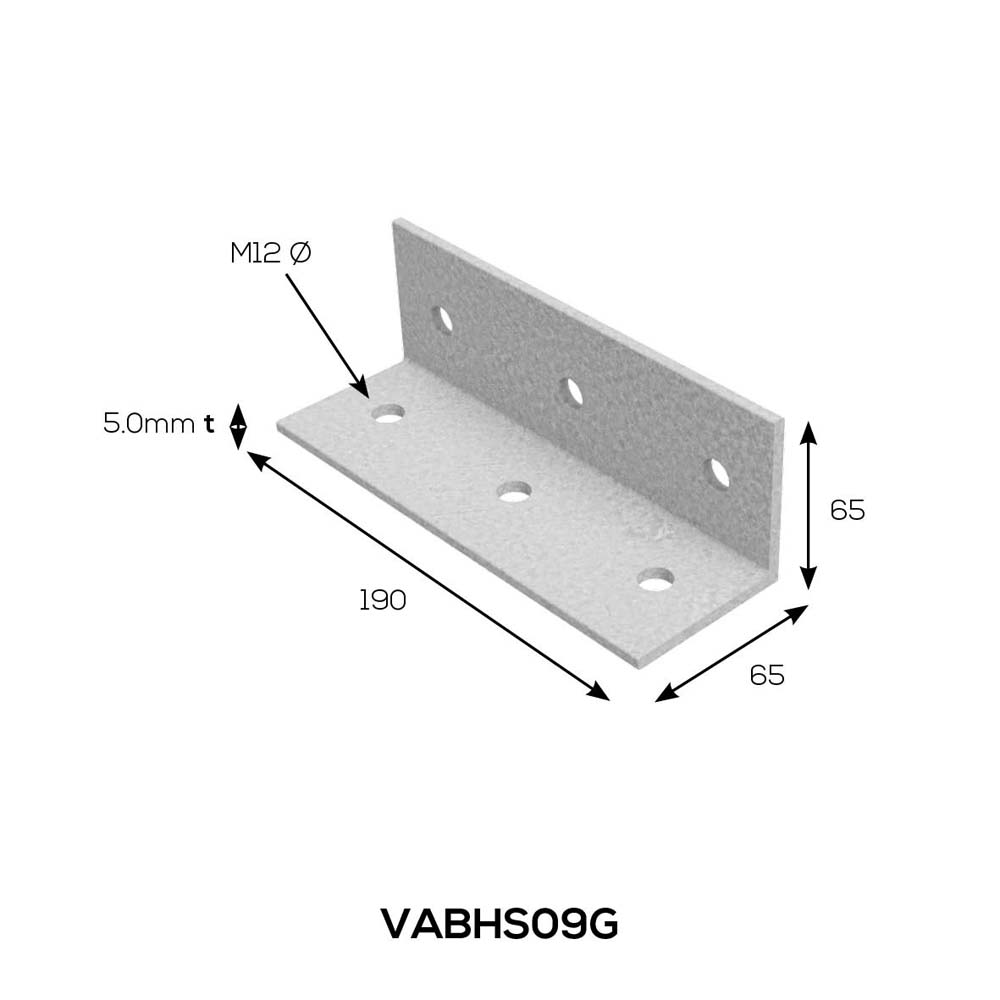

| VABHS09G | 190L x 65W x 65H | 5.0mm | M12 | 10 |

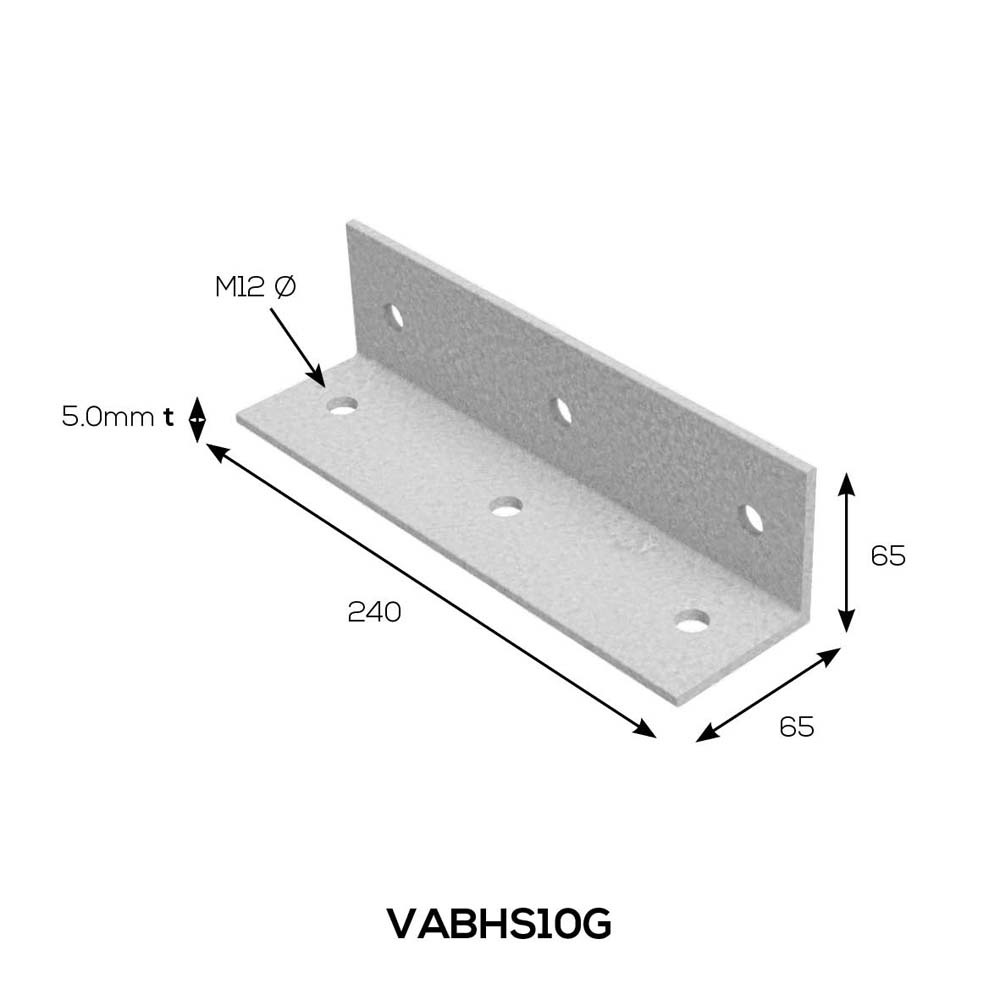

| VABHS10G | 240L x 65W x 65H | 5.0mm | M12 | 10 |

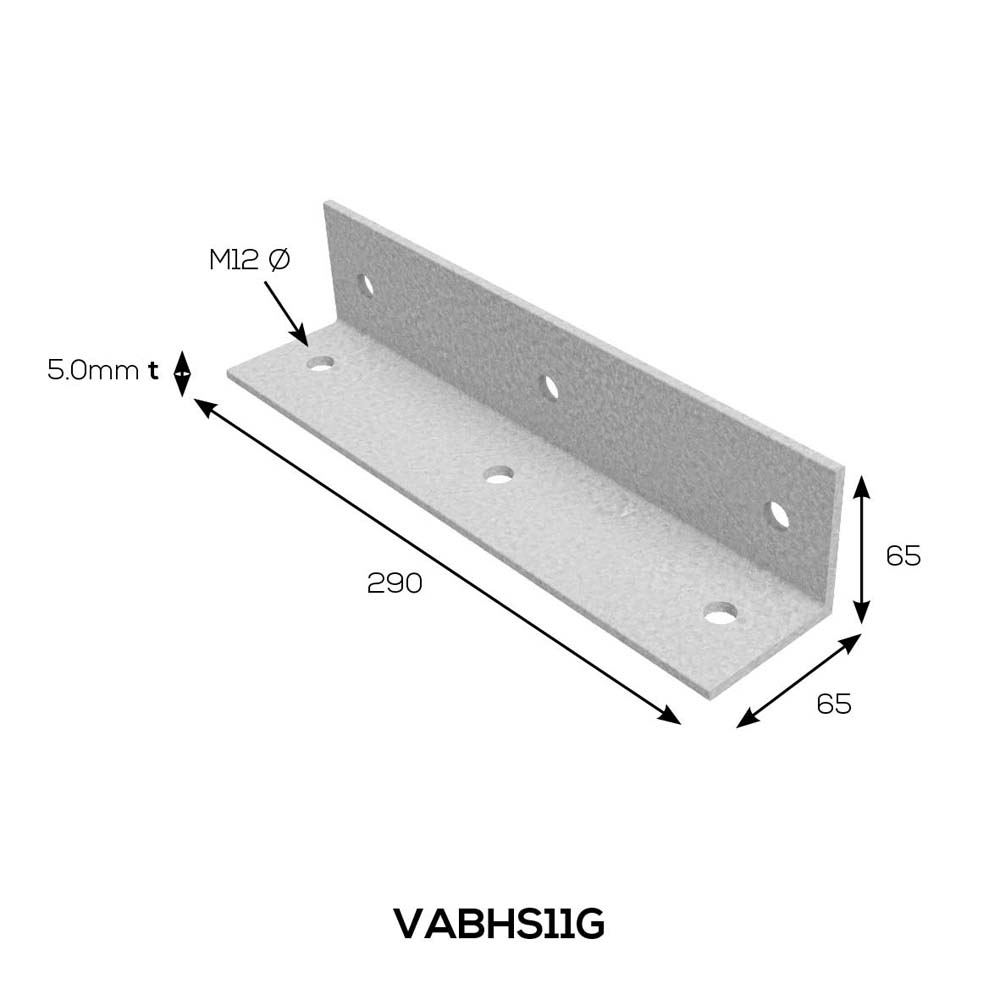

| VABHS11G | 290L x 65W x 65H | 5.0mm | M12 | 10 |

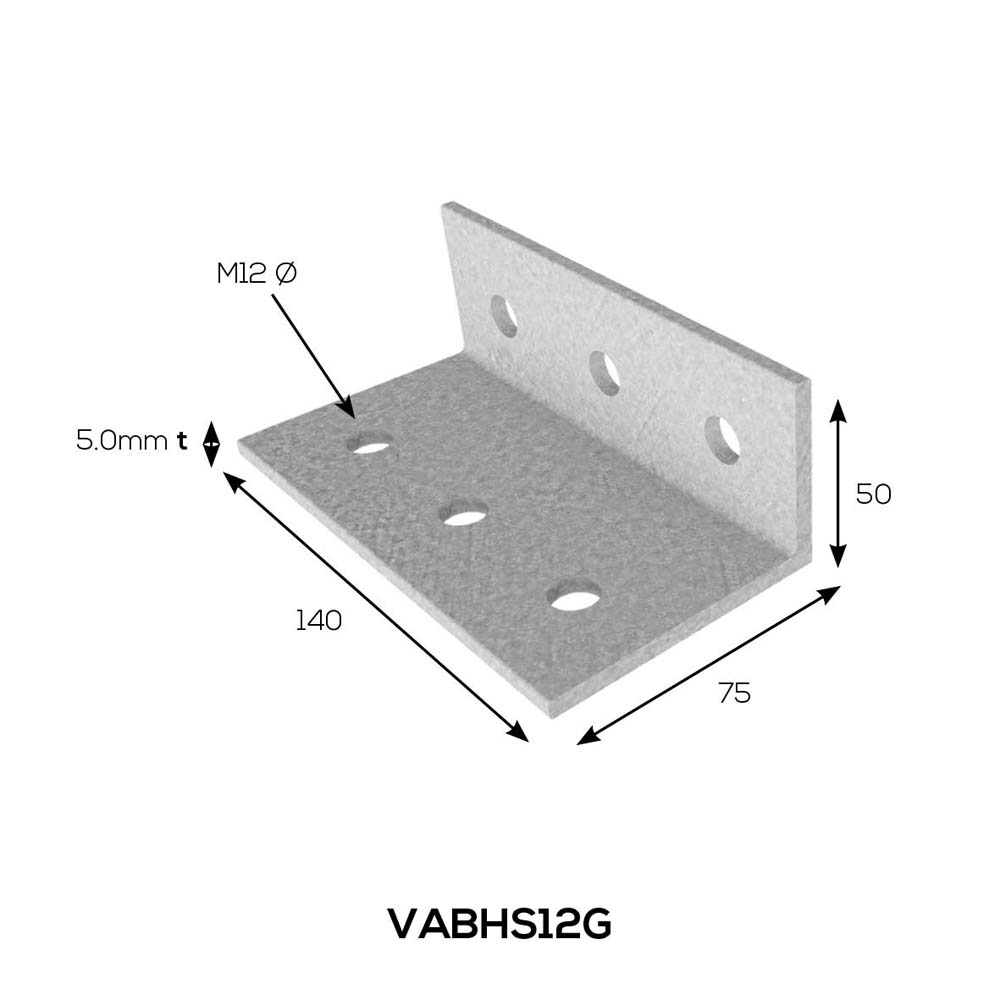

| VABHS12G | 140L x 75W x 50H Unequal | 5.0mm | M12 | 10 |

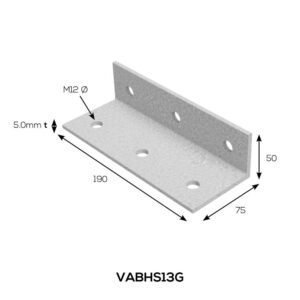

| VABHS13G | 190L x 75W x 50H Unequal | 5.0mm | M12 | 10 |

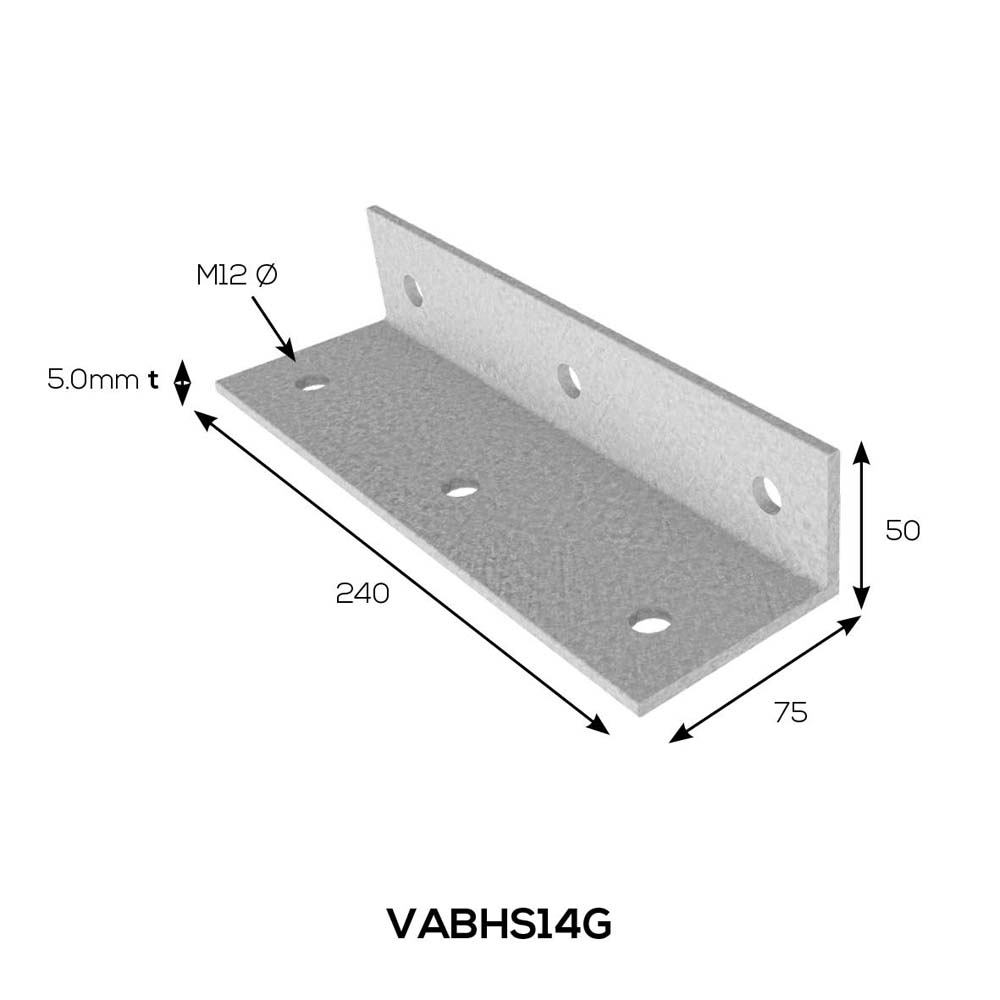

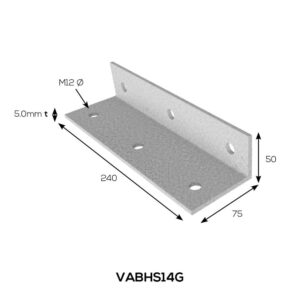

| VABHS14G | 240L x 75W x 50H Unequal | 5.0mm | M12 | 10 |

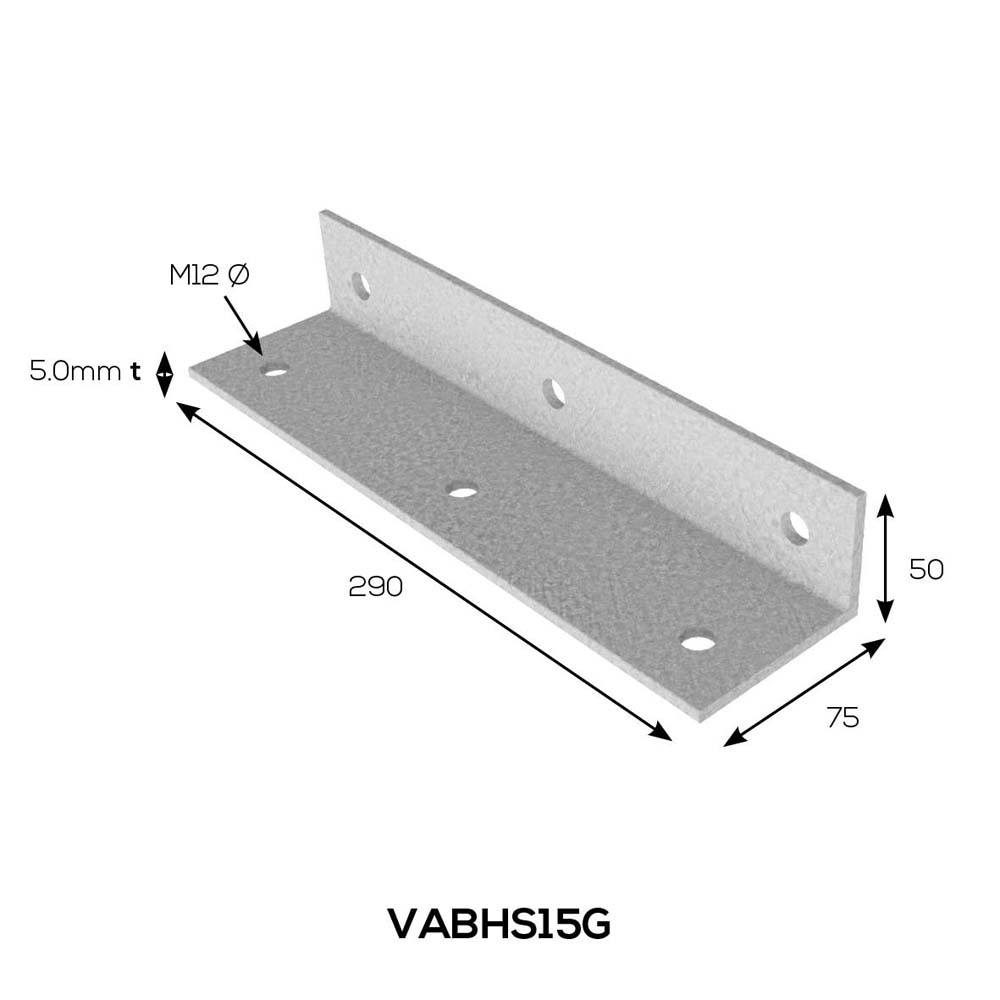

| VABHS15G | 290L x 75W x 50H Unequal | 5.0mm | M12 | 10 |
