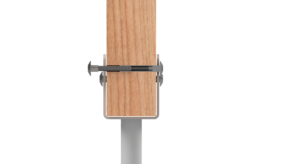

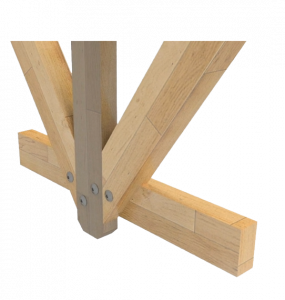

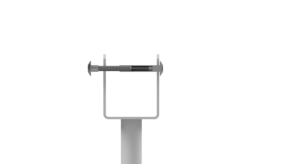

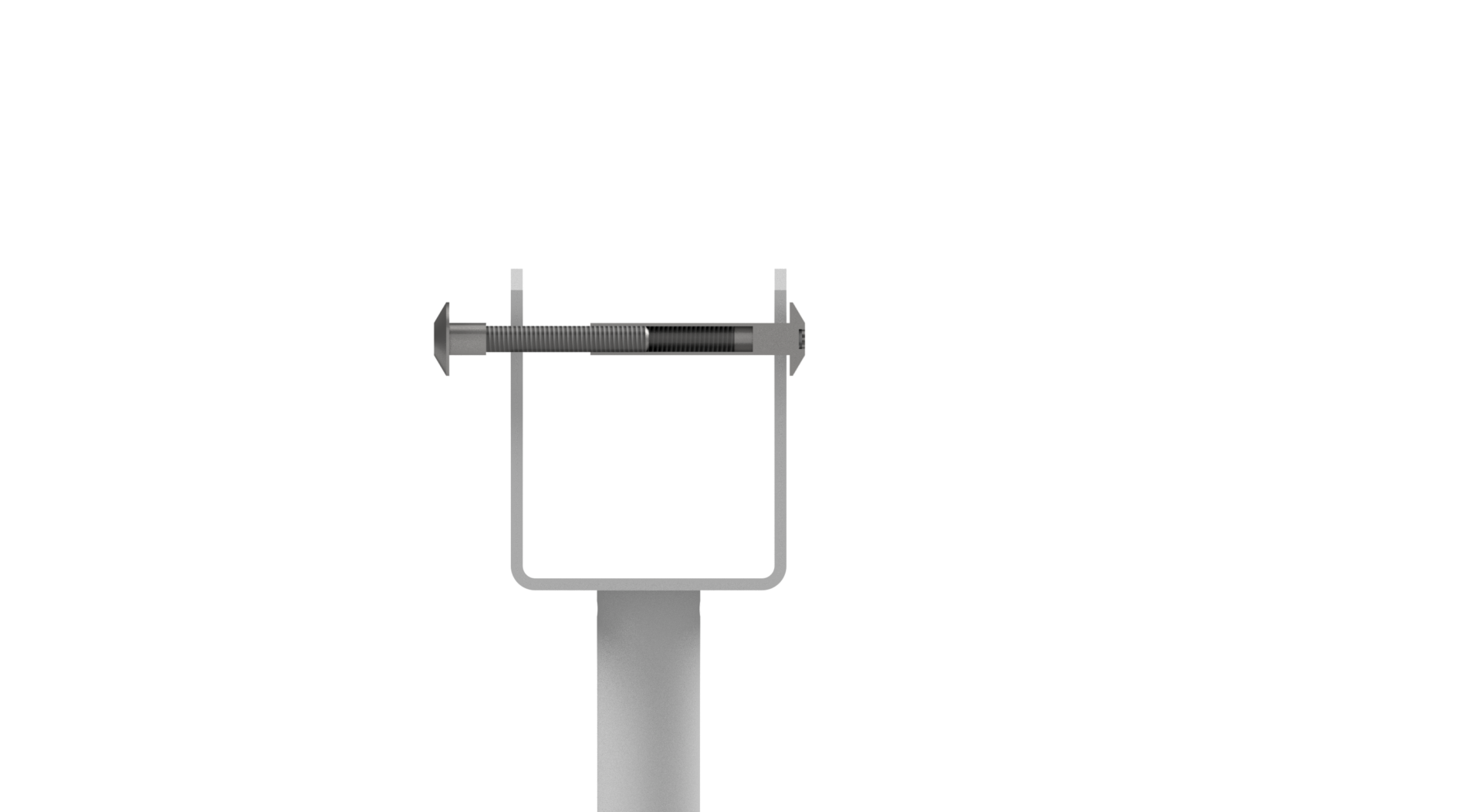

VUEBOLT Post Support Bolts are concealed thread bolts ideal for fixing post supports with a quick, neat and concealed finish.
Also available in Stainless Steel or BLACKOUT black powder coated.
• Concealed thread with male and female bolt – neat finish
• Easy installation with T50 drive head
• Strong, compliant and durable
• Excellent corrosion protection
Warning: Always ensure that bolt holes are drilled fully through the timber post to obtain the recommended capacity.

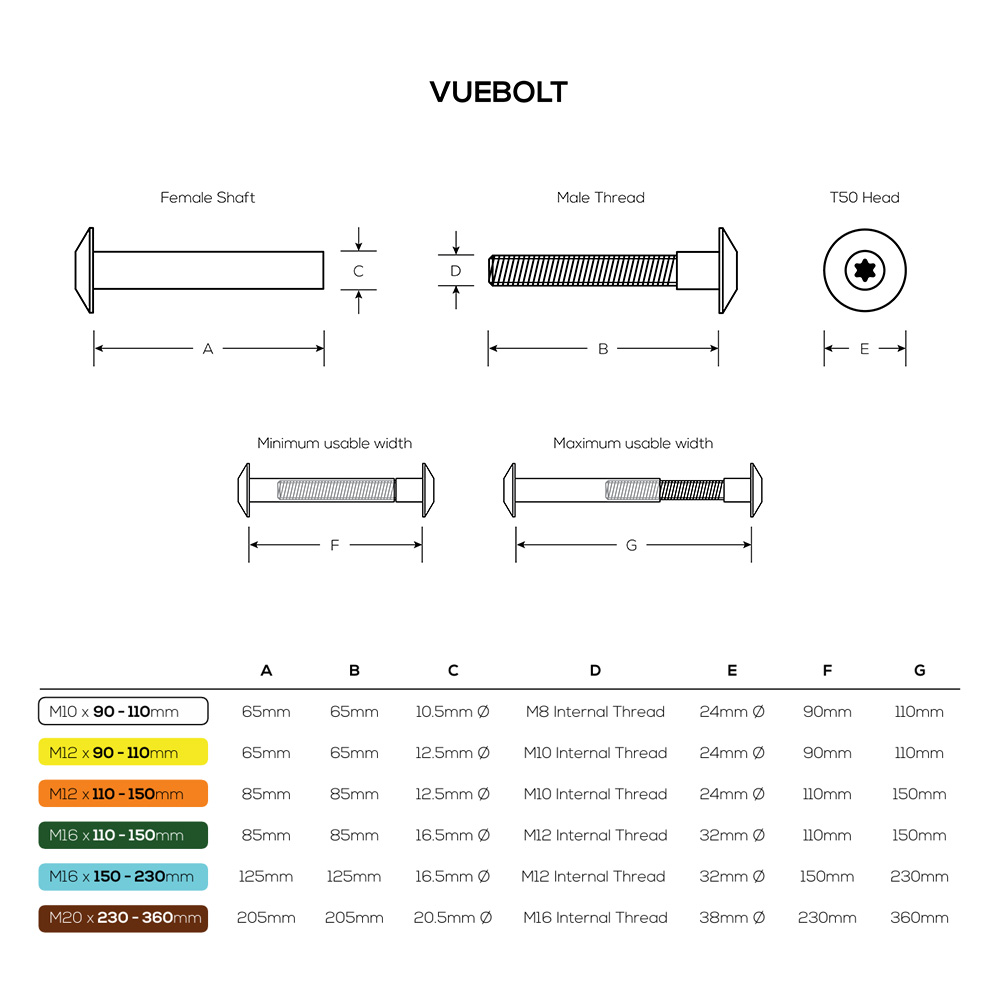

| Product Code(s) | Detail | Fits Post Size |
|---|---|---|

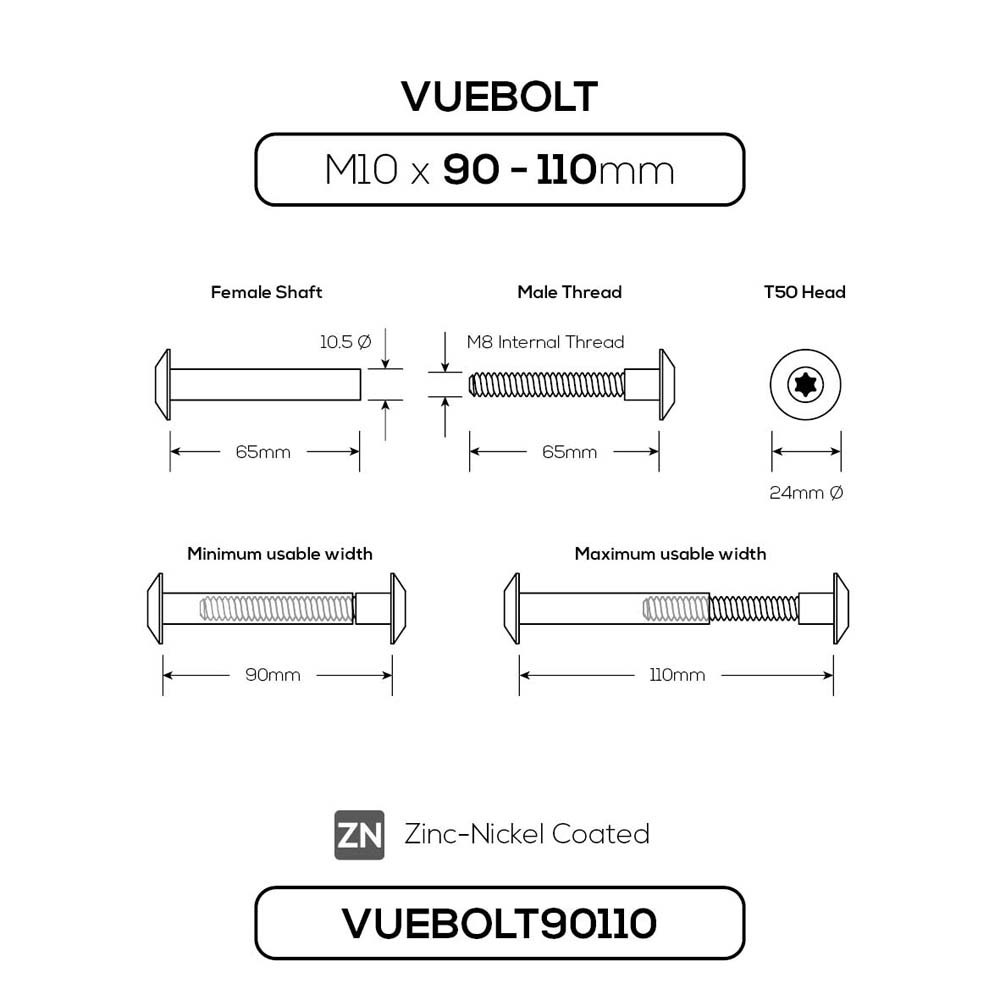

| VUEBOLT90110 | M10 Shaft Card of 2 | 90-110mm |
| VUEBOLT90110HD | Heavy Duty M12 Shaft Card of 2 | 90-110mm |

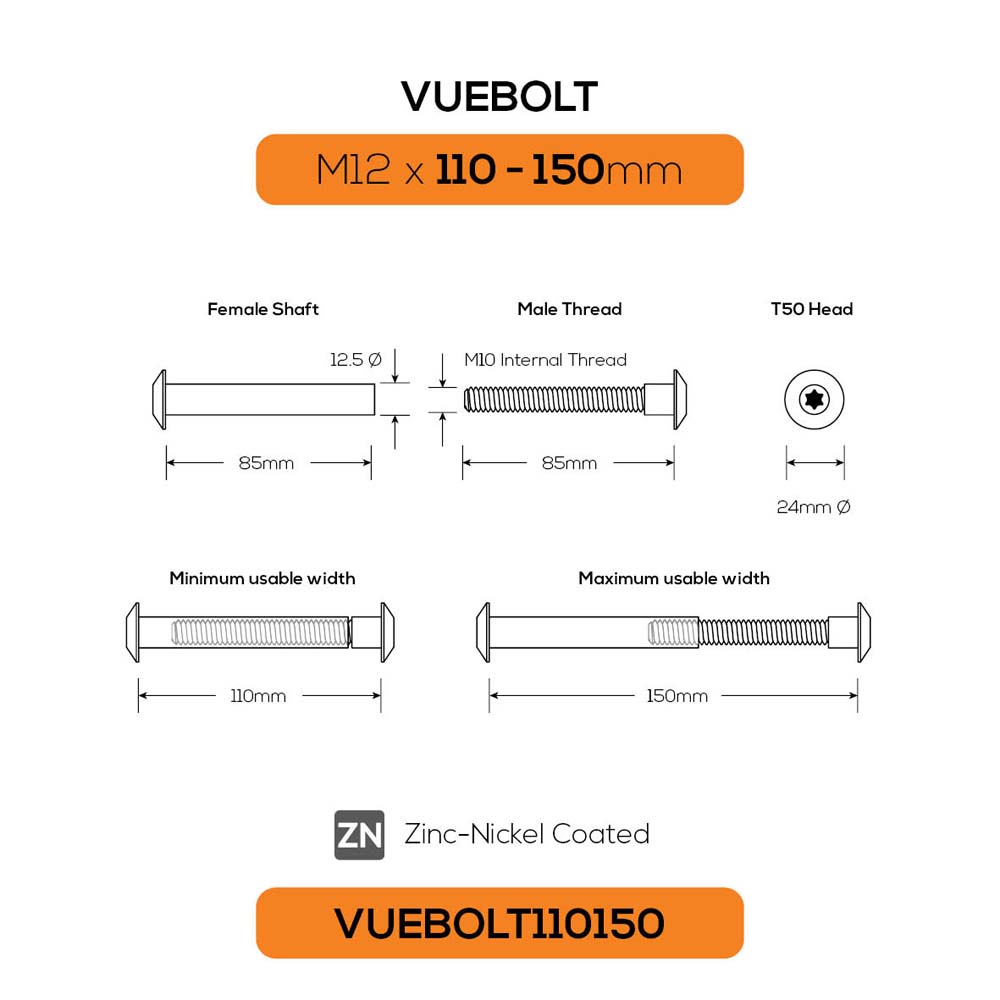

| VUEBOLT110150 | M12 Shaft Card of 2 | 110-150mm |

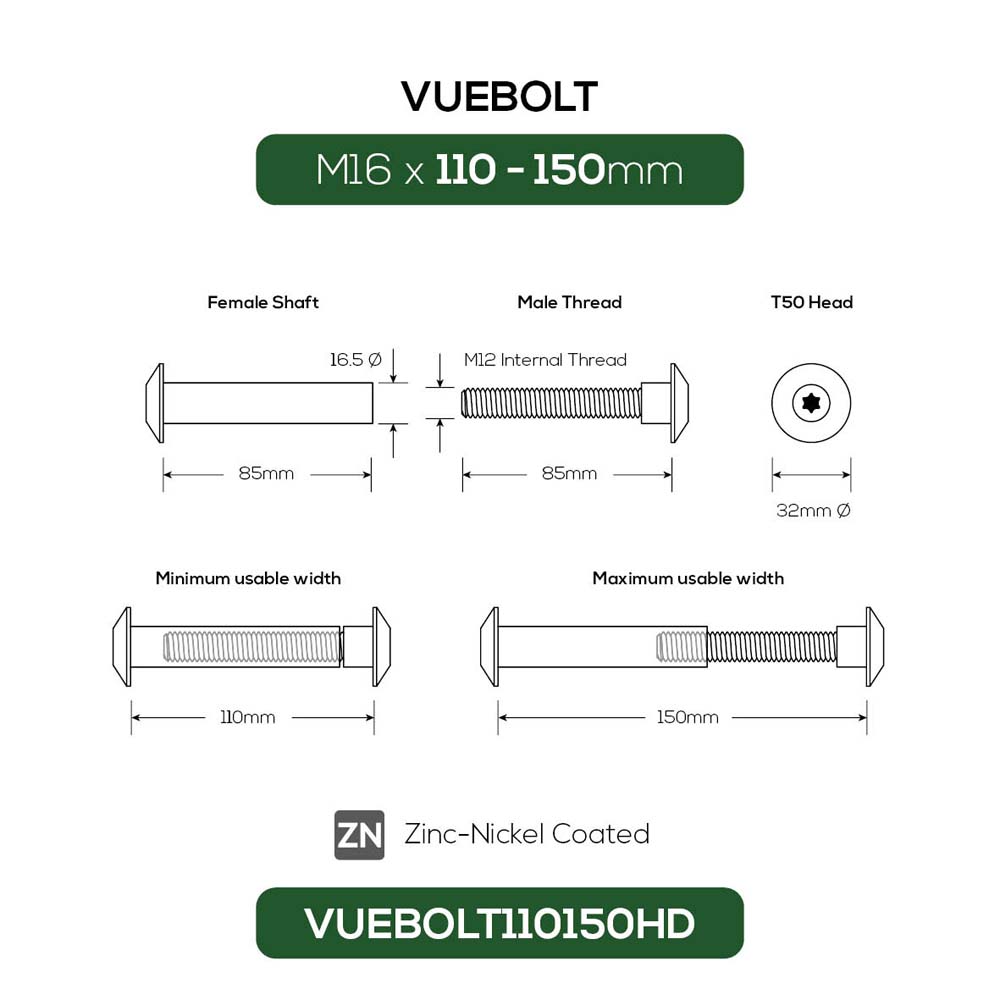

| VUEBOLT110150HD | Heavy Duty M16 Shaft Card of 2 | 110-150mm |
| VUEBOLT150230 | M16 Shaft Card of 2 | 150-230mm |

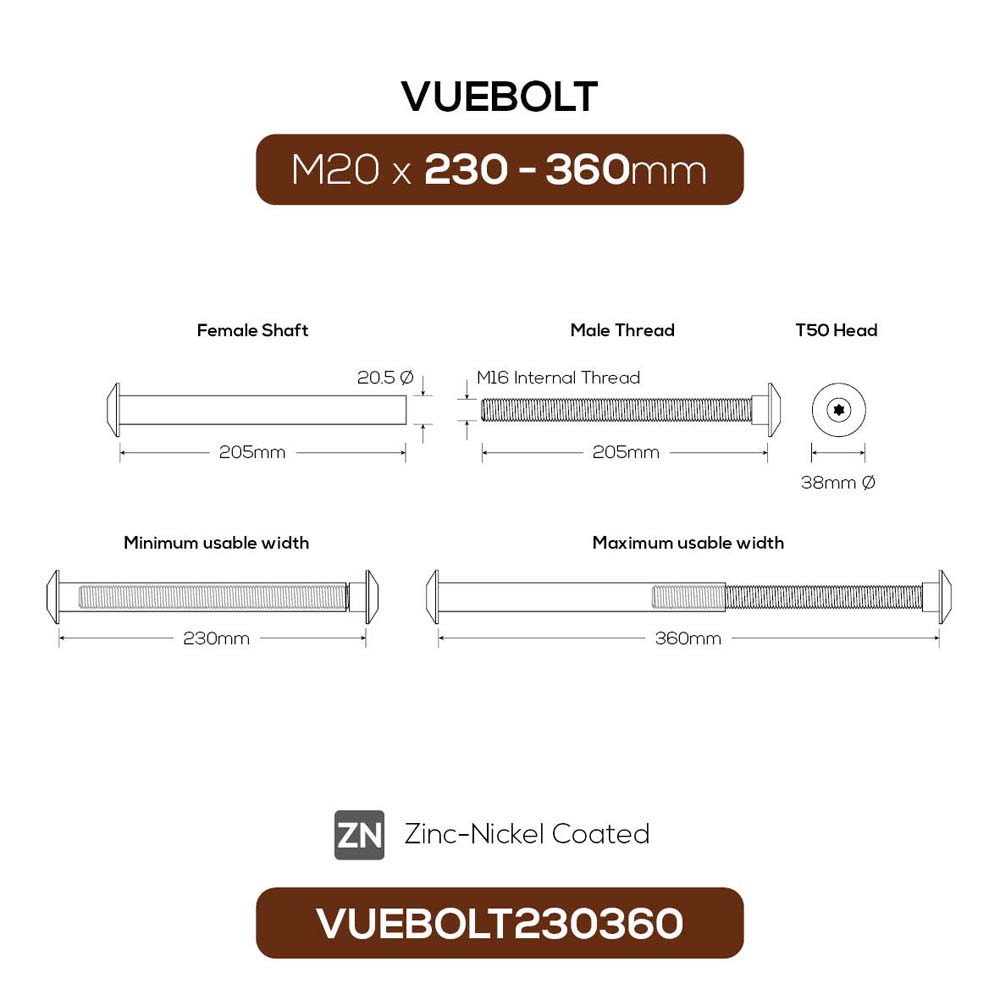

| VUEBOLT230360 | M20 Shaft Card of 1 | 230-360mm |
