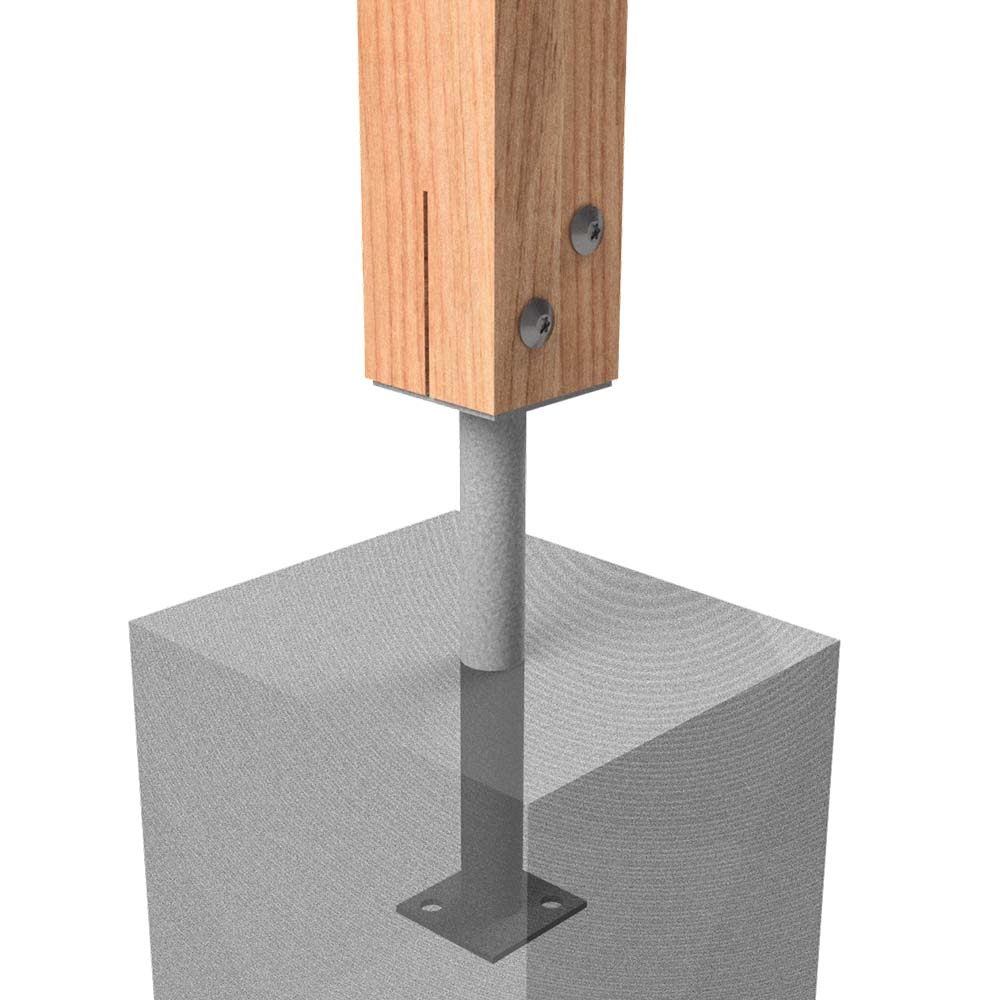

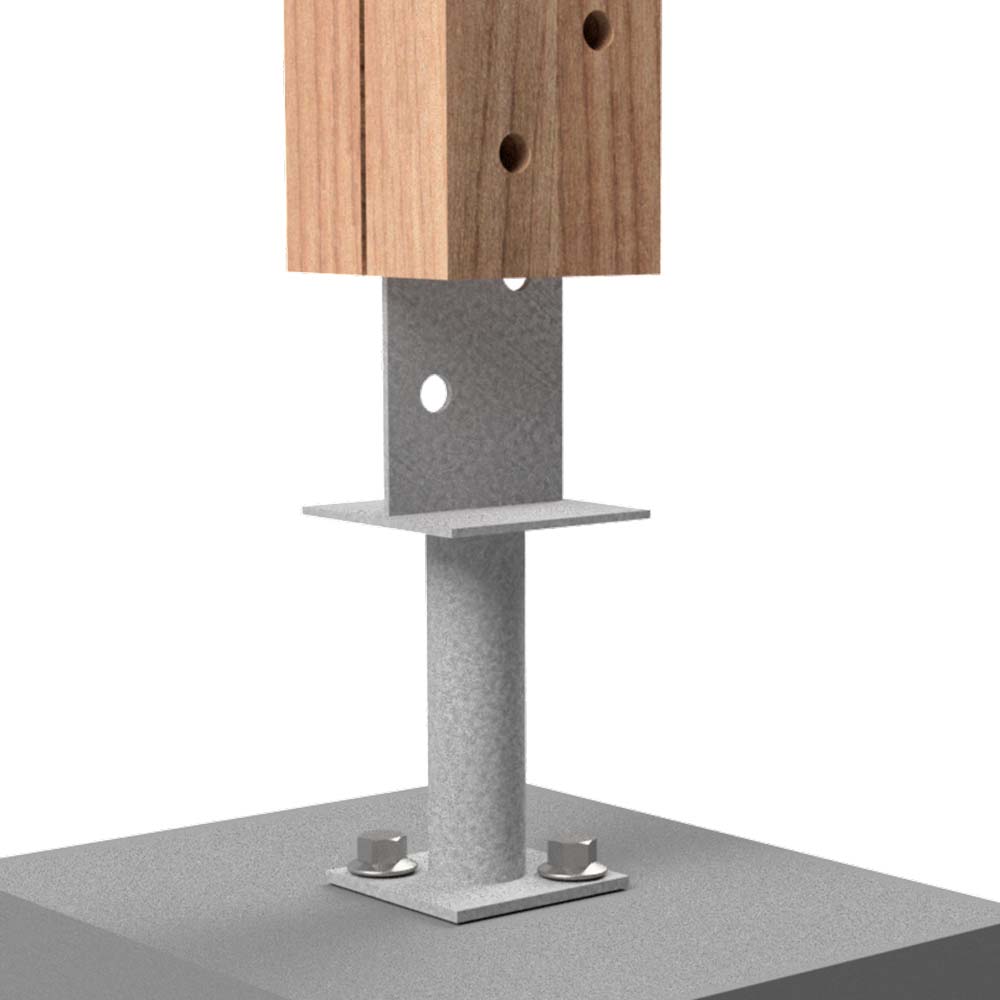

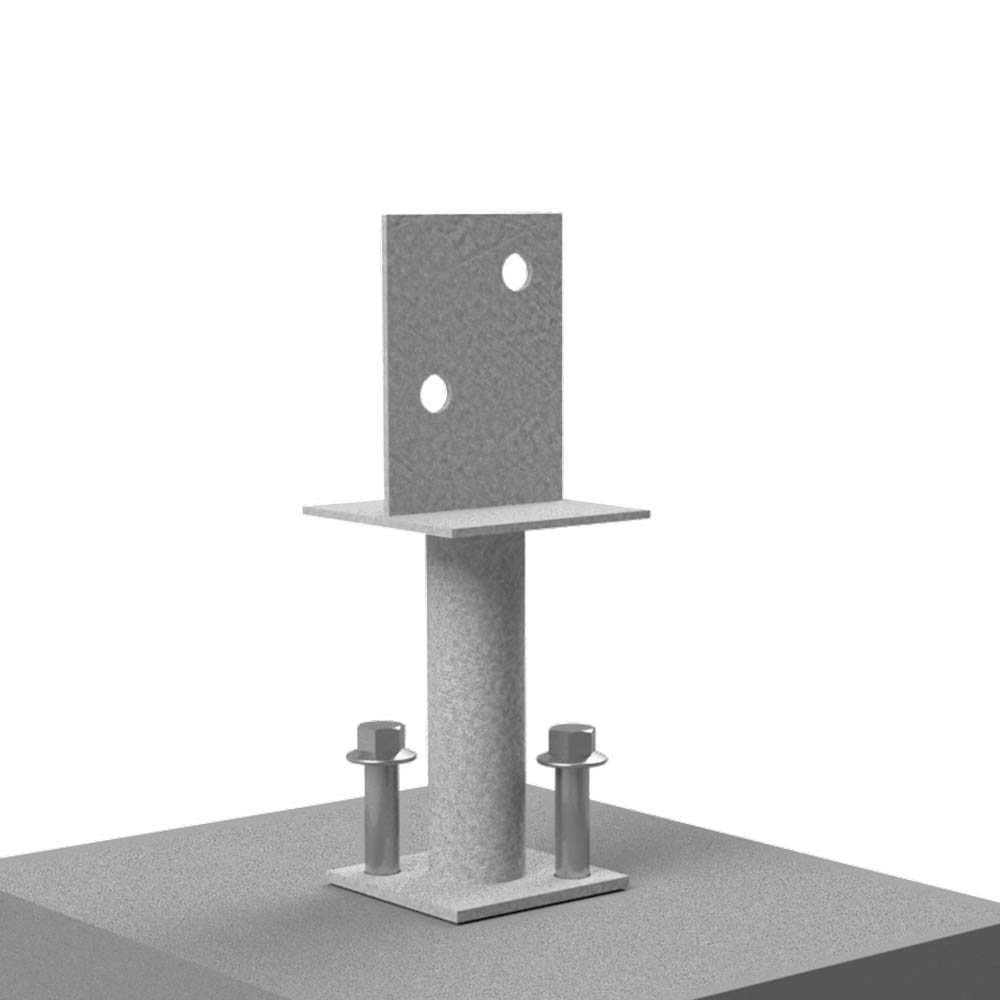

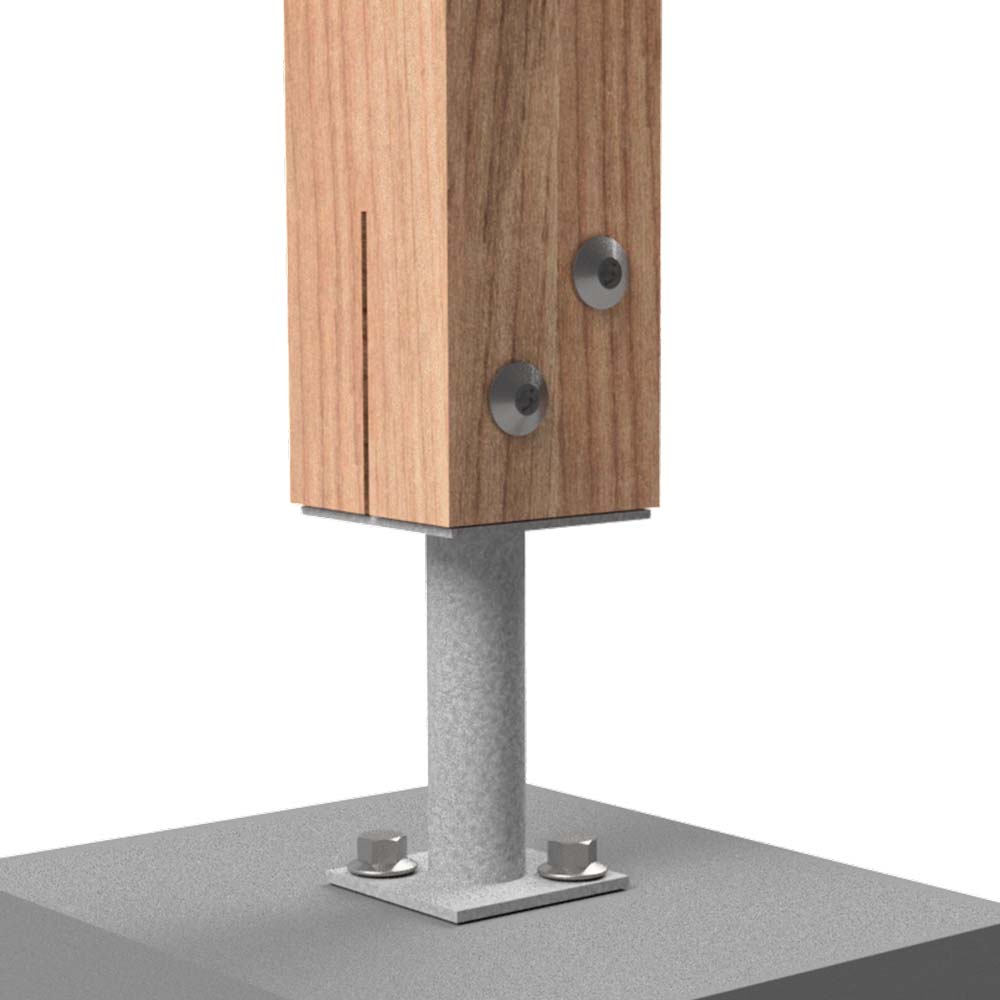

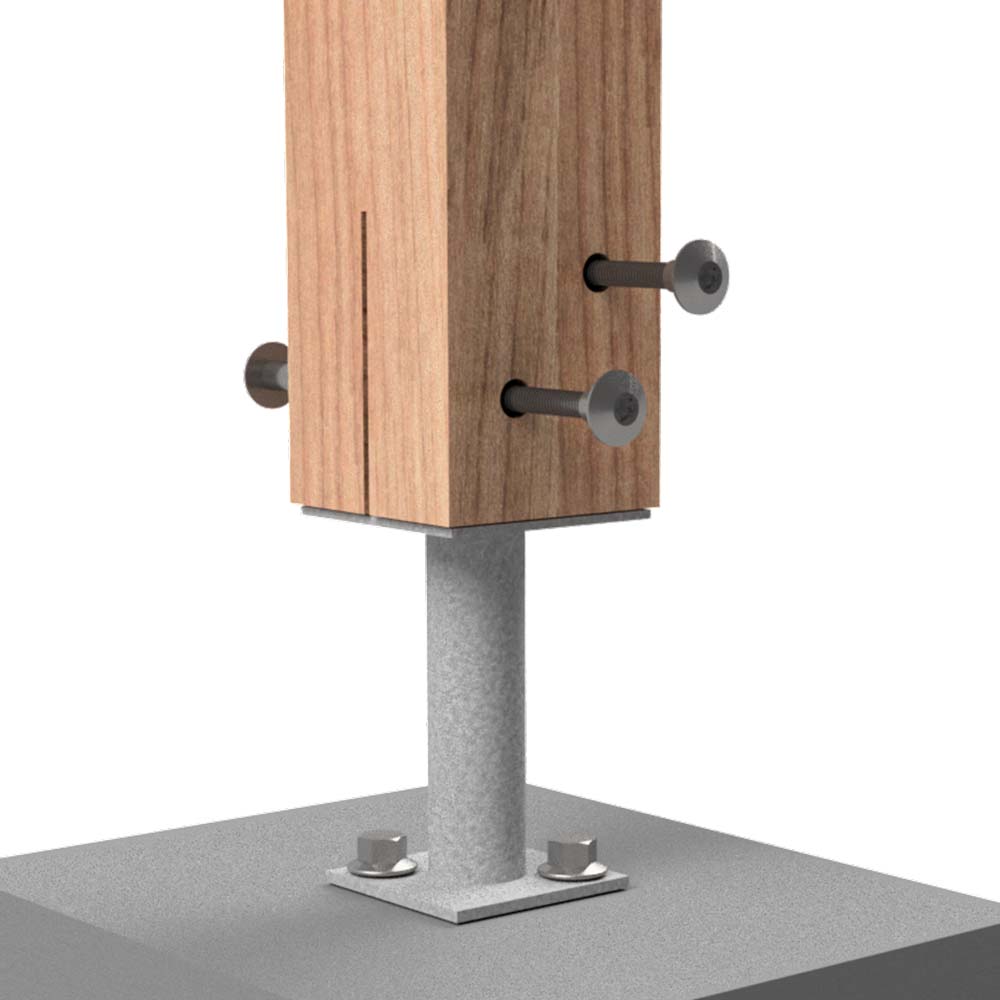

VUETRADE Centre Blade Post Supports are brackets used for fixing timber posts to concrete or timber bases, with the ‘hidden’ blade providing a neat finish.
Also available in Stainless Steel.
• Concealed support of timber posts – neat finish
• Extra Heavy Duty 32mm Shaft, 2.0mm Thick
• 4.0mm thick steel saddle
• Blade and Base Bolt Holes
2 x M10 Bolt Holes
• Galvanised finish for durability and long-life

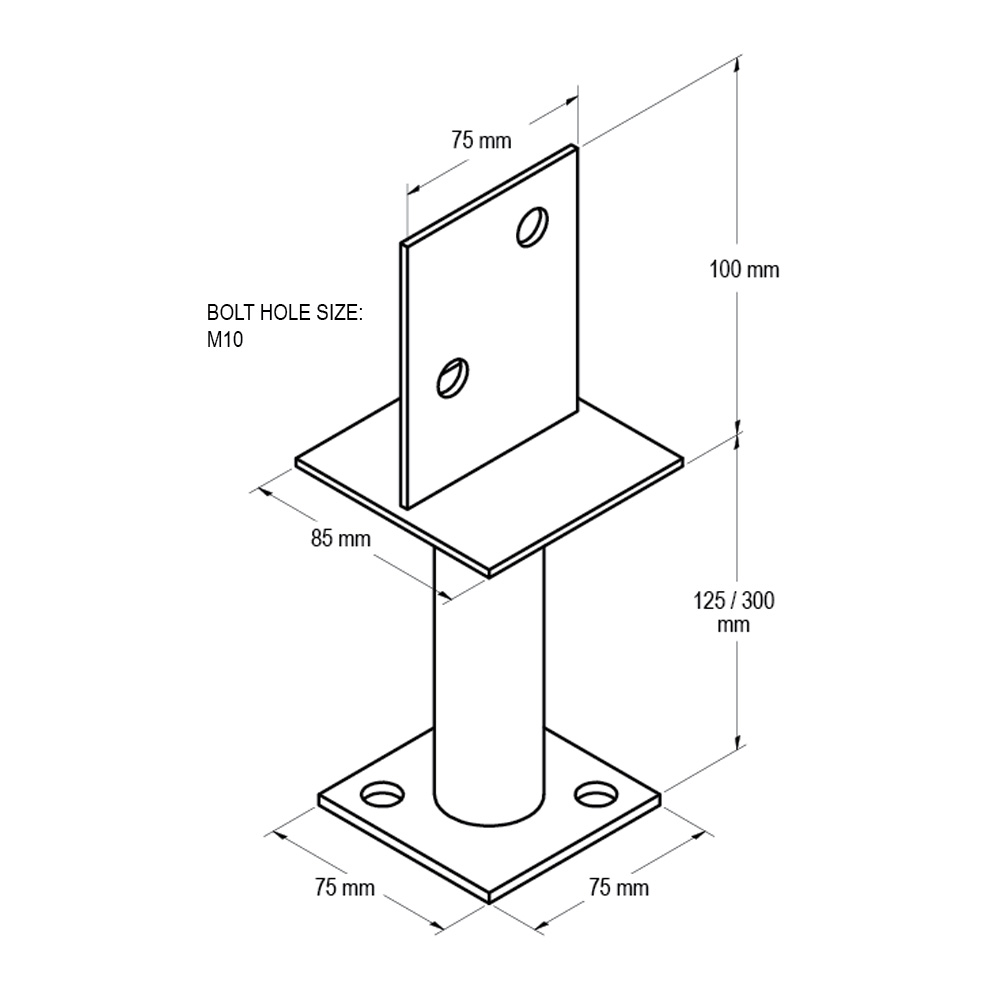

| Product Code(s) | Size | Metal Thickness | Bolt/Fixing Size | Box Qty |
|---|---|---|---|---|
| VBLPS125 | 125mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | Base: M10 Blade: M10 | 10 |
| VBLPS300 | 300mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | Base: M10 Blade: M10 | 10 |
