Stainless Steel VUEBOLT Post Support Bolts are concealed thread bolts ideal for coastal construction, providing a quick, neat finish on feature timber posts.
Also available in Zinc-Nickel coated or BLACKOUT black powder coated.
• Concealed thread, male & female bolts – neat finish
• Simple to install with T50 drive head
• Compliant to Australian Standards AS1684.2 and AS1720
• 316 Stainless Steel – durable, corrosion resistant, and suitable for use in coastal or high corrosion environments
Warning: Always ensure that bolt holes are drilled fully through the timber post to obtain the recommended capacity. Mandatory and recommended usage of stainless steel timber connectors varies in different states and areas – always check with your local building authorities. VUETRADE CoastalSS stainless steel brackets should always be used with Stainless Steel fixings.
| Product Code(s) | Detail | Fits Post Size |
|---|---|---|

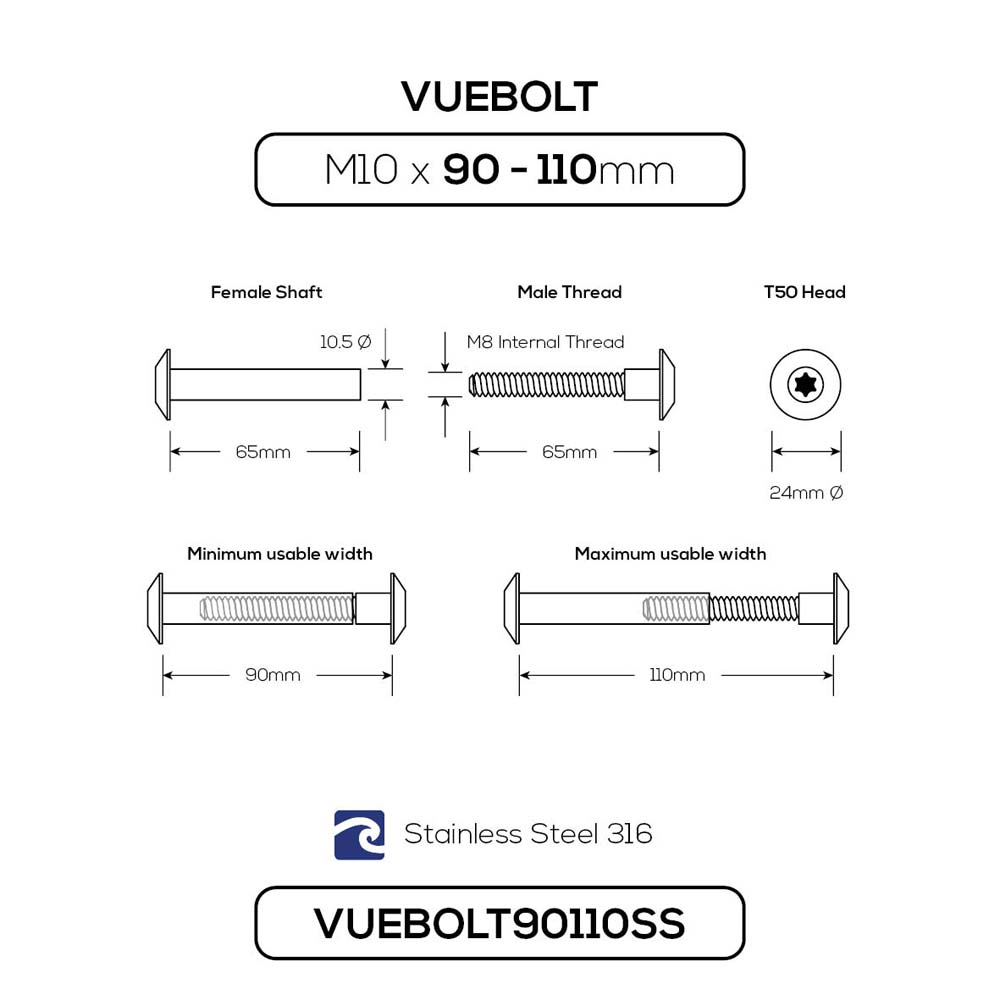

| VUEBOLT90110SS | M10 Shaft Card of 2 | 90-110mm |

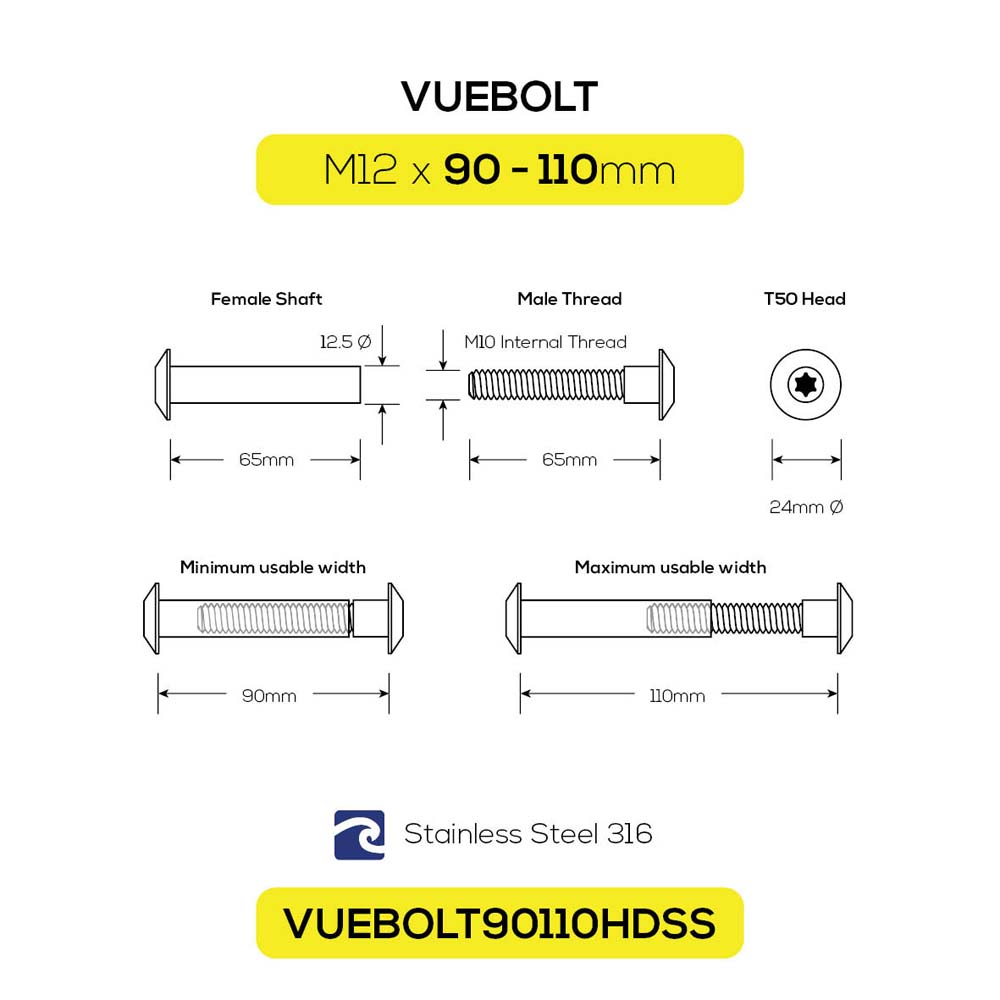

| VUEBOLT90110HDSS | Heavy Duty M12 Shaft Card of 2 | 90-110mm |

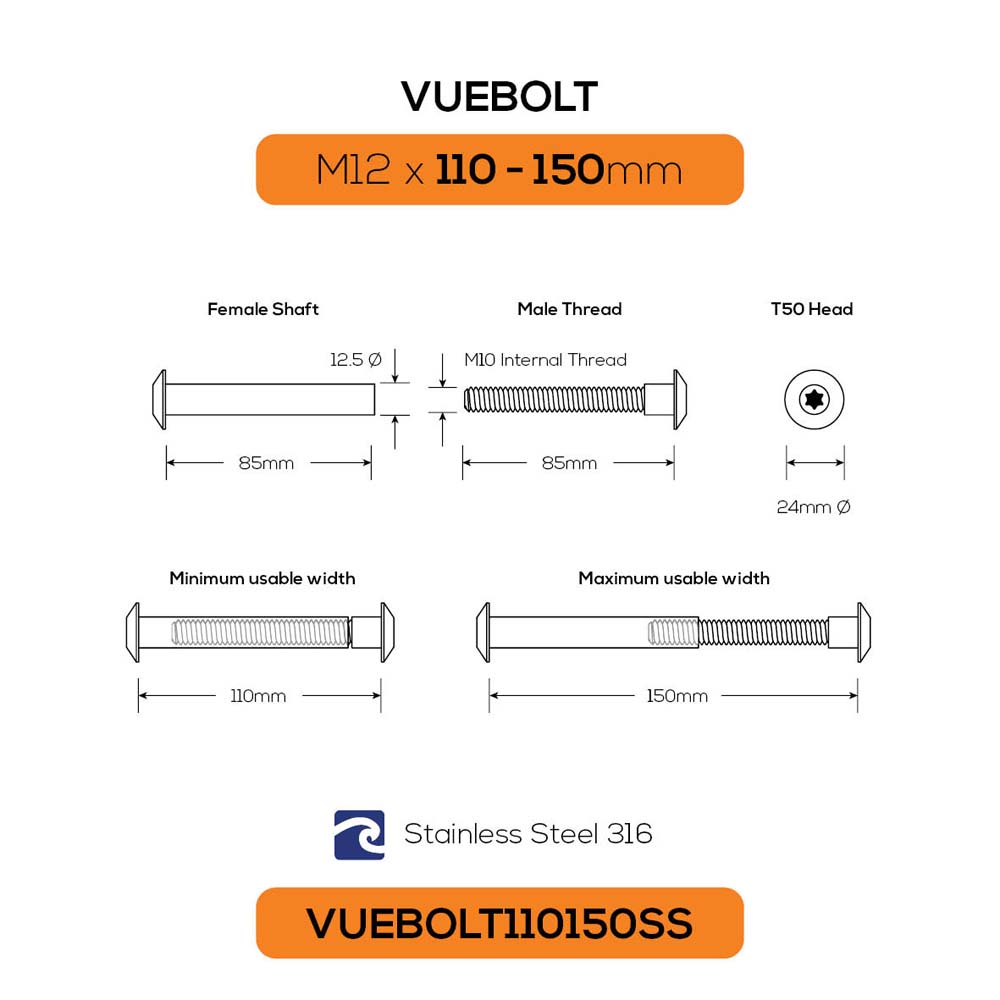

| VUEBOLT110150SS | M12 Shaft Card of 2 | 110-150mm |

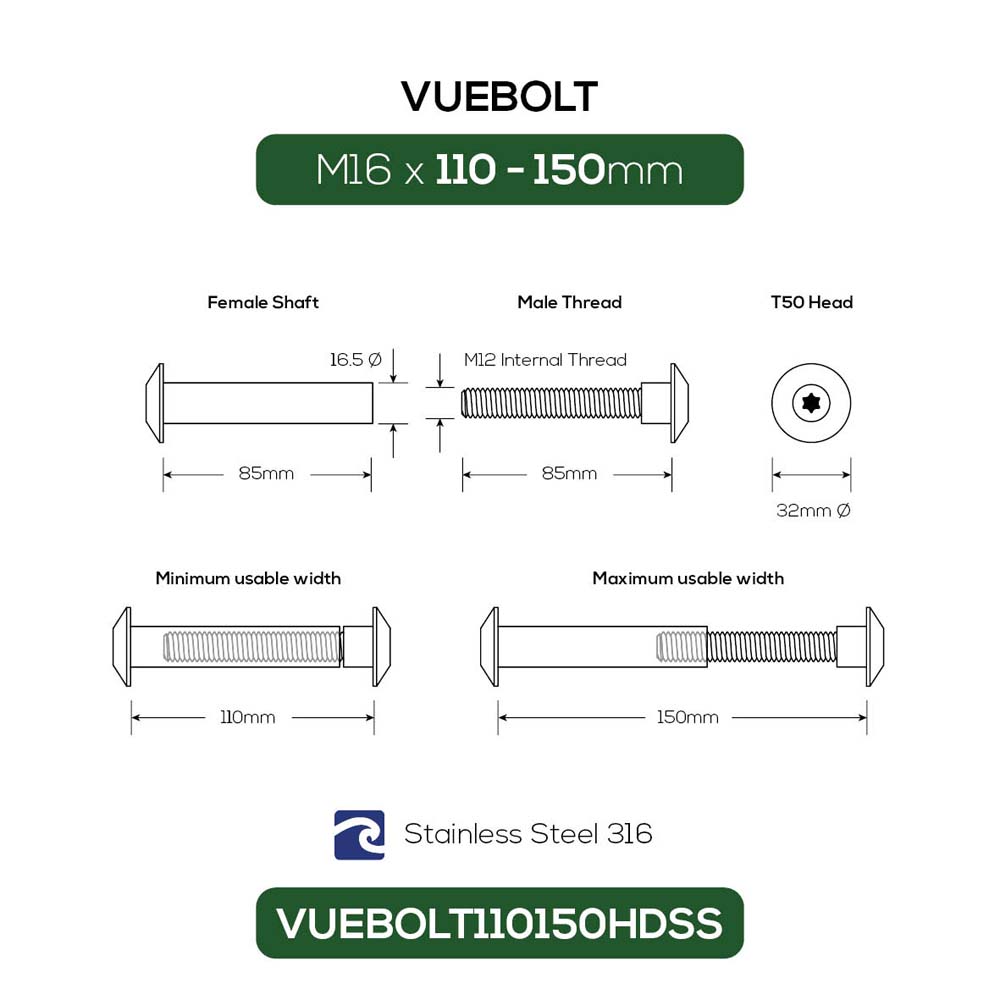

| VUEBOLT110150HDSS | Heavy Duty M16 Shaft Card of 2 | 110-150mm |

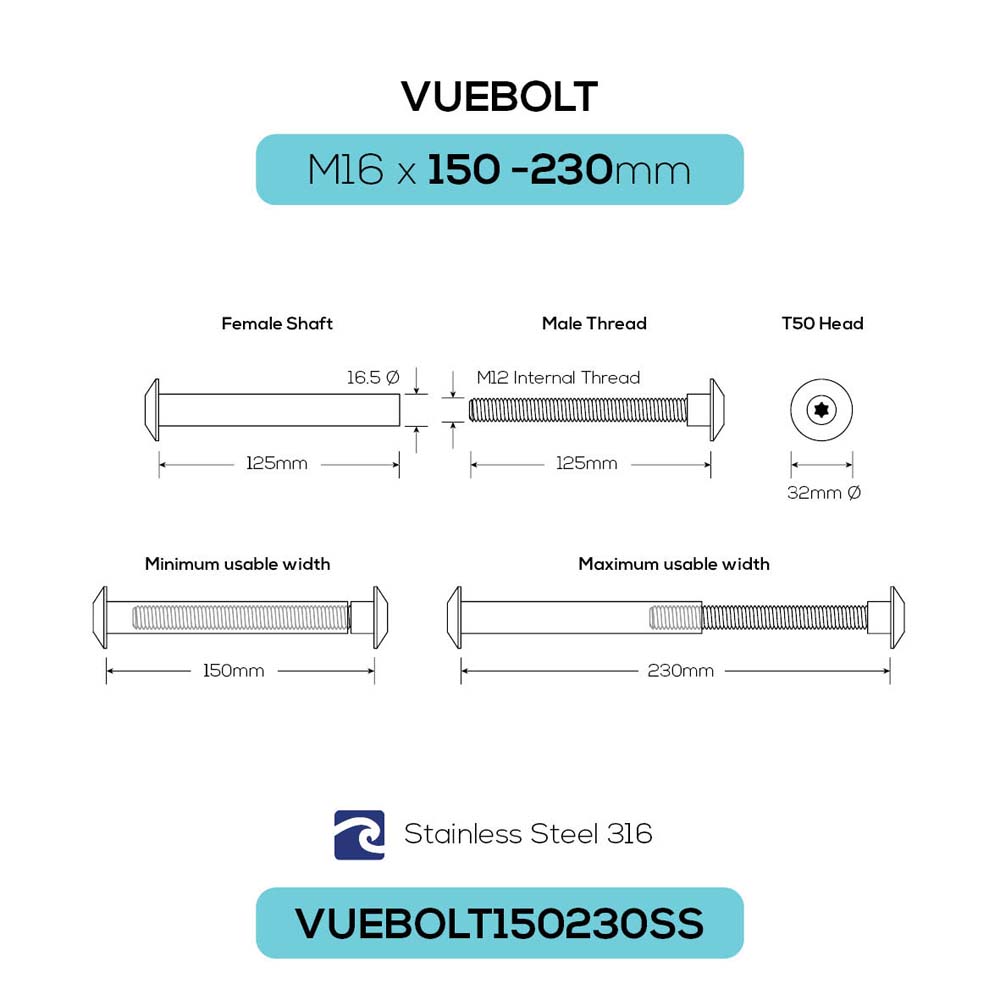

| VUEBOLT150230SS | M16 Shaft Card of 2 | 150-230mm |

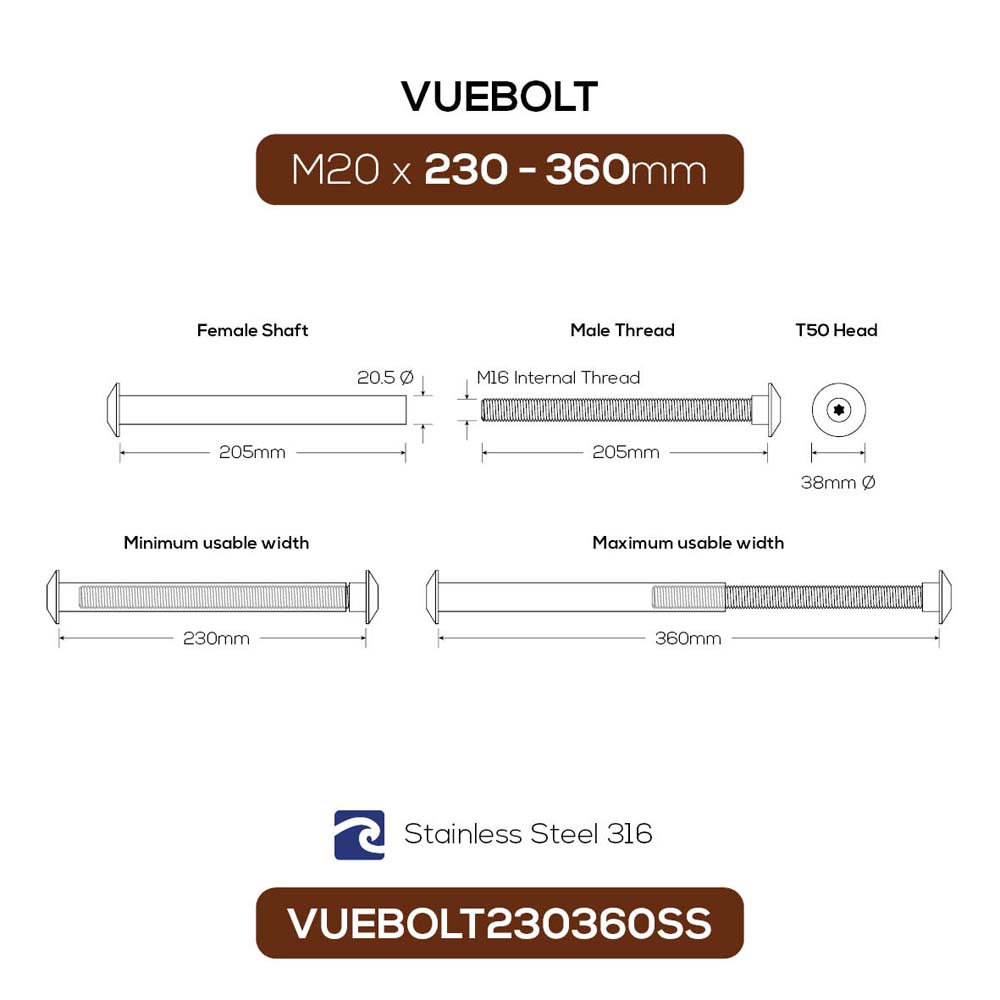

| VUEBOLT230360SS | M20 Shaft Card of 1 | 230-360mm |
