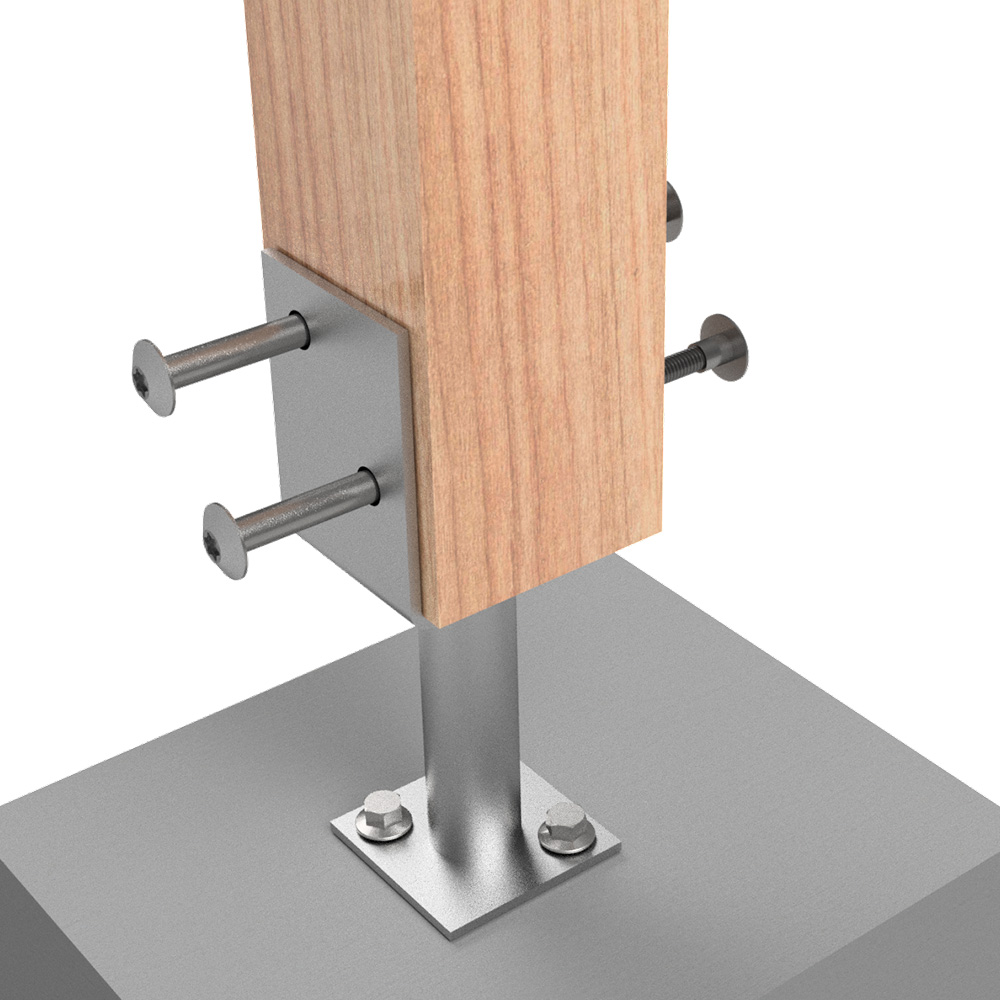

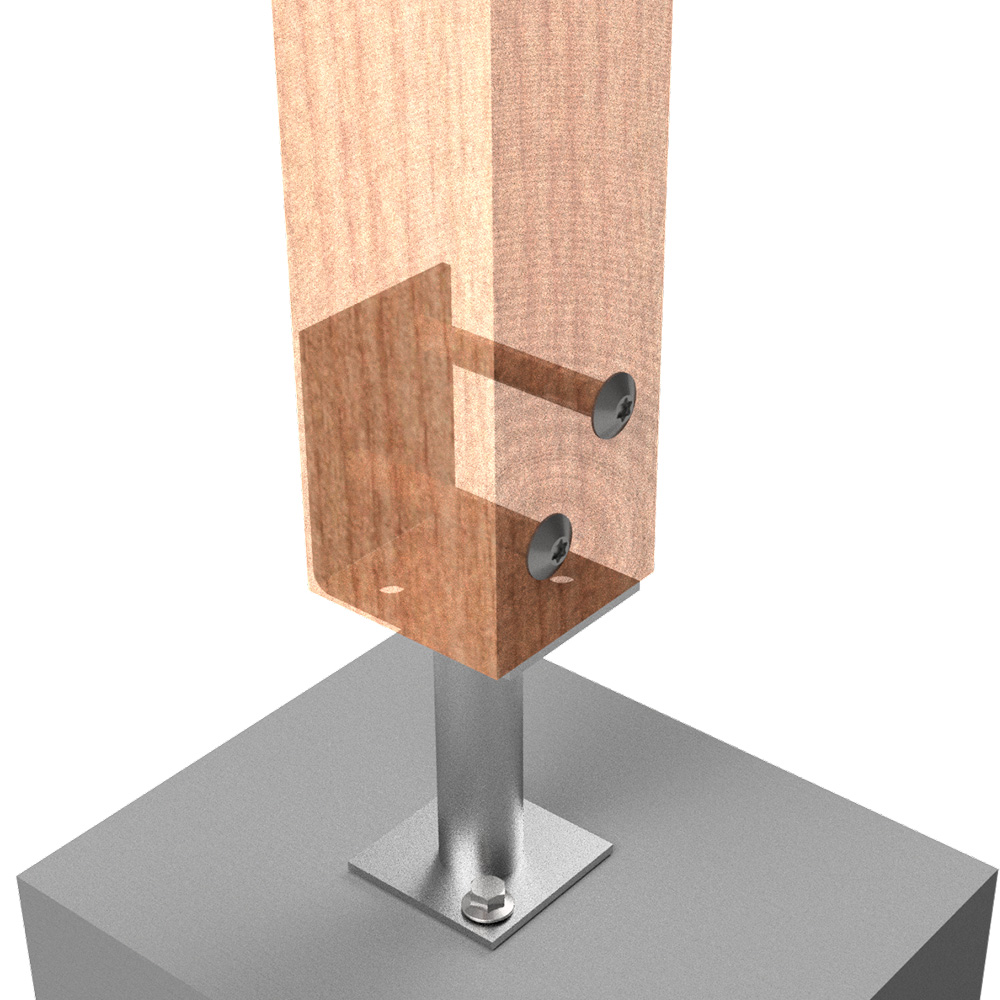

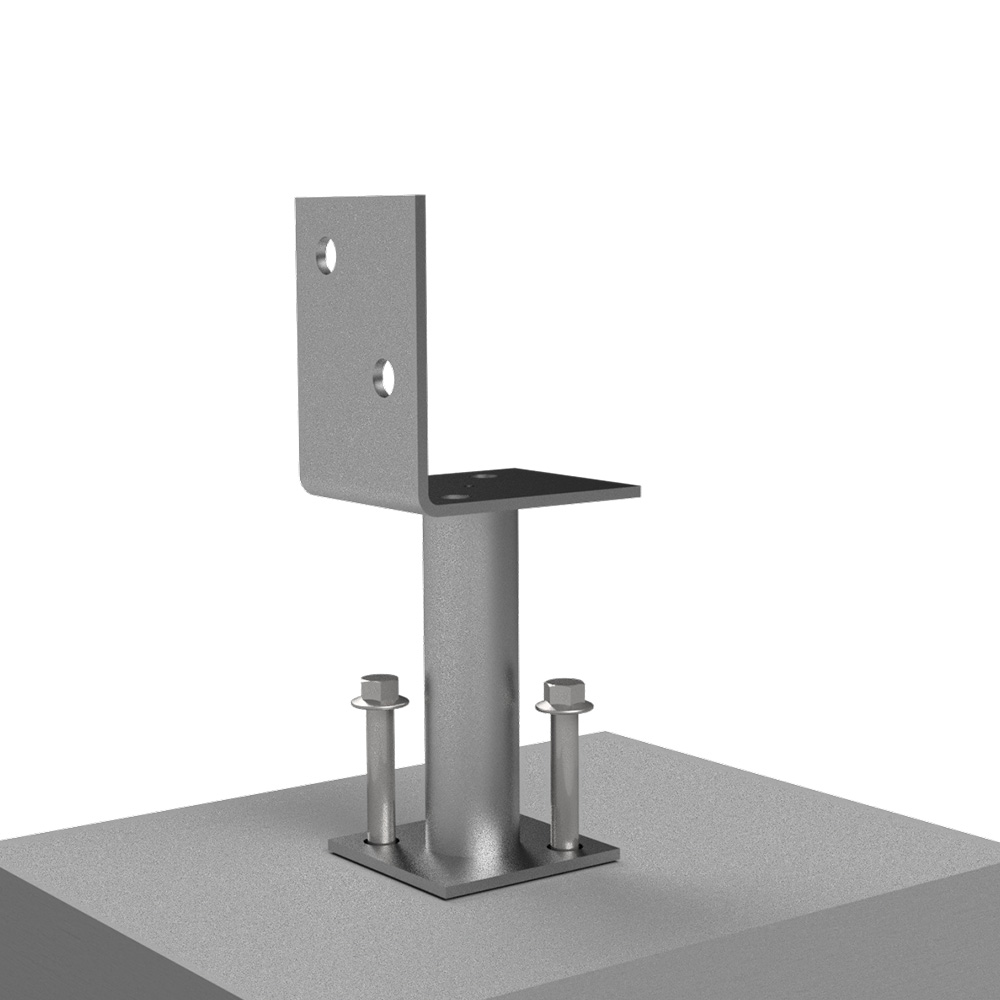

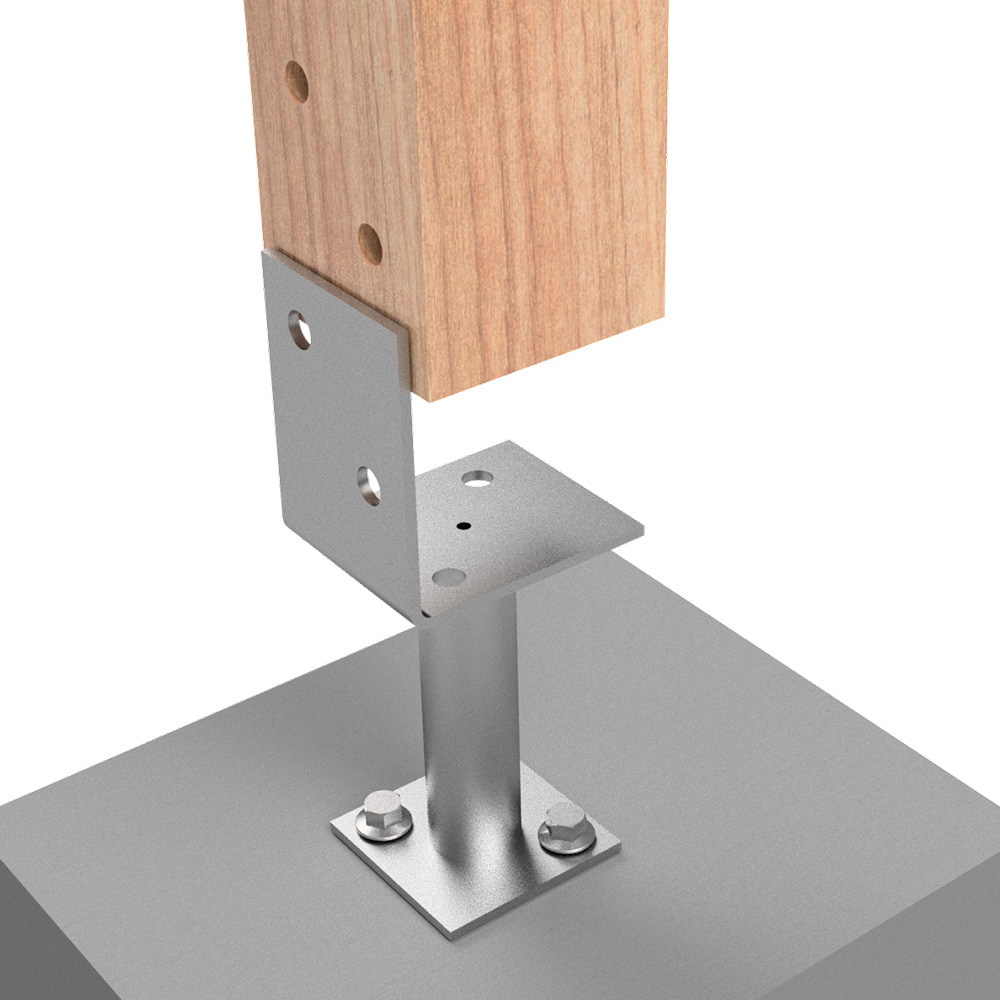

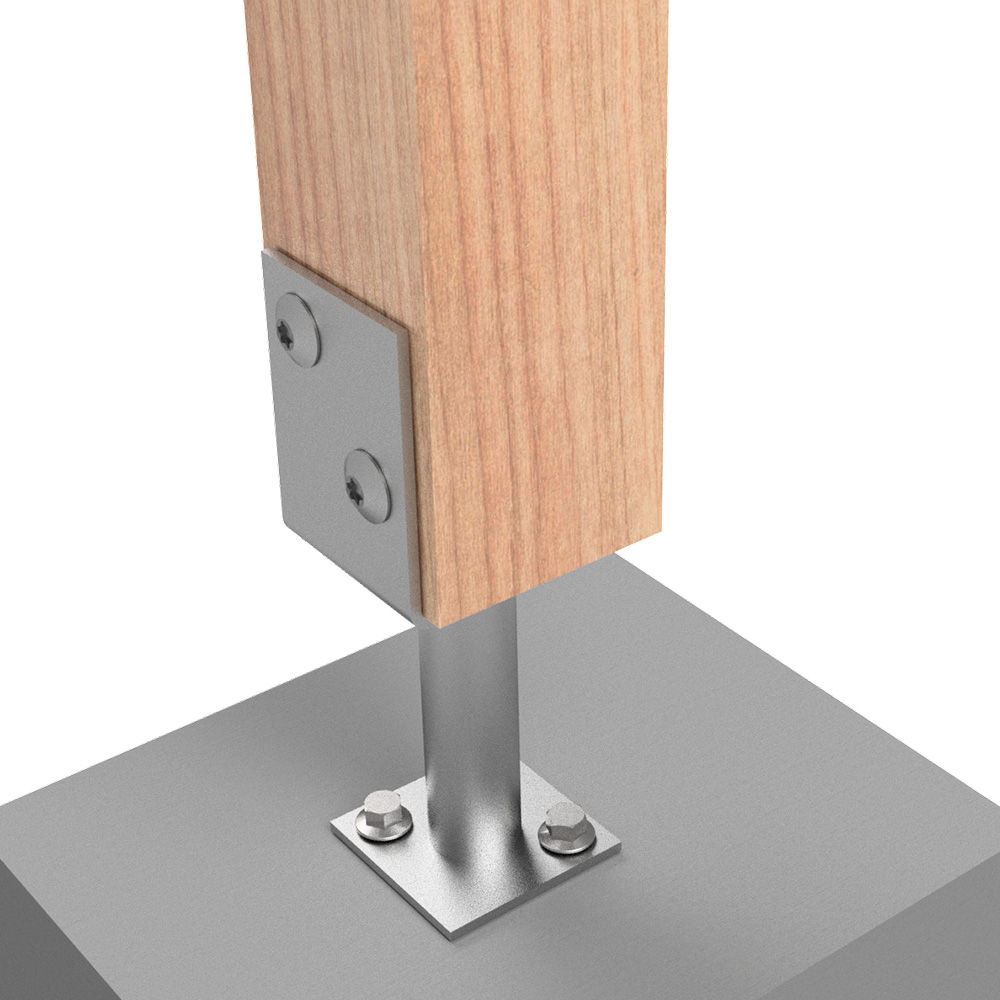

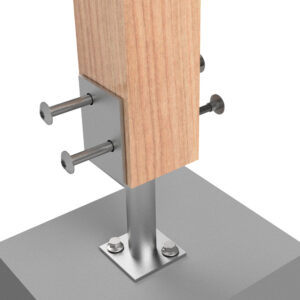

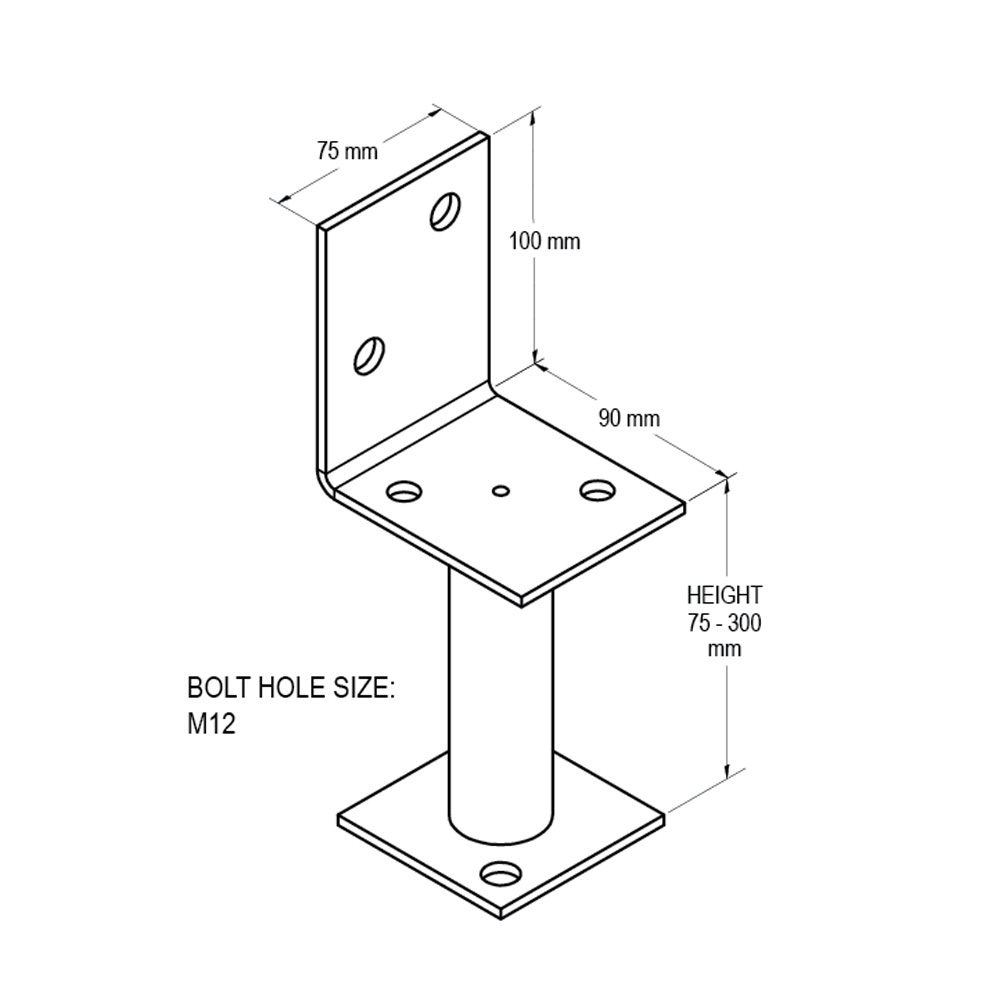

VUETRADE Stainless Steel Half Stirrup Post Supports are brackets ideal for coastal construction, fixing timber posts that can only be accessed from one side by bolting or inserting into concrete.
• Extra Heavy Duty 32mm Shaft, 2.0mm Thick
• Saddle and Base Bolt Holes
2 x M12 Bolt Holes (Saddle & Base)
2 x M10 Bolt Holes (Base of Saddle)
• 304 Stainless Steel – durable, corrosion resistant, and suitable for use in some coastal and corrosive environments
Warning: Mandatory and recommended usage of stainless steel timber connectors varies in different states and areas – always check with your local building authorities. VUETRADE Stainless Steel fixings should always be used with CoastalSS stainless steel brackets.

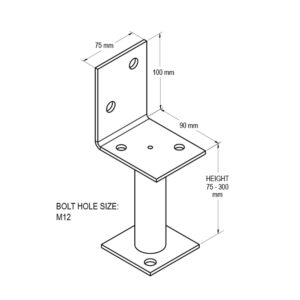

| Product Code(s) | Size | Metal Thickness | Box Qty |
|---|---|---|---|

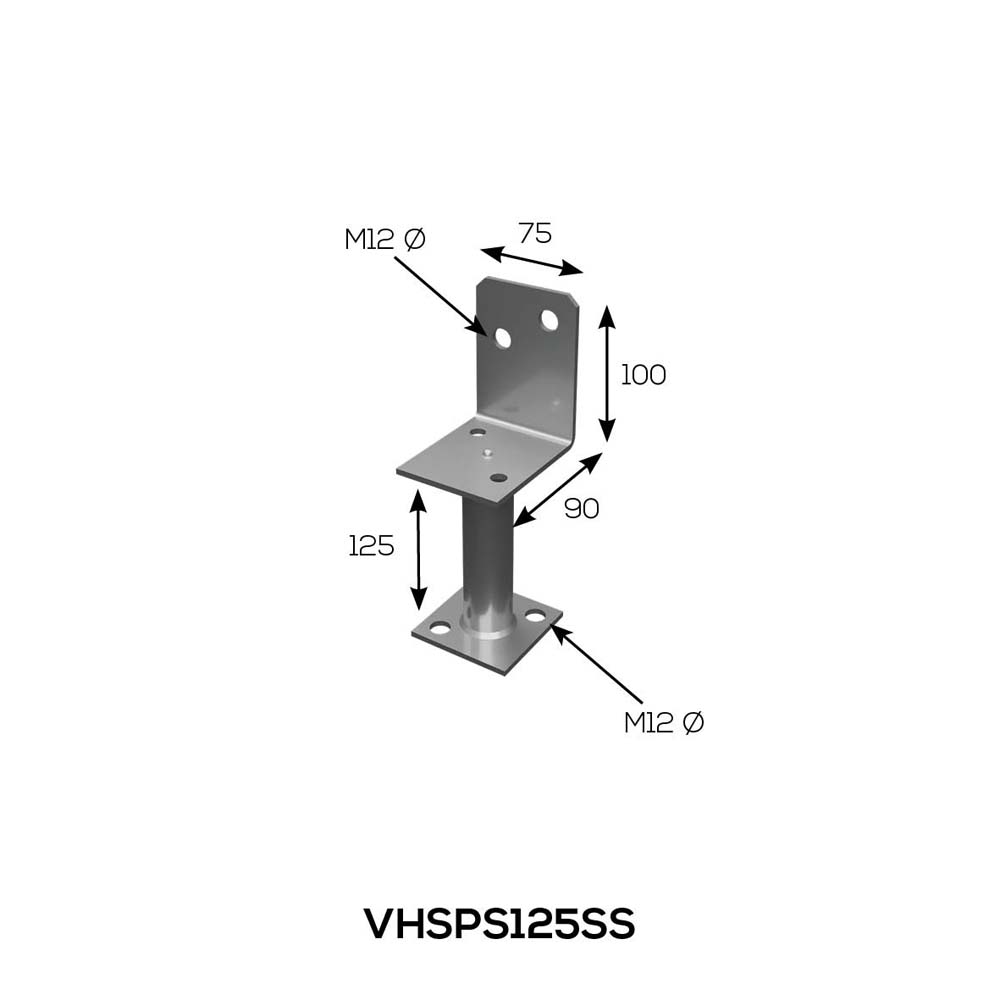

| VHSPS125SS | 125mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 10 |

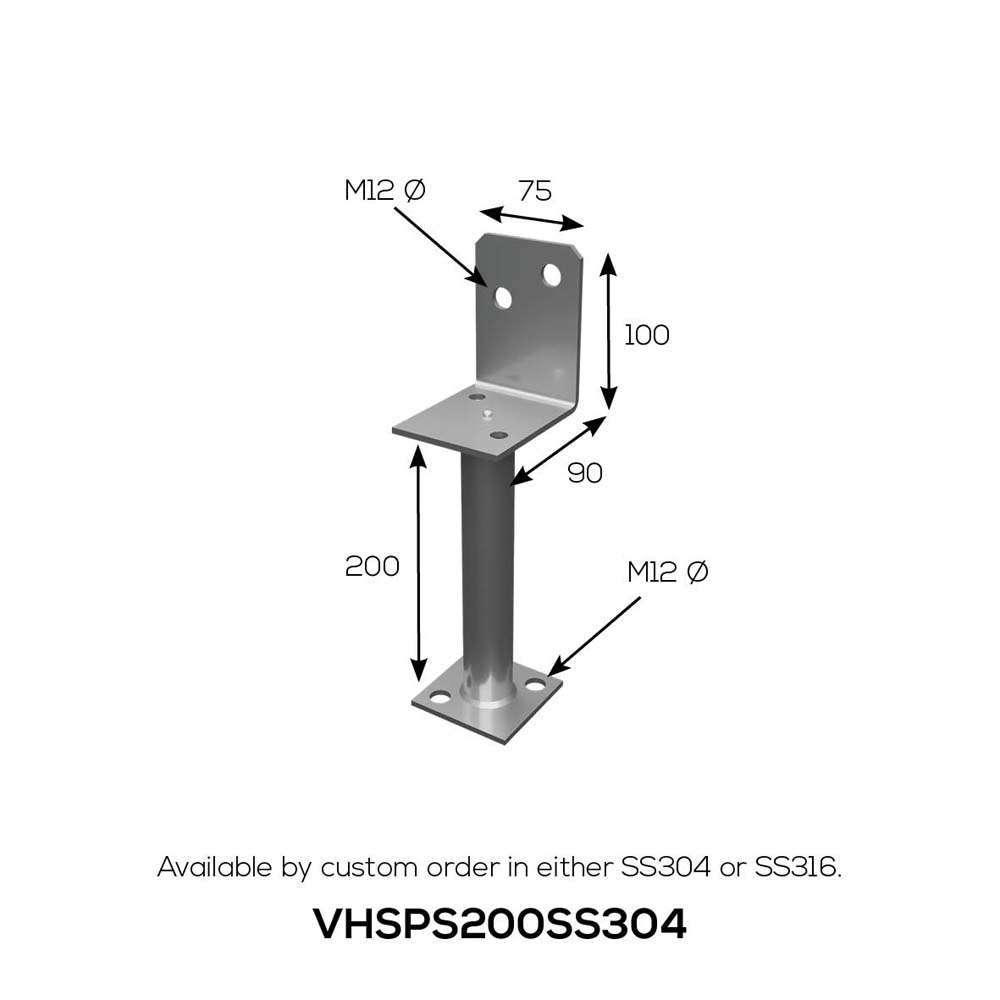

| VHSPS200SS304 | 200mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |

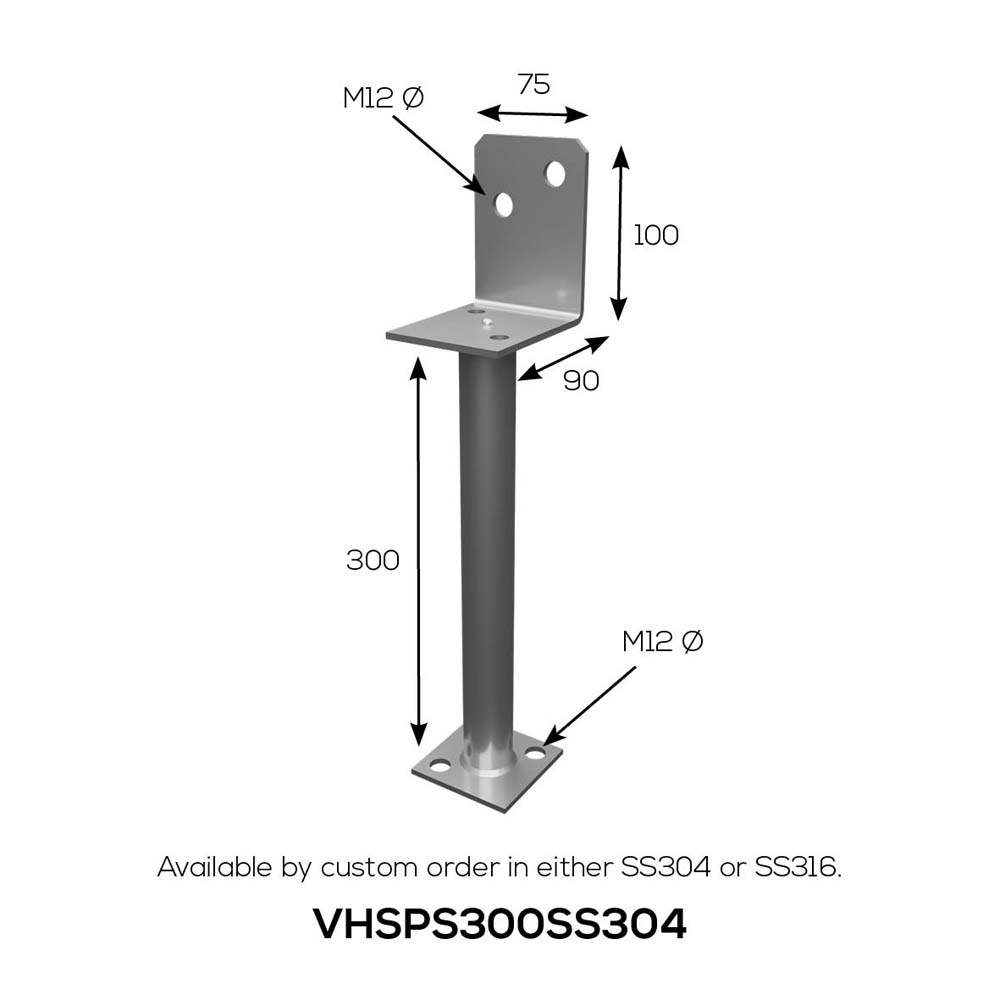

| VHSPS300SS304 | 300mm | Saddle: 4.0mm Shaft: 32mm x 2.0mm | 1 |
