T-Blade System

BLACKOUT T-BLADE POST SUPPORTS

Find A StockistTech DataQR Code

VUETRADE BLACKOUT T-Blade Post Supports are black powder coated brackets ideal for concealed fixing of large decorative timber posts by bolting onto concrete.

Also available in Galvanised & Stainless Steel.

• Ideal for specialty timber posts
• 10.0mm Thick Steel Blade and Base
• Concealed welds between vertical and horizontal plates.
• Concealing caps available to suit (sold separately)
• Galvanised finish for durability and long-life

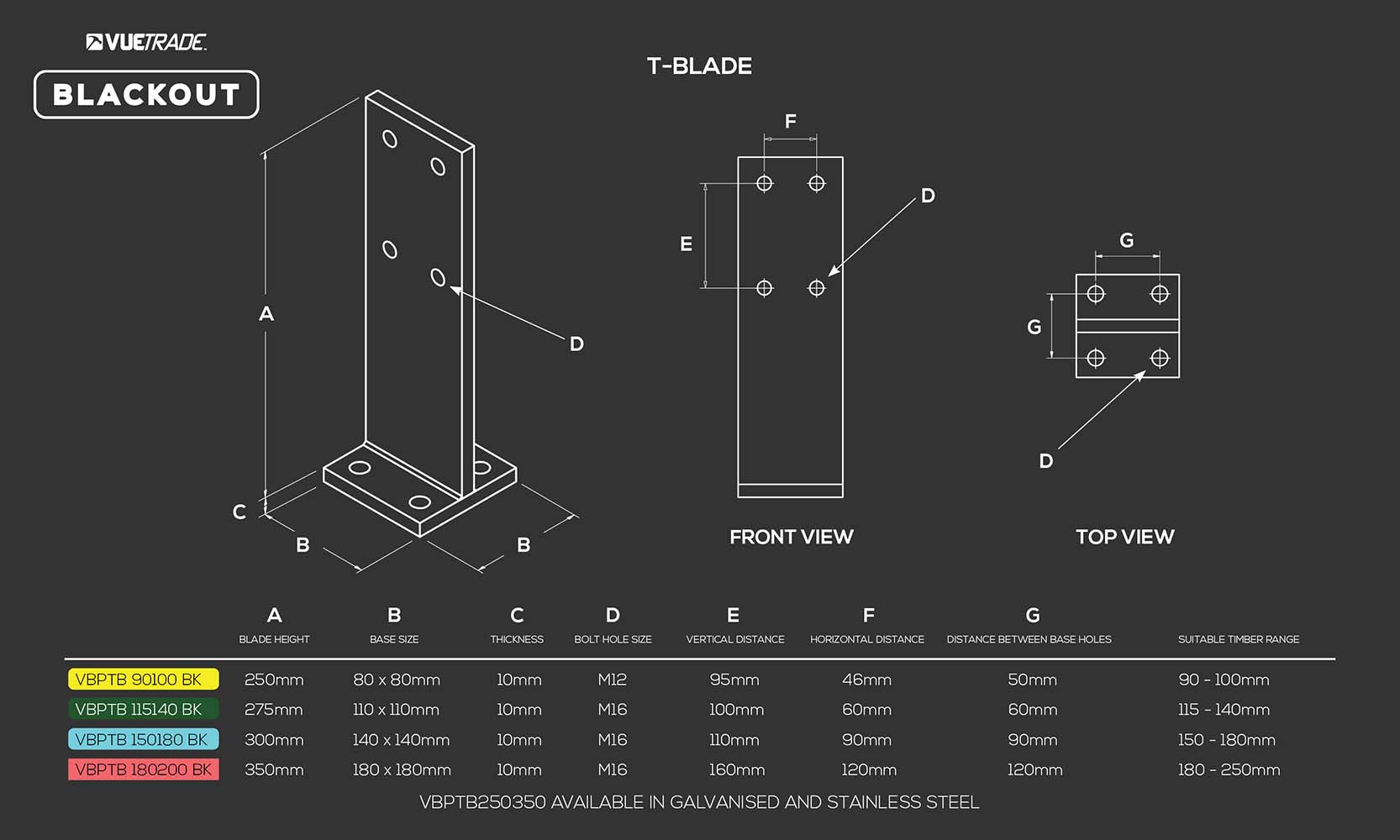

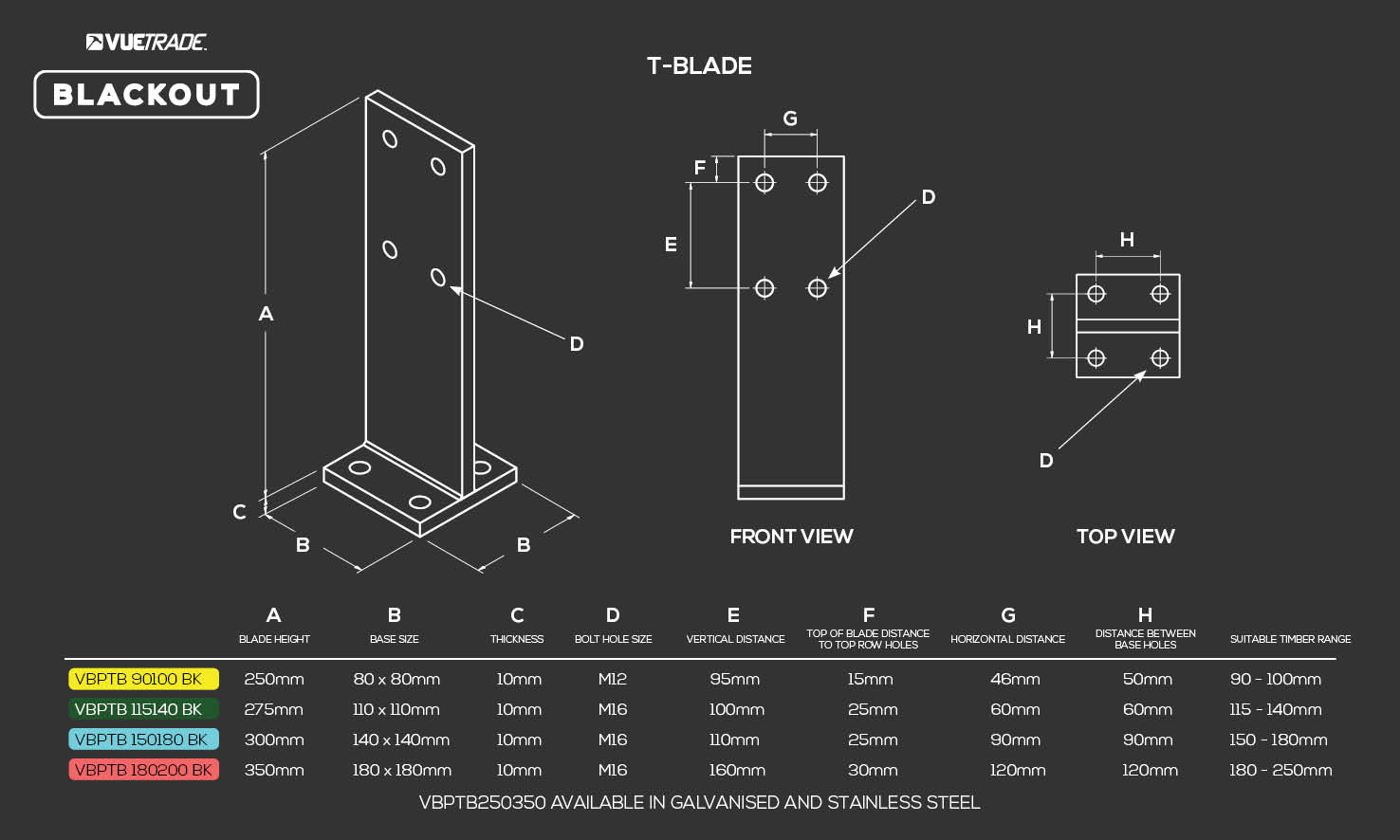

Product Code(s)SizeMetal ThicknessBox Qty

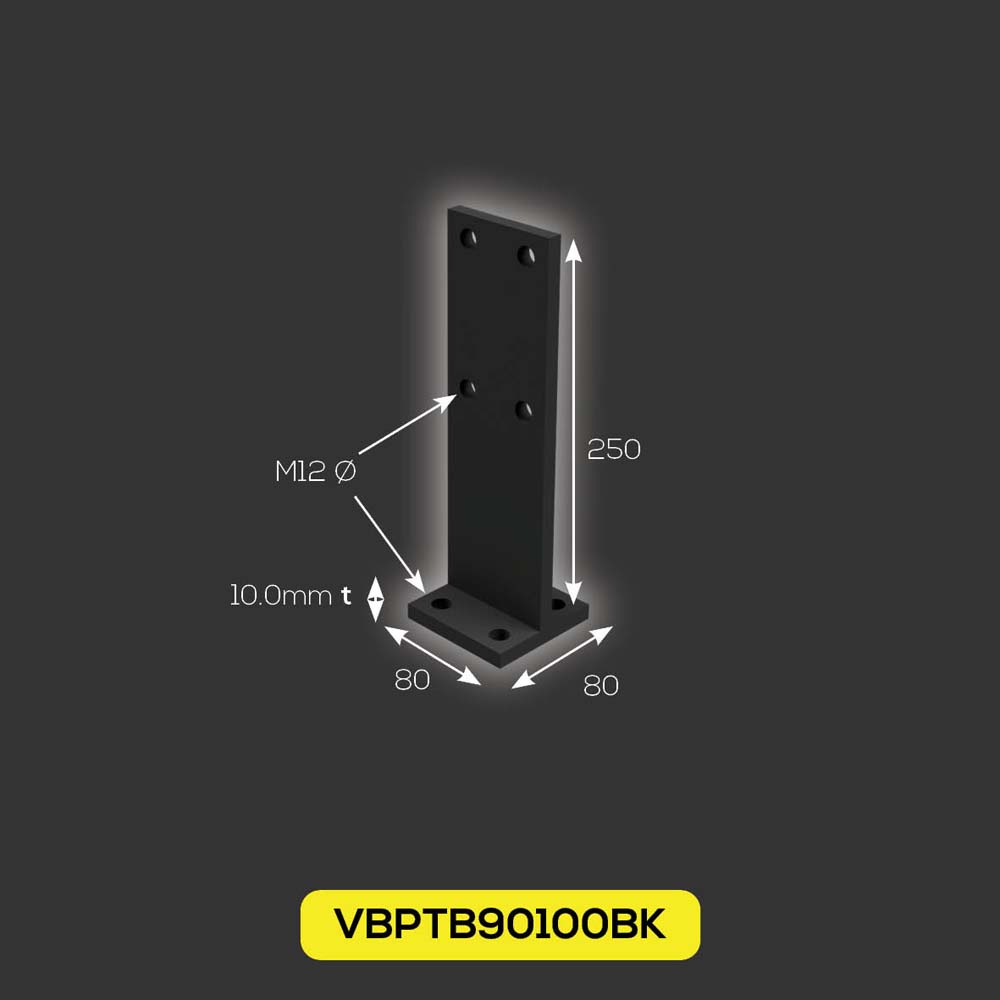

VBPTB90100BK80mm x 80mm Base - 250mm Blade10.0mm6

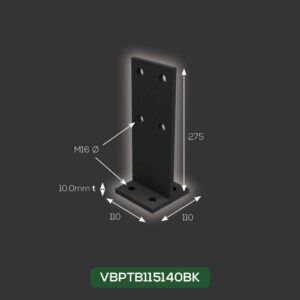

VBPTB115140BK110mm x 110mm Base - 275mm Blade10.0mm6

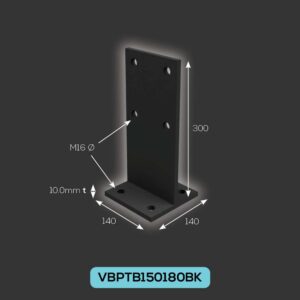

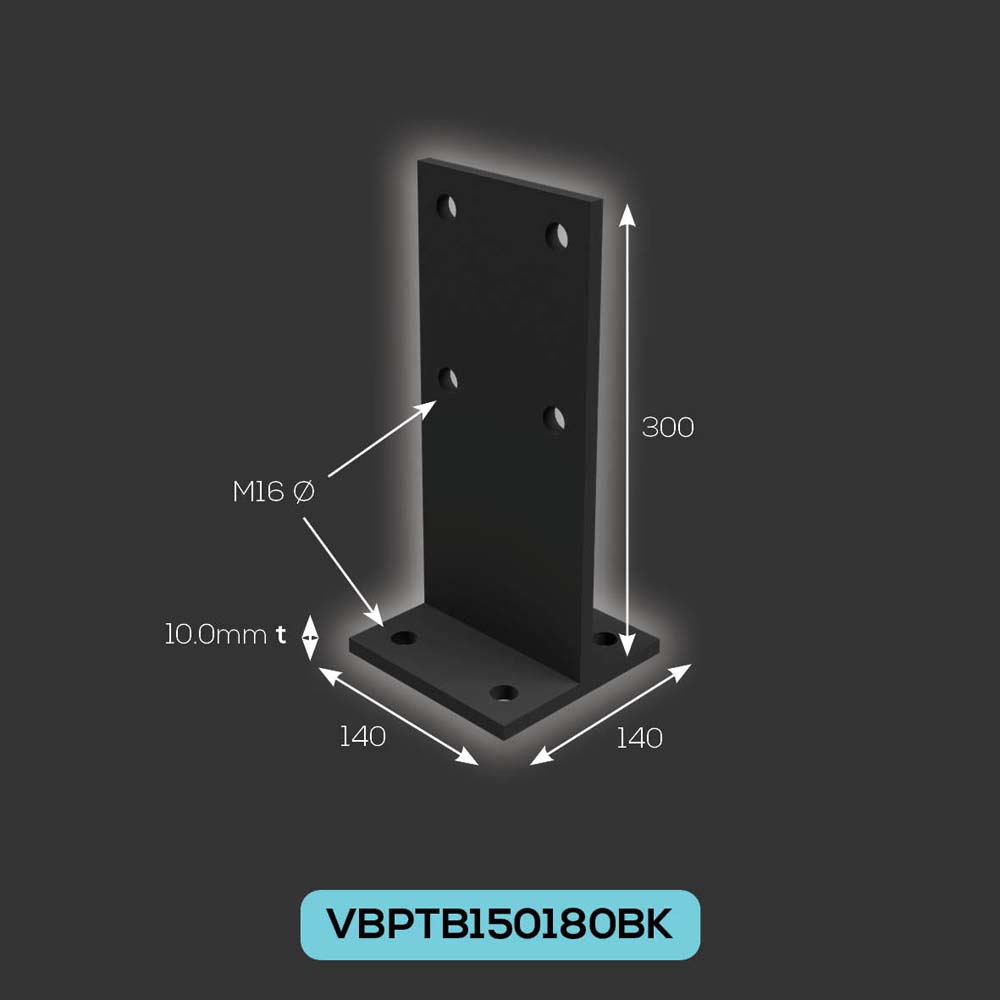

VBPTB150180BK140mm x 140mm Base - 300mm Blade10.0mm4
