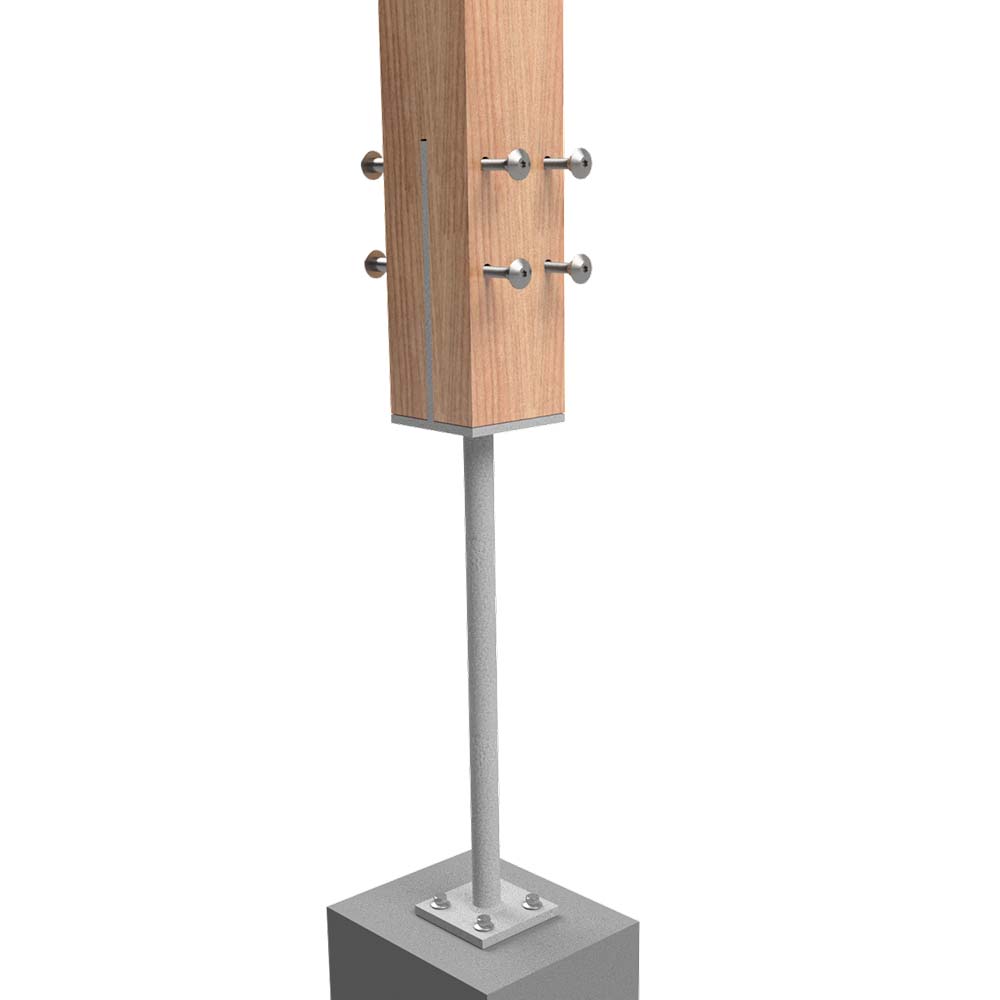

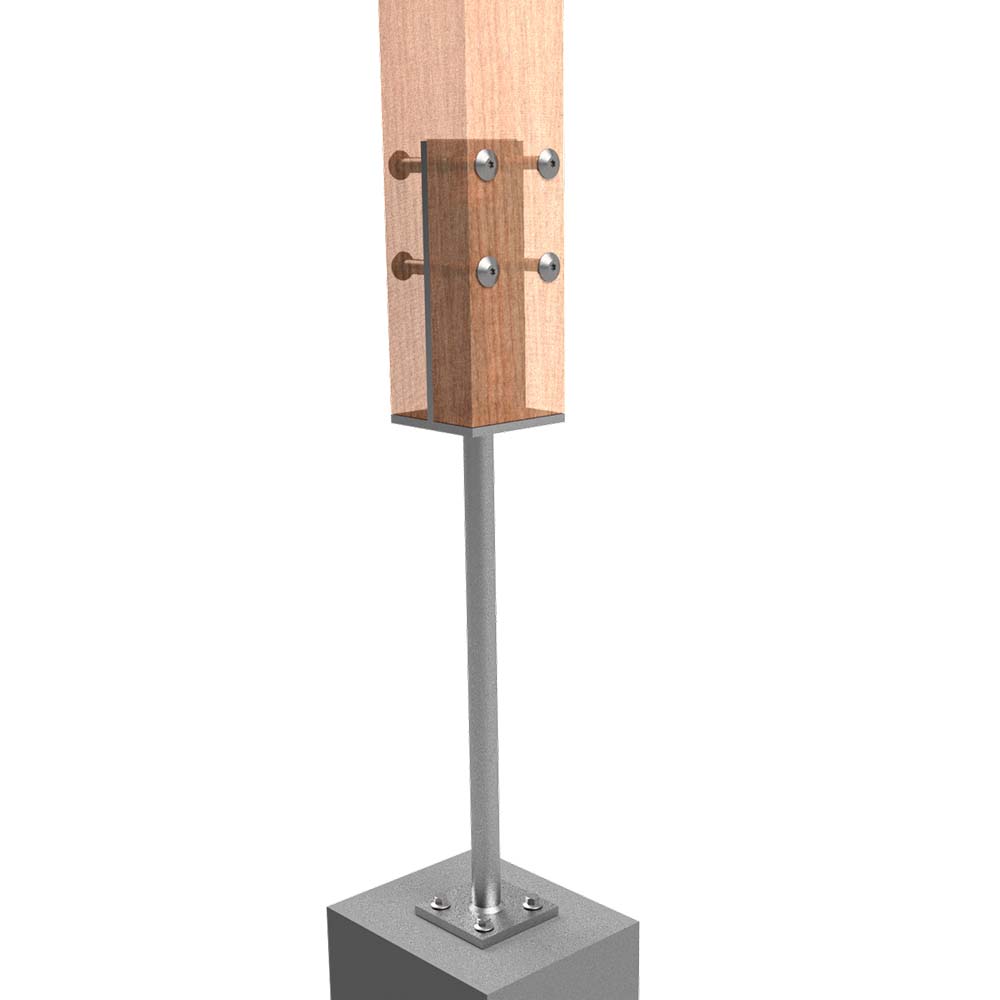

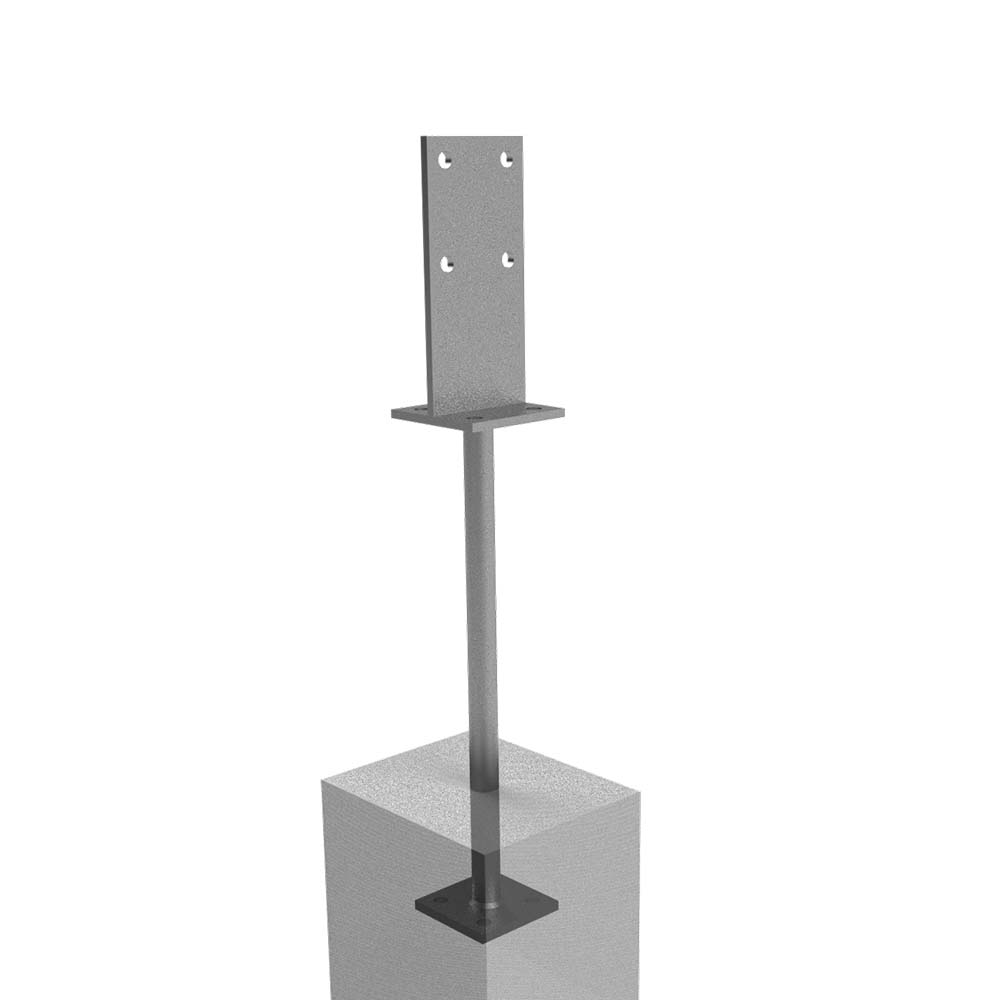

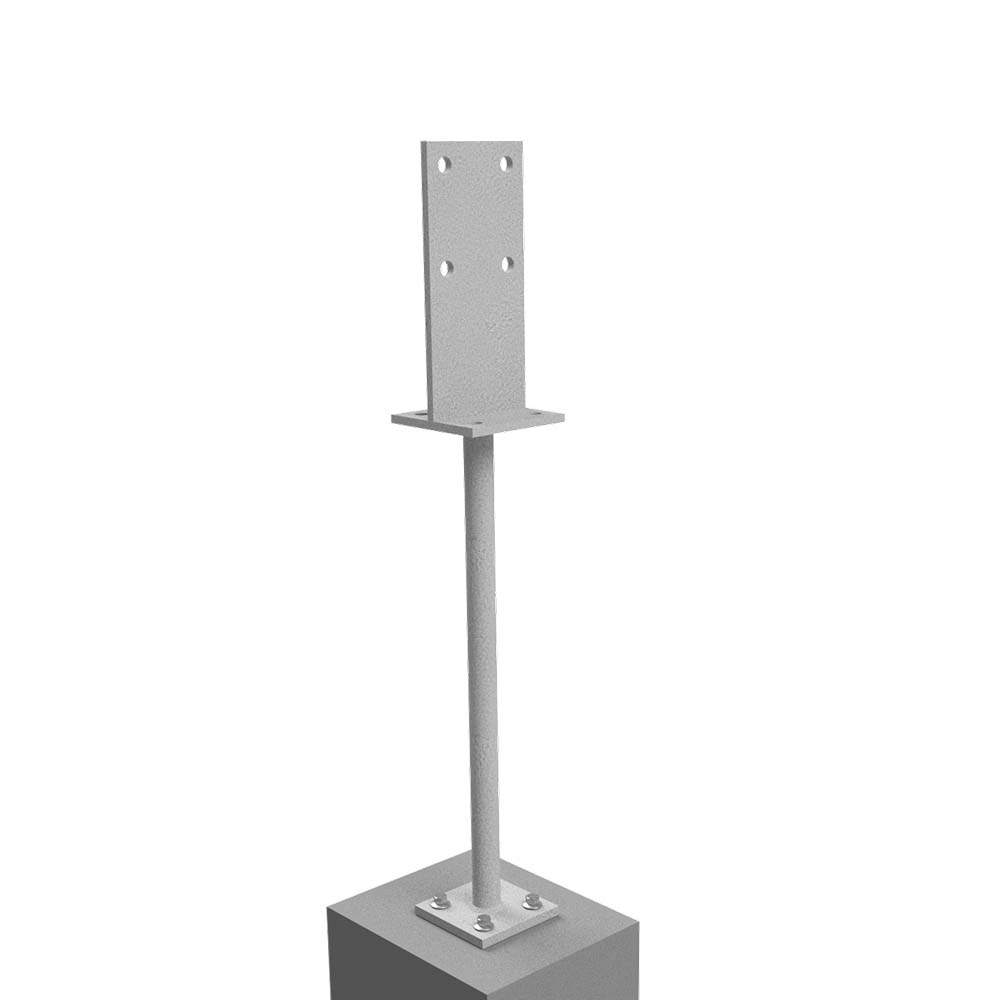

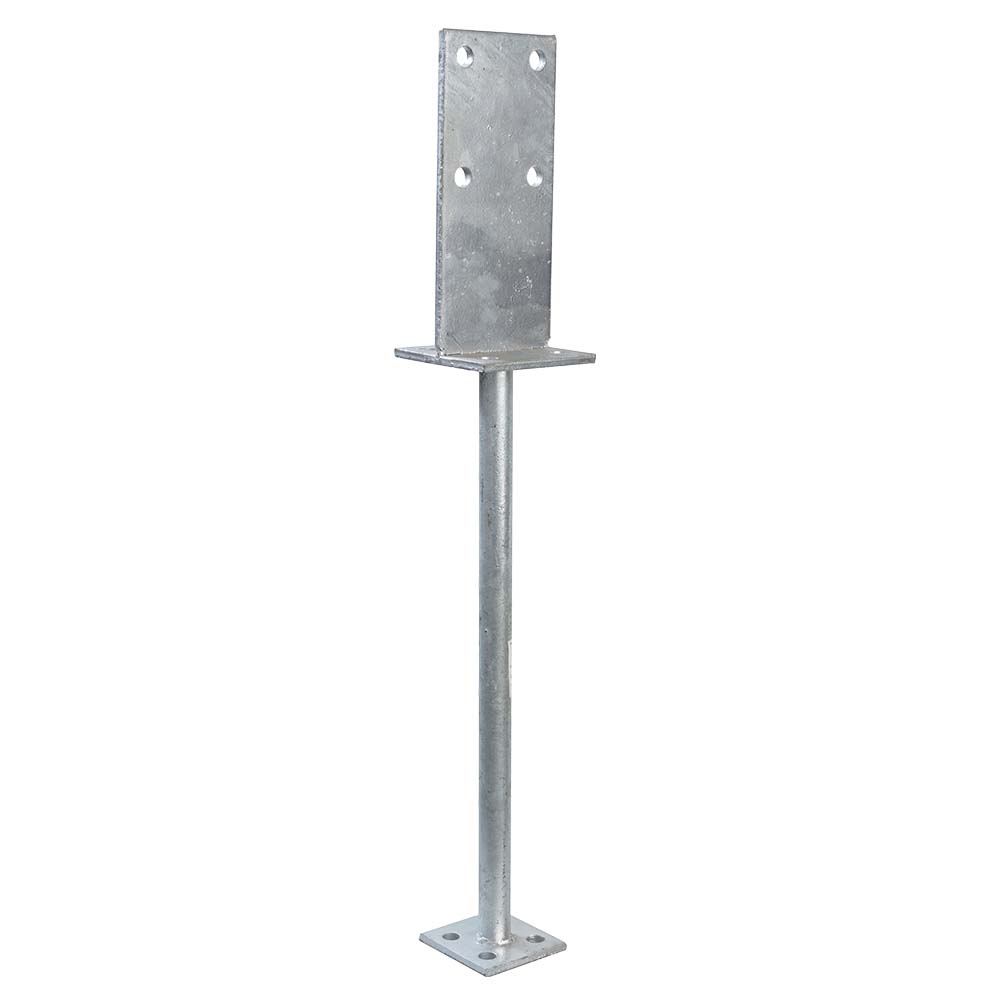

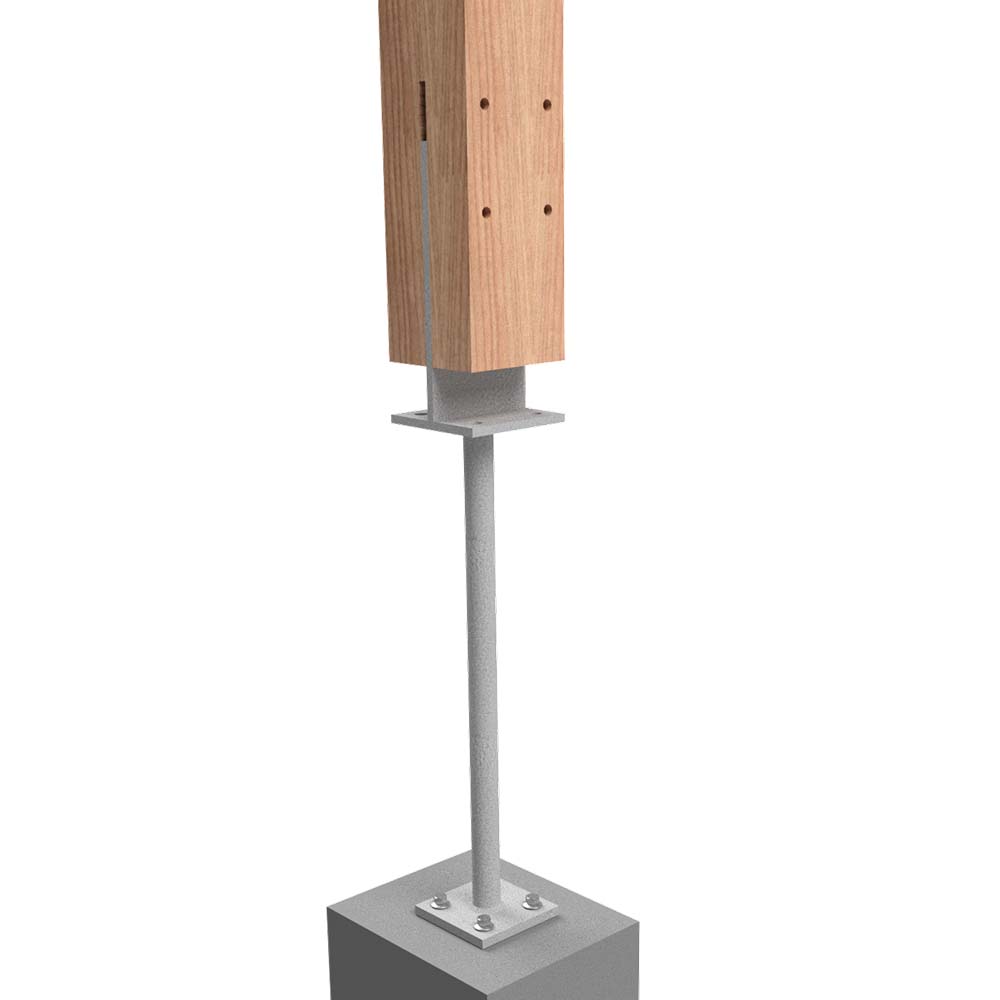

VUETRADE T-Blade Post Supports with Legs are strong, solid connectors ideal for fixing timber posts, by bolting onto or setting into concrete.
Also available in Stainless Steel.
• Ideal for specialty timber posts
• 10.0mm thick steel blade and base
• 35mm – 73mm diameter legs
• NEW – Solid 35mm Legs in 300mm & 600mm long
– 140mm x 140mm Saddle Size only
• Concealed welds between vertical and horizontal plates
• Galvanised finish for durability and long-life
| Product Code(s) | Size | Suits Timber Post | Blade Bolt Size |
|---|---|---|---|

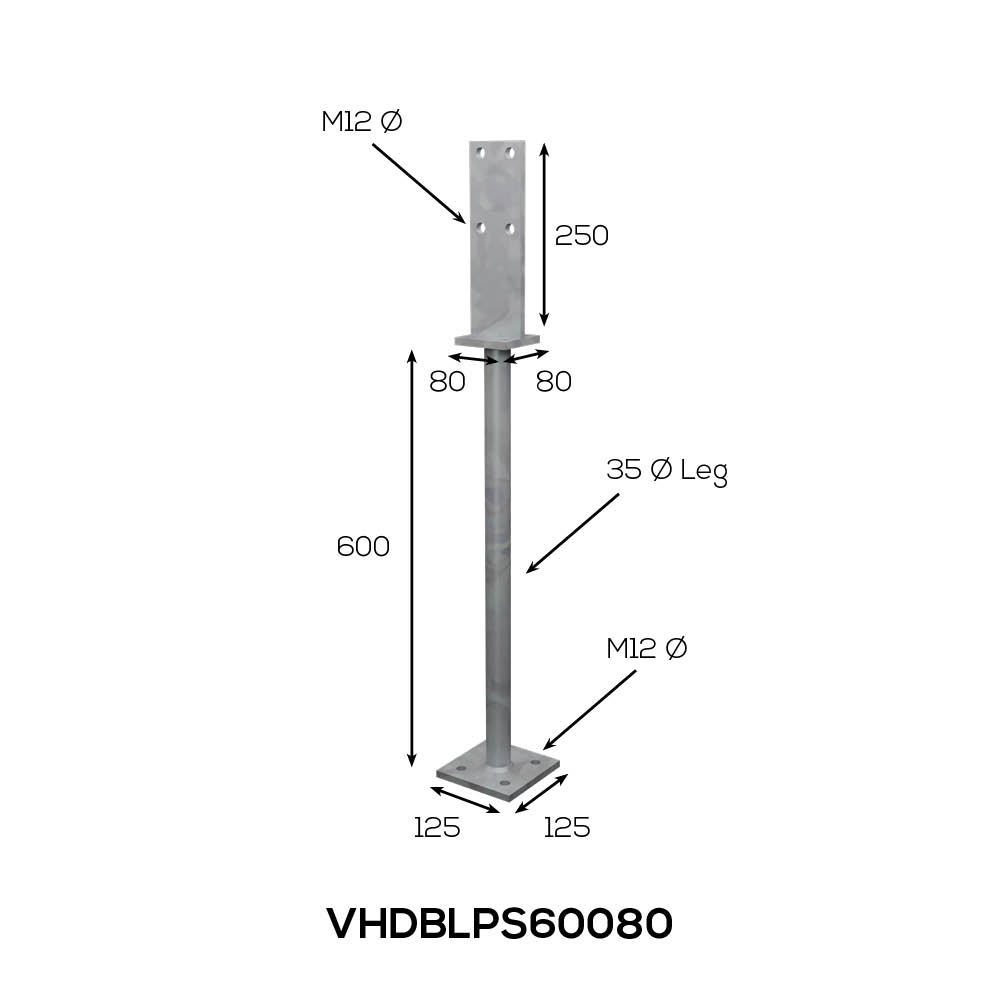

| VHDBLPS60080 | 80mm x 80mm Base, 250mm Blade, 600mm x 35mm Leg | 90 - 100mm | M12 |

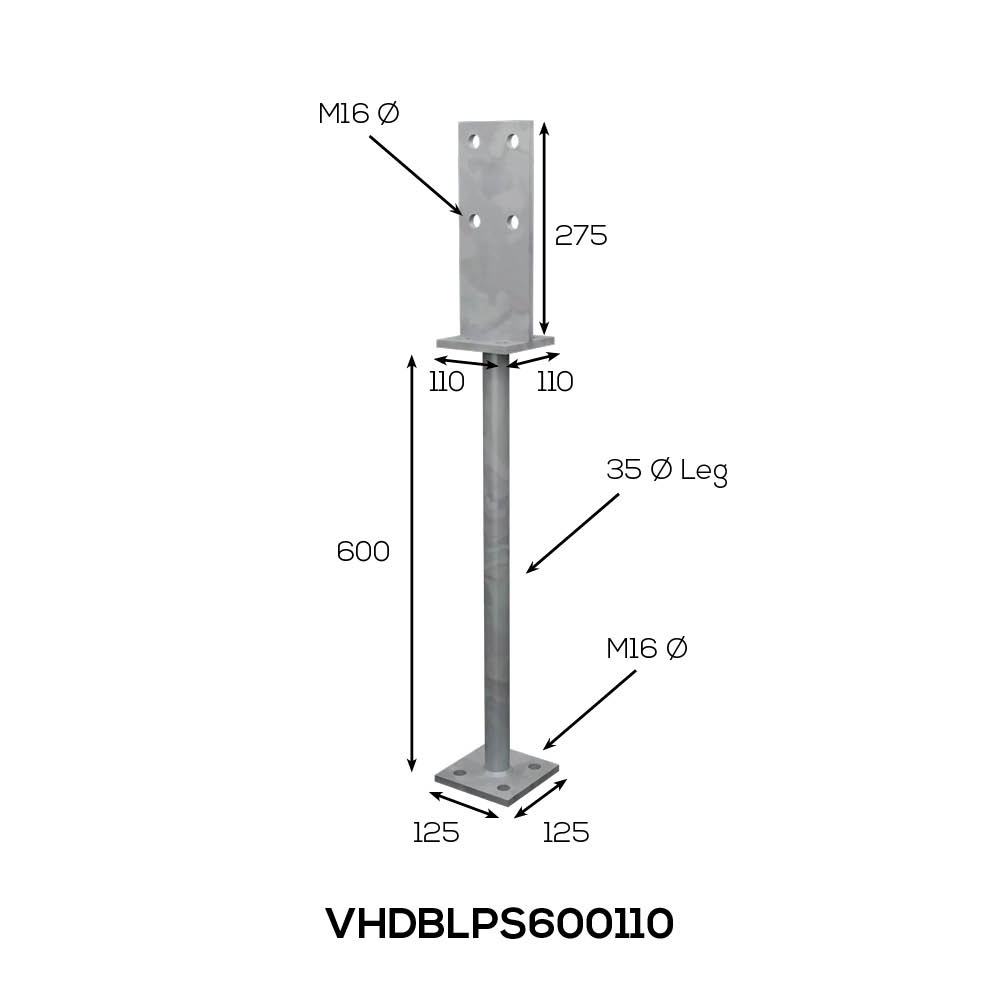

| VHDBLPS600110 | 110mm x 110mm Base, 275mm Blade, 600mm x 35mm Leg | 115 - 140mm | M16 |

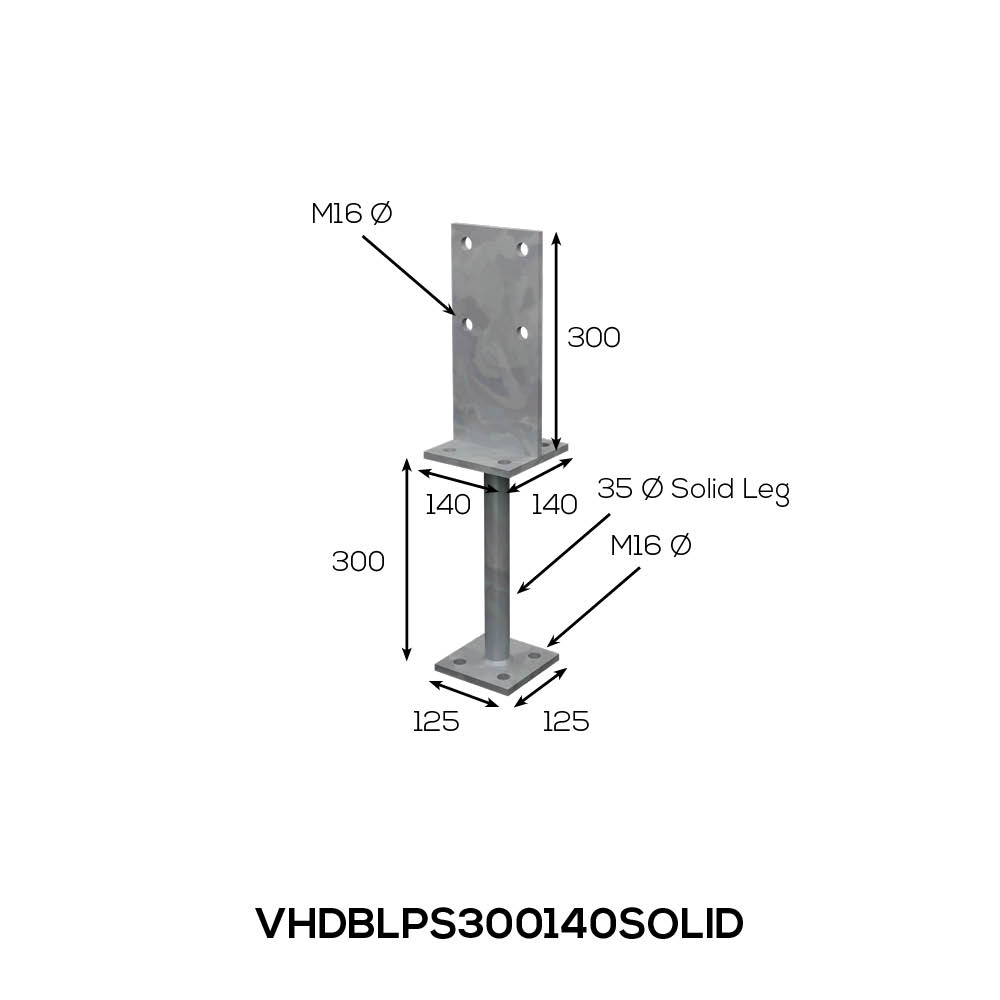

| VHDBLPS300140SOLID | 140mm x 140mm Base, 300mm Blade, 300mm x 35mm Solid Leg | 150 - 180mm | M16 |

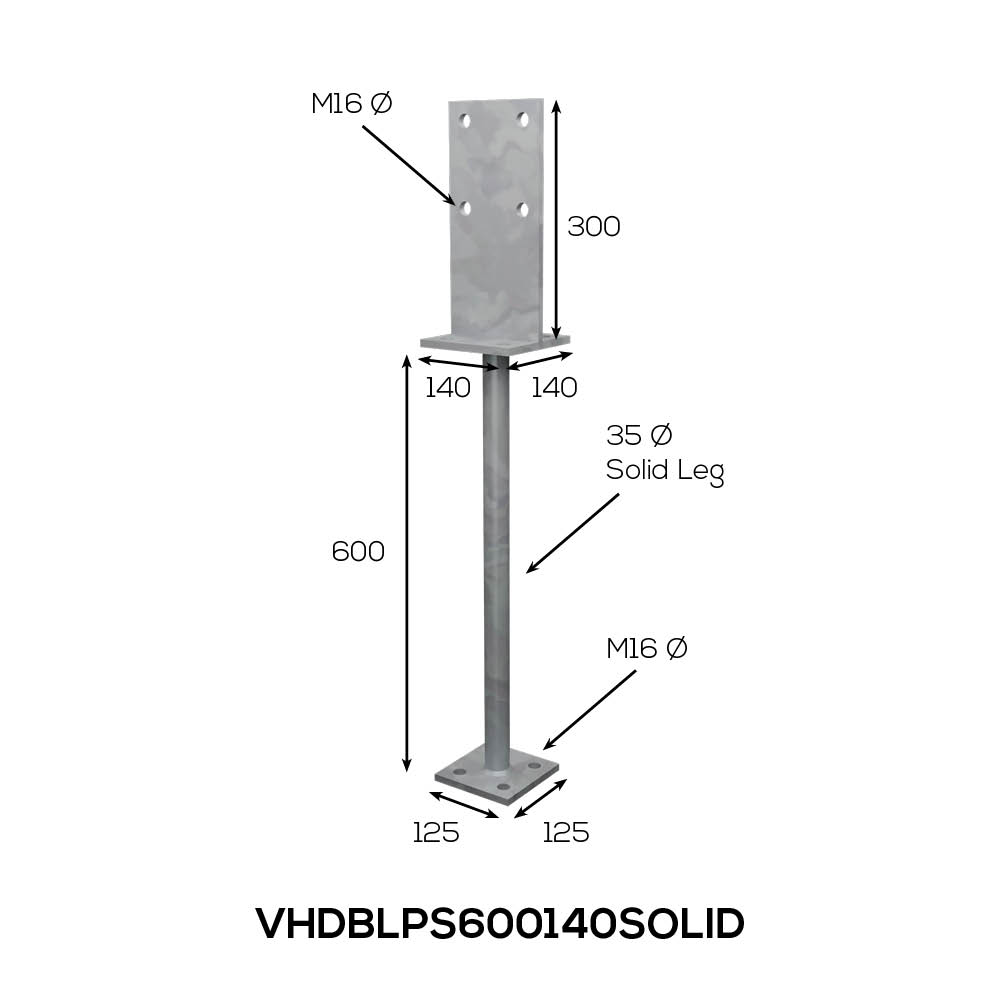

| VHDBLPS600140SOLID | 140mm x 140mm Base, 300mm Blade, 600mm x 35mm Solid Leg | 150 - 180mm | M16 |

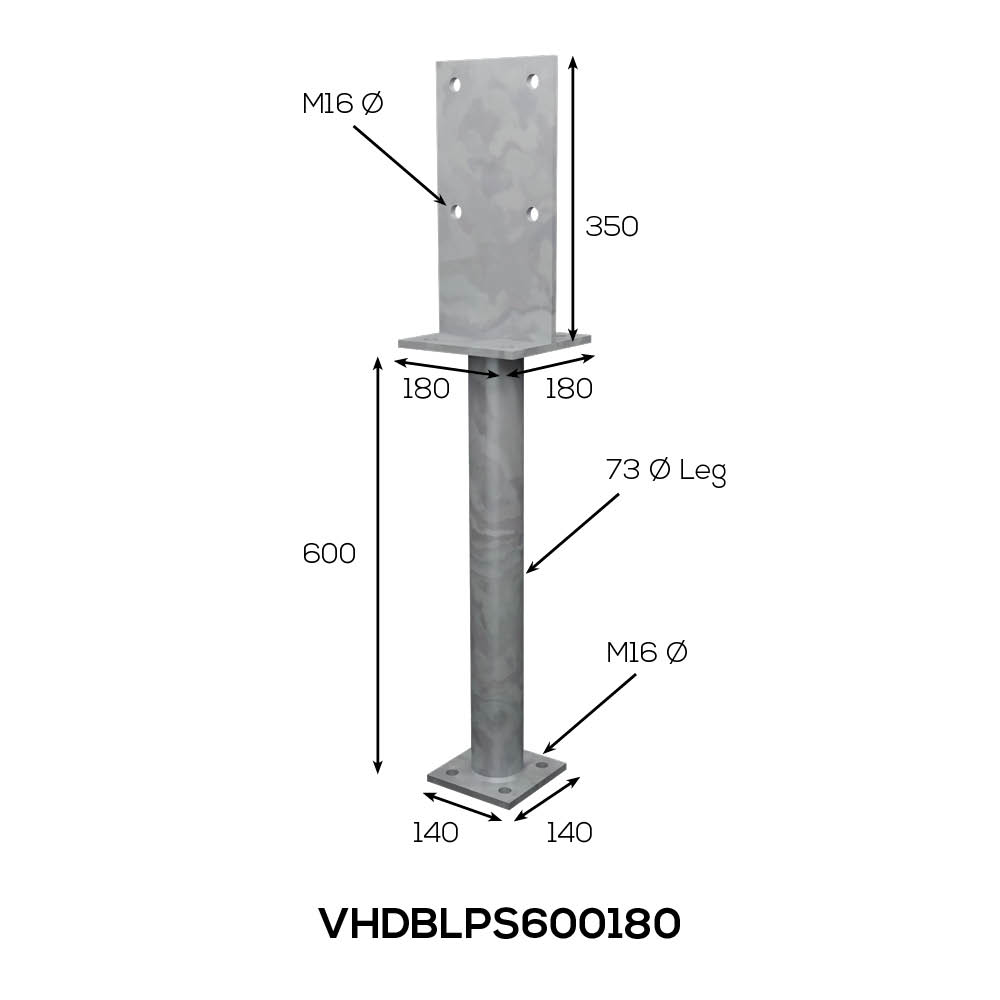

| VHDBLPS600180 | 180mm x 180mm Base, 350mm Blade, 600mm x 73mm Leg | 180 - 250mm | M16 |
